ST FP-SNS-6LPNODE1 Quick Start Manual page 5

Motion MEMS and environmental sensors expansion board
OPTIONAL
X-NUCLEO-IKS01A1 Hardware Description
•
The X-NUCLEO-IKS01A1 is a motion MEMS and environmental
sensor evaluation board system.
•
It is compatible with the Arduino UNO R3 connector layout, and is
designed around ST's latest sensors.
Key Features
•
The X-NUCLEO-IKS01A1 is a motion MEMS and environmental
sensor evaluation board system.
•
All sensors are connected on a single I²C bus
•
Sensor I²C address selection
•
Each sensor has separate power supply lines allowing power
consumption measurement
•
Sensor disconnection (disconnect the I²C bus as well as the
power supply)
•
Interrupt and DRDY signals from sensors
•
DIL24 socket (Compatible to STEVAL-MKI***V* MEMS adapter
boards, i.e. STEVAL-MKI160V1)
Key Product on board
LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope
(±245/±500/±2000 dps)
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25HB: MEMS pressure sensor, 260-1260 hPa absolute digital
output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin: socket available for additional MEMS adapters and
other sensors

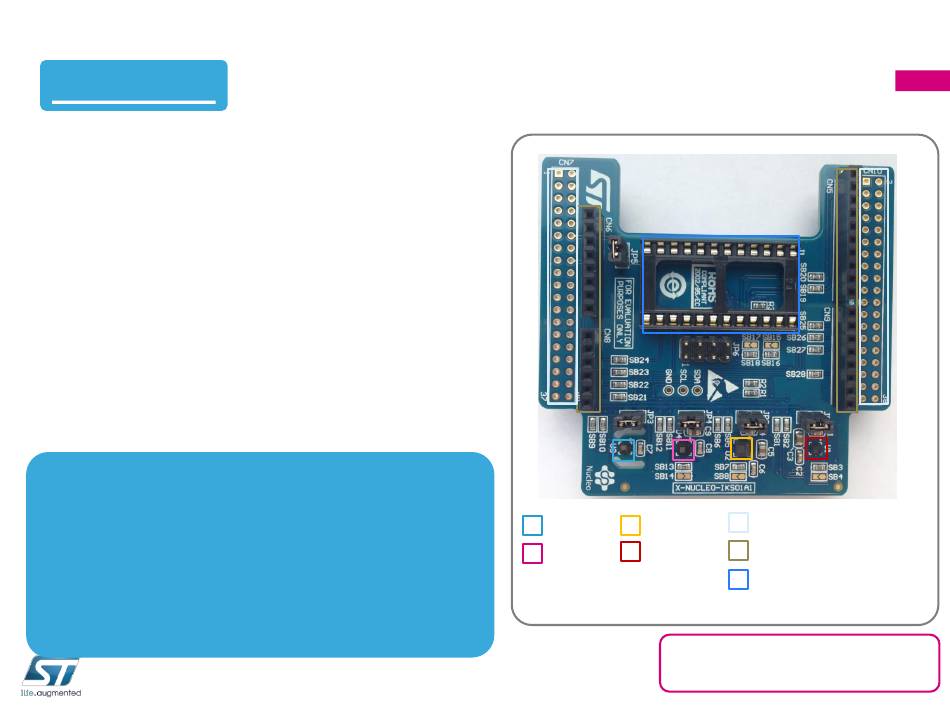

Hardware Overview (3/5)
HTS221
LSM6DS0
LIS3MDL
LPS25HB
** Connector for the STM32 Nucleo Board
Latest info available at www.st.com
ST morpho connector**
Arduino UNO R3 connector
DIL 24-pin
X-NUCLEO-IKS01A1
