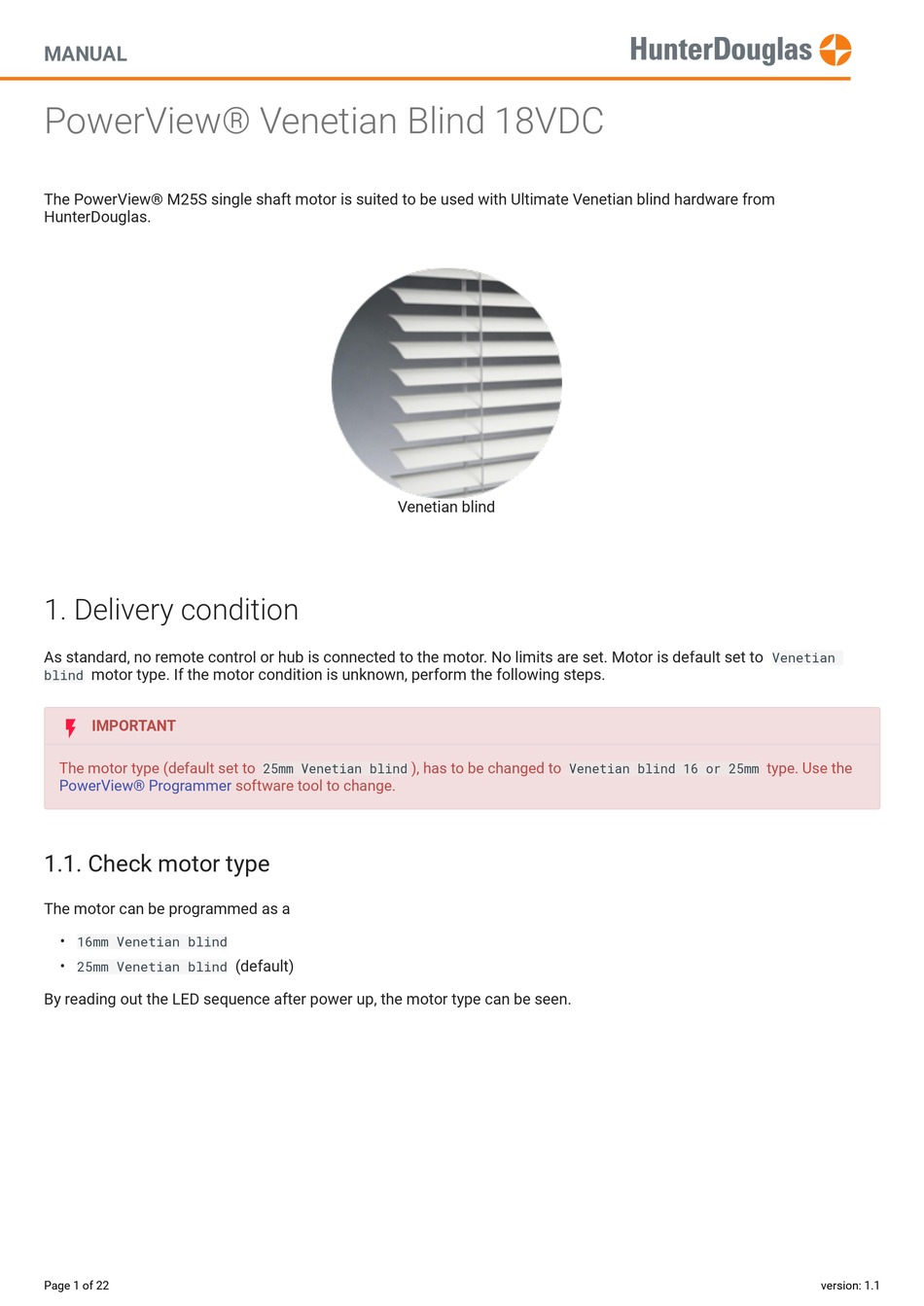

MANUAL
PowerView® Venetian Blind 18VDC
The PowerView® M25S single shaft motor is suited to be used with Ultimate Venetian blind hardware from
HunterDouglas.
1. Delivery condition
As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to
motor type. If the motor condition is unknown, perform the following steps.
blind
IMPORTANT
The motor type (default set to
PowerView® Programmer
1.1. Check motor type
The motor can be programmed as a
•
16mm Venetian blind
•
25mm Venetian blind
By reading out the LED sequence after power up, the motor type can be seen.
Page 1 of 22
Venetian blind
25mm Venetian blind
software tool to change.
(default)
), has to be changed to
Venetian blind 16 or 25mm
Venetian
type. Use the
version: 1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerView Venetian Blind 18VDC and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter Douglas PowerView Venetian Blind 18VDC

Summary of Contents for Hunter Douglas PowerView Venetian Blind 18VDC

  • Page 1 MANUAL PowerView® Venetian Blind 18VDC The PowerView® M25S single shaft motor is suited to be used with Ultimate Venetian blind hardware from HunterDouglas. Venetian blind 1. Delivery condition As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to Venetian motor type.
  • Page 2 MANUAL 1.1.1 Power up the motor by connecting the power cable to the battery wand or power supply. 1.1.2 Immediately Check the motor button LED sequence after start up. 1.1.3 The LED sequence should read: 16mm Venetian blind 25mm Venetian blind 1.2.
  • Page 3 MANUAL 1.2.1 Remove power from the motor by disconnecting the power cable from the battery wand or power supply and wait for 20 seconds. 1.2.2 Press and hold the on the manual control button motor. 1.2.3 Reconnect power to the motor while press and hold manual control button The motor LED turns red/green 1.2.4...

  • Page 4: Network Reset

    MANUAL 1.2.5 Release the manual control button The end limits have been cleared. 1.3. Network reset This procedure will erase all network data stored in the motor, including Network ID and Group assignments. It will not clear the end limits. Completing a Network reset will prevent a PowerView® remote or App from operating the window covering until it is reprogrammed.
  • Page 5 MANUAL Locate the on your blind. manual control button Press and hold the  stop button for 6 seconds. Keep pressing until the remote lights start blinking Press the  button. group1 IMPORTANT  Watch out to perform steps 2.4 and 2.5 within 3 seconds! Press and hold the manual control button Page 5 of 22...
  • Page 6 MANUAL Press the  button. open The blind will jog 1x Release the manual control button Press and hold the  stop button for 6 seconds. Keep pressing until the remote lights stop blinking The remote will exit programming mode automatically after 20 seconds.
  • Page 7 MANUAL 3.1.1 Press and hold the manual control button 3.1.2 Press the  open button. Make sure  on the remote is selected. group1 The blind will jog 1x 3.1.3 Release the manual control button The motor LED turns red to acknowledge the motor is in program mode 3.2.
  • Page 8 MANUAL 3.2.2.A 3.2.2.B If the blind moves upwards, Press the  If the blind moves downwards, Press the  stop button. stop button and continue with step 4.1.4 Motor direction NOT OK! Motor direction OK! 3.2.3 Press and hold the for 1 manual control button second to reverse motor direction.
  • Page 9 MANUAL 4.1. Open limit (top) 4.1.1 Press and hold the manual control button 4.1.2 Press the  button. open Make sure  group1 on the remote is selected. The blind will jog 1x 4.1.3 Release the manual control button The motor LED turns red to acknowledge the motor is in program mode 4.1.4 Use the ...
  • Page 10 MANUAL 4.1.5 Use the  button to let the blind hit the headrail. open The motor will stop moving. The motor needs to hit the headrail! 4.1.6 Move the blind to the desired top position with the  ,  and ...
  • Page 11 MANUAL 4.1.9 Press the  button. open The blind will jog 1x to acknowledge the limit is set 4.1.10 Release the manual control button The motor LED turns off 4.1.11 Press and hold the  stop button for 6 seconds. Keep pressing until the remote lights stop blinking The remote will exit programming mode automatically after 20 seconds.
  • Page 12 MANUAL  Note To re-position the top limit of the blind, repeat step 4.1 Open limit (top). 4.2. Close limit (bottom) 4.2.1 Press and hold the manual control button 4.2.2 Press the  close button. Make sure  on the remote is selected. group1 The blind will jog 1x 4.2.3...
  • Page 13 MANUAL 4.2.4 Use the  ,  and  buttons to open stop close move the blind to the desired bottom position. 4.2.5 Press and hold the  button for 6 seconds. stop DO NOT select a group on the remote! Keep pressing until the remote lights start blinking ...
  • Page 14 MANUAL 4.2.7 Press the  button. close The blind will jog 1x to acknowledge the limit is set 4.2.8 Release the manual control button The motor LED turns off 4.2.9 Press and hold the  button for 6 seconds. stop Keep pressing until the remote lights stop blinking The remote will exit programming mode automatically after 20 seconds.
  • Page 15 MANUAL 4.2.10 The bottom limit is set!  Note To re-position the bottom limit of the blind, repeat step 4.2. Close limit (bottom). 5. Slat open position The slat open position is automatically set, by selecting blind type in the PowerView®...
  • Page 16 MANUAL Press the  button. group1 Press the  close button to move the blind to the bottom position.  IMPORTANT Watch out to perform steps 5.4 and 5.5 within 3 seconds! Press and hold the on your manual control button blind.
  • Page 17 MANUAL Press and hold the  button until the arrow up motor LED turns red. The motor LED turns red to acknowledge the motor is in program mode Determine the maximum rotation position using the  ,  and  buttons.
  • Page 18 MANUAL Press and hold the  button for 6 seconds. stop DO NOT select a group on the remote! Keep pressing until the remote lights start blinking  IMPORTANT Watch out to perform steps 5.8 and 5.9 within 3 seconds! Press and hold the on your manual control button...
  • Page 19 MANUAL 5.11 Press and hold the  button for 6 seconds. stop Keep pressing until the remote lights stop blinking The remote will exit programming mode automatically after 20 seconds. 5.12 The slat open position is set! 6. Motor control button LED The motor control button LED gives an indication of the motor status.

  • Page 20: Battery Operation

    MANUAL Network reset on manual control button release, chapter 1.3. Blind type: Venetian 16mm slat Network reset on manual control button release, chapter 1.3. Blind type: Venetian 25mm slat Battery operation Low battery indication (< 11.0V). The blind will run in slow mode and can only be send upwards.
  • Page 21 MANUAL Jog 1x Action confirmed. Jog 2x Action denied on move command: no limit set. Action denied on move command: no valid close limit set. Action denied on move command: no valid open limit set. Jog 3x Action denied on open limit set: open limit is not referenced (did not hit headrail! See step 4.1.5) Jog 4x...

  • Page 22: Important Notice

    Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Hunter Douglas under the patents or other intellectual property of Hunter Douglas.
