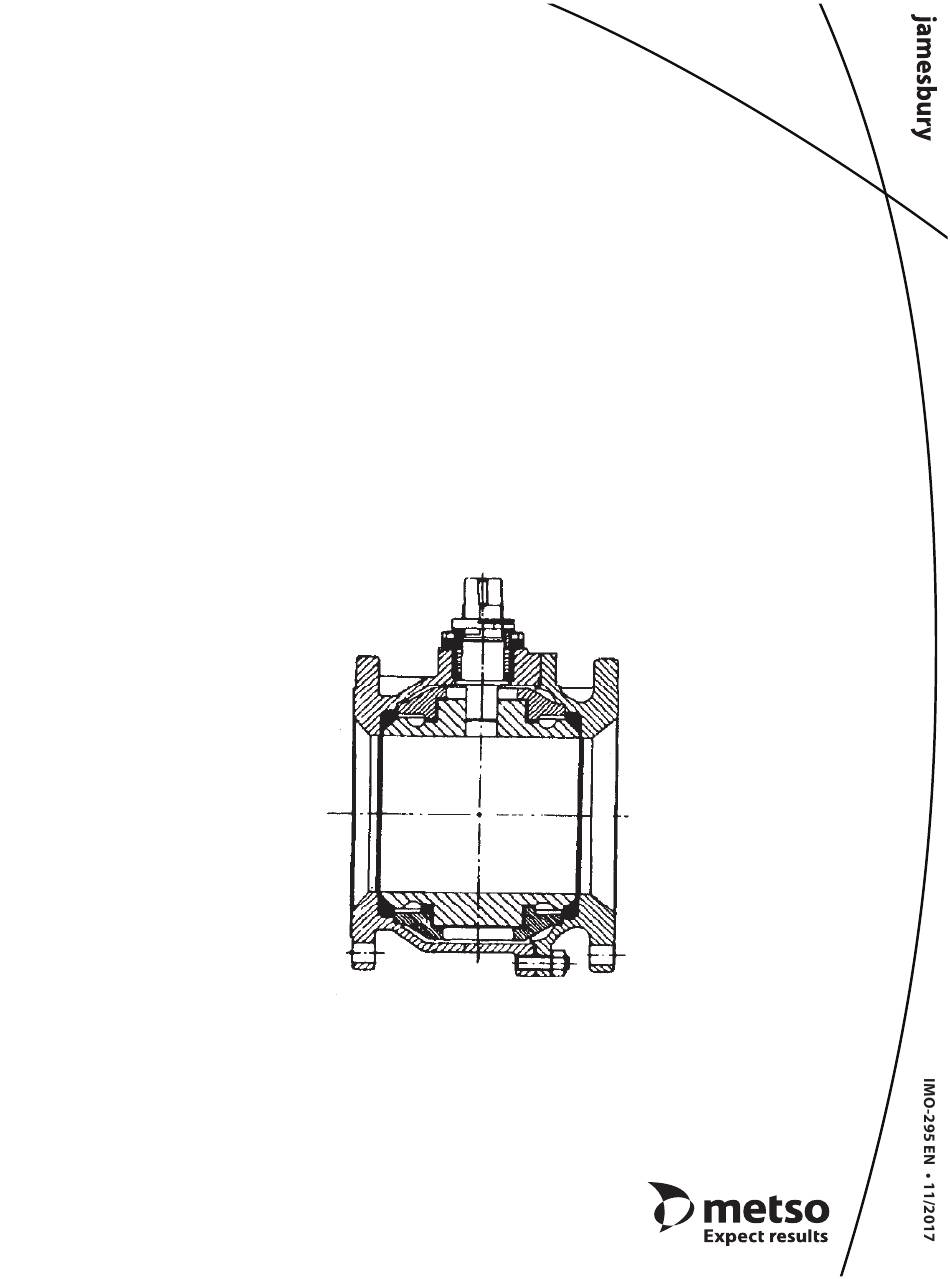

- Page 1 REACTOR DISCHARGE VALVES 8” - 12” 530S & 5300 6” - 10” 6300 DIGESTER BLOW VALVES 8” - 12” 530SB & 5300SB 6” - 10” 6300B FLANGED BALL VALVES Installation, Maintenance and Operating Instructions...
-
Page 2: Table Of Contents
These instructions provide information about safe handling and operation of the valve. If you require additional assistance, please contact the manufacturer or manufacturer’s representative. Addresses and phone numbers are printed on the back cover. See also www.metso.com/valves for the latest documentation. SAVE THESE INSTRUCTIONS! IMO 11/17... -
Page 3: General
This instruction manual contains important information REPAIR KITS regarding the installation, operation and maintenance of the 6” 6300 8” 6300 10” 6300 VALVE Jamesbury® Reactor Discharge Valves 8” - 12” 530S & 5300, 8” 530S 10” 530S 12” 530S SIZE 8” 5300 10” 5300 12”... -
Page 4: Assembly
IMO-302 EN 13. Remove the seat (5) from the body (1) and body cap (2) using the proper disassembly method for that type seat as follows: A. 316SS/Filled TFE Metal Wrapped Seats, DIGESTER BLOW VALVES: Remove the seats by first chipping and grinding away the tack welds that are holding the seat (5) in its cavity on the Tack Welds side opposite the seat retainer (See Figure 1). - Page 5 IMO-302 EN plate should be started squarely on the trunnion and 15. Align the stem retainer flange holes with the tapped evenly tapped with a plastic mallet. With new bearings holes in the body bonnet. Lubricate the hex head it may be necessary to tap and rotate the plate all the cap screws (29) with Never-Seez or equivalent.
-
Page 6: Service / Spare Part
Valves sent to the service center without MSDS datasheet(s) will not be accepted. For further information on spare parts and service or assistance visit our web-site at www.metso.com/valves. NOTE: When ordering spare parts, always include the following information: Valve catalog code from identification plate, b. - Page 7 IMO-302 EN Stem Retainer 12 HOLE FASTENER PATTERN 6”, 10” 6300, 8” 530S/5300 16 HOLE FASTENER PATTERN 10” - 12” 530S/5300 Figure 4 IMO 11/17...
- Page 8 IMO-302 EN TABLE 2 BALL POSITION VALVE SIZES DIMENSION “B” 6” 6300 (B) 8” 530S (B) 1-3/32 8” 5300 (B) 8” 6300 (B) 10” 530S (B) 1-3/16 10” 5300 (B) 10” 6300 (B) 12” 530S (B) 1-9/16 12” 5300 (B)
- Page 9 41++ ALIGNMENT PIN REACTOR DISCHARGE VALVES ONLY ** 10” 6300, 12” 530S & 12” 5300 ONLY *** 8” 530S, 10” 530S & 12” 530S ONLY 10” 530S, 12” 530S & 12” 5300 ONLY ++ 6” 6300, 8” 5300, 10” 5300 & 12” 5300 ONLY (See paragraph 6 on page 3 under Assembly Instructions.)
- Page 10 IMO-302 EN FLAT TRUNNION PLATE COUNTER BORED TRUNNION PLATE Trunnion Plate Upper Trunnion Plate Upper 3/16” 1/16” Ball Ball Ball Ball 1/16” 3/16” Trunnion Plate Lower Trunnion Plate Lower Figure 6 IMO 11/17...
- Page 11 IMO-302 EN IMO 11/17...
- Page 12 IMO-302 EN Subject to change without prior notice. Metso Flow Control Inc. Europe, Vanha Porvoontie 229, P.O. Box 304, FI-01301 Vantaa, Finland. Tel. +358 20 483 150. Fax +358 20 483 151 North America, 44 Bowditch Drive, P.O. Box 8044, Shrewsbury, M A 01545, USA. Tel. +1 508 852 0200. Fax +1 508 852 8172 South America, Av.
