3.0 Dimensional sketches / Connections

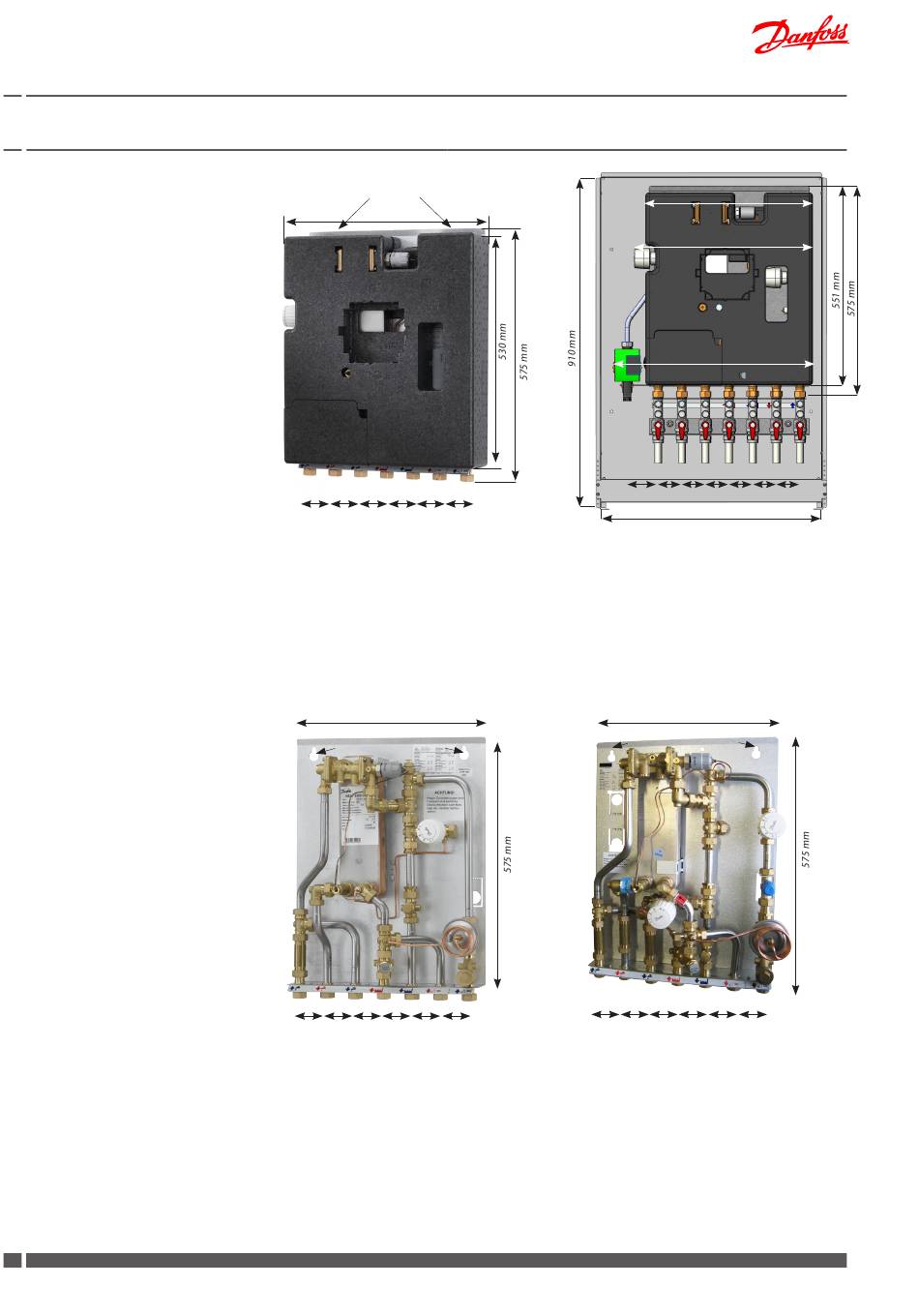

Type 004U8264: Akva Lux II TDP-F,
fully insulated
Connections:
0 Recirculation
1 Domestic cold water (DCW)
2 Domestic hot water (DHW)
3 Domestic cold water (DCW)
4 District heating (DH) supply
5 District heating (DH) return
6 Heating (HE) supply
7 Heating (HE) return
Depth incl. mounting plate:
115 mm
Connections size:
DH, HE, DCW, DHW: ¾" IT
Recirculation: R½" ET
Type 004U8089: Akva Lux II TDP-F
with bypass thermostat mounted
before heat meter.
Type 004U8044: Akva Lux II TDP-F
with bypass thermostat mounted
after heat meter.
Connections:
1 Domestic cold water (DCW)
2 Domestic hot water (DHW)
3 Domestic cold water (DCW)
4 District heating (DH) supply
5 District heating (DH) return
6 Heating (HE) supply
7 Heating (HE) return
Depth: 150 mm
Connections size:
DH, HE, DCW, DHW ¾" IT
Recirculation: R½" ET
6
DKDHR
Akva Lux II TDP-F
Keyholes for mounting
460 mm
7
1 2 3 4 5 6
65 mm 65 mm 65 mm 65 mm 65 mm 65 mm
Type 004U8089
440 mm
Keyholes for mounting
1 2 3 4 5 6 7
65 mm 65 mm 65 mm 65 mm 65 mm 65 mm
VI.HE.A1.02
460 mm
491 mm
550 mm
0 1 2 3 4 5
90 mm 65 mm 65 mm 65 mm 65 mm 65 mm
610 mm
Akva Lux II TDP-F with recirculation, - in recess box
Type 004U8044
440 mm
Keyholes for mounting
1 2 3 4 5 6
65 mm 65 mm 65 mm 65 mm 65 mm 65 mm
Danfoss District Energy
6 7
65 mm
7
