9.2 Installation instructions - recirculation connection - Circulation set 2 - 004U8401
G2
E2
L
You must always fit a pump and a non-return valve to the recir-
culation pipe, with flow direction towards the substation.
A safety valve must be mounted in the DCW inlet.
For recirculation connection please refer to installation instructions
for circulation set 1 - 004U8400.
20 DKDHR
I
H
A
B
F
C
J
D
K
Akva Lux II TDP-F
G1
E1

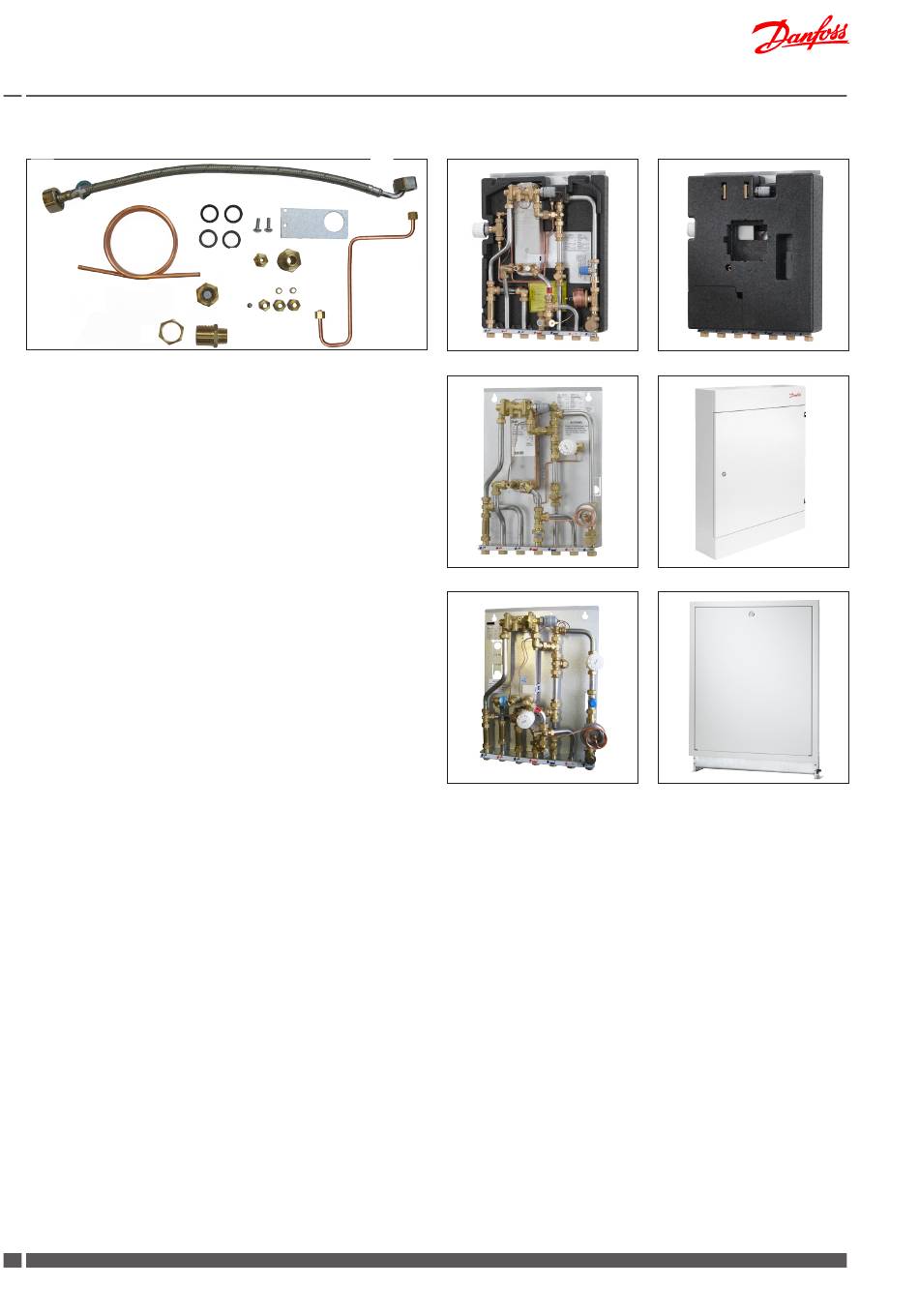

Akva Lux II TDP-F, Type 004U8264
Akva Lux II TDP-F, Type 004U8089
Akva Lux II TDP-F, Type 004U8044
VI.HE.A1.02
Cover for wall mounting
Cover for recess mounting
