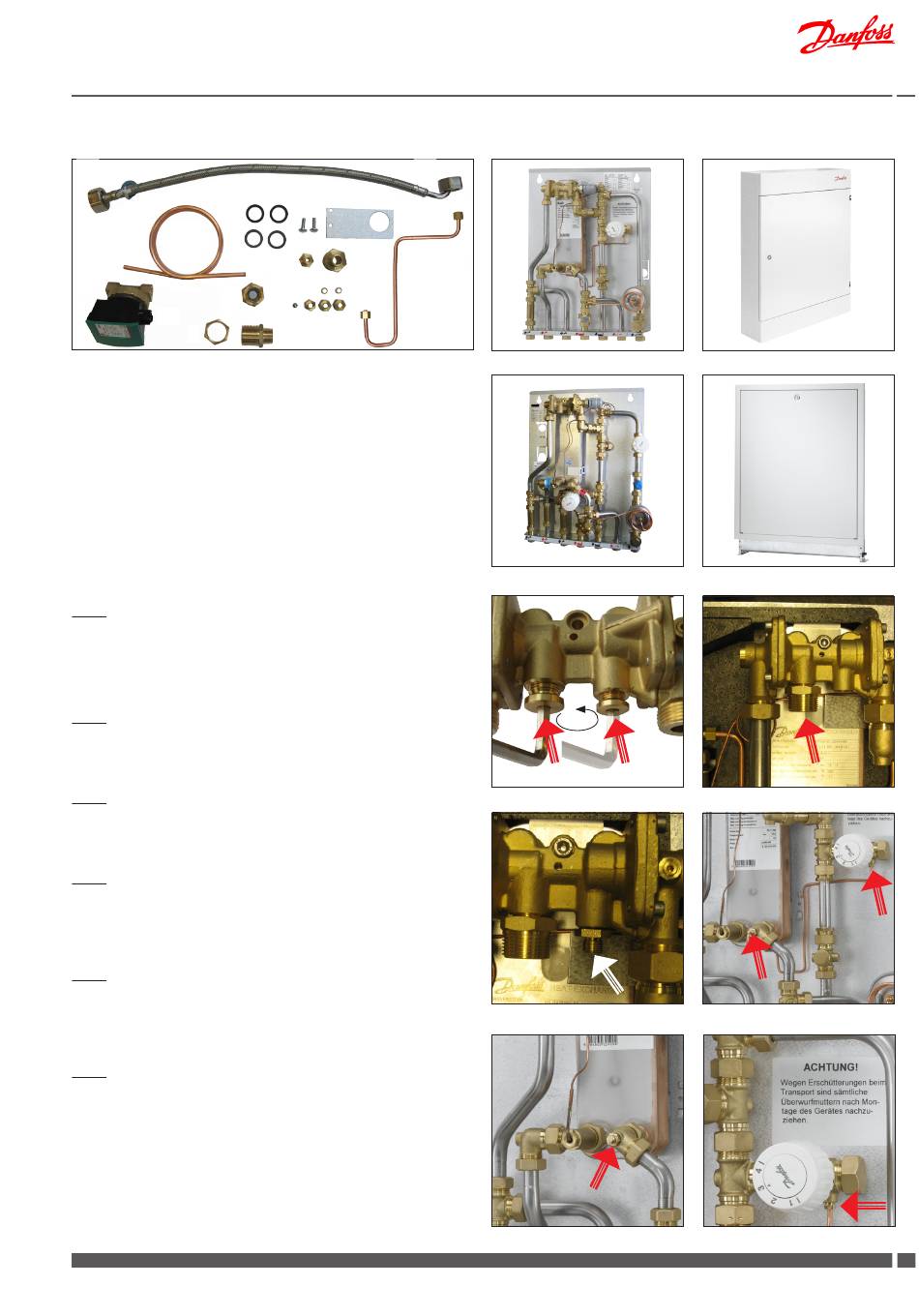

Instructions for installation and use
G2
E2
J
M
L
You must always fit a pump and a non-return valve to the recir-
culation pipe, with flow direction towards the substation.
A safety valve must be mounted in the DCW inlet.
Fig. 1
Remove the nipples/plugs from the domestic hot water controller
(use a 6 mm Allen key).
Fig. 2
Mount hexagon nipple A in the DHW controller (pack).
Fig. 3
Fit pipe bushing B in the DHW controller.
Fig. 4
Remove the existing capillary tube and union nut from bypass
thermostat and angle piece (do not re-use).
Fig. 5
Plug the hole in the angle piece with the steel ball C and a union
nut D.
Fig. 6
Fit new capillary tube E2 in bypass thermostat by means of cutting
rings F and a union nut D. Tighten with single end wrench.
Danfoss District Energy
G1
I
H
E1
A
B
F
C
D
K
VI.HE.A1.02
Akva Lux II TDP-F
Akva Lux II TDP-F, Type 004U8089
Akva Lux II TDP-F, Type 004U8044
Fig. 1
Fig. 3
Fig. 5
Cover for wall mounting
Cover for recess mounting
Fig. 2
Fig. 4
Fig. 6
