Instructions for installation and use

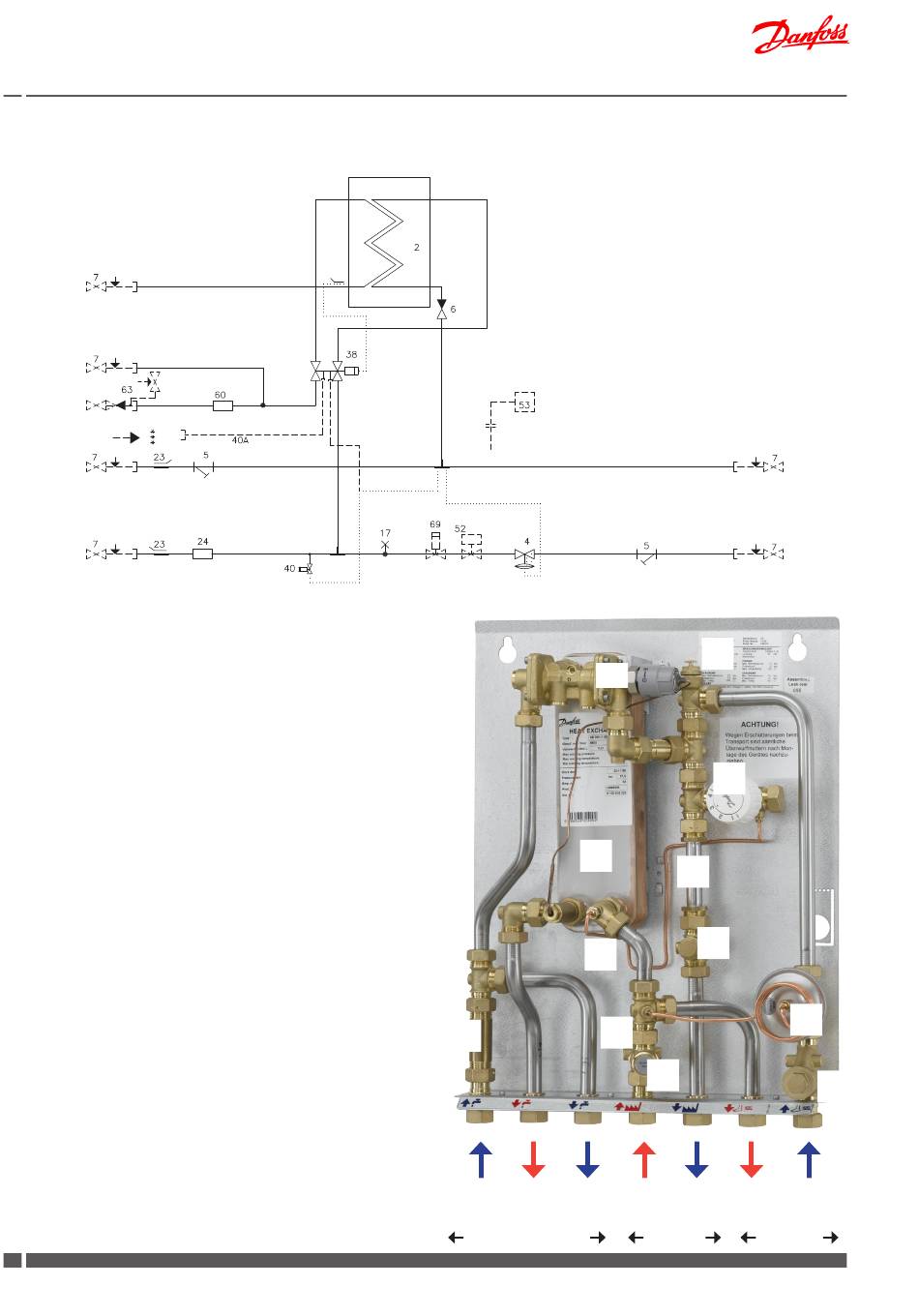

5.2 Akva Lux II TDP-F (with bypass thermostat mounted before heat meter) - Type 004U8089

DHW
DCW
DCW
DH
Supply
DH
Return
2 Plate heat exchanger DHW
4 Differential pressure controller
5 Dirt strainer
6 Non-return valve
17 Air vent
23 Sensor pocket for heat meter
24 Fitting piece for heat meter
38 PTC2+P controller
40 Thermostat for bypass/circulation
60 Fitting piece for DCW meter
Please note that the ball valves are not part of the delivery and
mus be mounted on site.
Please note:
Your substation may look different than the substation shown,
as variants with other components may be supplied.
The control function, however, is basically as stated in this
instruction manual.
Instructions for the fitted components will be supplied together
with the substation.
Connections size:
DH, HE, DHW, DCW: G¾" IT
Recirc.: R½" ET
4
DKDHR
Connection for circ.
Circ. (option)
Bypass
(Standard)
Akva Lux II TDP-F
Room thermostat
(dly. as loose part)
60
DCW DHW DCW
Domestic water
VI.HE.A1.02
2 Plate heat exchanger, DHW
4 Differential pressure controller
5 Dirt strainer
6 Non-return valve
17 Air vent
23 Sensor pocket for heat meter ½"
24 Fitting piece for heat meter, ¾" x 110 mm
38 PTC2+P controller
40 Danfoss FJVR thermostat for bypass/circulation
60 Fitting piece for DCW meter, 3/4" x 80 mm
----------------------------------------------------------------
Options:
7 Ball valve
40A Connection for circulation
52 Zone valve Danfoss RA-C / Actuator TWA-A NC
53 Room thermostat
63 Complete safety valve set incl. ball valve 60 mm
69 Return temperature limiter FJVR
17
38
40
2
24
23
6
23
5
DH DH HE
Supply Return Supply
Primary Secondary
Danfoss District Energy
HE
Supply
HE
Return
4
5
HE
Return
