Instructions for installation and use

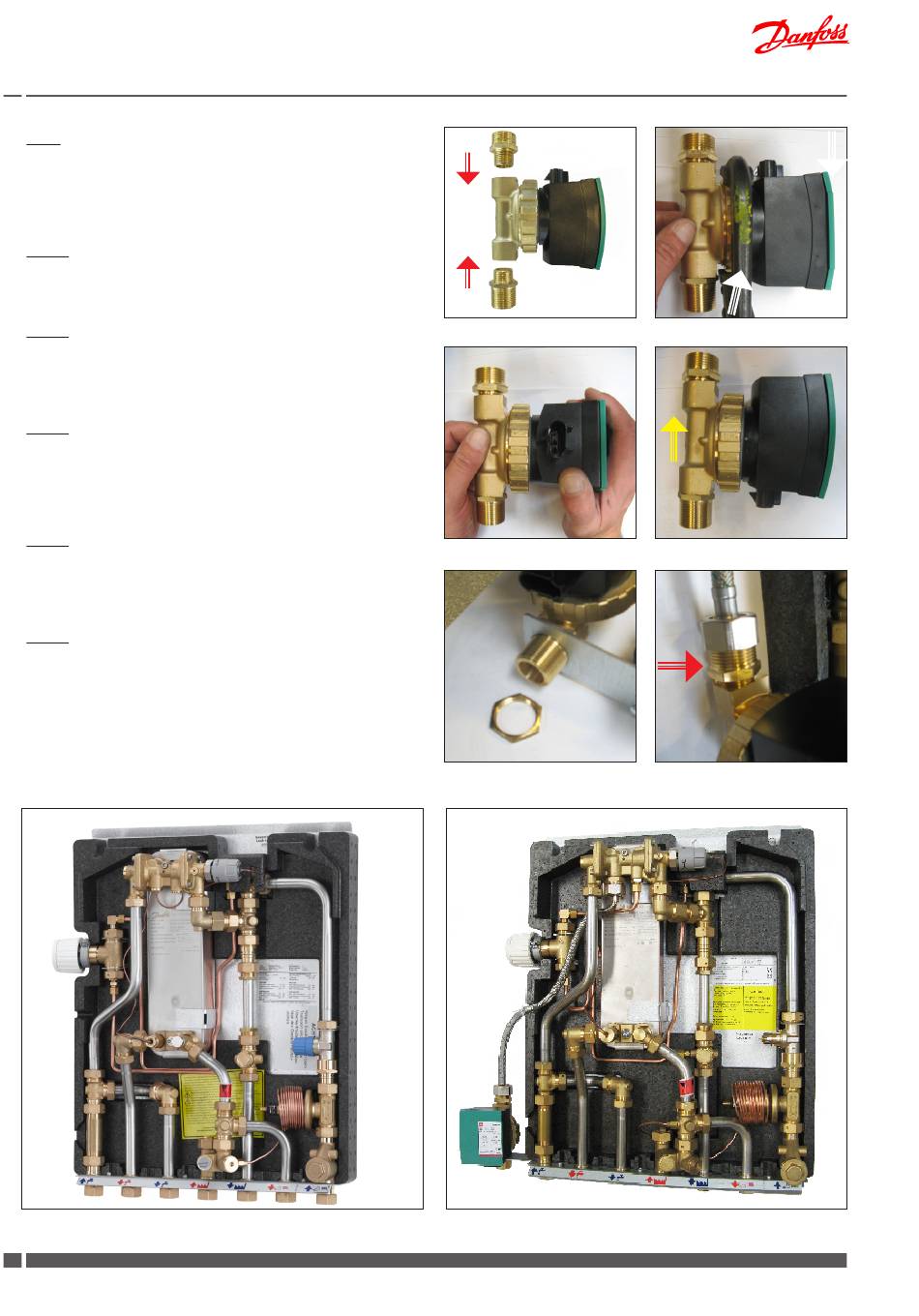

Fig. 9
Mount non-return valve J and hexagon nipple K in the pump, as
shown on the photo to your right.
Fig. 10
Loosen union nut.
Fig. 11
Turn pump motor head by 180 degrees. Tighten the union nut
again.
Fig. 12
Please note that the arrow on the back of the housing indicates
the dirction of flow. - Please note the position of the arrow as
shown in the photo to your right.
Fig. 13
Fit pump in bracket H and fasten with locknut L.
Fig. 14
Fit circulation hose end G2 in non-return valve J. (Do not forget
gasket!)
Akva Lux II TDP-F with bypass-function.
16 DKDHR
Akva Lux II TDP-F
J
K
Fig. 9
Fig. 11
Fig. 13
Akva Lux II TDP-F, prepared for domestic hot water recirculation.
VI.HE.A1.02
Fig.10
Fig.12
Fig.14
