Motherboard KL35
User Manual V1.2
Edition Statement:
Version
V1.0
Initial version
1. Update GPIO description
V1.1
2. Add the description of eDP to LVDS conversion
3. Add the description of CPU vPRO technology
1. Update AUDIO description
V1.2
2. Add the description of USB3.0
3. Delete the description of eDP to LVDS conversion.
Version Description
1
KL35 User Manual
Release date
2017/07/31
2017/10/10
2017/11/22
Advertisement
Related Manuals for Maxtang KL35
Summary of Contents for Maxtang KL35
- Page 1 KL35 User Manual Motherboard KL35 User Manual V1.2 Edition Statement: Version Version Description Release date V1.0 Initial version 2017/07/31 1. Update GPIO description V1.1 2017/10/10 2. Add the description of eDP to LVDS conversion 3. Add the description of CPU vPRO technology 1.
-
Page 2: Chapter 1 Product Introduction

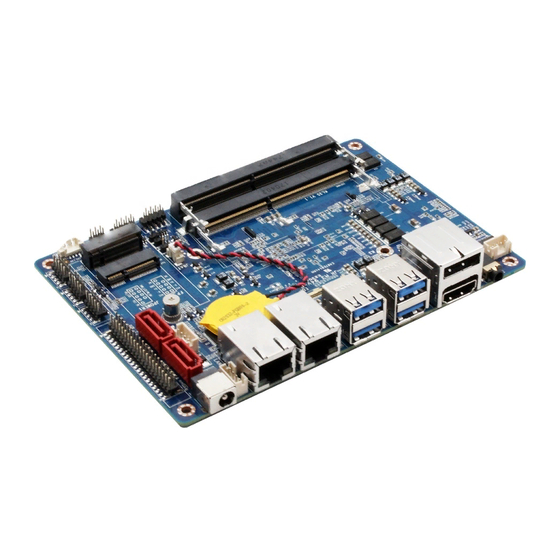

Chapter 1 Product Introduction 1.1 Main Information The KL35 is a 3.5”motherboard which is based on Intel Kabylake-U (Skylake-U optional), supporting Core i3, i5, i7 and Celeron processors. This board features small form factor, low power consumption and high performance. - Page 3 KL35 User Manual Ethernet: 2 × Gigabit LAN(intel). Audio: Onboard High resolution audio chip, supports Speaker_out, MIC_in and amplifier. Other I/O: 1×M.2 Key E (for 2230 WIFI card), 1 × LPC header (optional), 1 × GPIO header, 4 × RS232, 2 × RS485.
-
Page 4: Chapter 2 Hardware
KL35 User Manual Chapter 2 Hardware 2.1 Connector Diagram AUDIO DC_IN USB3.0 LAN2 USB3.0 LAN1 SATA2 COM1～4 DP + HDMI SATA1 M.2_WIFI MEMORY M.2_SSD 或 3G、4G JPOWER PWR_AUTO GPIO USB2.0 USB2.0 CPU_FAN COM5_6 Micro SIM... - Page 5 KL35 User Manual 2.2 Jumper Setting Tips about how to identify the first header of jumpers and interfaces: 1. Observe the mark beside plugs, the first header is usually marked by “1” or bold line or triangular symbol; 2. The first header is the square pad of pads on the back.
- Page 6 KL35 User Manual 2.6 Storage slots (Silk-print: M.2_S, SATA1, SATA2, PWSATA) M.2_S：M.2 Key B, supports 2242 SSD, onboard Micro SIM slot, supports 3G/4G module. SATA1, SATA2：if Core CPU onboard, the board supports two SATA3.0 connectors, If Celeron or Pentium CPU onboard, the board supports one SATA3.0 connector(SATA1).
- Page 7 KL35 User Manual Amplifier Output Socket (silk-print: JAUD): Signal 2.10 Serial Ports 4 × RS232 and 2 × RS485 by header. RS232 interfaces are charged, and their voltage is the same as the input voltage of the board. RS232 (silk-print: COM14)：...
- Page 8 KL35 User Manual 2.11 Power Supply (silk-print: PWR1, PWR2) 9V～24V DC_IN adapter PWR1: PWR2: Signal 2.12 GPIO (silk-print: GPIO) Onboard 2×5Pin JGPIO header (2.0mm spacing), 8 × GPIO input and output. Signal PinPin Signal SIO_GP70 3.3V SIO_GP71 SIO_GP74 SIO_GP72 SIO_GP75...
- Page 9 KL35 User Manual HDD_LED- PWR_LED- RSTBTN+ PWR_ON+ RSTBTN- PWR_ON- (NUL) 2.15 CPU FAN Socket (silk-print: CPU_FAN) 1 × CPU fan socket for better cooling performance when necessary. CPU_FAN: Signal VCC (5V by default, 12V optional) CPUFAN_TAC CPUFAN_CTL 2.16 Auto Power on by Hardware (silk-print: JAT)
