Thomas & Betts BPI42CR Operating Instructions Manual

Battery operated hydraulic crimping tool
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

BPI42CR and BPI42300CR
Battery Operated Hydraulic Crimping Tool
Operating Instruction Manual
IMPORTANT: Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.

Table of Contents

2
3
4-5
5
6
7
8
TA04492 B Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPI42CR and is the answer not in the manual?

Questions and answers

Related Manuals for Thomas & Betts BPI42CR

Summary of Contents for Thomas & Betts BPI42CR

  • Page 1: Table Of Contents

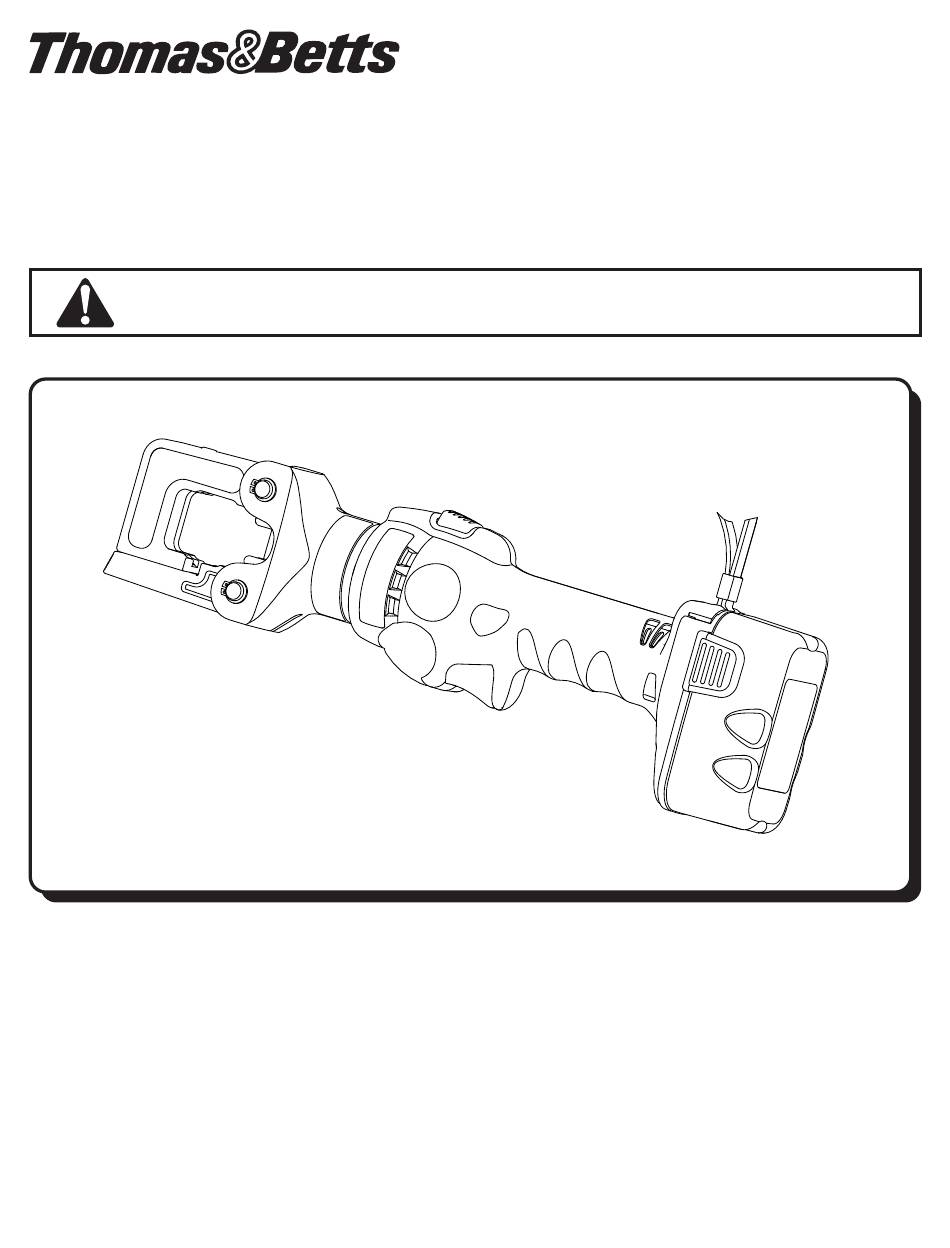

    BPI42CR and BPI42300CR Battery Operated Hydraulic Crimping Tool Operating Instruction Manual IMPORTANT: Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Table of Contents 1.0 General Characteristics 2.0 Instructions for Use 3.0 Battery and Charger Use...

  • Page 2: General Characteristics

    This “BPI42CR” hydraulic tool is powered by 9.6 V DC frequency of the acceleration the upper limbs are Ni-MH battery. The tool is well balanced for optimum...

  • Page 3: Instructions For Use

    INSTRUCTIONS FOR USE PREPARATION (Refer to Figs 1, 2 & 3) The tool is supplied with the batteries completely discharged; before use, fully charge the batteries using the charger supplied. See section 3.0 The tool can be easily carried using either the handle or wrist strap, see Fig.

  • Page 4: Battery And Charger Use

    BATTERY AND CHARGER USE The tool is supplied with the batteries completely discharged; before use, fully charge the batteries using the charger supplied. BATTERY STATUS (Refer to Fig. 4) Back of Tool • After releasing the operating button, the residual battery capacity is automatically displayed for 5 seconds on the indicator (11).

  • Page 5: Maintenance

    (Continued) Green flashing (right-hand LED): The battery is fully charged and the charger automatically switches over to the trickle- charge mode. The battery can be left indefinitely in the charger without sustaining any damage. Overcharging is impossible. Red flashing (right-hand LED): The safety elements are defective or the battery is too hot or too cold. The battery should be removed from the charger so that it can return to its proper temperature range.

  • Page 6: Spare Parts List

    SPARE PARTS LIST When ordering spare parts always specify the following: • Code number of item • Name of item • Type of tool • Tool serial number Warranty is void if replaced parts are not Thomas & Betts original replacement parts. For parts or service, contact the tool service center at 1-800-284-TOOL (8665) TA04492 B Page 6 of 8...
  • Page 7 TABLE 1 See TABLE 2 Serial number of tool ITEMS Code Nº DESCRIPTION Main 1st Sub 2nd Sub 6000577 – – Right+Left Shell 2598498 – – Battery 6000579 – – Operating Button 6000584 – – Protection 6000591 – – 6000593 –...
  • Page 8 TABLE 2 ITEMS ITEMS Code Nº DESCRIPTION Code Nº DESCRIPTION Main 1st Sub 2nd Sub Main 1st Sub 2nd Sub 6040240 – – Back-up Ring 6641027 – Washer 6360300 – – O-Ring 6000567 – Lockout 6620490 – – 6000603 – Pressure Release Lever 6520030 –...

This manual is also suitable for:
