Thomas & Betts COMFORT CRIMP TBM21E Instructions For Use

TBM21E / TBM25S / TBM4BB SHURE STAKE
For Installing Color-Keyed
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
Color coded dots match color of terminal and/or splice for quick identifi cation of crimp nest
In the event the SHURE STAKE
1.0
1.1
1. Open handles
fully.
2. Depress wheel
release button
and rotate
wheel to proper
die nest. Allow
wheel to lock
into position
by releasing
button.
COMFORT CRIMP
Lugs and Splices, C-Taps and Pigtails
Read and understand all of the instructions and safety
® MECHANISM must be released, please see Figure 4.
INSTRUCTIONS FOR USE
For Use With Color-Keyed
Splices, Pigtails and Colored-Keyed
Figure 2
®
Copper & Alumunum
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
®
Lugs,
®
C-Taps
3. Insert stripped
wire into
connector
and position
assembly in the
tool as shown.
4. Close handles
until the SHURE
®
STAKE
mechanism
cycle has been
completed.
5. Perform several
equally spaced
crimps on each
terminal barrel.
®
TOOL

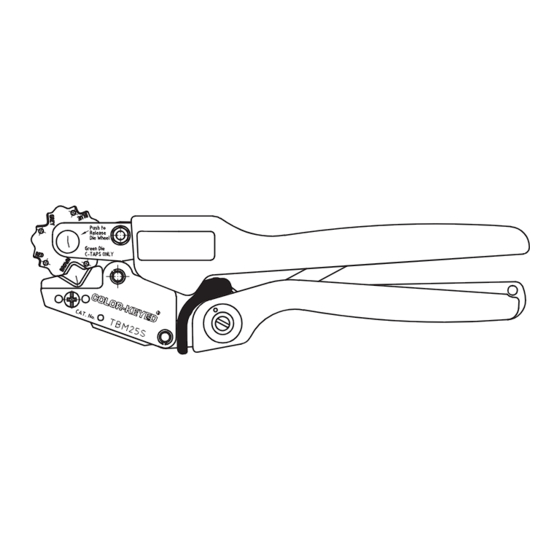

Figure 1
Figure 3
TA01299 E Page 1 of 2
