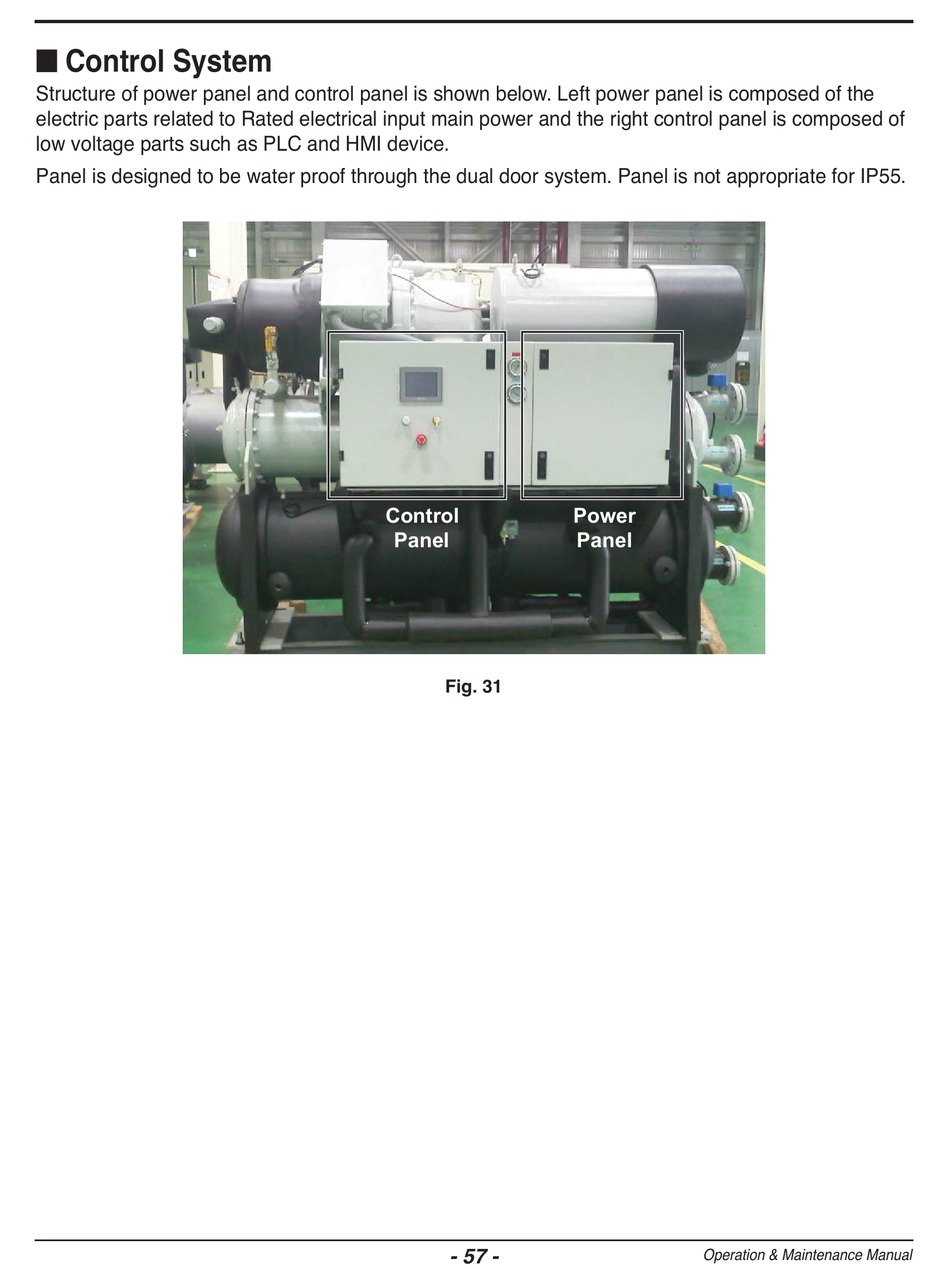

n Control System
Structure of power panel and control panel is shown below. Left power panel is composed of the
electric parts related to Rated electrical input main power and the right control panel is composed of
low voltage parts such as PLC and HMI device.
Panel is designed to be water proof through the dual door system. Panel is not appropriate for IP55.
Control
Power
Panel
Panel
Fig. 31
- 57 -
Operation & Maintenance Manual
