INSTALLATION

3 INSTALLATION
!
!
3.1

Mounting and Orientation

!

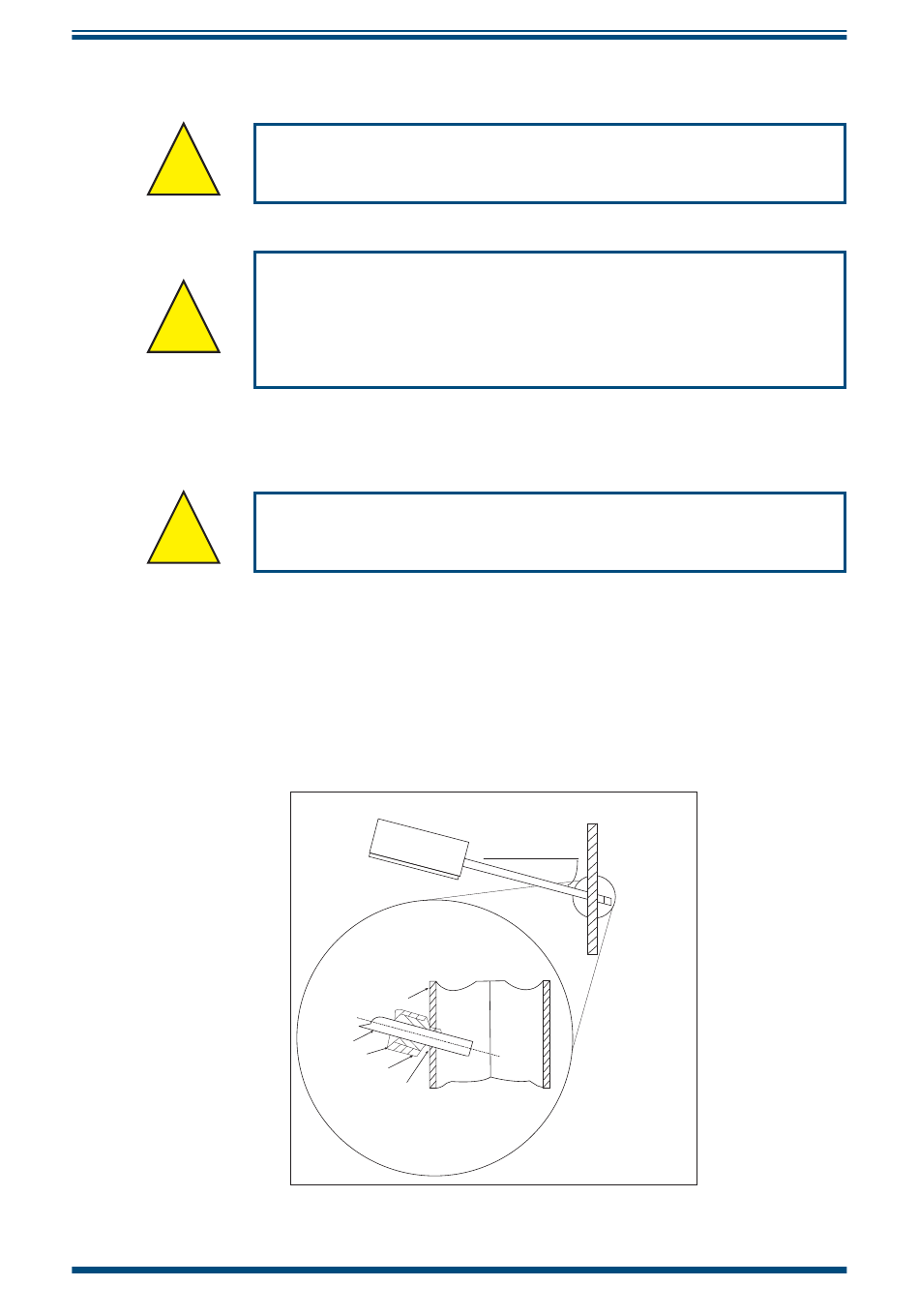

When using the XZR200 in a combustion process the diagram below shows the correct
mounting and orientation. The downward angle of the probe tip will protect the sensor
from dust settling or moisture sitting in the tip and damaging the sensor.
A 12mm fi tting with a retaining nut that can be welded to the process and fi x the probe
in position. A suitable O-ring should be used to ensure a good seal.
6
When installing the sensor do not use any lubricants or grease
which may contain silicone.
The sensor is located in the tip of the probe and is heated to
Do NOT touch the probe tip with bare hands as this will cause
The XZR200 should be grounded (earthed) via the probe as well
Housing
Partition
Bar Probe
O-Ring
Nut
Weld Socket
Figure 3
XZR200 User's Manual
700°C (1292°F).
damage to skin.
as through the cable.
Partition
Atmospheric Air Gas Mixture
+60°C Max +250°C Max
+400°C Max
15°
Mounting and Orientation
