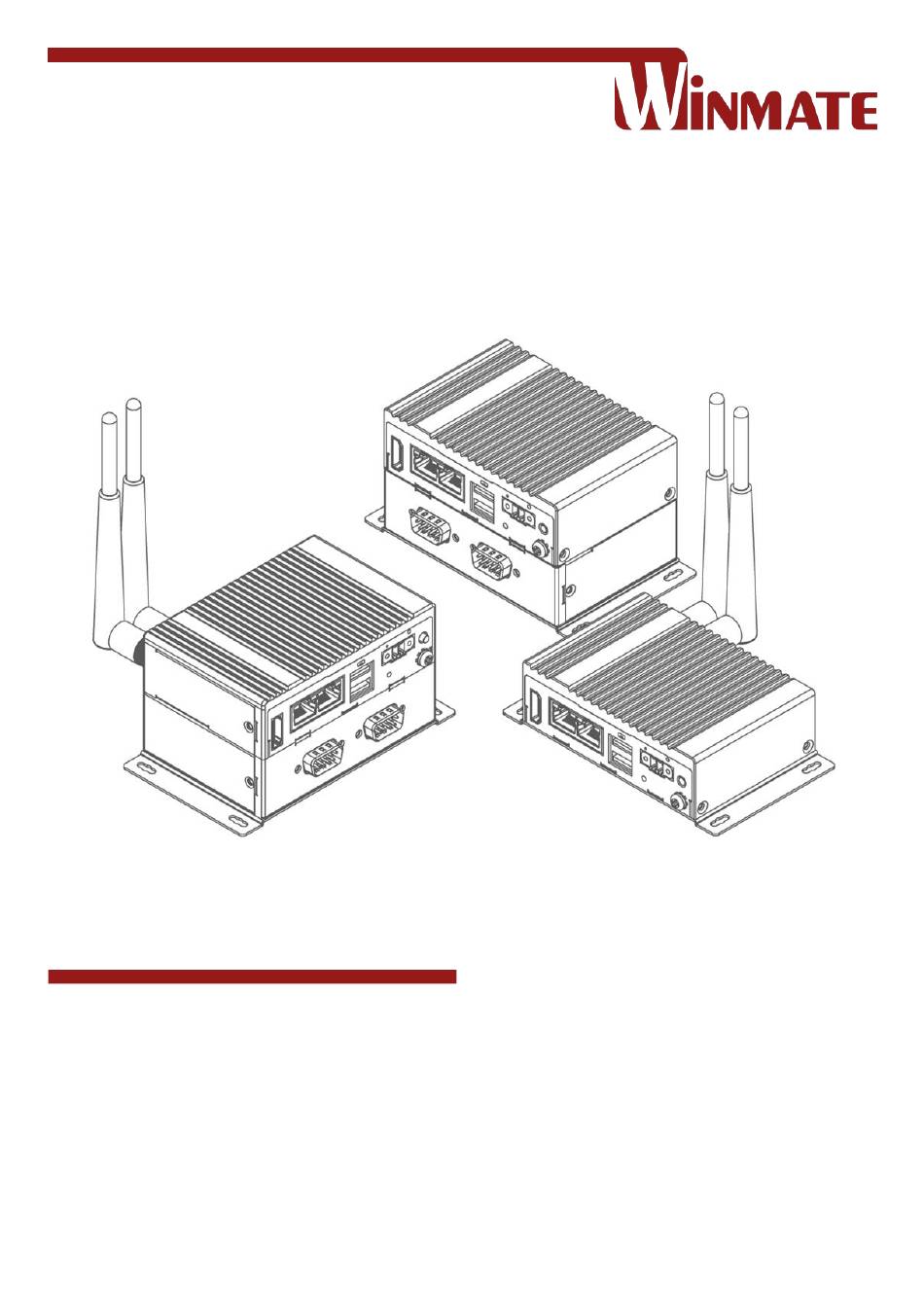

- Page 1 IoT Gateway Freescale i.MX 6 Arm® Cortex®-A9 i.MX6 Dual Core, 1 GHz EAC Mini EACFA20 Quick Start Guide Version 1.0 Document Part Number: 91521110103J Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide Contents Preface Chapter 1: Introduction 1.1 Features 1.2 Expansion Module 1.3 Package Contents 1.4 Hardware Specifications 1.5 Description of Parts 1.6 LED Indicators Chapter 2: Mounting 2.1 Wall/ Desk Mount 2.2 DIN-Rail Mount 2.3 VESA Mount... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
-
Page 6: Chapter 1: Introduction
Chapter 1: Introduction Congratulations on purchasing Winmate® EAC Mini EACFA20 IoT Gateway. The EAC Mini EACFA20 is an ARM-based industrial IoT gateway with low power consuming Freescale Cortex A9 i.MX6 processing and excellent expansion possibilities. Expansion modules offers rich options for additional serial interfaces such as CANBus, DIDO, Wi-Fi and 4G LTE. -
Page 7: Package Contents
Chapter 1: Introduction 1.3 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: ... -
Page 8: Hardware Specifications
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide 1.4 Hardware Specifications Model Name EACFA20 Freescale i.MX 6 Arm® Cortex®-A9 i.MX6 Dual Core, System 1GHz Specification System 1GB, up to 2GB Memory Storage eMMC Onboard 16GB (default), up to 32 GB 2 x USB Type-A 2.0, 1 x USB 2.0 OTG (Micro USB) -
Page 9: Description Of Parts
Chapter 1: Introduction 1.5 Description of Parts This section includes front and rear side I/O ports location of the EAC Mini EACFA20 IoT Gateway. Front Side Rear Side 1.6 LED Indicators The EAC Mini IoT Gateway provides one HDD and one Power LED indicators located on the front for status monitoring. -
Page 10: Chapter 2: Mounting
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide Chapter 2: Mounting The EAC Mini supports five types of mounting: wall and desk mounting by default, and optional VESA, DIN-rail, Pole mounting solutions. You can purchase mounting kit from Winmate as an optional accessory. 2.1 Wall/ Desk Mount L-shape mounting brackets for wall/ desk mounting are supplied with the EAC Mini. -
Page 11: Din-Rail Mount
Chapter 2: Mounting 2.2 DIN-Rail Mount You can purchase DIN-Rail mounting kit from Winmate as an optional accessory. DIN-Rail Mounting Kit Part No. 821118551400 Mounting Instruction: ❶ Fasten screws to secure DIN-rail mounting bracket ❷ Place the EAC Mini with the DIN-Rail bracket on the to the EAC Mini. -
Page 12: Vesa Mount
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide 2.3 VESA Mount You can purchase VESA mounting kit from Winmate as an optional accessory. VESA Mounting Kit Part Number: 821118561001 Mounting Instruction: ❶ Mark the location of the screw holes on the ❷... -
Page 13: Chapter 3: Hardware Installation
Chapter 3: Hardware Installation Chapter 3: Hardware Installation This section explains how to install hardware on the EAC Mini EACFA20. Caution Always remove the power cord before installing the hardware. 3.1 External Antenna Installation Notice that external antenna is an optional feature of the EAC Mini IL20EAC-N. -
Page 14: Expansion Module Installation
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide 3.2 Expansion Module Installation Notice that expansion module is an optional feature of the EAC Mini EACFA20. To install expansion module: ❶ Unscrew the three screws, and remove the ❷ Attach the 2... -
Page 15: Usb Wire Loop Installation
Chapter 3: Hardware Installation 3.3 USB Wire Loop Installation ❶ Insert USB to the USB slot. ❷ Install copper pillar, USB wire loop, and fasten one screw to secure the USB to the EAC Mini EACFA20. ❸ You have finished the USB Wire Loop installation. -
Page 16: Chassis Grounding
The following sections give you information about EAC Mini EACFA20standard connectors and pin assignments. 3.5.1 HDMI Connector Plug HDMI signal cable to the HDMI connector of the EAC Mini EACFA20, and plug the other end to the monitor. Pin assignment and signal names of HDMI connector Pin №... -
Page 17: Ethernet Connector
STDA_SSRX+ STDA_SSTX- STDA_SSTX+ 3.5.4 USB 2.0 OTG Connector The EAC Mini EACFA20 provides one USB 2.0 OTG (Micro USB) connector. Use USB 2.0 OTG connector to install software updates. Pin assignment and signal names of USB OTG connector Pin №... -
Page 18: Chapter 4: Getting Started
Winmate EAC Mini EACFA20 IoT Gateway Quick Start Guide Chapter 4: Getting Started 4.1 Home Screen 4.2 Android Debug Bridge Driver Installation You can find USB OTG driver in the CD that comes in a package with the EACFA20. You need to connect device to the computer with the USB OTG cable (not supplied with your device). -
Page 19: Appendix
Appendix Appendix Appendix A: Order Information EAC Mini EACFA20 IoT Gateway available in the following configurations: Model Name Configuration EACFA20-100-F116 Freescale Cortex i.MX6, 1G RAM, 16GB eMMC, 2 x USB 2.0, 2 x GbE LAN, 1 x HDMI EACFA20-101-F116 Freescale Cortex i.MX6, 1G RAM, 16GB eMMC, 2 x USB 2.0, 2 x GbE LAN, 1 x HDMI, Wi-Fi... - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
