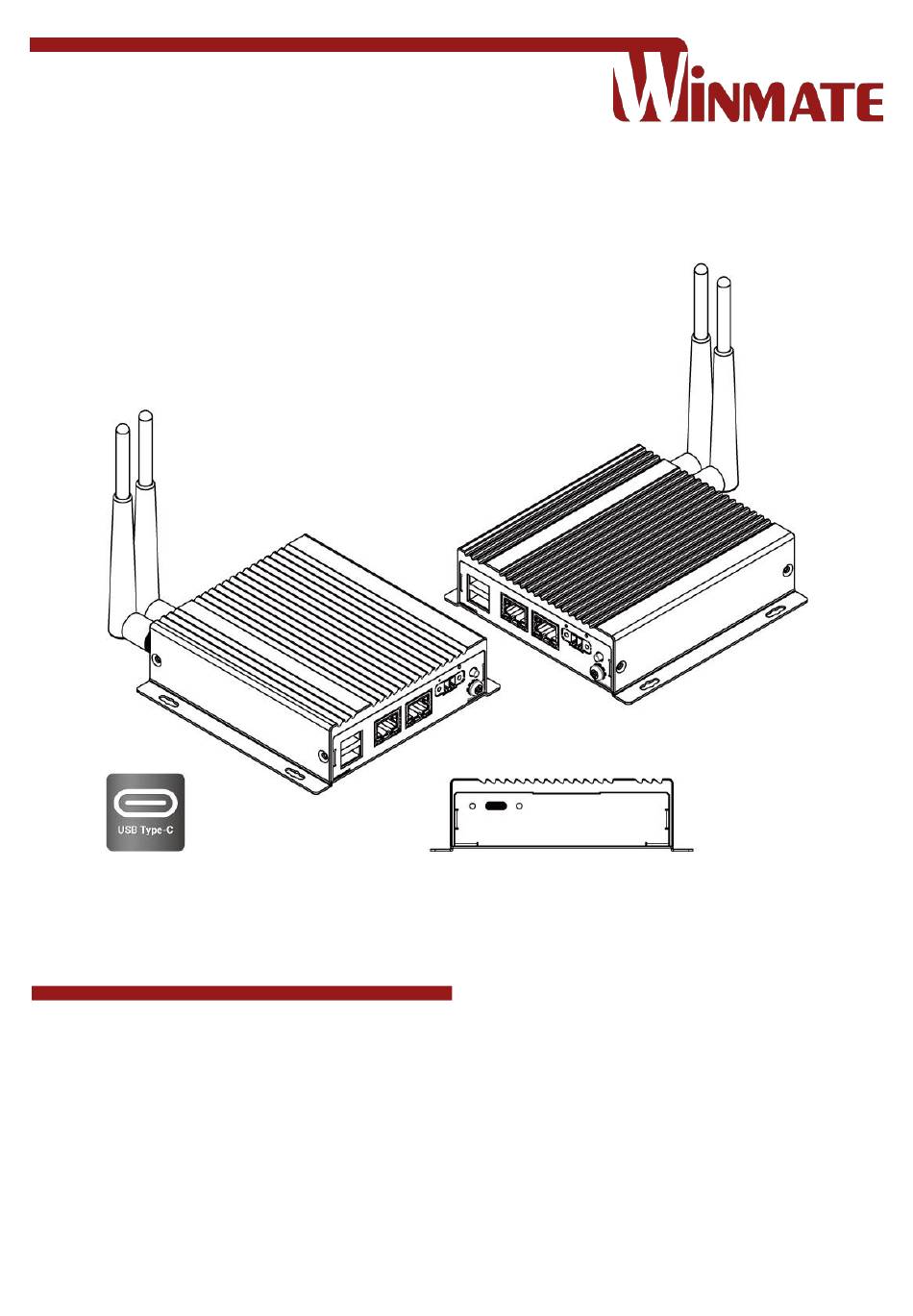

- Page 1 IoT Gateway Intel® Apollo Lake N3350, 1.1 GHz EAC Mini EACIL21 Quick Start Guide Document Version 1.0 Document Part Number: 91521110103I Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
EAC Mini EACIL21 IoT Gateway Quick Start Guide Contents Preface ............................. 3 Chapter 1: Introduction ......................6 1.1 Product Features......................6 1.2 Unpacking ........................7 1.3 Hardware Specifications....................8 1.4 Appearance ........................9 1.5 Dimensions ........................10 Chapter 2: Mounting ......................11 2.1 Wall/ Desk Mount ...................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 EAC Mini EACIL21 IoT Gateway Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
-
Page 6: Chapter 1: Introduction
Congratulations on purchasing Winmate® EAC Mini EACIL21 IoT Gateway 1.1 Product Features The EAC Mini EACIL21 is a compact industrial IoT gateway with low power consuming Intel® Apollo Lake N3350 processor and featuring USB Type-C connector. Wireless connectivity and all necessary connectors allow the EAC mini to send data from manufacturing facilities directly to cloud server. -
Page 7: Unpacking
Chapter 1: Introduction 1.2 Unpacking Carefully remove the box and unpack EAC Mini EACIL21 IoT Gateway. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. -
Page 8: Hardware Specifications
EAC Mini EACIL21 IoT Gateway Quick Start Guide 1.3 Hardware Specifications Model Name EACIL21 Intel® Apollo Lake N3350, 1.1 GHz Graphics Intel® HD Graphics Engine System BIOS Insyde UEFI Specification Watchdog Timer Programmable 256 levels, timer interval 1 to 255 sec. -
Page 9: Appearance
Chapter 1: Introduction 1.4 Appearance This section includes front and rear side I/O ports location of the EACIL21 IoT Gateway. Front Side Rear Side EACIL21-100-A464 EACIL21-101-A464... -
Page 10: Dimensions
EAC Mini EACIL21 IoT Gateway Quick Start Guide 1.5 Dimensions All dimensions shown in mm (millimeters). Dimensions: 118 x 115 x 32.5... -
Page 11: Chapter 2: Mounting
The EAC Mini supports five types of mounting: wall and desk mounting by default, and optional VESA mount solutions. You can purchase mounting kit from Winmate as an optional accessory. This chapter provides step-by-step mounting guide for all available mounting options. -
Page 12: Vesa Mount
EAC Mini EACIL21 IoT Gateway Quick Start Guide 2.2 VESA Mount You can purchase VESA mounting kit from Winmate as an optional accessory. VESA Mounting Kit Part Number: 98K000A000BJ Mounting Instruction: ❶ Mark the location of the screw holes on the ❷... -
Page 13: Chapter 3: Hardware Installation
Always remove the power cord before installing the hardware. 3.1 External Antenna Installation Notice that external antenna is an optional feature of the EAC Mini EACIL21. To install external SMA antenna: 1. Remove the rubber cap on the SMA connector before installing the antenna. -
Page 14: Connecting The Power
EAC Mini EACIL21 IoT Gateway Quick Start Guide 3.2 Connecting the Power The DC power supply connector of the EAC Mini IoT Gateway is on the front panel. The DC power input for the EAC Mini allows a voltage input range from 9 V DC to 30 V DC. -
Page 15: Chassis Grounding
USB_D+ 3.3.2 Ethernet Connector The EAC Mini EACIL21 has two Ethernet connectors located on the front. Ethernet ports provide a standard RJ45 10/100/1000 Mbps jack connector with LED indicators on the front side to show its Active/ Link status and Speed status. -
Page 16: Power Connector
Pin assignment and signal names of terminal block connector 3.3.4 USB Type-C Connector The EAC Mini EACIL21 has USB Type-C connector located on the back side. USB Type-C connector supports Alt Mode, meaning it transmits the following signals: Display Port A/V output, USB data (Alt Mode), Power Delivery up to 15W (5V/ 3A). -
Page 17: Chapter 4: Operating The Device
Chapter 4: Operating the Device Chapter 4: Operating the Device 4.1 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: Before starting the recovery process, remove the PCI/ PCIe card and CFast card. -
Page 18: How To Enable Watchdog
EAC Mini EACIL21 IoT Gateway Quick Start Guide 4.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. To enable watchdog in Watchdog AP follow the instructions below: 1. -
Page 19: Appendix
Appendix Appendix Appendix A: Order Information EAC Mini EACIL21 IoT Gateway available in the following configurations: Model Name Configuration EACIL21-100-A464 Intel® N3350, 4G RAM, 64GB eMMC, 1 x USB Type-C, 2 x USB Type-A, 2 x LAN, EACIL21-101-A464 Intel® N3350, 4G RAM, 64GB eMMC, 1 x USB Type-C,... - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
