Emerson EASYHEAT MSA-1 Installation & Operation Instructions

MSA-1
GENERAL

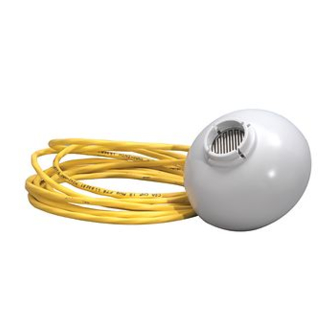

The MSA‑1 sensor detects falling or blowing snow coming
in contact with the sensor grid, then sends a signal to the
MSC‑1 to energize heating equipment (snow melting or de‑
icing cables, etc.).
The sensor operates on low voltage supplied by the MSC‑1
control unit and has a built in 1/2" NPT conduit connection
and includes 10´ of wire for connection back to the MSC‑1.
The MSA‑1 is well suited for mast mounting and custom
positioning. Rounded features and neutral colour allows
the sensor to discreetly blend into almost any environment.
The MSA‑1 connection wire may be extended up to 500´
with an appropriately rated 18‑20 AWG 3 wire unshielded
stranded cable.
The main components of them MSA‑1 are shown in Fig.1.
WARNINGS
1. This is not a "do-it-your-self" product. A qualified
electrician must install the MSA‑1.
2. If after carefully reading these instructions you still
have questions regarding installation, operation or
maintenance of this product, call the numbers listed for
assistance.
3. Prior to installation, check the MSA‑1 body enclosure
or wires for possible shipping damages. Do not install a
damaged MSA‑1 sensor.
4. All heating equipment, controls & associated systems
must be installed in compliance with the latest editions
of all applicable electrical codes and ordinances.
5. The MSA‑1 has been designed for the sole purpose
of connection to an EasyHeat MSC‑1 Control Panel.
The risk of fire or electric shock exists if the MSA-1 is
connected to any device other than an MSC‑1 Control
Panel.
©2009 Easy Heat
Aerial Moisture Sensor for Connection to MSC‑1 Panel for Snow & Ice
Melting Installations Installation & Operation Instructions
Figure 1
Mounting
Connector
( /2" NPT)
1
10´ Connection
Wire
6. These instructions must be saved and made available
to owners or users of this product and/or transferred to
future owners.
8. Secure the MSA‑1 in an area free of obstructions such
as trees, shrubs, etc. to prevent any damages to the
snow sensor.
9. Avoid excessive shock or vibration.
10. Do not install an MSA‑1 Sensor when the ambient
temperature is colder than 32°F (0°C). Installing the
sensor below this temperature will damage the
connection wire and result in the risk of fire or
electrical shock.
www.easyheat.com
Moisture Sensor
MSA
Housing
