Dear Customer!
Thank you very much for your trust in us and our product. Please read these operating instructions carefully
before using the device.
MEC-Energietechnik GmbH
1. Safety Rules and General Warnings
ATTENTION: 100-240 Volts AC voltage, device is not suitable for children – danger of life!!
ATTENTION: The charger is exclusively designed for rechargeable lead /acid batteries and must
not be used for other purposes.
ATTENTION: Please consider the charging instructions from the battery manufacturer before charging!
Never place the device on top of the battery while charging!
EXPLOSION RISK! Avoid sparks or open flames while charging!
Use the device only in dry rooms and protect against dust, heat (>40°C) and humidity (>80% rel.)
Protect against direct solar radiation.
No fluids of any kind must get into the device.
In case of obvious damage or malfunction immediately disconnect the device from mains supply and protect against
unintended reconnection.
Clean with a dry cloth only.
DO NOT OPEN! Repair work must only be accomplished by authorized companies or specialized technical staff.
Disconnect from mains before connecting or disconnecting the battery.
Do not recharge non-rechargeable batteries.

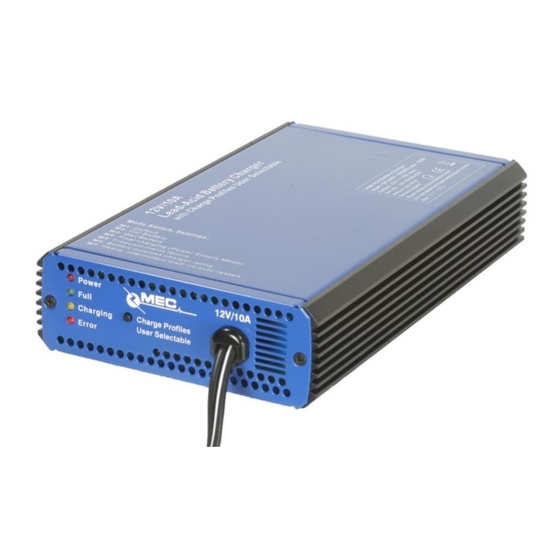

INSTRUCTION MANUAL
AdapTask-150 Series
Lead-Acid Battery Charger
with 7 configurable charge profiles
Version / MEC Art-Nr.:
12V / 6A 161-06602-630
12V / 10A 161-06103-630
12V / 8A 161-06802-630
24V / 5A 161-12502-630
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mec AdapTask-150 Series
Summary of Contents for Mec AdapTask-150 Series
-

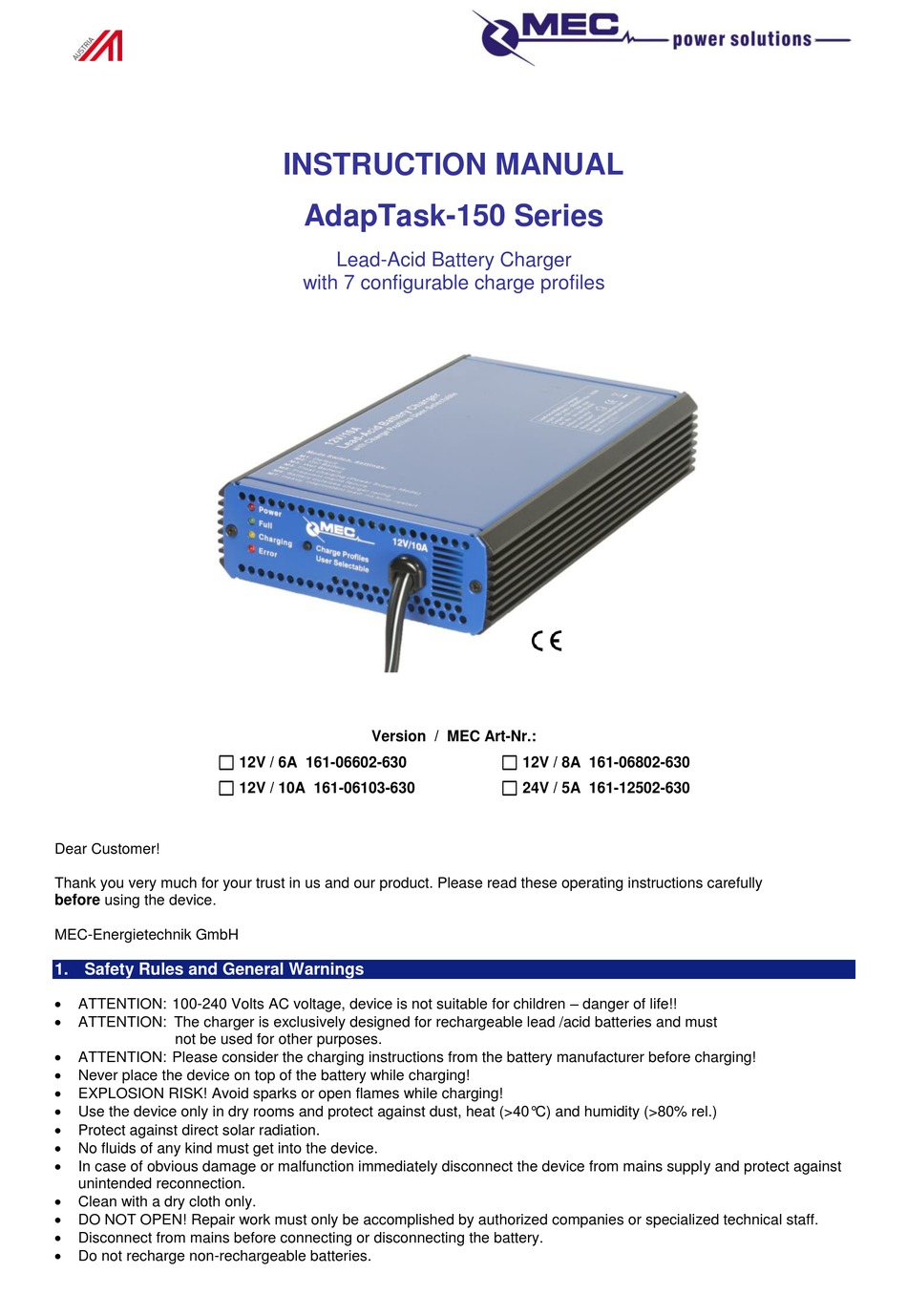

Page 1: Instruction Manual
INSTRUCTION MANUAL AdapTask-150 Series Lead-Acid Battery Charger with 7 configurable charge profiles Version / MEC Art-Nr.: 12V / 6A 161-06602-630 12V / 8A 161-06802-630 12V / 10A 161-06103-630 24V / 5A 161-12502-630 Dear Customer! Thank you very much for your trust in us and our product. Please read these operating instructions carefully before using the device. - Page 2 MEC – Energietechnik GmbH INSTRUCTION MANUAL AdapTask-150 2. General Information This special 3-step charger does, other than those with regular 3-step technology, not remain locked into a rigidly timed absorption phase, this often being one of the main reasons for the premature death of good batteries. The AdapTask charger adapts to the battery’s state of charge, precisely knowing at which point in time to change from absorption- to...
- Page 3 MEC – Energietechnik GmbH INSTRUCTION MANUAL AdapTask-150 5. How to select the charge modes Make sure that the charger is disconnected from the mains supply and from the battery. Press and hold the mode but- ton(5) in the front panel, then connect the charger with the mains supply (AC). Following the yellow-, green- and red-LED (Error) will blinking for about 4 seconds and then change to light continuously - at this moment, release the mode button.
- Page 4 10. Disclaimer of Warranty The warranty period (see our GTC) starts with device being dispatched by the manufacturer. The MEC-Energietechnik GmbH is accepting liability by guaranteeing to working hours and spare parts only.
