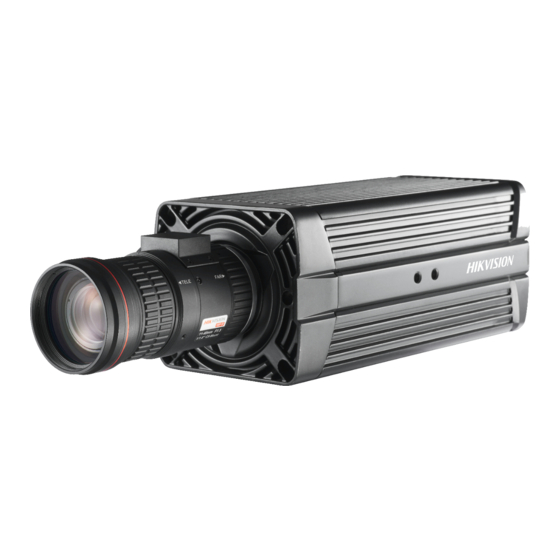

HIKVISION iDS-2CD9136-AIS User Manual

Network traffic camera
Hide thumbs Also See for iDS-2CD9136-AIS:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Traffic Camera • User Manual
Network Traffic Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDS-2CD9136-AIS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION iDS-2CD9136-AIS

Summary of Contents for HIKVISION iDS-2CD9136-AIS

  • Page 1 Network Traffic Camera • User Manual Network Traffic Camera User Manual...
  • Page 2 The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/en/).
  • Page 3 Network Traffic Camera • User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Network Traffic Camera • User Manual Applicable Models This manual is applicable to the models listed in the following table. Model iDS-2CD9136-AIS iDS-2CD9396-AIS iDS-2CD9136-AS iDS-2CD9396-AS Symbol Conventions The symbols that may be found in this document are defined as follows.
  • Page 5 Network Traffic Camera • User Manual  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

  • Page 6: Table Of Contents

    Network Traffic Camera • User Manual TABLE OF CONTENTS Chapter 1 Network Connection ...................... 7 Wiring over the LAN ......................7 Activate the Camera ......................8 Activation via Web Browser ..................8 Activation via SADP Software ..................9 Chapter 2 Login..........................11 Chapter 3 Live View ........................
  • Page 7 Network Traffic Camera • User Manual Configure Vehicle Feature ....................51 Chapter 10 Image Parameters Configuration ................54 Configure Dual-Shutter Parameters ................. 54 Configure General Parameters ..................55 Configure Video Image ....................56 Configure Record ......................57 Configure ICR ........................58 Configure Light Calibration ....................

  • Page 8: Chapter 1 Network Connection

    Network Traffic Camera • User Manual Chapter 1 Network Connection  You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

  • Page 9: Activate The Camera

    Network Traffic Camera • User Manual Switch Traffic Camera Computer Connecting via a Switch or a Router Activate the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser and Activation via SADP Software are supported.

  • Page 10: Activation Via Sadp Software

    Network Traffic Camera • User Manual Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 11 Network Traffic Camera • User Manual STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 12: Chapter 2 Login

    Network Traffic Camera • User Manual Chapter 2 Login Open the web browser. In the browser address bar, input the IP address of the camera, and press the Enter key to enter the login interface. Input User Name and Password. Click Login.

  • Page 13: Chapter 3 Live View

    Network Traffic Camera • User Manual Chapter 3 Live View Live View Page Purpose: The live view page allows you to view the real-time video and capture images. Log in the camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

  • Page 14: Start Live View

    Network Traffic Camera • User Manual Descriptions of Live View Icons Icon Description Start/Stop live view. The window size is 4:3. The window size is 16:9. The original widow size. Self-adaptive window size. Live view with the main stream. If the network is in good condition, select main stream.

  • Page 15: Scene Shot Area

    Network Traffic Camera • User Manual Real-Time Status and Traffic Flow Statistics Scene Shot Area  Arm the camera. − Level 1 Arming: The camera is allowed to connect to only one data storage device for image, video and information uploading. It is recommended when you develop products, that is, if you use SDK, level 1 arming is the only option.
  • Page 16 Network Traffic Camera • User Manual Picture List Description of Picture List Parameters Item Description Picture No. The time of capturing the picture with millisecond precision. For example, 20150915111054738 means Capture Time the picture is captured at 11:10:54:738, on September , in 2015.

  • Page 17: Traffic Light Status

    Network Traffic Camera • User Manual Traffic Light Status Traffic Light Status display the current traffic light status after setting. Traffic Light Status The Traffic light status can only be applied in Video Analysis E-police mode. Traffic Statistics Purpose: The traffic statistics allows you to view the real-time traffic flow, average lane occupancy, and then analyze the real-time traffic status.

  • Page 18: Chapter 4 Picture Search

    Network Traffic Camera • User Manual Chapter 4 Picture Search Purpose: The captured picture of all types, including normal, overspeed, wrong-way driving, etc., can be searched from this page. You can also export the pictures to the PC local directory. Before you start: Please insert a TF card with up to 128 GB storage in the camera for picture storage.

  • Page 19: Chapter 5 Local Configuration

    Network Traffic Camera • User Manual Chapter 5 Local Configuration Purpose: The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.
  • Page 20 Network Traffic Camera • User Manual − Record File Size: Select the packed size of the manually recorded and downloaded video files. After the selection, the maximum record file size is the value you selected. − Save record files to: Set the saving path for the manually recorded video files. ...

  • Page 21: Chapter 6 System Configuration

    Network Traffic Camera • User Manual Chapter 6 System Configuration Purpose: You can configure the parameters on this page, including device information, serial ports, network parameters, time configuration, service, etc. View Device Information Go to Configuration > Device Configuration > System Configuration > Device Information. ...

  • Page 22: Configure Installation Parameters

    Network Traffic Camera • User Manual Device Information Configure Installation Parameters You can set the installation parameters of the camera. Go to Configuration > Device Configuration > System Configuration > Installation Parameters.

  • Page 23: Configure Serial Ports

    Network Traffic Camera • User Manual Installation Parameters Set the installation parameters according to the actual conditions. Click Save to save the settings. Configure Serial Ports Purpose: Configure the RS-485 parameters and RS-232 parameters in this page.  The RS-485 ports are used to input signals related to traffic control, such as RS-485 radar and vehicle detector.

  • Page 24: Configure Network Parameters

    Network Traffic Camera • User Manual Serial Ports Settings Configure the RS-485 and RS-232 parameters. Click Save to save the settings. Configure Network Parameters Purpose: Network parameters settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions can be configured simultaneously without conflicting to each other, and at least one IP version should be configured.
  • Page 25 Network Traffic Camera • User Manual TCP/IP Settings Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, IPv6 mode, Mac Address, MTU settings and Multicast Address. ...

  • Page 26: Configure Port

    Network Traffic Camera • User Manual  The valid value range of MTU is 1280 to 1500.  The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
  • Page 27 Network Traffic Camera • User Manual Example If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser. The HTTPS port can be only configured through the web browser. Go to Configuration >...

  • Page 28: Configure Time

    Network Traffic Camera • User Manual 3) Click Install to install the certificate.  OPTION 3: Create the certificate request first and continue the installation. 1) Click Create the certificate request first and continue the installation. 2) Click Create to create the certificate request. 3) Click Download to download the certificate request and submit it to the trusted certificate authority for signature.
  • Page 29 Network Traffic Camera • User Manual Manual Synchronization (Optional) you can also check Synchronize with PC. The camera time is synchronized with the time of your computer. Click Save to save the settings.  NTP Synchronization Select Synchronization Mode as NTP Synchronization. NTP Synchronization Configure the following settings: ...

  • Page 30: Enable User Lock

    Network Traffic Camera • User Manual If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

  • Page 31: Chapter 7 Encoding And Storage Configuration

    Network Traffic Camera • User Manual Chapter 7 Encoding and Storage Configuration Purpose: You can configure the encoding and storage related parameters from this page, including video encoding, image encoding, ROI, record schedule, redundant storage, FTP, and cloud storage. Configure Video Encoding For certain camera models, you can configure parameters for available video streams, for example, the main stream, the sub-stream, etc.
  • Page 32 Network Traffic Camera • User Manual The main stream is usually for recording and live view with good bandwidth, and the sub-stream can be used for live view when the bandwidth is limited. You can customize the following parameters for the selected stream type. ...

  • Page 33: Configure Image Encoding

    Network Traffic Camera • User Manual The video parameters vary according to different camera models. Refer to the actual display page for camera functions. Configure Image Encoding Go to Configuration >Device Configuration > Encoding and Storage > Image Encoding. Image Encoding Select Capture Resolution.
  • Page 34 Network Traffic Camera • User Manual Region of Interest Settings Enter the ROI settings interface: Configuration > Device Configuration > Encoding and Storage > ROI. Select the Stream Type for ROI. Check the checkbox of Enable under Fixed Area. Set Fixed Area for ROI. 1) Select the Area Code from the drop-down list.

  • Page 35: Configure Record Schedule

    Network Traffic Camera • User Manual Configure Record Schedule Purpose: You can follow the instructions to configure the scheduled recording. By default, the record files of scheduled recording are stored in the TF card. Steps: Go to Configuration > Device Configuration > Encoding and Storage > Record Schedule. Record Schedule Configuration Select Record Stream.

  • Page 36: Configure Storage Management

    Network Traffic Camera • User Manual Edit Record Schedule Select the day to set the record schedule. Set all-day record or segment record.  If you want to configure the all-day recording, check the All Day checkbox.  If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time.

  • Page 37: Configure Ftp

    Network Traffic Camera • User Manual Redundant Storage Configuration View the HDD information such as Capacity, Free Space, Status, etc. (Optional) Check the HDD and click Format to format it. (Optional) Check Auto-Initialize Redundant Storage. Then the TF card in the redundant storage can be formatted automatically.
  • Page 38 Network Traffic Camera • User Manual Go to Configuration > Device Configuration > Encoding and Storage > FTP. FTP Configurations Check Upload Additional Information to FTP to enable the uploading function. Select the FTP uploading mode.  Disable: No data will be uploaded to FTP. ...
  • Page 39 Network Traffic Camera • User Manual Upload to Two FTP Servers 2) Select the data type for uploading to FTP 1. 3) Select the data type for uploading to FTP 2. For the data type, Chekpoint Data and Violation Data are selectable. If you select Chekpoint Data for FTP 1, FTP 2 will receive the Violation Data by default.
  • Page 40 Network Traffic Camera • User Manual Name Rule Configuration Configure the OSD Information to set file name as required. OSD Information Click Save to save the settings.

  • Page 41: Chapter 8 Text Overlay Configuration

    Network Traffic Camera • User Manual Chapter 8 Text Overlay Configuration Purpose: Configure the OSD on the captured pictures and videos. Configure Capture Picture Overlay Purpose: You can configure the overlay information of the captured picture. Steps: Go to Configuration > Device Configuration > Text Overlay > Capture Picture Overlay. Single Picture Overlay Check Capture Picture Overlay.
  • Page 42 Network Traffic Camera • User Manual  Overlay on Picture: Display the information on the picture. Overlay on Picture  Overlay Above the Picture: Display the information on the top. Overlay Above the Picture  Overlay Below the Picture: Display the information on the bottom.
  • Page 43 Network Traffic Camera • User Manual Overlay Below the Picture (Optional) Check Overlay Number Zeroizing, to zero out the overlaid information. (Optional) Check Overlay Plate Close-up on the captured picture. Configure the overlay information. Configure Display Information 1) Check the overlay information or check Select All to display all the overlay information.

  • Page 44: Configure Osd Settings

    Network Traffic Camera • User Manual  Space: It stands for the length of blank space between the last character of the first item and the first character of the next item.  Line Break Characters: When you add Line Break Characters to an item, the item is displayed as a new paragraph, and the number stands for the scale of space above the paragraph.

  • Page 45: Configure Composite Picture Overlay

    Network Traffic Camera • User Manual  Display Name: Camera name.  Time Format: 24-hour and 12-hour are selectable.  Date Format: The date format overlaid on the picture.  Display Week: Check it to display week information on the picture. ...

  • Page 46: Chapter 9 Capture Parameters Configuration

    Network Traffic Camera • User Manual Chapter 9 Capture Parameters Configuration Purpose: You can configure capture parameters before capturing, and edit capture parameters when the default capture parameters cannot meet actual needs. Configure License Plate Parameters This series of camera supports license plate recognition. Go to Configuration >...
  • Page 47 Network Traffic Camera • User Manual Flash Light Parameters Configuration Select IO Output Mode. Strobe Light Mode and Polarize Mode are selectable.  Strobe Light Mode 1) Select Effective Status. Pulse, High, and Low are selectable. − High Level/Low Level: The effective status should stay different with the default status for I/O to take effect.
  • Page 48 Network Traffic Camera • User Manual When IO Output Mode is selected as Strobe Light Mode, Effective status is selected as Low/High, and Capture Mode is selected as Burst, the function will take effect. 3) Enter Output Dwell Time. It refers to the dwell time [0 to 10000 μs] after the flash light responds, the actual flash light supplement time is the dwell time minus advanced time.

  • Page 49: Configure Traffic Light Synchronization

    Network Traffic Camera • User Manual  Control Flash Light according to Brightness of the License Plate is only available when you set the effective status as Pulse.  Control Flash Light according to Time Schedule is recommended.  Polarize Mode 1) Enable polarizer according to the actual environment.

  • Page 50: Configure Image Composition

    Network Traffic Camera • User Manual Configure Image Composition A group of composed images can give direct evidence to the illegal driving actions. Configure the image composition on this page. Go to Configuration> Device Configuration > Capture Parameters > Image Composition. Image Composition Check Enable Composition.
  • Page 51 Network Traffic Camera • User Manual Please refer to the figure below to see the difference between 303 and 304, or 305 and 306, or 309 and 310, or 311 and 312. And we will take 303 and 304 as an example. Type 303 image composition is with four times resolution, and type 304 image compositions is with original resolution.

  • Page 52: Configure Vehicle Feature

    Network Traffic Camera • User Manual Type 304 Image Composition Configure picture Close-up Zooming Ratio. You can select Close-up Zooming Ratio from 1 to 8. The higher the value is, the larger the close-up is. Select Close-up Picture No. from the drop-down list. It refers to the picture where the close- up comes from.
  • Page 53 Network Traffic Camera • User Manual Vehicle Feature Configuration Check Vehicle Features types. 1) Check Vehicle Color Recognition, Enable Car Logo Recognition, Safe Belt Detection, On the Phone Detection to enable the functions。 2) Set corresponding sensitivity according to detection situations. 3) Set Rudder.
  • Page 54 Network Traffic Camera • User Manual Click Save to save the settings.

  • Page 55: Chapter 10 Image Parameters Configuration

    Network Traffic Camera • User Manual Chapter 10 Image Parameters Configuration Purpose: Configure double shutter parameters, general parameters, video parameters, and ICR on this page. Configure Dual-Shutter Parameters Go to Configuration > Device Configuration > Image Parameters > Double Shutter Parameter.

  • Page 56: Configure General Parameters

    Network Traffic Camera • User Manual Configure General Parameters Purpose: General parameters refer to the image parameters applying to both video image and capture image, such as saturation, sensitivity, lens type, sharpness, white balance, gamma correction, and brightness enhancement. Go to Configuration > Device Configuration > Image Parameters > General Parameter. General Parameters Configuration Set the image Saturation, Sharpness and White balance mode.

  • Page 57: Configure Video Image

    Network Traffic Camera • User Manual (Optional) Check Enable Black and White Mode at Night. When ICR is in night mode, you can check Enable Black and White Mode at Night to keep the video in black and white mode. (Optional) Click Capture Test to test the effects after you complete the adjustment.

  • Page 58: Configure Record

    Network Traffic Camera • User Manual two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer. 1) If you select Normal Mode, adjust 3D DNR Level from 0 to 100. 2) If you select Expert Mode, adjust Spatial Intensity and Time Intensity from 0 to 100.

  • Page 59: Configure Icr

    Network Traffic Camera • User Manual Configure ICR Purpose: IR Cut Filter is used to block or reflect infrared wavelengths but pass visible light. This series of cameras support auto switch of ICR to realize the 24-hour surveillance. ICR configuration is not supported by all camera models of this series. Go to Configuration >...

  • Page 60: Configure Light Calibration

    Network Traffic Camera • User Manual Configure Light Calibration Purpose: Red Traffic light may look yellow under the sun, you can configure light calibration to red for running the red light enforcement Light Calibration can only apply in Video Analysis E-police mode. Go to Configuration >...
  • Page 61 Network Traffic Camera • User Manual Select Detection Area, click Add Traffic Light to overlay region frame on the traffic light, select Signal Light Type and set Yellow Light Delay Time. Repeat the settings to other detection areas.  If the light is not on when setting, you can click Refresh Scene Picture until the light is on. ...

  • Page 62: Chapter 11 Application Mode Configuration

    Network Traffic Camera • User Manual Chapter 11 Application Mode Configuration Purpose: This chapter introduces the parameters configuration under different trigger mode. The supported trigger modes vary according to the camera models. The following configurations are not supported by all camera models of this series. Mixed-traffic Lane Mixed-traffic lane captures the vehicles via video detection.

  • Page 63: Configure Mixed-Traffic Lane

    Network Traffic Camera • User Manual  Motor vehicle, Non-motor vehicle, and Pedestrian: It captures motor vehicle, and non-motor vehicle, and pedestrian.  Motor Vehicle: Only motor vehicle will be captured. Select Capture Mode. The capture mode is associated with the connected type of flashlight. Strobe and Burst are selectable.
  • Page 64 Network Traffic Camera • User Manual Enter Lane No. in the text field. The Lane No. is used as the OSD content. Set the linkage lane by entering Linked Lane No., e.g.: if you select lane 1, the system will give the speed of lane 1 detected by radar.

  • Page 65: Video Analysis E-Police

    Network Traffic Camera • User Manual border or right border. You can adjust the line position by dragging the line on the screen and adjust the line length by dragging an end of the line. − Check Enable Detection Area to enable the vehicle capture triggered by video analysis. It is recommended to draw the video detection area according to the actual environment to avoid the false trigger.

  • Page 66: Configure Video Analysis Capture

    Network Traffic Camera • User Manual Configure Video Analysis Capture Video Analysis Capture Configuration Select Vehicle Driving Direction as Forward or Backward. Select Capture Interval as Time or Distance.  If you select Time, enter Intervals Time.  If you select Distance, enter Intervals Distance. Check Checkpoint, and select the picture number from the drop-down list.

  • Page 67: Configure Lane Parameters And Trigger Rules

    Network Traffic Camera • User Manual − Analysis Rule: You can select Analysis rule as By Direction or By Lane, and draw corresponding trigger line. − Offset for Second Capture: It refers to the offset pixel of the second captured picture of the vehicle running the red light to the stop line.
  • Page 68 Network Traffic Camera • User Manual Select the driving Direction. Draw LPR area. 1) Click Draw LPR Area to enter the page below. Draw LPR Area 2) Check Lane Line, Lane Right Borderline, Stop Line, Borderline of Turning Left/Right, or Trigger Line of Going Straight, and the lines will be generated on the live view image.

  • Page 69: Configure Traffic Light

    Network Traffic Camera • User Manual (Optional) Click Advanced Settings to set Circuit Sensitivity and Violation Recording. If you check Violation Recording, you should select Recording Start Time. For example, if you select Recording Start Time as 2, record will start after the second picture are captured. Advanced Settings (Optional) Copy the configuration of current lane to other lanes.
  • Page 70 Network Traffic Camera • User Manual 2) Select Yellow Light Related Channel No. according to the actual connection of detector.  Video Analysis Interface Figure 1-1 Video Analysis Interface Configuration 1) Click Configuration to enter the page below. Video Analysis 2) Select Region.
  • Page 71 Network Traffic Camera • User Manual 4) Click OK to save the settings.  Network Mode Network Mode Configuration 1) Select Linked Red Light Channel according to the actual connection of detector. 2) Select Yellow Light Related Channel No. according to the actual connection of detector.

  • Page 72: External Input

    Network Traffic Camera • User Manual External Input If the camera gets triggered by the external induction coils, you can select the trigger mode as External Input. Once a vehicle passes by, a signal will be sent to the camera. Go to Configuration >...
  • Page 73 Network Traffic Camera • User Manual 3) Click on the live view window to point out a corner of the LRP area, and right click the mouse to finish drawing. Draw LPR Area  Polygon with 3 to 20 sides is supported. ...

  • Page 74: Checkpoint Vehicle Detector

    Network Traffic Camera • User Manual Usually one lane links to one flashlight. If you link more than 1 flashlight, you need to select Flashlight Mode. You can select simultaneous flash and sequential flash as requested. (Optional) Copy the configuration of current external input to other external inputs by checking the corresponding checkboxes among T1 to T4.
  • Page 75 Network Traffic Camera • User Manual Checkpoint Vehicle Detector (Optional) Select Backup Mode and Tolerance Time. You can select Mixed-traffic Lane, and when the vehicle detector exception time exceeds the configured Tolerance Time, the mode...
  • Page 76 Network Traffic Camera • User Manual will change to mixed-traffic lane automatically. When the camera can receive the signal from the vehicle detector normally, the mode will change to vehicle detector mode again. (Optional) Check Violation Detection Configuration types, and when there is seat belt unbuckled or phone call detection, capture will be triggered.

  • Page 77: Rs-485 Radar

    Network Traffic Camera • User Manual 5) Select Capture Interval type between time and distance, and set the interval time or interval distance. 6) Set Speed Limit Sign according to actual speed value on speed restriction board, and it will be overlaid on captured picture. 7) Set Speed Limit for Truck.
  • Page 78 Network Traffic Camera • User Manual RS-485 Radar (Optional) Check Violation Detection Configuration types, and when there is seat belt unbuckled or phone call detection, capture will be triggered. Select Total Lanes from the drop-down list.
  • Page 79 Network Traffic Camera • User Manual Up to 3 lanes can be supported. Supported total lanes may vary from different modes. Click the lane tab to select the lane to configure. Draw license plate recognition (LPR) area. 1) Click Draw LRP Area to enter the area configuration interface. 2) Click Draw LPR Area (Lane x) to start drawing.
  • Page 80 Network Traffic Camera • User Manual  Trigger Delay Time: The time between two vehicles being captured.  Trigger Delay Distance: The distance between two vehicles being captured. Configure the capture parameters. 1) Select Capture Pictures. Up to 5 can be selected. 0 refers to capture no vehicle. 2) (Optional) If the lane is emergency lane, check Occupy Emergency Lane Capture, and when there is vehicle passing on the lane, capture will be triggered.
  • Page 81 Network Traffic Camera • User Manual  Sensitivity: Enter the sensitivity.  Angle: Enter the angle of the radar and the horizontal direction according to the actual application.  Linearity Correction: You may need to adjust the radar output result according to the actual speed.

  • Page 82: Chapter 12 Exception

    Network Traffic Camera • User Manual Chapter 12 Exception Purpose: The exception type can be HDD error, network disconnected, IP address conflicted, and vehicle detector exception. Go to Configuration > Device Configuration> Exception. Select the exception type and the corresponding trigger methods. Exception Settings ...

  • Page 83: Chapter 13 Maintenance

    Network Traffic Camera • User Manual Chapter 13 Maintenance Device Status Go to Configuration > Device Status. Device Status View Device IP Address and Device Status.  Device IP Address: Display the current IP address of the camera.  Device Status: Detailed descriptions are shown in the following table. Description of Device Status Item Description...

  • Page 84: User Management

    Network Traffic Camera • User Manual User Management Add a User The admin user has all permissions by default and can create/modify/delete other accounts. The admin user cannot be deleted and you can only change the admin password. Click Add to add a user. Select User Type.

  • Page 85: Add A User

    Network Traffic Camera • User Manual Add a User Modify a User Select a user from the list and click Edit. Modify the editable parameters. Modify Admin...

  • Page 86: Delete A User

    Network Traffic Camera • User Manual Modify Operator/User Click OK to save the settings. Delete a User Select the user you want to delete and click Delete. Click OK on the pop-up message box to delete the user. Log Search Purpose: The operation, alarm, exception and information of the camera can be stored in log files.

  • Page 87: Log Search

    Network Traffic Camera • User Manual Log Searching Set the log search conditions to specify the search, including Major Type, Minor Type, Start Time, and End Time. Click Search to search log files. The matched log files will be displayed in the list. To export the log files, click Save Log to save the log files in your PC.

  • Page 88: Export Debug File

    Network Traffic Camera • User Manual Use the Hard Reset function with caution. Export Debug File Go to Configuration > Device Configuration> Maintenance > Debug File Export. Export Debug File Click Debug File Export and set the saving path to save the debug file in local storage. Export Configuration File Purpose: If you have configured a camera and want to use the configured parameters as the example for...

  • Page 89: Export Configuration File

    Network Traffic Camera • User Manual (Optional) For Partial Import mode, you should select configuration type(s) to import by checking the corresponding checkbox(s). Click Browse to select the saved configuration file. Click Import to start importing the configuration file. You need to reboot the camera after importing configuration file. Upgrade the System Go to Configuration >...
  • Page 90 UD15859B...

This manual is also suitable for:

Ids-2cd9396-aisIds-2cd9136-asIds-2cd9396-as
