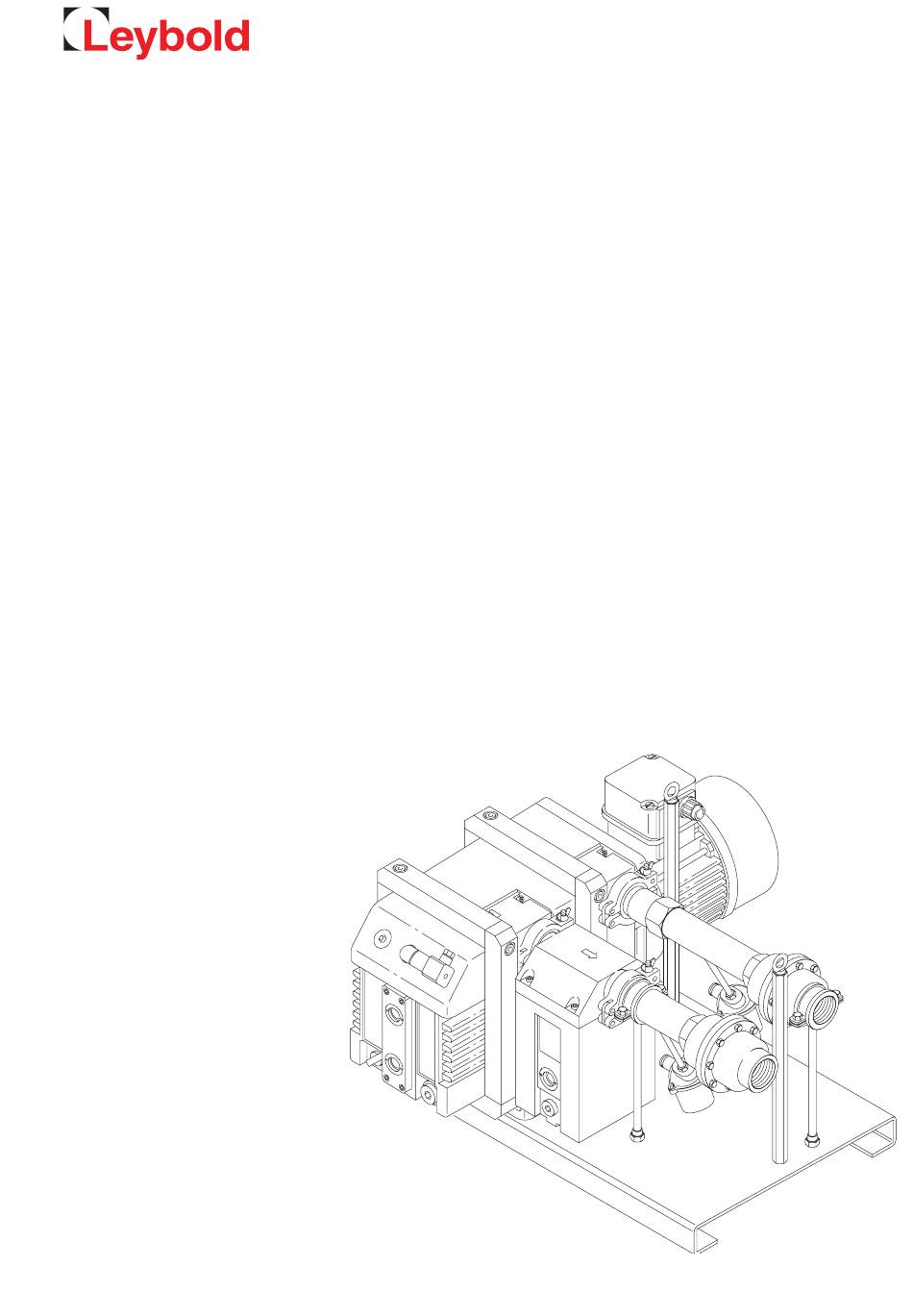

TRIVAC
D 16 B Ex
Rotary Vane Vacuum Pump
IAW Directive 2014/34/EC ("ATEX")
Explosion pressure resistant, two-stage oil-sealed rotary vane vacuum pump with
exhaust filter, flame arresters, measurement facilities for temperature and pres-
sure monitoring
Operating Instructions GA01212_002_C1
P/N
140091
Gas group IIB3
140092
Gas group IIC
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIVAC D 16 B Ex 140091 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEYBOLD TRIVAC D 16 B Ex 140091

  • Page 1 TRIVAC ® D 16 B Ex Rotary Vane Vacuum Pump IAW Directive 2014/34/EC (“ATEX”) Explosion pressure resistant, two-stage oil-sealed rotary vane vacuum pump with exhaust filter, flame arresters, measurement facilities for temperature and pres- sure monitoring Operating Instructions GA01212_002_C1 140091 Gas group IIB3 140092 Gas group IIC...
  • Page 2: Table Of Contents

    Lubricants Supplied equipment Technical data Transport and Storage Installation Placement Conforming utilization 3.2.1 Non-conforming utilization Connecting to the system Electrical connection 3.4.1 Pump with three-phase AC motor 3.4.2 Connecting monitoring facilities 3.4.3 Electrostatic discharge GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 3 Disassembly and reassembly of the electric motor 5.6.1 Checking the coupling Flame arrester and temperature sensor Pressure transducer Troubleshooting Waste Disposal EC Declaration of Conformity EC Declaration of Contamination Translation of the original German installation and operation instructions GA01212_001_C1 GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 4 Operating Instructions and follow the information so as to ensure optimum and safe working right from the start. The Leybold TRIVAC D16 B Ex has been designed for safe and efficient operation when used properly and in accordance with these Operating Instructions.
  • Page 5: Important Safety Information

    Provide an adequate ground connection for the pump so as to avoid any electrostatic charging. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 6: Thermal Hazards

    Since not all application related hazards for vacuum systems can be described in detail in these Operating Instructions, Leybold has availa- ble a separate document (Safety Booklet) in which the hazards and general safety concepts for design, operation and maintenance of vacuum systems are explained.
  • Page 7: Danger Of Ignition

    Increased Safety ‘e’; ■ for the pressure sensor: Intrinsic Safety ‘ia’ (only for connections to ■ certified intrinsically-safe circuits); for the temperature sensor: PT100 passive sensor (only for connec- ■ tions to certified intrinsically-safe circuits). GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 8: Classification And Marking Of The Pump

    1 Equipment-category 1 applies to all devices for use in areas in which explosive atmospheres caused by mixtures of air and gases, vapours, mists or air/dusts mixtures are highly likely to occur and are present continuously, for long periods of time or frequently. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 9: Hazards Caused By Noise

    Operating Instructions apply. Note the markings of the attached electrical apparatus, too. Hazards caused by noise CAUTION The noise level produced by the pump less than 60 dB(A). Suitable hearing protection measures must be introduced. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 10: Risk Of Damaging The Pump

    Corrosion, deposits and cracking of oil within the pump are not allowed. Normal amounts of humidity within the range of the pump’s water vapour tolerance will not significantly affect pump performance when the gas ballast is active. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 11: Description

    The oil injected into the pump chamber is used for sealing and lubricating. The pinking in the pump which usually occurs when attaining the ultimate pressure is prevented by admitting a very small amount of air into the pump chamber. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 12 To enable the TRIVAC D 16 B Ex to be used at intake pressures as high as Lube system 1,000 mbar, a special lubricating system was developed featuring force-lubri- cation of the sliding bearings. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 13 (4/4) up and the valve plate (4/6) against the valve seat (4/5). The quantity of oil in the oil reservoir (4/1) prevents the entry of air into the intake port (2/1) at the beginning of this process. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 14: Integrated Monitoring Facilities

    GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 15: Materials In Contact With The Medium

    140 091 140 092 Equipment-group Equipment-category 1 inside 1 inside 2 outside 2 outside Zone 0 inside 0 inside 1 outside 1 outside Gas group II B3 II C Temperature classification GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 16: Lubricants

    Type designation of the explosion protected PT100 in the flame arrester on the intake side P/N 140 091 TR10-C with protection tube; TW35 type P/N 140 092 TR10-C with protection tube; TW35 type Type designation explosion resistant pressure transducer Typ IS-20-S-BBG-GD-AZGA4ZUX1-ZZZ GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 17: Technical Data

    The motor may accelerate with a delay when simultaneously an undervoltage is present at the motor and the pump is at the minimum permissible and ambient temperature. Under such operating condi- tions the motor protection switch may respond. In this case the motor may be started again. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 18 Description 89,5 Base plate Bodenplatte Connection G 3/4“ Anschluss G 3/4” Connection G 1“ Anschluss G 1” Fig. 5 Dimensional drawing of the TRIVAC-D 16 B Ex GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 19 Kat.-Nr. 140 092 Ultimate total pressure w/o gas ballast Endtotaldruck ohne Gasballast Endtotaldruck mit Gasballast Ultimate total pressure w/ gas ballast Fig. 6 Pumping speed curves of the TRIVAC D 16 B Ex, 50 Hz operation GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 20 Under such operating conditions the motor protection switch may respond. In this case the motor may be started again. NOTICE Observe the data given on the motor nameplate. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 21: Transport And Storage

    When a pump is put into operation after it has been shelved for over one year, standard maintenance should be run on the pump and the oil should also be exchanged (see Section 5.4). We recommend that you contact the Leybold Service. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 22: Installation

    Max. tilt for the pump is 10° from the vertical. The site chosen should allow adequate air circulation to cool the NOTICE TRIVAC D 16 B Ex (keep front and rear unobstructed). The oil-level glass must be visible. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 23: Conforming Utilization

    The utilization of the pump must be verified by the operating company against corresponding equipment-categories, temperature classifications and gas groups as specified in the explosion protection document drawn up. Our technical sales department is available for further advice in these mat- ters. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 24: Non-Conforming Utilization

    European standard EN 13463-1 (“Non-electrical equipment for use in poten- tially explosive atmospheres – Part 1: Basic method and requirements”). And based on this assessment the ignition sources listed in the following which may occur during operation of the pump, were determined: GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 25 Original spare parts of the manufacturer must be used only, for maintenance and repair of sources caused by the vacuum pump IAW these operation instructions. incorrect use Servicing has to conducted on a regular basis as described in these operating instructions. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 26: Connecting To The System

    The intake line must be clean and free of welding beads and scales. Deposits in the intake line may outgas and adversely affect the vacuum. The connect- ing flanges must be clean and undamaged. Use suitable intake filters, respectively suitable accessories on the pump GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 27 In inlet pressure for the gas ballast should be about 1013 mbar (absolute) and sufficient quantities of gas must be available (about 1/10 of the pumping speed). Further commitments of the operator relating to work safety can be found in Directive 1999/92/EC. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 28: Electrical Connection

    This applies equally to emergency cut-out arrangements. Observe Safety Information 0.2. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 29: Pump With Three-Phase Ac Motor

    (e. g. a blank flange) is sucked on at the intake port. If not, interchange two phases of the connection. Observe the direction arrow on the coupling housing. In the case of custom pumps please note the information provided on a sep- arate sheet. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 30: Connecting Monitoring Facilities

    IEC 60 529). (The IP Codes specified apply only in the plugged condition with cable connectors (sockets) complying with the corresponding protection rat- ing.) Make sure that no moisture can enter at the cable heads. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 31: Electrostatic Discharge

    In order to avoid an electrostatic charge at the handle of the pump, it should only be cleaned using a moist piece of cloth. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 32: Operation

    Vacuum connections as well as oil feed and discharge openings must not be opened while the pump is operating. Avoid exposing any part of the human body to the vacuum. There is the risk of suffering injury. Observe Safety Information 0.1. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 33: Operation

    (if possible via a valve). Once all vapours have been pumped off from a process (e.g. during drying), the gas ballast valve can be closed to improve the attainable ultimate pressure. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 34: Operating Temperatures

    Observe Safety Information 0.3. If – due to the ambient conditions – this temperature range is exceeded at either end of the range, contact Leybold Sales. The motor may accelerate with a delay when simultaneously an undervoltage is present at the motor and the pump is at the minimum permissible and ambient temperature.
  • Page 35: Shutdown Through Monitoring Facilities

    In order to prevent the pump from running up unexpectedly after a mains power failure, the pump must be integrated in the control system in such a way that the pump can only be switched on again manually. This applies equally to emergency cut-out arrangements. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 36: Maintenance

    When the TRIVAC D 16 B Ex has been pumping corrosive media we rec- ommend that possibly planned maintenance work be carried out immedi- ately in order to prevent corrosion of the pump while it is at standstill. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 37: Maintenance Plan

    It is required to service the pump every two years covering the following: Cleaning ■ Checking all individual components ■ Exchange of all seals and gaskets ■ Functional check. ■ This service must only be run by the Leybold Service. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 38: Leybold Service

    For safety reasons, every TRIVAC D 16 B Ex must be subjected every two years or in the case of a failure, to a revision at Leybold. During the check every two years also all seals and filters of the pump are replaced.
  • Page 39: Monitoring The Oil Level

    If you want to check the oil, switch off the pump first and drain out from the warm pump the required amount of oil through the oil drain (9/4) into a beak- er or similar. Please note the safety information given in Section 5.4. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 40: Oil Change

    2,000 – 3,000 operating hours or after one year. At high intake pressures and intake temperatures and/or when pumping contaminated gases, the oil will have to be changed much more frequently. Further oil changes should be made before and after long-term storage of the pump. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 41 The tightening torque for the bolts (9/1) and (9/4) has been specified at 10 Nm. We can only guarantee that the pump operates as specified by the techni- NOTICE cal data if the lubricants recommended by us are used. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 42: Exhaust Filter

    Because of the gas flow, then droplets of oil may be entrained in the gas flow. Unscrew the oil-drain plug (10/1) and drain out the filtered oil. Then screw in the oil-drain plug using a new gasket. Torque for the oil-drain plug: 10 Nm GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 43: Disassembly And Reassembly Of The Electric Motor

    19 mm (for junction box), Allan keys 3 mm, 5 mm, 6 mm, possibly a puller for the coupling. Unscrew the four non-recessed hex. socket screws (11/3). Remove the intermediate flange (11/5) together with the electric motor (11/4). GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 44: Checking The Coupling

    In addition a visual inspection as to the presence of any damage needs to be done. If damaged, the coupling must be replaced. Pls. observe the information in the enclosed manufacturer’s Operating Manual. 2.5 ±0.1 Gasket (11/1) Coupling (11/7) Sketch 2 Axial position of the coupling GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 45: Flame Arrester And Temperature Sensor

    Close the gas ballast. ■ Switch off the pump. ■ if the corresponding output signal is present at the pressure transducer, the operational test can be terminated. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 46: Troubleshooting

    Bubble test: The warm pump with degassed oil is running without gas ballast and the intake is blanked off. The exhaust line is led into a vessel with water. If an evenly spaced line of bubbles appears then the pump has an external leak. GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 47 Intake pressure is too high. Lower the intake pressure. Internal demister is clogged. Clean or replace demister. Service Coupling element is worn. Install new coupling element. Vanes or bearings are damaged. Repair pump. Service GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 48: Waste Disposal

    Waste oil from vacuum pumps must not be mixed with other substances or materials. Waste oil from vacuum pumps (Leybold oils which are based on mineral oils) which are subject to normal wear and which are contaminated due to the influence of oxygen in the air, high temperatures or mechanical wear must be disposed of through the locally available waste oil disposal system.
  • Page 49: Ec Declaration Of Conformity

    Waste Disposal EC Declaration of Conformity GA01212_002_C1 - 04/2017 - © Leybold...
  • Page 50 „near miss“ accident, please let us know. We too are thus assure us that you are acting in good faith and will not expose our staff concerned to reduce accidents and develop means of improvement. to any unnecessary risk. Many thanks for your understanding. 17200001_002_C0 © Leybold...
  • Page 51: Ec Declaration Of Contamination

    Person to contact: Calibration: Factory-calibr. Phone : Fax: Quality test certificate DIN 55350-18-4.2.1 End user: A. Description of the Leybold product: Failure description: Material description : Catalog number: Additional parts: Serial number: Application-Tool: Type of oil (ForeVacuum-Pumps) : Application- Process: B.
  • Page 52 Sales and Service Germany Great Britain America Leybold Japan Co., Ltd. Tsukuba Technical Service Center Leybold UK LTD. 1959, Kami-yokoba Leybold GmbH Tsukuba-shi, Ibaraki-shi 305-0854 Unit 9 Sales, Service, Support Center (3SC) Japan Silverglade Business Park Bonner Strasse 498 Leybold USA Inc.

This manual is also suitable for:

Trivac d 16 b ex 140092
