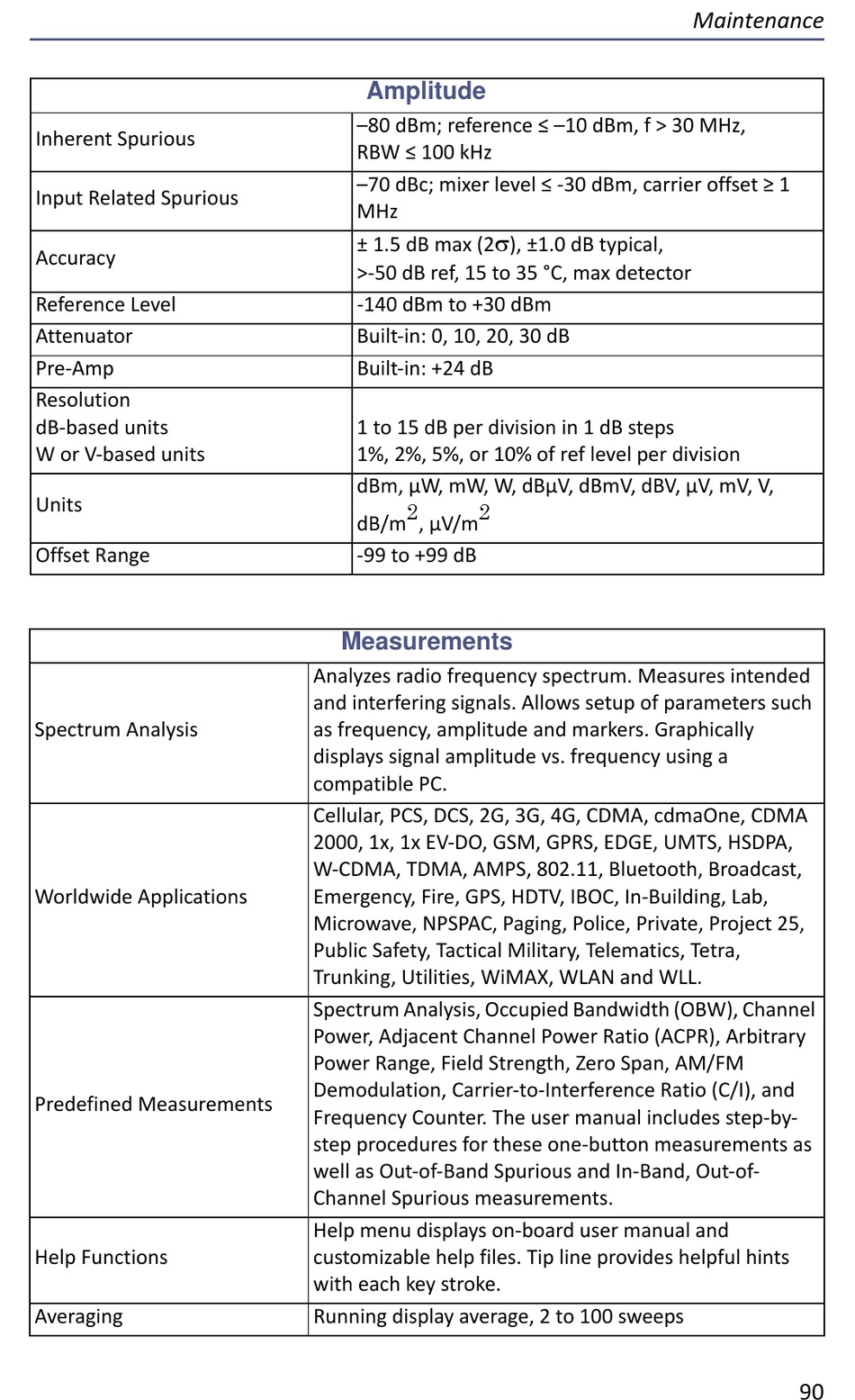

BIRD SignalHawk SH-36S-RM Operation Manual page 105

Inherent Spurious
Input Related Spurious
Accuracy
Reference Level
Attenuator
Pre-Amp
Resolution
dB-based units
W or V-based units
Units
Offset Range
Spectrum Analysis
Worldwide Applications
Predefined Measurements
Help Functions
Averaging
Amplitude
–80 dBm; reference ≤ –10 dBm, f > 30 MHz,
RBW ≤ 100 kHz
–70 dBc; mixer level ≤ -30 dBm, carrier offset ≥ 1
MHz
± 1.5 dB max (2
>-50 dB ref, 15 to 35 °C, max detector
-140 dBm to +30 dBm
Built-in: 0, 10, 20, 30 dB
Built-in: +24 dB
1 to 15 dB per division in 1 dB steps
1%, 2%, 5%, or 10% of ref level per division
dBm, μW, mW, W, dBμV, dBmV, dBV, μV, mV, V,
dB/m 2 , μV/m 2
-99 to +99 dB
Measurements
Analyzes radio frequency spectrum. Measures intended
and interfering signals. Allows setup of parameters such
as frequency, amplitude and markers. Graphically
displays signal amplitude vs. frequency using a
compatible PC.
Cellular, PCS, DCS, 2G, 3G, 4G, CDMA, cdmaOne, CDMA
2000, 1x, 1x EV-DO, GSM, GPRS, EDGE, UMTS, HSDPA,
W-CDMA, TDMA, AMPS, 802.11, Bluetooth, Broadcast,
Emergency, Fire, GPS, HDTV, IBOC, In-Building, Lab,
Microwave, NPSPAC, Paging, Police, Private, Project 25,
Public Safety, Tactical Military, Telematics, Tetra,
Trunking, Utilities, WiMAX, WLAN and WLL.
Spectrum Analysis, Occupied Bandwidth (OBW), Channel
Power, Adjacent Channel Power Ratio (ACPR), Arbitrary
Power Range, Field Strength, Zero Span, AM/FM
Demodulation, Carrier-to-Interference Ratio (C/I), and
Frequency Counter. The user manual includes step-by-
step procedures for these one-button measurements as
well as Out-of-Band Spurious and In-Band, Out-of-
Channel Spurious measurements.
Help menu displays on-board user manual and
customizable help files. Tip line provides helpful hints
with each key stroke.
Running display average, 2 to 100 sweeps

), ±1.0 dB typical,
