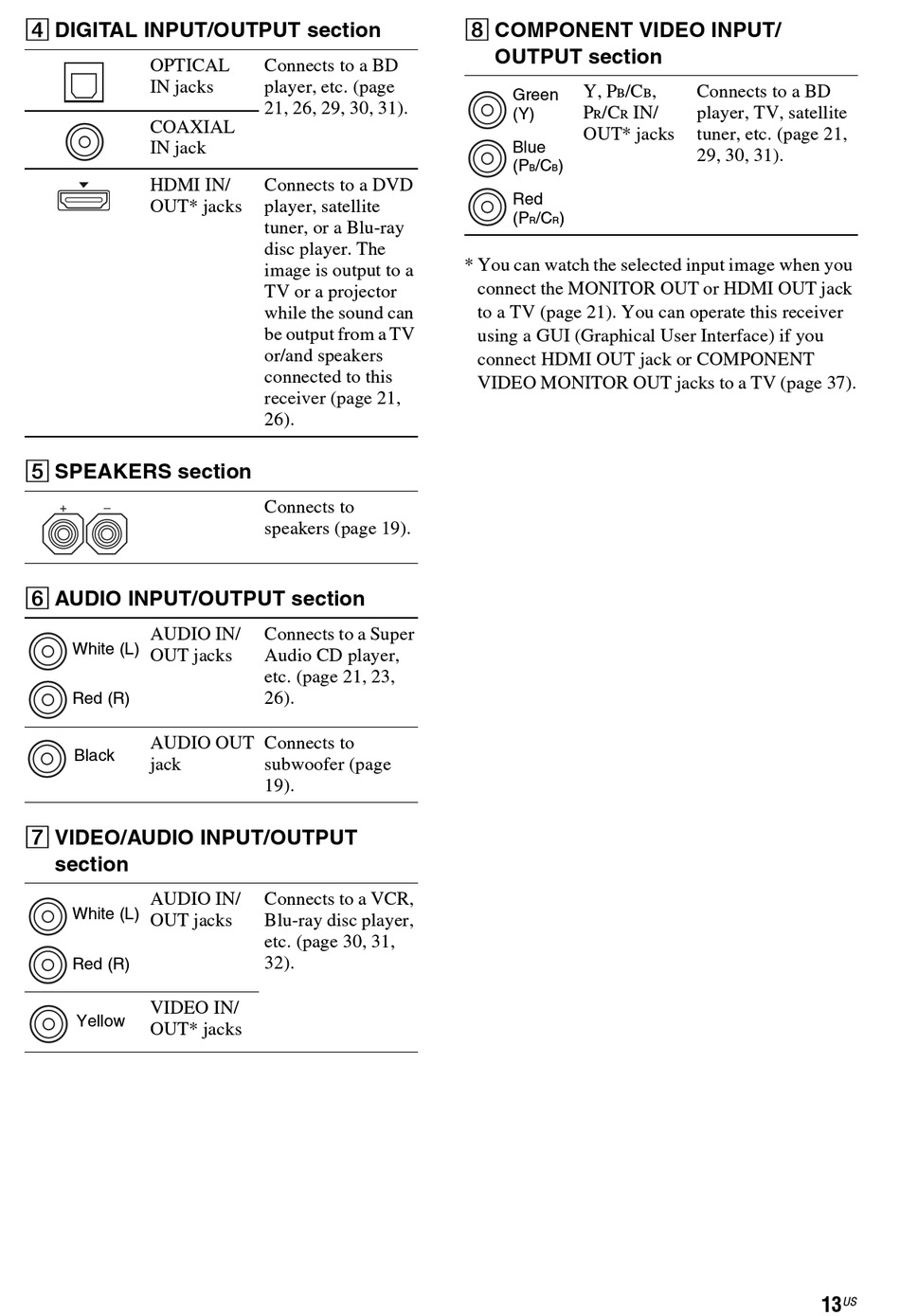

D DIGITAL INPUT/OUTPUT section
OPTICAL
IN jacks
COAXIAL
IN jack
HDMI IN/
OUT* jacks
E SPEAKERS section
F AUDIO INPUT/OUTPUT section
AUDIO IN/
White (L)
OUT jacks
Red (R)
AUDIO OUT
Black
jack
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
White (L)
OUT jacks
Red (R)
VIDEO IN/
Yellow
OUT* jacks
Connects to a BD
player, etc. (page
21, 26, 29, 30, 31).
Connects to a DVD
player, satellite
tuner, or a Blu-ray
disc player. The
image is output to a
TV or a projector
while the sound can
be output from a TV
or/and speakers
connected to this
receiver (page 21,
26).
Connects to
speakers (page 19).
Connects to a Super
Audio CD player,
etc. (page 21, 23,
26).
Connects to
subwoofer (page
19).
Connects to a VCR,
Blu-ray disc player,
etc. (page 30, 31,
32).
H COMPONENT VIDEO INPUT/
OUTPUT section
Y, P /C
Green B
P /C IN/
(Y)
R R
OUT* jacks
Blue
(P /C )
B B
Red
(P /C )
R R
* You can watch the selected input image when you
connect the MONITOR OUT or HDMI OUT jack
to a TV (page 21). You can operate this receiver
using a GUI (Graphical User Interface) if you
connect HDMI OUT jack or COMPONENT
VIDEO MONITOR OUT jacks to a TV (page 37).
, Connects to a BD
B
player, TV, satellite
tuner, etc. (page 21,
29, 30, 31).
13 US
