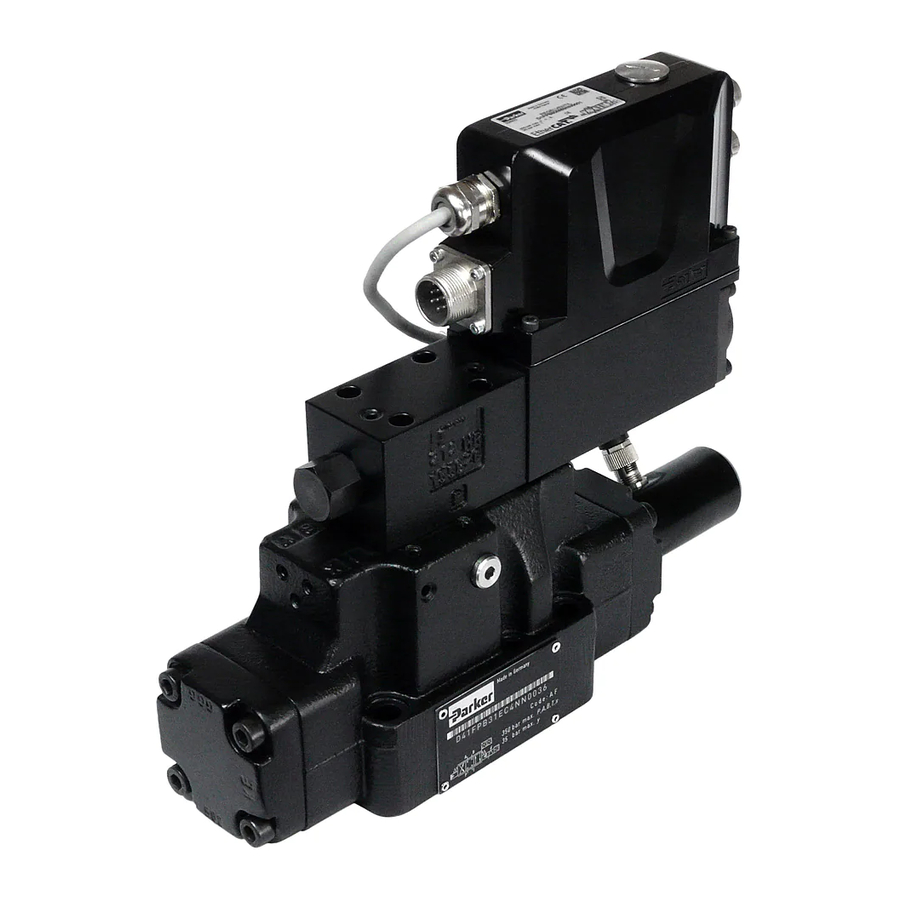

Parker DFplus Series Operation Manual
Proportional directional control valve, pilot operated
Hide thumbs
Also See for DFplus Series:
- Operation manual (22 pages) ,
- Operation manual (24 pages) ,
- Operation manual (22 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Operating Manual
Bulletin HY11-5715-666/UK
Operation Manual
Series DFplus
Pilot Operated
Design > 30
Proportional Directional
Control Valve
Parker Hannifin
Manufacturing Germany GmbH & Co. KG
Hydraulic Controls Division Europe
Gutenbergstr. 38
41564 Kaarst, Germany
Tel.: (+49) 181 99 44 43 0
E-mail: valveshcd@parker.com
Copyright © 2015, Parker Hannifin Corp.
Advertisement
Table of Contents
Related Manuals for Parker DFplus Series
Summary of Contents for Parker DFplus Series

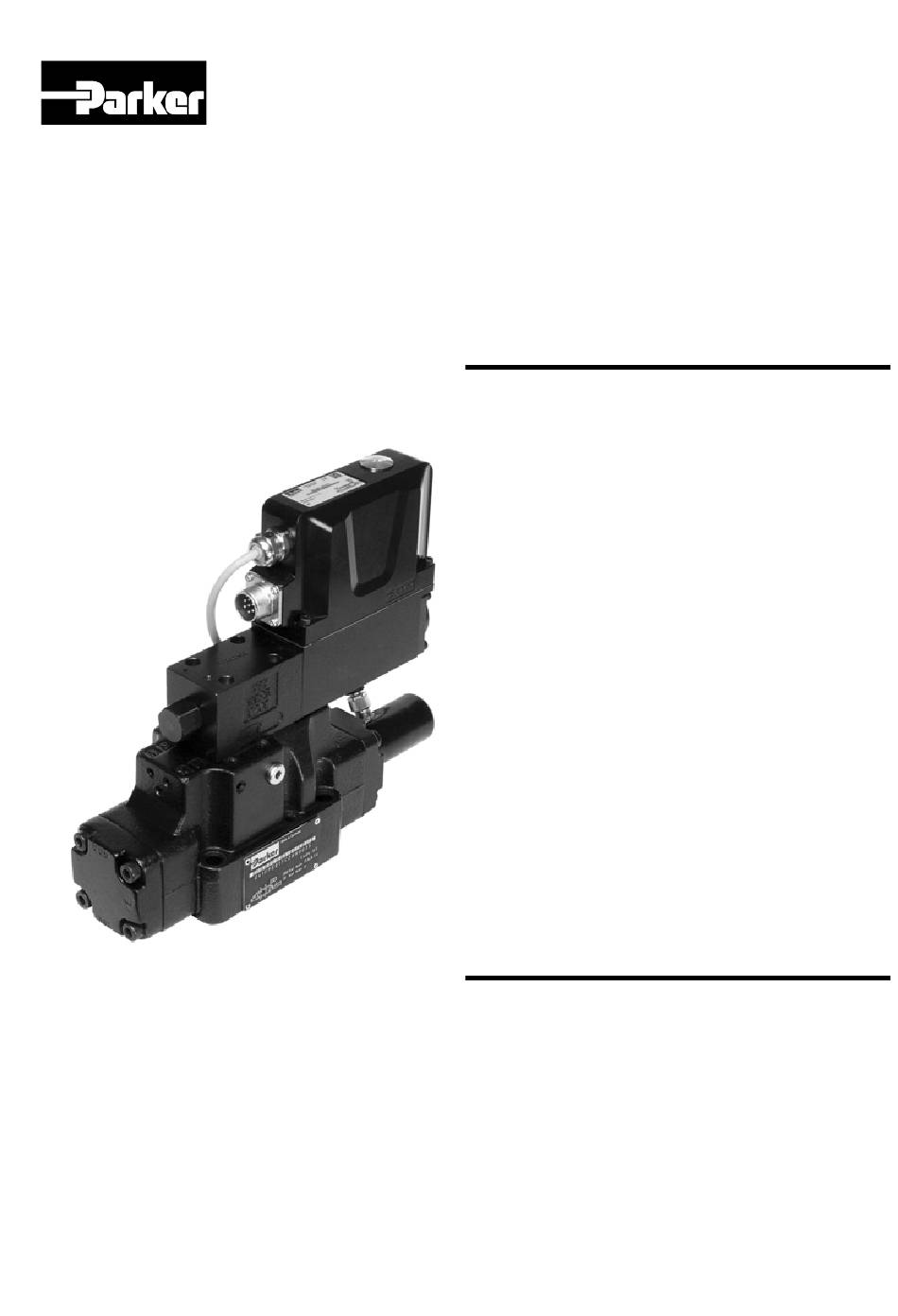

- Page 1 Pilot Operated Design > 30 Proportional Directional Control Valve Parker Hannifin Manufacturing Germany GmbH & Co. KG Hydraulic Controls Division Europe Gutenbergstr. 38 41564 Kaarst, Germany Tel.: (+49) 181 99 44 43 0 E-mail: valveshcd@parker.com Copyright © 2015, Parker Hannifin Corp.
- Page 2 The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
-
Page 3: Table Of Contents
5. Operation Instructions Preferred Hydraulic Initial State Solenoid Current Monitoring ProPxD Parametering Software Air Bleeding of Hydraulic System Filter Flushing 6. Trouble Shooting 7. Accessories / Spare Parts Accessories Spare Parts D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... -
Page 4: Introduction
± 10 V 0...+10 V -> P-A 4...20 mA 12...20 mA -> P-A Code Seal Approx. 10 % opening, only zero lapped spools. for HFC fluids For overlapped spools. D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... -
Page 5: Name Plate
Series DFplus Pilot Operated Name Plate Block Diagram of Integral Electronics Code 0 (6+PE) Parker D*1FP proportional directional control valves Code 5 (11+PE) have an integral electronic. Different flow sizes, power-down positions as well as command signal options are available to achieve an optimal adaption for different applications. -
Page 6: Specifications
11 + PE acc. EN 175201-804 Wiring min. Code 0/7 [mm²] 7 x 1.0 (AWG16) overall braid shield Code 5 [mm²] 8 x 1.0 (AWG16) overall braid shield Wiring length max. [m] 50 D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... -
Page 7: Safety Instructions
Instructions applied on the valve, i.e. wiring dia- grams and name plates, must be observed and Do not disassemble the valve! In case of maintained legibly. suspicion for a defect please contact Parker. Work at the Valve Storage Workings in the area of installation, commissioning,... -
Page 8: Mounting / Installation
Special gaskets may be available depending on • Tighten the bolts crisscross with the following the utilized fluid. torque values: In case of insecurity please consult Parker. D31FP: 13.2 Nm, D41FP: 13.2/63 Nm, D81/91FP: 108 Nm, D111FP: 517 Nm D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation... -
Page 9: Electrical Connection
The connecting cable has to comply to the follow- Cable length max. 50 m ing specification: For cable lengths > 50 m consult Parker. Cable type control cable, flexible, 7 conductors, overall braid The connection cable is coupled to the female shield connector by crimp contacts. -
Page 10: Electrical Interfacing
(cross section AWG 6). D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... - Page 11 Series DFplus Pilot Operated Wiring Code 0, 6 + PE acc. EN 175201-804 Code 5, 11 + PE acc. EN 175201-804 Code 7, 6 + PE acc. EN 175201-804 + enable D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group...
-
Page 12: Operation Instructions
A diagnostics signal is available. Its voltage repre- sents the operating condition of the valve. The output may drive a load of max. 5 mA. Exceeding of this limit leads to malfunction. D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... -
Page 13: Solenoid Current Monitoring
file for further documentation. The PC software can be downloaded free of charge at www.parker.com/euro_hcd - see page “Support” or directly at www.parker.com/propxd. Please check periodical for updates. Hardware requirements •... - Page 14 Software Operating mode, a pass word is requested. The name is Brief instruction for first startup: “parker” and cannot be changed. Thus additionally • Connect the valve electronic to the supply voltage. to the button “Default” for loading of the default parameters, the button “Send parameter”...
- Page 15 ProPxD Parametrier software. Error code Error code Error description (additive) no errors over current cable break command signal cable break feedback signal undervoltage error bus communication error hardware failure D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group...
- Page 16 4...20 mA. Adjustment of the MIN operating threshold. operating threshold To match the response sensitivity for the MIN-stroke step. D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group...
- Page 17 0 = no fault acknowledgment necessary 255 = fault acknowledgment necessary Errorhandling 768 = no fault acknowledgment + Fault report about diagnosis 1023 = fault acknowledgment + Fault report about diagnosis D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group...
-
Page 18: Air Bleeding Of Hydraulic System
Filter The function and lifetime of the valve are strongly affected by the cleanliness of the fluid. purity level class of 18/16/13 acc. ISO4406 is required. D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group... -
Page 19: Trouble Shooting
Code 7: 6-PE ordering code 5004072 Spare Parts Seal kit NBR D31FP ordering code SK-D31FP D41FP ordering code SK-D41FP D81FP ordering code SK-D81FP D91FP ordering code SK-D91FP D111FP ordering code SK-D111FP D_1FP 5715-666 KS30 UK.INDD RH 08.04.2015 Parker Hannifin Corporation Hydraulics Group...
