Summary of Contents for Holman ASPECT

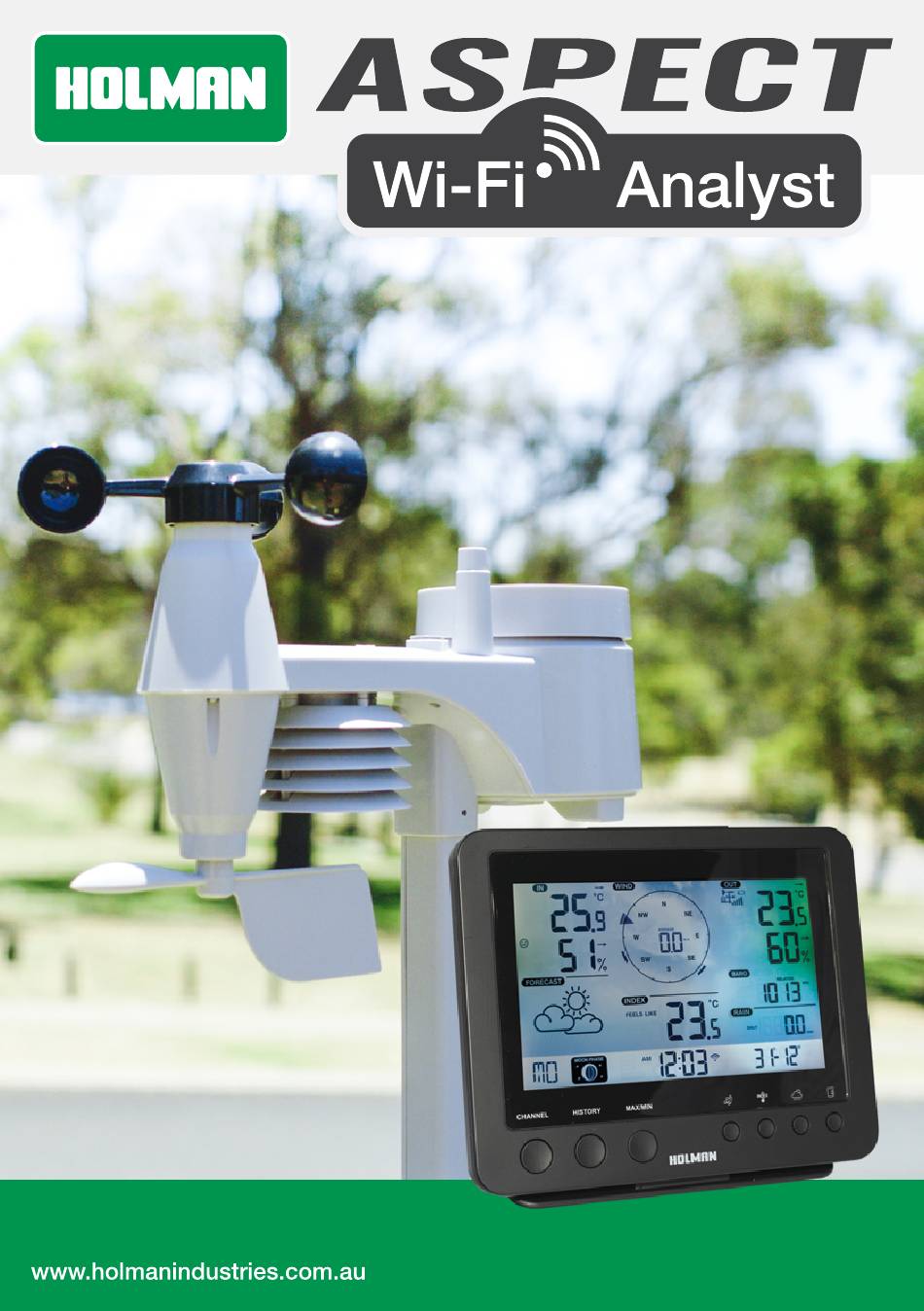

- Page 1 WS5070W 1 of 20 User Guide...
-
Page 2: Table Of Contents
Contents Introduction Overview Main Console LCD Display 5-in-1 Wireless Outdoor Sensor Rain Gauge Temperature/Humidity Sensor Wind Sensor Installation and Setup 5-in-1 Wireless Outdoor Sensor Main Console Pairing Changing Batteries and Manual Pairing Wi-Fi Connection Setup Wi-Fi Connection Status Time Server Connection Status Calibration Viewing Live Weather Data Firmware Update (Desktop Only) -
Page 3: Introduction
Introduction Thanks for choosing our Aspect Wi-Fi Analyst. This system gathers and automatically uploads accurate and detailed weather data to Weather Underground, where you can access and upload your weather data. This product offers professional weather observers or serious weather enthusiasts robust performance with a wide range of options and sensors. -
Page 4: Overview
Overview Main Console 8. BARO 22. REFRESH 1. Table stand 15. Chevron- 2. SNOOZE 9. RAIN 16. Chevron- 23. Battery compartment 3. CHANNEL 24. OFF/LO/HI 10. LCD display 17. Power jack 4. HISTORY 11. CLOCK SET 18. 12/24 25. RESET 5. -
Page 5: 5-In-1 Wireless Outdoor Sensor
Overview (continued) 5-in-1 Wireless Outdoor Sensor 1. Rain collector 2. Balance indicator 3. Antenna 4. Wind cups 5. Mounting pole 6. Louvre shield 7. Wind vane 8. Mounting base 9. Mounting clamp 10. Red LED indicator 11. RESET 12. Battery door 13. -
Page 6: Installation And Setup
Installation and Setup 5-in-1 Wireless Outdoor Sensor Install Batteries: Assembly of Stand and Pole: 1. Insert the top side of the pole to the square hole of the weather sensor. Ensure the pole and sensor's indicator align. 2. Place the nut in the hexagon hole on the sensor, then insert the screw in other... -
Page 7: Main Console
Main Console Power-up: Wi-Fi Connection Setup 1. Plug the power adaptor to power up the Main Console. To connect this Aspect Wi-Fi Analyst to Wi-Fi, it Weather Underground. must be registered with 2. Once the Main Console has powered, up, all Weather Underground the segments of the LCD will be shown. - Page 8 Wi-Fi Connection Setup (continued) On the next page, note it is essential to jot down the LONGITUDE/LATITUDE for your reference later. 3. After noting the LONGITUDE/LATITUDE, follow the prompts to complete registration of your Aspect Wi-Fi Analyst with Weather Underground.
-
Page 9: Wi-Fi Connection Status
Installation and Setup (continued) Wi-Fi Connection Status Time Server Connection Status After the Main Console has connected to the internet, it will attempt to connect to the internet time server to obtain the UTC time. Once the connection succeeds and the Main Console time has been updated, the SYNC icon will appear on the LCD. -
Page 10: Viewing Live Weather Data
Installation and Setup (continued) Viewing Live Weather Data To view live data from the wireless outdoor sensor in a web browser, visit https://www.wunderground.com/, and enter your STATION ID in the search box. Weather information will show on the next page. Firmware Update (Desktop Only) The Main Console supports OTA firmware update ... -
Page 11: Operation And Settings
Operation and Settings Clock This Main Console is designed to obtain the local time by synchronising with the assigned internet time server. If you want to use it offline, you can set the time and date manually. During initial start-up, press and hold SENSOR/Wi-Fi for 6 seconds and set the Main Console back to Normal Mode. -
Page 12: Setting Alarm Time
Operation and Settings (continued) Setting Alarm Time Activating Alarm and Temperature Pre-alarm 1. In Normal Time Mode, press and hold ALARM 1. In Normal Mode, press ALARM to for 2 seconds until the alarm hour digit flashes show the alarm time for 5 seconds. to enter Alarm Time Setting Mode. -
Page 13: Temperature/Humidity Function And Trend
Operation and Settings (continued) Temperature/Humidity Function and Trend Use the °C/°F slide switch to select the temperature display unit. When indoor temperature is below -40°C, the LCD will display LO. If temperature is above 70°C, LCD will display HI. ... -
Page 14: Weather Index
Operation and Settings (continued) Weather Index Press INDEX to view the weather index in this sequence: FEELS LIKE chevron- HEAT INDEX chevron- WIND CHILL chevron- DEW POINT Feels Like: Estimates the outdoor temperature that people actually feel. Heat Index: Determined by the 5-in-1 Wireless Outdoor Sensor temperature and humidity data, when the temperature is between 27°C and 50°C. -
Page 15: Barometric Pressure
Operation and Settings (continued) Barometric Pressure Rainfall The atmospheric pressure is the pressure at any location Setting Rainfall Units: of the earth caused by the weight of the column of air 7. Press and hold RAIN key for 2 seconds above it. - Page 16 Operation and Settings (continued) Past 24 Hours History Data 1. Press HISTORY key to check the beginning of the current hour's weather data e.g. the current time is 7:25 am, March 8, the display will show the data of 7:00am, March 8 2.
-
Page 17: Maintenance
Operation and Settings (continued) 2. Under the current alert reading, press and 3. Press Chevron- or Chevron- key to adjust the value or hold ALERT key for 2 seconds to enter alert press and hold the key to change rapidly. setting and the alert reading will flash. -
Page 18: Precautions
Maintenance (continued) Precautions Keeping and reading this manual is highly Only use fresh batteries. Do not recommended. The manufacturer and supplier mix new and old batteries cannot accept any responsibility for any incorrect Only use attachments/accessories readings, export data lost and any consequences specified by the manufacturer that occur should an inaccurate reading take place ... -
Page 19: Specifications
Specifications Main Console The following details are listed as they are displayed or operate on the Main Console Barometer General Barometer unit hPa, inHg and mmHg Dimensions (W × H × D) 136 × 168 × 24.5mm (5.4 × 6.6 × 1in) 540 ~ 1100hPa (relative setting Weight 370g (with batteries) - Page 20 Should you have any questions about this product or its operation please telephone our customer service helpline on 1300 716 188. Head Office/Service 11 Walters Drive, Osborne Park WA 6017 Ph: +61 8 9416 9999 Fax: +61 8 9416 9920 service@holmanindustries.com.au www.holmanindustries.com.au 20 of 20 Copyright 2019 Holman Industries...
