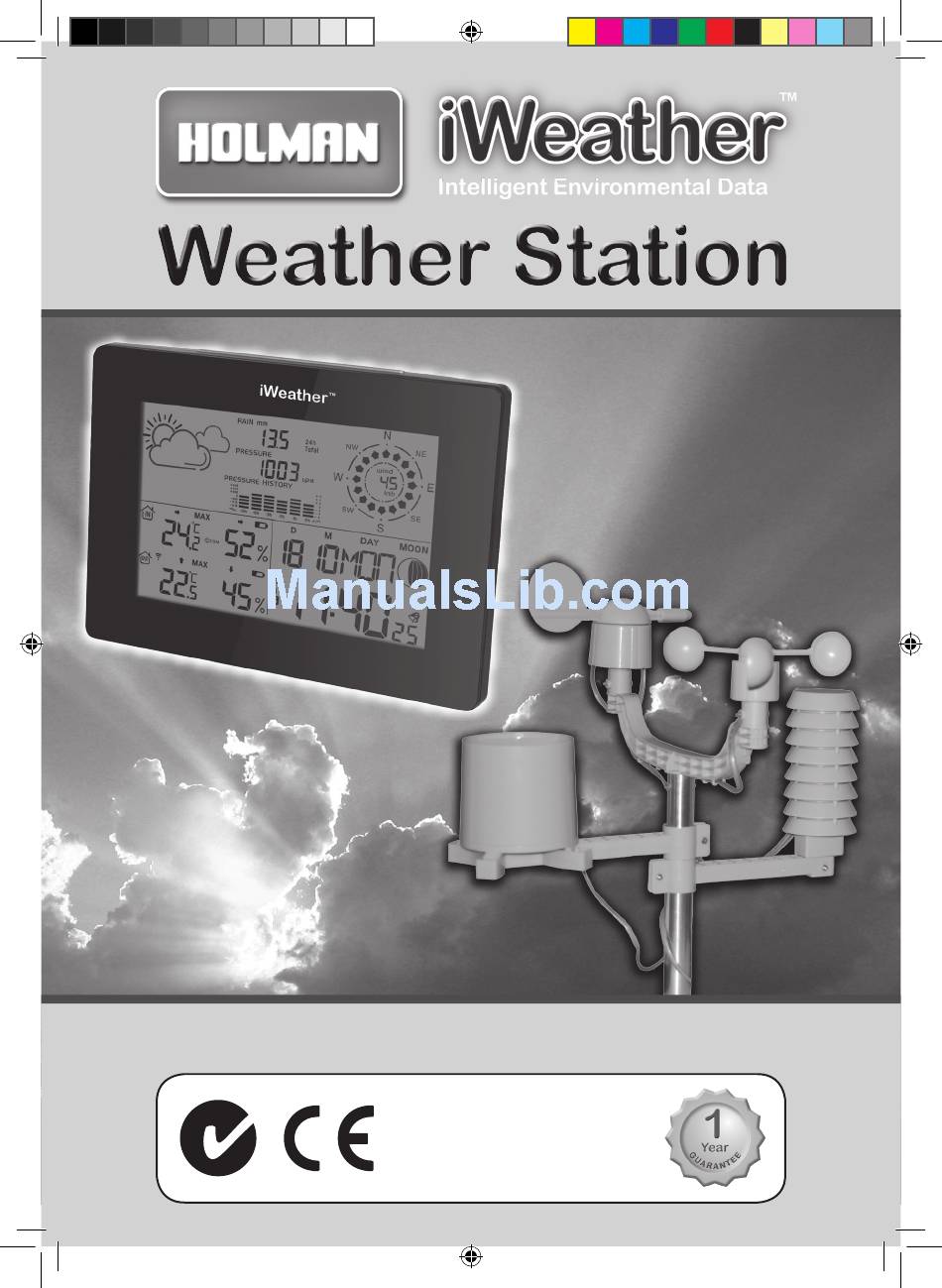

- Page 1 Instruction Manual Product Code: WS5029 WS5029 Weather Station Instruction Manual.indd 1 2/07/12 3:51 PM...
-
Page 2: Table Of Contents
Table of Contents General Information Package Contents Technical Details Outdoor Sensor Glossary Installation - Weather Vane Installing the Batteries Mounting the Main Unit Mounting the Wind Speed Sensor Mounting the Wind Direction Sensor Mounting the Rain Sensor Mounting the Hydro-Thermo Sensor Mounting all Sensors to Stainless Steel Mast Initial Operation Manual Time Set-up Daily Alarm Set-up Daily Alarm on/off Snooze Function 12/24 Hours Mode C/F Temperature Display Max./Min. for the Indoor / Outdoor Temperature and Humidity Temperature Alert on/off 5 Weather Forecast Wind Speed in Mph.kph (0-256kmh) Wind Direction Rainfall Display Illumination Moon Phase Display Living Space Humidity Low Battery Condition Display RF Connection to the Outdoor Sensor Notes Warranty Back Cover... -
Page 3: General Information
General Information Thank you for purchasing the HOLMAN iWeather - Weather Station, Please read the operating instructions carefully to familarize yourself with the features and modes of operation before using the instrument. Package Contents Carefully unpack and remove the contents: • 1x weather station main unit • 1x wind speed sensor • 1x stainless steel mast • 1x wind direction sensor • 1x thermo-hygro sensor • Mounting screws • 1x rain sensor • Stainless steel accessory for fixing the mast. Technical Details Six keys: MODE, +, - , ALARM, ALERT,SNOOZE/LIGHT • • Time display in 12/24 format • Continuous perpetual calendar up to 2099 • Display of Date, Month and Day of week •... -
Page 4: Glossary
Glossary 1. Weather Forecast 8. Date 15. RCC symbol 22. Outdoor temperature alert 2. Living space humidity 9. Wind speed 16. Summer time 23. RF symbol 3. Indoor humidity trend 10. Month 17. Outdoor low battery 24. Indoor temperature alert 4. Indoor low battery 11. Day of week 18. Outdoor humidity 25. Outdoor temperature trend 5. Rainfall 12. Moon Phase 19. Outdoor humidity trend 26. Indoor temperature 6. Air Pressure 13. Dual alarm 20. Indoor humidity 27. Indoor temperature trend 7. Wind direction 14. Time 21. Outdoor temperature A = MODE B = + C = - D = ALARM E = ALERT F = SNOOZE/LIGHT WS5029 Weather Station Instruction Manual.indd 4 2/07/12 3:51 PM... -
Page 5: Installation - Weather Vane
Installation - Weather Vane Installing the Batteries • Open the main unit‘s battery cover located at the back of the unit and insert 2xAA batteries into the battery compartment and close the battery cover. • Pull away the shower-proof case of the thermo-hrgro sensor to reveal the 2 sockets. (for the wind sensor and rain sensor) • Connect the attached cables : 1. Cable from wind speed sensor insert into the socket of wind direction sensor , 2. Cable from wind direction and cable from rain sensors to the corresponding sockets of the thermo-hygro sensor by clicking them into place. Make sure that rain and wind cables are connected to the correct sockets. • First insert the batteries of main unit, then insert the batteries of the outdoor sensor in 3 minutes after the main unit is powered on, to assure of the sensor data received well. In case of the outdoor sensor data received failure, please press ALARM key for more than 3 seconds to synchronize the RF signal. • Every time the batteries are replaced, the main unit will loose all the weather data. • Every time the batteries are replaced, the thermo-hygro sensor will sychronize with the main unit again. You must press the ALARM key for more than 3 seconds to synchronize the RF signal. • Other situation of failure of RF, please reset the sensor to and press ALARM receive again. WS5029 Weather Station Instruction Manual.indd 5 2/07/12 3:51 PM... -
Page 6: Mounting The Main Unit
Installation - Weather Vane Mounting the Main Unit The main unit can be placed onto any flat surface or wall mounted at the desired location by hanging hole. Mounting the outdoor sensor onto the stainless steel mast For accurate results, the outdoor sensor mast should be securely mounted onto a horizontal surface and in an open area away from trees and other coverings where rainfall or wind speed may be reduced to cause inaccurate reading. 1. Mounting the wind speed sensor to the first plastic bracket: first check the wind-fan can rotate freely before fixing . The wind speed sensor should now be mounted onto the bracket provided to allow the wind to travel around the sensor unhindered from all directions.please follow the below display : 2. Mounting the wind direction sensor to the first plastic bracket: first check the wind direction sensor before fixing,there is one cable from wind speed sensor, please insert it into the socket under the wind direction sensor.please follow the below display: WS5029 Weather Station Instruction Manual.indd 6 2/07/12 3:51 PM... -
Page 7: Mounting The Rain Sensor
Installation - Weather Vane 3. Mounting the rain sensor to the second plastic bracket: there are vertical engraved lines at the bottom edge of the round cover and the sensor part, you only need adjust the two lines into one position, then turn clockwise, the rain sensor parts will be connected well, then fix them with 4 screws onto the plastic bracket ( don’t use only 2 screws ) please follow the below dispay: WS5029 Weather Station Instruction Manual.indd 7 2/07/12 3:51 PM... -
Page 8: Mounting The Hydro-Thermo Sensor
Installation - Weather Vane 4. Mounting the thermo-hygro sensor to the third plastic bracket: once the wind sensors and rain sensor are fixed onto the bracket, connect the cables to the corresponding thermo-hygro sensor sockets with the plugs, so that data can be transmitted to the main unit ,then put the house-like cover onto the thermo-hygro sensor, please follow the below display: Note: please don’t put in or take off the plug very offen,or put the plug outside in the air so long time to avoid any damage of the plug , if so, there will be bad connection. WS5029 Weather Station Instruction Manual.indd 8 2/07/12 3:51 PM... -
Page 9: Mounting All Sensors To Stainless Steel Mast
Installation - Weather Vane 5. Mounting all the sensors onto the stainless steel mast and fix the whole parts at outdoor open area. Note: please make sure all the cables are connected well into the sockets. WS5029 Weather Station Instruction Manual.indd 9 2/07/12 3:51 PM... -
Page 10: Initial Operation
Initial Operation • After inserting the batteries, the main unit will connect with the outdoor sensor by RF signal. The RF signal symbol at the out area will flash. • This process takes about 3 minutes. Then the display shows the outdoor temperature /humidity/wind speed/wind direction/rainfall, in case of failure of reception, please press “ALARM” for more than 3 seconds to receive again. • There is flashing RCC symbol in the time area after 3 minutes of outdoor RF reception. Please hold “ ” and “ ” together for cancelling this symbol in Australia market (this is very important) Manual time set-up (Please always hold “ ” and “ ” together for cancelling a flashing RCC symbol at the time area when you are ready to set-up in Australia) •... -
Page 11: Daily Alarm Set-Up
Initial Operation Information: • The clock automatically changes from set-up mode to time display mode if no keys are pressed for 20 seconds. Daily alarm set-up • Press “MODE” to switch from time display to A1 display • Press and hold the key “MODE” for 3 seconds ,the flashing alarm time are shown • The hour display of the alarm time is flashing. Use “ ” and “ ” to select the hour. Press “MODE” to confirm. • then follow the minutes. Use “ ” and “ ” to select the minutes, Press “MODE” to confirm. • The same setting as for A2. Daily alarm on/off • 1st press “ALARM” to activate the alarm 1 with alarm symbol showing. • 2nd press “ALARM” cancel the alarm 1, then activate the alarm 2 with alarm symbol showing • 3rd press “ALARM” to activate the alarm1 and alarm 2 with alarm symbol showing. • 4th press “ALARM” cancel all the alarms Information: •... -
Page 12: 12/24 Hours Mode
Initial Operation 12/24 hours mode • The time display can be in 12 (AM/PM) or 24 hours mode, please follow the manual set-up to select °C/°F temperature display • The temperature display can be in °C or °F, please follow the manual set-up to select. Max./ Min. for the indoor/outdoor temperature and humidity • Press “ ” for displaying of indoor/outdoor max./min. of temperature and humidity, hold “ ” for more than 3 seconds to clear up the max./min. Temperature alert set-up • Press “ALERT” for more than 3 seconds, the upper limit of inside temperature is flashing, use “ ” and “ ” to set the maximum alert temperature. • Press “ALERT”, the lower limit of inside temperature is flashing, use “ ” and “ ” to set the minimum alert temperature. •... -
Page 13: Weather Forecast
Initial Operation 5 Weather forecast Sunny Slightly Sunny Cloudy Rainy Storm Remarks: as the weather is forecasted by air pressure only, The display will have discrepancy with the actual weather sometime. Barometer and bar and data of history for the past 12 hour of air pressure. Air pressure can be in hPa and inHg ,and have bar of the past 12 hours. Wind speed in mph/kmh ( 0~256kmh) • The wind speed can be shown in mph and kmh, please follow the manual set-up to select mph/kmh, the display of the speed is updated in case of the sensor updated every 1 minitues. Wind direction •... -
Page 14: Illumination
Initial Operation Illumination • Press the key “SNOOZE/LIGHT” to activate the display illumination for 8 seconds. Moon phase display The weather station uses saved data to show the moon phase A B C D E F G H A: New moon B: increasing crescent C: First half D: increasing 3/4 E: Full moon F: decreasing 3/4 G: Last half H: decreasing crescent Living space humidity The weather station uses saved data to determine the humidity in the living space and shows the... -
Page 15: Notes
Notes WS5029 Weather Station Instruction Manual.indd 15 2/07/12 3:51 PM... -
Page 16: Warranty
Warranty Should you have any questions about this product or its operation please telephone our customer service helpline on 1300 716 188. Holman offer a 1 year replacement warranty from the original date of purchase. To claim warranty the product must be returned with a copy of the original receipt. We will honour all statutory guarantees that this product is of acceptable quality (including that it is fit for purpose). HOLMAN INDUSTRIES 47 Walters Drive, Osborne Park, Western Australia 6017. Tel: 61 8 9204 1011 Fax: 61 8 9204 1013 Web: www.holmanindustries.com.au WS5029 Weather Station Instruction Manual.indd 16 2/07/12 3:51 PM...
