2 DESCRIPTION OF THE MACHINE

2.1 General features

The Portable iMilk401 is a portable milking device with automatic shut-off, with pulse control, and
measurement of the quantity of milk that has been milked, designed for milk transport systems for tied
animals.

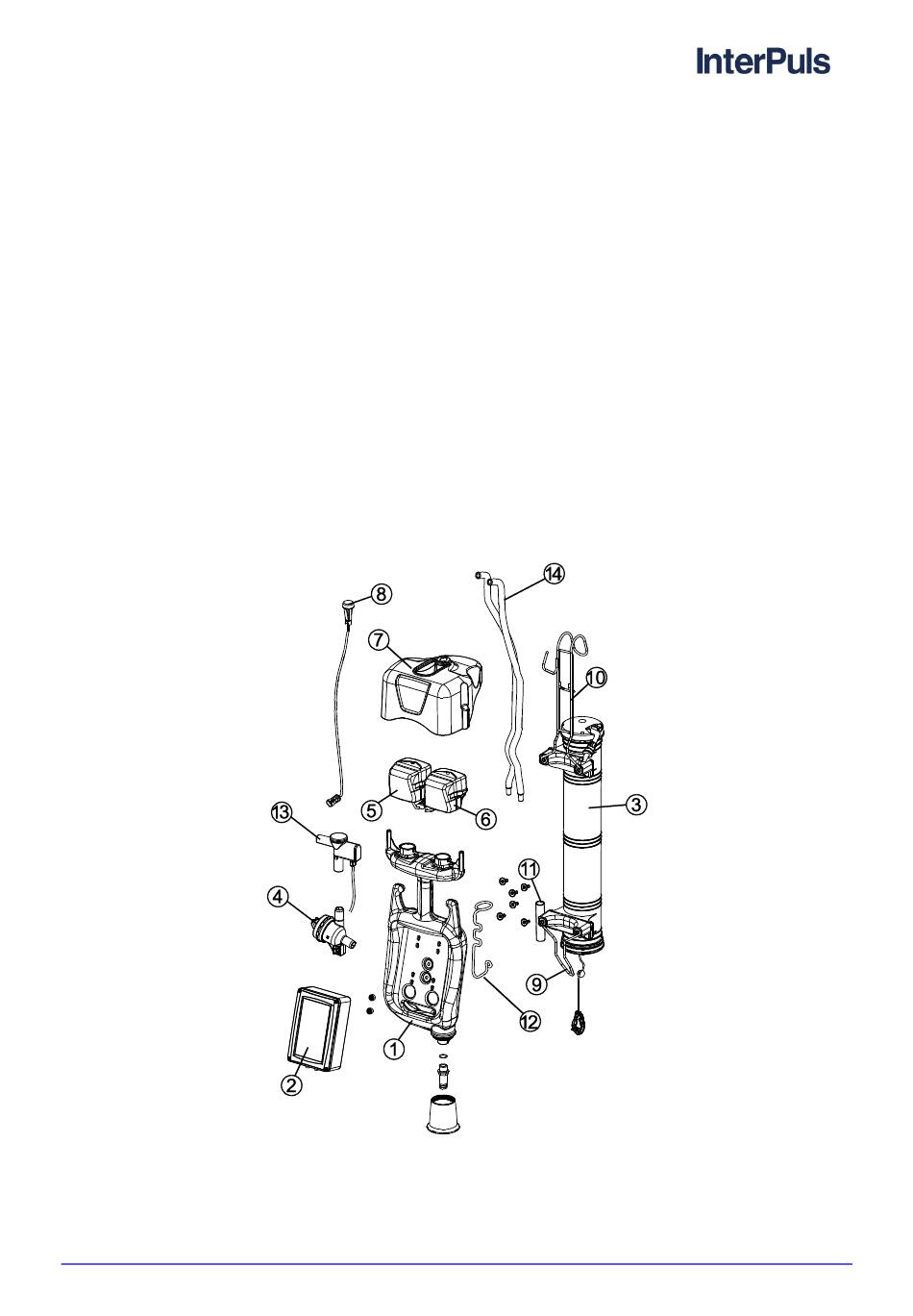

The package includes (already assembled):
- Plastic frame with built-in 1.5 lt (0.05 ft
order to reduce vacuum fluctuations (ref. 1)
- 1 iMilk401 Panel to manage milking and to view the quantity of milk that has been milked (ref.2)
- DVC 1000 Cylinder for automatic removal of the unit (ref.3)
- Shut Off Valve to close/open the vacuum to the unit (ref.4)
- 1 LE 30 control valve to control the Shut off valve and automatic shut off cylinder (ref.5)
- 1 LE 30 pulsator to generate the pulse signal (ref.6)
- Cover for the pulsators (ref.7)
- Indicator light to indicate end of the milking process (ref.8)
- Brackets to clamp the components (ref.9-10-12)
- Bracket with a terminal to fix the milk tube (ref.11)
- Direct passage sensor to measure the flow of milk that has been milked (ref.13)
- A piece of pipe with twin connection terminals (ref. 14)
THIS MANUAL IS THE PROPERTY OF -
- Instruction Manual, Operation and
3
). vacuum tank to have a constant vacuum reserve and in
