SPYDER MODEL 5 ROOM CONTROLLERS − INSTALLATION GUIDE

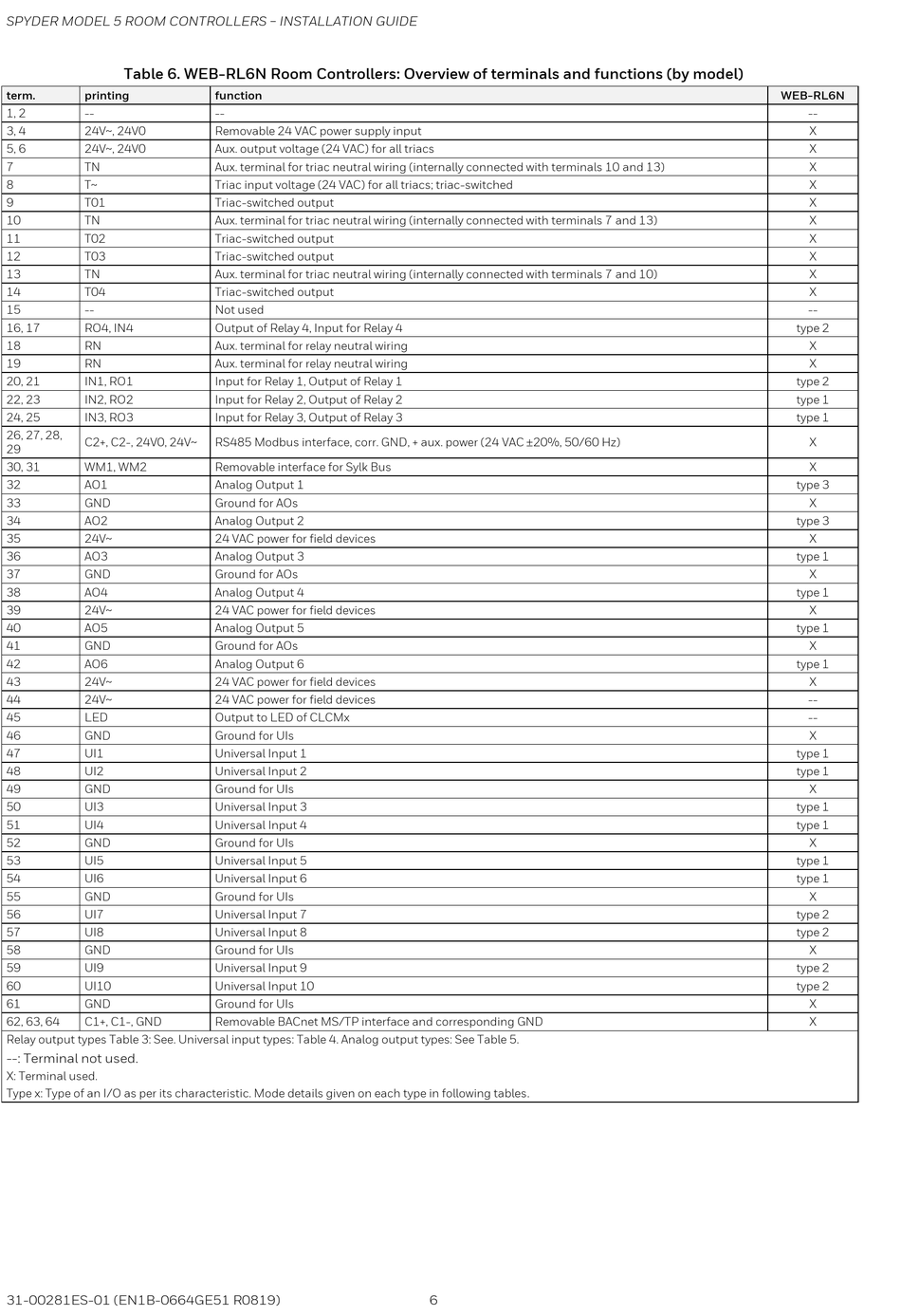

Table 6. WEB-RL6N Room Controllers: Overview of terminals and functions (by model)
term.
printing
1, 2
--
3, 4
24V~, 24V0
5, 6
24V~, 24V0
7
TN
8
T~
9
T01
10
TN
11
T02
12
T03
13
TN
14
T04
15
--
16, 17
RO4, IN4
18
RN
19
RN
20, 21
IN1, RO1
22, 23
IN2, RO2
24, 25
IN3, RO3
26, 27, 28,
C2+, C2-, 24V0, 24V~
29
30, 31
WM1, WM2
32
AO1
33
GND
34
AO2
35
24V~
36
AO3
37
GND
38
AO4
39
24V~
40
AO5
41
GND
42
AO6
43
24V~
44
24V~
45
LED
46
GND
47
UI1
48
UI2
49
GND
50
UI3
51
UI4
52
GND
53
UI5
54
UI6
55
GND
56
UI7
57
UI8
58
GND
59
UI9
60
UI10
61
GND
62, 63, 64
C1+, C1-, GND
Relay output types Table 3: See. Universal input types: Table 4. Analog output types: See Table 5.
--: Terminal not used.
X: Terminal used.
Type x: Type of an I/O as per its characteristic. Mode details given on each type in following tables.
31-00281ES-01 (EN1B-0664GE51 R0819)
function
--
Removable 24 VAC power supply input
Aux. output voltage (24 VAC) for all triacs
Aux. terminal for triac neutral wiring (internally connected with terminals 10 and 13)
Triac input voltage (24 VAC) for all triacs; triac-switched
Triac-switched output
Aux. terminal for triac neutral wiring (internally connected with terminals 7 and 13)
Triac-switched output
Triac-switched output
Aux. terminal for triac neutral wiring (internally connected with terminals 7 and 10)
Triac-switched output
Not used
Output of Relay 4, Input for Relay 4
Aux. terminal for relay neutral wiring
Aux. terminal for relay neutral wiring
Input for Relay 1, Output of Relay 1
Input for Relay 2, Output of Relay 2
Input for Relay 3, Output of Relay 3
RS485 Modbus interface, corr. GND, + aux. power (24 VAC 20%, 50/60 Hz)
Removable interface for Sylk Bus
Analog Output 1
Ground for AOs
Analog Output 2
24 VAC power for field devices
Analog Output 3
Ground for AOs
Analog Output 4
24 VAC power for field devices
Analog Output 5
Ground for AOs
Analog Output 6
24 VAC power for field devices
24 VAC power for field devices
Output to LED of CLCMx
Ground for UIs
Universal Input 1
Universal Input 2
Ground for UIs
Universal Input 3
Universal Input 4
Ground for UIs
Universal Input 5
Universal Input 6
Ground for UIs
Universal Input 7
Universal Input 8
Ground for UIs
Universal Input 9
Universal Input 10
Ground for UIs
Removable BACnet MS/TP interface and corresponding GND
6
WEB-RL6N
--
X
X
X
X
X
X
X
X
X
X
--
type 2
X
X
type 2
type 1
type 1
X
X
type 3
X
type 3
X
type 1
X
type 1
X
type 1
X
type 1
X
--
--
X
type 1
type 1
X
type 1
type 1
X
type 1
type 1
X
type 2
type 2
X
type 2
type 2
X
X
