SPYDER MODEL 5 ROOM CONTROLLERS − INSTALLATION GUIDE

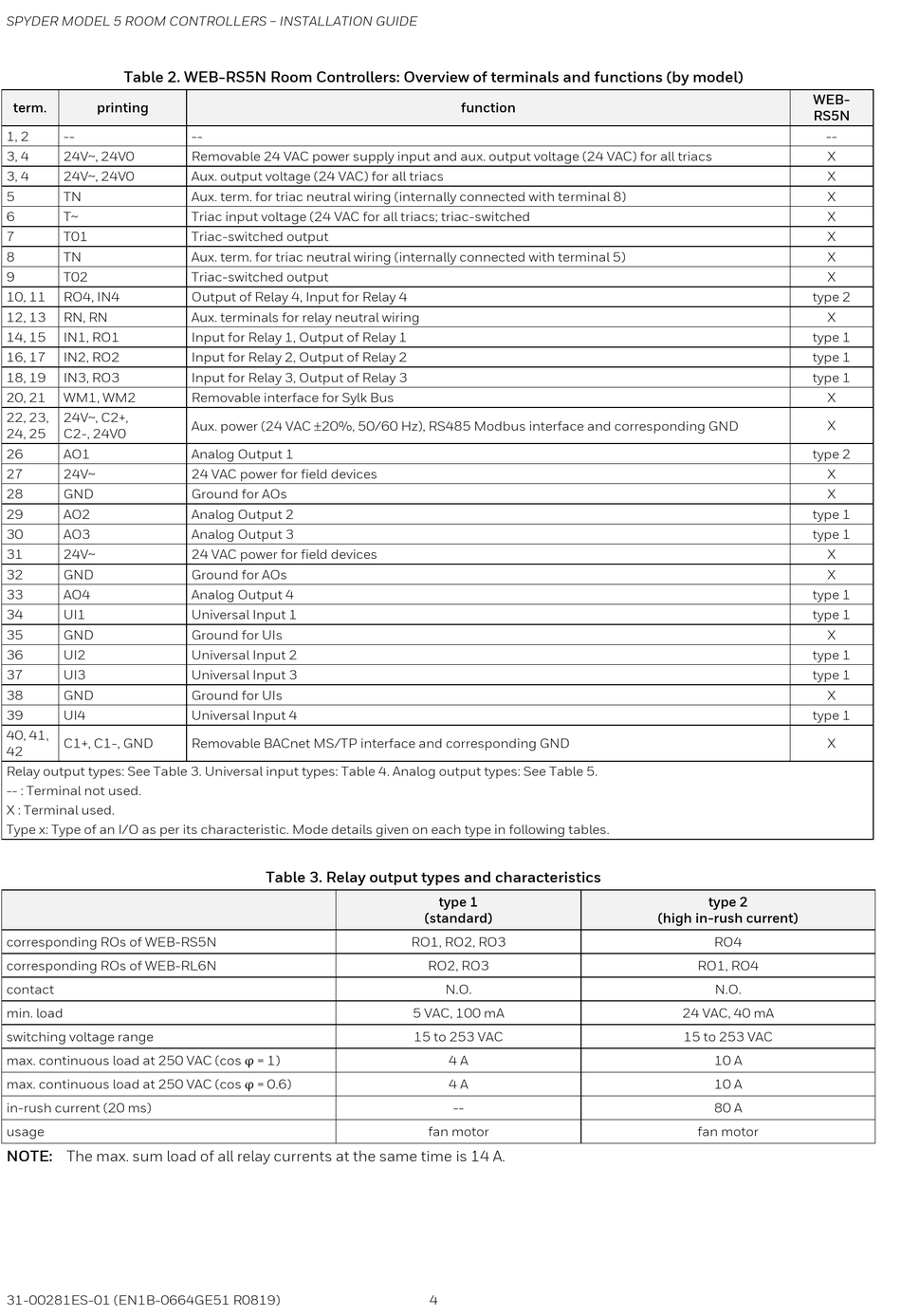

Table 2. WEB-RS5N Room Controllers: Overview of terminals and functions (by model)
term.
printing
1, 2
--
3, 4
24V~, 24V0
3, 4
24V~, 24V0
5
TN
6
T~
7
T01
8
TN
9
T02
10, 11
RO4, IN4
12, 13
RN, RN
14, 15
IN1, RO1
16, 17
IN2, RO2
18, 19
IN3, RO3
20, 21
WM1, WM2
22, 23,
24V~, C2+,
24, 25
C2-, 24V0
26
AO1
27
24V~
28
GND
29
AO2
30
AO3
31
24V~
32
GND
33
AO4
34
UI1
35
GND
36
UI2
37
UI3
38
GND
39
UI4
40, 41,
C1+, C1-, GND
42
Relay output types: See Table 3. Universal input types: Table 4. Analog output types: See Table 5.
-- : Terminal not used.
X : Terminal used.
Type x: Type of an I/O as per its characteristic. Mode details given on each type in following tables.
corresponding ROs of WEB-RS5N
corresponding ROs of WEB-RL6N
contact
min. load
switching voltage range
max. continuous load at 250 VAC (cos φ = 1)
max. continuous load at 250 VAC (cos φ = 0.6)
in-rush current (20 ms)
usage
NOTE: The max. sum load of all relay currents at the same time is 14 A.
31-00281ES-01 (EN1B-0664GE51 R0819)
--
Removable 24 VAC power supply input and aux. output voltage (24 VAC) for all triacs
Aux. output voltage (24 VAC) for all triacs
Aux. term. for triac neutral wiring (internally connected with terminal 8)
Triac input voltage (24 VAC for all triacs; triac-switched
Triac-switched output
Aux. term. for triac neutral wiring (internally connected with terminal 5)
Triac-switched output
Output of Relay 4, Input for Relay 4
Aux. terminals for relay neutral wiring
Input for Relay 1, Output of Relay 1
Input for Relay 2, Output of Relay 2
Input for Relay 3, Output of Relay 3
Removable interface for Sylk Bus
Aux. power (24 VAC 20%, 50/60 Hz), RS485 Modbus interface and corresponding GND
Analog Output 1
24 VAC power for field devices
Ground for AOs
Analog Output 2
Analog Output 3
24 VAC power for field devices
Ground for AOs
Analog Output 4
Universal Input 1
Ground for UIs
Universal Input 2
Universal Input 3
Ground for UIs
Universal Input 4
Removable BACnet MS/TP interface and corresponding GND
Table 3. Relay output types and characteristics
