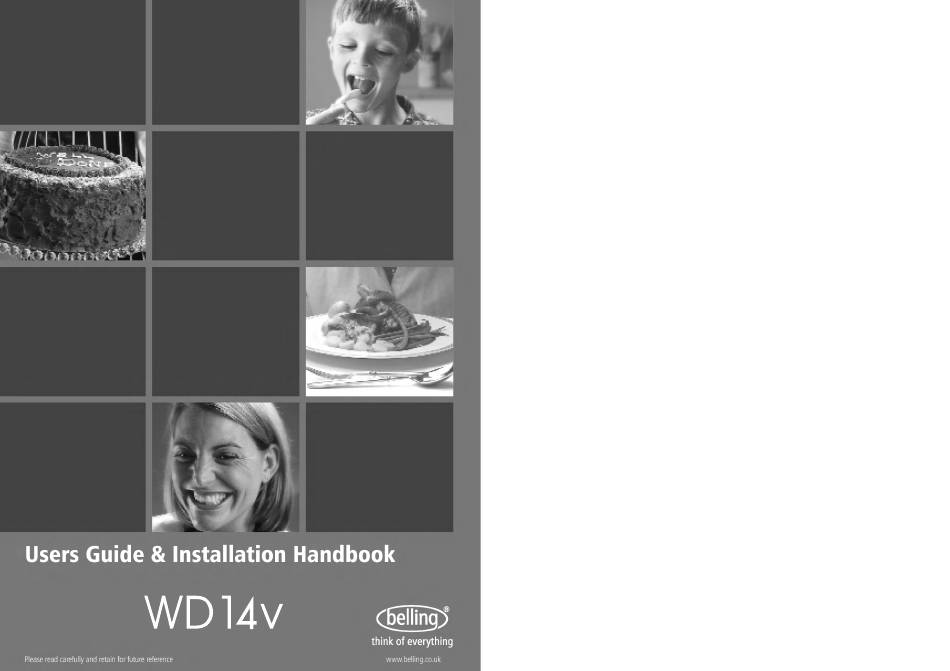

Belling WD14v Users Manual & Installation Handbook

Hide thumbs

Advertisement

Advertisement

loading

  Related Manuals for Belling WD14v

  Summary of Contents for Belling WD14v

  • Page 2: Table Of Contents

    Setting up and Installation If, however, you should find something missing, or not covered, please contact the Belling Customer Care team who will be only too happy to assist you on: Control Description 0871 22 22 503...
  • Page 3: General Points On Delivery

    CHAPTER 1 CHAPTER 2 GENERAL POINTS ON DELIVERY GUARANTEE The appliance is supplied with a manufacturers 12 month On delivery, check that the following are included with the machine: guarantee. Please retain your purchase receipt. This should be kept in a safe place and presented to the engineer if a service call is required.
  • Page 4: Safety Measures

    Turn off the water inlet tap. In the case of removal, never lift the appliance by the knobs or detergent drawer. All Belling appliances are earthed. Ensure that the main electricity circuit is earthed. Contact a qualified electrician if this is not the case.
  • Page 5: Technical Data

    CHAPTER 4 CHAPTER 5 SETTING UP INSTALLATION Move the machine near its permanent position without the 54 cm packaging base. 82 cm Cut tube-holding straps. Remove the 3 fixing screws marked (A) and remove the 3 spacers marked (B) 60 cm Remove the screw (C).
  • Page 6 Fix the sheet of corrugated material on the bottom as shown Use the 4 feet to level the machine with the floor: in picture. Connect the fill hose to the tap. a) Turn the nut clockwise to release the screw adjuster of the foot.
  • Page 7 REMOVING THE PLUG: CHAPTER 6 If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere re-wireable plug bearing the BSI mark of approval. C E M G F the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.
  • Page 8 DESCRIPTION OF CONTROL DELAY START BUTTON Appliance start time can be set with this button, delaying the start by 3, 6 or 9 hours. DOOR OPEN BUTTON Proceed as follows to set a delayed start: Select a programme (“STOP” indicator light blinks) IMPORTANT: Press "Delay Start"...
  • Page 9 SPIN SELECTION BUTTON DRYING SELECTION BUTTON The spin cycle is very important to remove as much water as With the programme selector not in the OFF position, press the button to select the required drying programme; an possible from the laundry without damaging the fabrics. You indicator will light to display the drying result selected each can adjust the spin speed of the machine to suit your needs.
  • Page 10 START BUTTON CREASE GUARD BUTTON When a programme is selected, wait for the “STOP” indicator The Crease Guard function minimizes creases as much as light to flash before pressing the START button. possible with a uniquely designed anti-crease system that is Press to start the selected cycle (according to the selected tailored to specific fabrics.
  • Page 11: Table Of Programmes

    CHAPTER 7 TABLE OF PROGRAMMES PROGRAM FOR: PROGRAMME WEIGHT TEMP. CHARGE DETERGENT SELECTOR ON: °C Resistant fabrics 90° Whites Cotton, linen Cotton, mixed Whites with 60° resistant Prewash 60° Fast coloureds Cotton, mixed Please read these notes 40° Non fast coloureds When washing heavily soiled laundry it is recommended the load is reduced to 4 kg maximum.
  • Page 12: Selection

    30 MINUTE RAPID PROGRAMME CHAPTER 8 The 30 minute rapid programme allows a complete washing cycle to be carried out in approximately 30 minutes, with up to a maximum load of 2 kg and a temperature of 40°C. SELECTION When selecting the "30 minute rapid" programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack.
  • Page 13: Detergent Drawer

    CHAPTER 9 CHAPTER 10 DETERGENT DRAWER THE PRODUCT The detergent draw is split into 3 compartments: IMPORTANT: When washing heavy rugs, bed spreads and other heavy - the compartment labelled "I" is for prewash detergent; articles, it is advisable not to spin. Do not dry wool, items with special padding delicate silk irems;...
  • Page 14: Washing

    WASHING CHAPTER 11 CUSTOMER AWARENESS VARIABLE CAPACITY A guide environmentally friendly and economic use of your This washing machine automatically adapts the level of the water appliance. to the type and quantity of washing. In this way it is also possible to obtain a “personalized”...
  • Page 15: Drying

    Ensure that the water inlet tap is turned on. CHAPTER 12 And that the discharge tube is in place. DRYING DON’T DRY GARMENTS MADE FROM FOAM RUBBER OR FLAMMABLE MATERIALS. PROGRAMME SELECTION Refer to the programme guide to select the most suitable programme.
  • Page 16 The correct way to dry: 4 kg MAX IMPORTANT NEVER OPEN THE DOOR AFTER THE DRYING CYCLE Open door. HAS BEGUN - WAIT UNTIL THE COOL DOWN PERIOD PROVIDED FOR BY THE CYCLE. Fill with up to 4 kg - in case of large items (e.g. sheets) or very absorbent items (e.g.
  • Page 17 TABLE OF DRYING TIMES (IN MINUTES): WARNING: DO NOT DRY WOOLLEN GARMENTS OR ARTICLES WITH SPECIAL PADDING, (E.G. QUILTS, QUILTED ANORAKS, ETC.). DELICATE FABRICS IF GARMENTS ARE DRIP/DRY, LOAD PROGRAMME COTTON MIXED LESS ITEMS AO AS TO PREVENT CREASING. Min 1 Kg Max 4 Kg Min 1 Kg Max 3 Kg...
  • Page 18 The programme carries out with the programme selector CHAPTER 13 4 kg MAX stationary on the selected programme till cycle ends. AUTOMATIC WASHING/DRYING The washer-dryer will then complete the entire drying programme. The drying programme indicator will be on until the cool down phase will begin and the indicator ( ) will go on.
  • Page 19: Cleaning And Routine Maintenance

    REMOVALS OR LONG PERIODS WHEN THE MACHINE IS LEFT CHAPTER 14 STANDING When the machine is left standing for long periods in CLEANING AND ROUTINE MAINTENANCE unheated rooms, the drain hose should be emptied of all remaining water. Do not use abrasives, spirits and/or diluents on the exterior of This operation is recommended when moving the appliance the appliance.
  • Page 20 - The non-ionic surface-active agents present in the composition of washing machine detergents are often Glen Dimplex Home Appliances Limited is the owner of the Belling brand and is part of difficult to remove from the washing itself and, even in small quantities, may produce visible signs of the the Glen Dimplex group of companies.
  • Page 21 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This manual is also suitable for:

Wm14viWd12v
