(GB)
Thank you for choosing products from Bellman & Symfon.
The Bellman Visit 868 System consists of a number of radio transmitters and receivers. The transmitters
detect different events in the surrounding area and transmit a radio signal to the receivers. The receivers
pick up this signal and provide indications using light, sound and/or vibration.
The transmitter determines what type of light, sound or vibration should be displayed so that the reason for
the indication is evident.
Read through the entire user manual first and then start to install the system.
Refer to the illustration of the Bellman Visit 868 System on the inside of the cover.

Getting started

Unpacking, installing and testing the unit

1. Open the battery cover (10). Fit four LR14 alkaline type batteries and close the battery cover. Press the Test Button (12).
The Bellman Visit 868 Portable Receiver will then emit sound and light signals and, if a BE1270 Bellman Bed-shaker
(accessory) is connected, it will vibrate.
2. A Bellman Visit 868 Transmitter is required to test the radio reception. Press the Test Button on the Bellman Visit 868
Transmitter and the Bellman Visit 868 Portable Receiver will then emit sound and light signals and, if a BE1270 Bellman
Bed-shaker (accessory) is connected, it will vibrate.
3. Place the Bellman Visit 868 Portable Receiver upright on a level surface or mount it on the wall using the wall mount
bracket supplied. The receiver should be placed where it can best be seen and heard. It is also easy to take the Portable
Receiver with you wherever you go.

Function

General

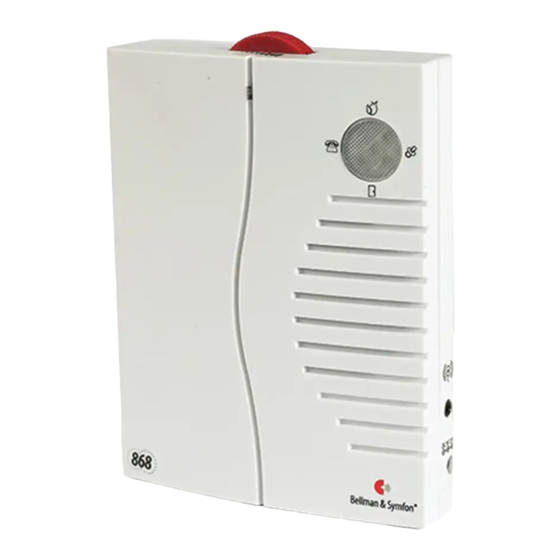

The BE1450 Bellman Visit 868 Portable Receiver is a receiver within the Bellman Visit 868 system for indoor use, which
attracts the attention of the user using sound, light and also vibration if a BE1270 Bellman Bed-shaker (accessory) is
connected.
It is activated via radio signals from any transmitter within the Bellman Visit 868 System.

Radio key

On delivery all Bellman Visit 868 units are tuned to the same Radio Key. If you have a neighbour with a similar system, you
can change to different Radio Keys so that you do not affect each other's systems.
The Radio Key on this receiver can be changed by holding down the Test Button (12) for about five seconds until the LEDs
(5) and (6) blink alternately. Then press the transmitter's test button so that the receiver's LEDs (4-7) blink to confirm that the
Radio Key has been changed. All units in a Bellman Visit 868 System must have the same Radio Key in order to operate as a
group. Refer to the user manual for the relevant unit.
