Please read these instructions completely before operating this equipment. The specification and operating
instructions apply only to the model(s) covered by this manual. If there are any questions or problems regarding the
use of this equipment, please contact Newport or the representative from whom this equipment was purchased.
Rev: 04-24-09
O
R
I
E
L
P
O
R
I
E
L
P
150 Long Beach Boulevard
Stratford, CT 06615
Phone:
Fax
E-MAIL:
oriel.sales@newport.com

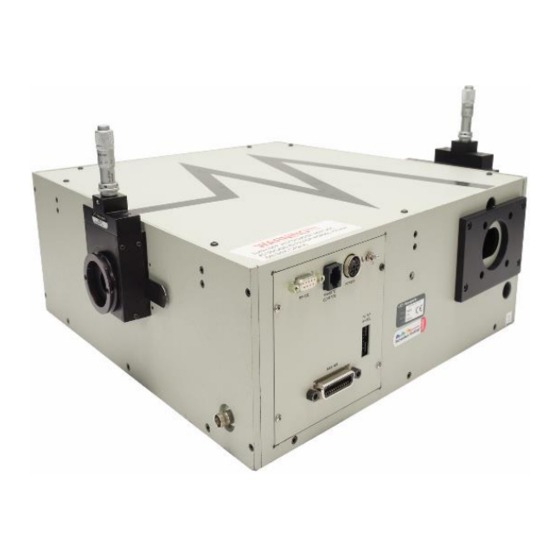

MS260i™
IMAGING ¼ M SPECTROGRAPH
MODELS 74050, 74055, 74085, 74086
R
O
D
U
C
T
L
I
N
E
R
O
D
U
C
T
L
I
N
E
(203) 377-8282
(800) 714-5393
(203) 378-2457
M-74050
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Newport Oriel MS260i Series
Summary of Contents for Newport Oriel MS260i Series
- Page 1 Please read these instructions completely before operating this equipment. The specification and operating instructions apply only to the model(s) covered by this manual. If there are any questions or problems regarding the use of this equipment, please contact Newport or the representative from whom this equipment was purchased. Rev: 04-24-09...
-
Page 2: Table Of Contents
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH TABLE OF CONTENTS I. INTRODUCTION............................3 I.1 OPTICAL CONFIGURATION..........................3 I.2 DESIGNED FOR MULTI-TRACK SPECTROSCOPY ..................3 I.3 NEGLIGIBLE STRAY LIGHT ..........................3 I.4 EXCELLENT SPECTRAL RESOLUTION .......................3 I.5 WAVELENGTH DRIVE ...........................3 II. UNPACKING AND SETTING UP ......................4 II.1 SOFTWARE INSTALLATION ........................5 II.2 USB INSTALLATION FOR THE 74125.......... -
Page 3: Introduction
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH INTRODUCTION This new spectrograph is in answer to your requests for an economical, fully automated, multi-grating, ¼ m imaging spectrograph. For those familiar with our popular MS257™ ¼ m Spectrograph, the MS260i™ meets many of the performance standards in a simplified design, and is more economical. The MS260i™... -
Page 4: Unpacking And Setting Up
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH UNPACKING AND SETTING UP Carefully unpack the MS260i™ Spectrograph and its accessories. The packaging is molded to your instrument and therefore provides optimal protection. You should save the packaging in case you ever need to transport or ship this instrument. Your MS260i™... -
Page 5: Ii.1 Software Installation
1/4M IMAGING SPECTROGRAPH II.1 SOFTWARE INSTALLATION Newport provides an elementary software package with your Cornerstone™ MS260. To load and run the software you must have a PC compatible computer (with CDROM drive) running Microsoft Windows XP SP1or above. For the 74085/74086 a USB2 port is required. To successfully complete the Install of the MS260 USB driver or the Utility software you must have Administrator privileges on the PC which you are performing the install. -
Page 6: Ii.3 Utility Program Installation
on t r ol s i ol s i t r ol s i r ol s i ol s i l s i n t r M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH II.2 UTILITY PROGRAM INSTALLATION IMPORTANT: Do not connect any USB Cornerstone™ to the computer unless the USB driver has been installed, or until prompted to do so. - Page 7 Note: If an “Installation failed” dialog appears, the logged-in Windows user account may not have Administrator privileges required for installation. Please consult with your system manager and repeat from Step #1 before contacting Newport/Oriel Customer Service. 6. Power-on one Cornerstone™ monochromator, then connect its USB cable to the computer. Do not connect any additional devices yet.
-
Page 8: Safety
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH III. SAFETY Electrical The MS260i™ requires only DC voltages for operation. These voltages are provided by an external power supply. This universal input power supply accepts 110/220 VAC for operation and has no user serviceable parts. -
Page 9: 15 Minute Basics
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH 15 MINUTE BASICS IV.1 GETTING STARTED WITH THE HAND CONTROLLER The 74009 Hand Controller is a fast and easy way to begin immediate communications with the MS260i™. Although the Hand Controller does not provide access to all the functions of this instrument, it does provide a simple interface to the most commonly used parameters and controls. - Page 10 Newport sets the grating blaze wavelength as the label during calibration. However, you can use the keypad to type any number, then press ENTER to accept that new value.
- Page 11 M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH SHIFT PORT- Use this key to alternate between the two output ports. This feature is only available on Model 74055. The active port is shown in the upper right corner of the display; “A” indicates the axial port (adjacent to the power switch) while “L”...
-
Page 12: Iv.2 Getting Started With Ieee-488
However, this versatility brings with it some complication in setting up each device. Newport designs all of its IEEE-488 products to be completely compatible with National Instruments’ GPIB controller cards. Likewise, most of our IEEE-488 software requires National Instruments’ device drivers to run on your PC. -
Page 13: Iv.3 Getting Started With Rs-232 Communications
Windows™ software. Please review your computer setup to determine what physical connections are available to you. Again, due to the variety of hardware and software options that are available Newport cannot provide support for PC configuration. Physical Connections First, make sure that the COM port you would like to use for MS260i™... - Page 14 M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH selects either RS-232 or IEEE-488 communications based upon the first command received after power up. When you send an RS-232 command, or initialize your RS-232 software, the IEEE-488 link will be ignored until Cornerstone™ power is turned off and on again. Low Level Communications In some cases, it may be desirable to send commands directly to Cornerstone™...
-
Page 15: Functions And Controls
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH FUNCTIONS AND CONTROLS V.1 COMMAND AND QUERY SYNTAX For the purposes of this discussion we will divide communications with the instrument into two parts. First, the messages that you send to MS260i™ will be called “Statements”. Second, the messages that you receive from MS260i™... -
Page 16: Handshaking Mode
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH Queries Under RS-232, Statements are echoed back to the PC. Additionally, there will be an explicit response to that query. Thus, after sending a Query you should read back the echo and the answer together. For example: Send : WAVE?[lf] Receive: WAVE?[lf]500[cr][lf]... -
Page 17: Brief Command Reference Organized Alphabetically
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH V.3 BRIEF COMMAND REFERENCE ORGANIZED ALPHABETICALLY Command Query Hand Ctrl Key ABORT [ABORT] ADDRESS XX ADDRESS? CALIBRATE XXX.XXX [CALIB] ERROR? FILTER X FILTER? [FILTER] FILTER1LABEL TTTTTTTT FILTER1LABEL? [SHIFT LABEL] GOWAVE XXX.XXX WAVE? [GO WAVE] GRAT X GRAT? [GRAT]... -
Page 18: Detailed Command Reference Organized By Function
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH V.4 DETAILED COMMAND REFERENCE ORGANIZED BY FUNCTION Recall from section V-1 of this manual that messages that you send to MS260i™ will be called “Statements” and messages that you receive from MS260i™ will be called “Responses”. There are two types of Statements: “Commands”... - Page 19 Line/mm are usually changed only when installing a new grating, and in that case the parameter should match the value provided by Newport. Note, the Hand Controller only changes the current grating parameters.
- Page 20 Line/mm are usually changed only when installing a new grating, and in that case the parameter should match the value provided by Newport. Note, the Hand Controller only changes the current grating parameters.
- Page 21 M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH OUTPORT T {OUTPORT?} [OUTPORT] 74055 has two output ports; this command moves the motorized flip mirror to activate the output port indicated by the single letter mnemonic parameter (T). Use “1” to select the axial port (default and adjacent to the power switch) and “2”...
- Page 22 Query for basic instrument information. Generates the same response as the GPIB specific *IDN? That response is “Newport, Model 74050 MS260i™,SNXXX,VYY.YY.YY” where XXX is the unit’s serial number and YY.YY.YY is the version number for internal firmware. This information is displayed for 3 seconds when [LOCAL] is pressed on the Hand Controller.
-
Page 23: Error Codes With Descriptions
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH V.5 ERROR CODES WITH DESCRIPTIONS MS260i™ errors are stored internally in the Status byte and Error code. The Status byte is usually empty (decimal value 0) but if an error condition occurs, bit 6 of the Status byte will be set (decimal value 32). -
Page 24: Ms260I™ Utility Program
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH MS260i™ UTILITY PROGRAM MS260 software is loaded onto your PC per the directions in Section II UNPACKING AND SETTING UP. The Utility Program comes with three versions: IEEE-488, RS-232 and USB communications. This program provides easy access to most of Cornerstone ’s functions. -
Page 25: Vi.1 Source Code
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH “Setup Comm” Used to select IEEE-488 or RS-232 communication parameters, i.e. board address or port number. Not needed for USB (74125). “Exit” Exits the utility program and saves monochromator and communication parameters. Figure 1: MS260 Utility Program, Main Window VI.1 SOURCE CODE This program is a closed executable file written in National Instrument’s LabView™... -
Page 26: Vi.3 Rs-232 Version
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH The program will run and a dialog box will appear asking for the GPIB board index and Cornerstone™ address. The default values, 0 and 4 respectively, should work for most systems. If you had to change these values to run the diagnostic software in Section IV-2, fill in the correct values here again. -
Page 27: Optional Accessories
There is no need to purchase more than one grating or a larger grating turret, and there is no need to send the instrument back to Newport. We offer a wide variety of gratings to suit most spectral ranges and resolution requirements. Please call Newport with your specific needs. - Page 28 15. Once the software is running and you see the main window, press the Grating Parameters button in the center of the control panel. 16. Now enter you new grating parameters, as provided by Newport, in the correct column. 17. Press SEND at the bottom of the screen. Your grating is now installed and updated.
- Page 29 M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH Grating Factor Calibration 1. Select a radiation source that has at least two narrow spectral lines in the wavelength region where you will be working. 2. The radiation from your line source should be focused on the entrance slit to fill the monochromator’s f/3.7.
- Page 30 For the highest accuracies, it may be necessary under some circumstances to wavelength calibrate your MS260i™. We recommend using a low pressure spectral line lamp such as Newport’s model 6035 Mercury Lamp for this purpose, however you can use another line source such as a laboratory laser.
-
Page 31: Vii.4 Memory Loss (Large Wavelength Calibration Errors)
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH not answered in either place, please call a Newport Applications Engineer for assistance. VII.4 MEMORY LOSS (LARGE WAVELENGTH CALIBRATION ERRORS) Symptoms: 1- there are large errors in wavelength positioning of all gratings (maybe 100nm). -
Page 32: Declaration Of Conformity
M-74050 ™ MS260i 1/4M IMAGING SPECTROGRAPH VIII. DECLARATION OF CONFORMITY Manufacturer’s Name: Newport Corporation Manufacturer’s Address: 150 Long Beach Boulevard Stratford, CT 06615 Declares that the product Product Name: MS260i™ 1/4m Imaging Spectrograph Model Number: 74050, 74055, 74085 and 74086... -
Page 33: Warranty And Returns
Newport designated facility. the goods accepts full responsibility for restoring the If goods are not returned to Newport, and the user goods to their condition upon original delivery, and for chooses to have repairs made at their premises, Newport assuming all costs and charges.
