1645 Lemonwood Dr.

Santa Paula, CA, 93060 USA

Toll Free: (800) 253-2363

Tel: (805) 933-9970

bendpak.com

Mid-Rise Scissor Lift

Installation and Operation Manual

Manual P/N 5900030 — Manual Revision B1 — August 2018

• MDS-6EXT

• MDS-6EXTF

• MDS-6LP

• MDS-6LPF

Models:

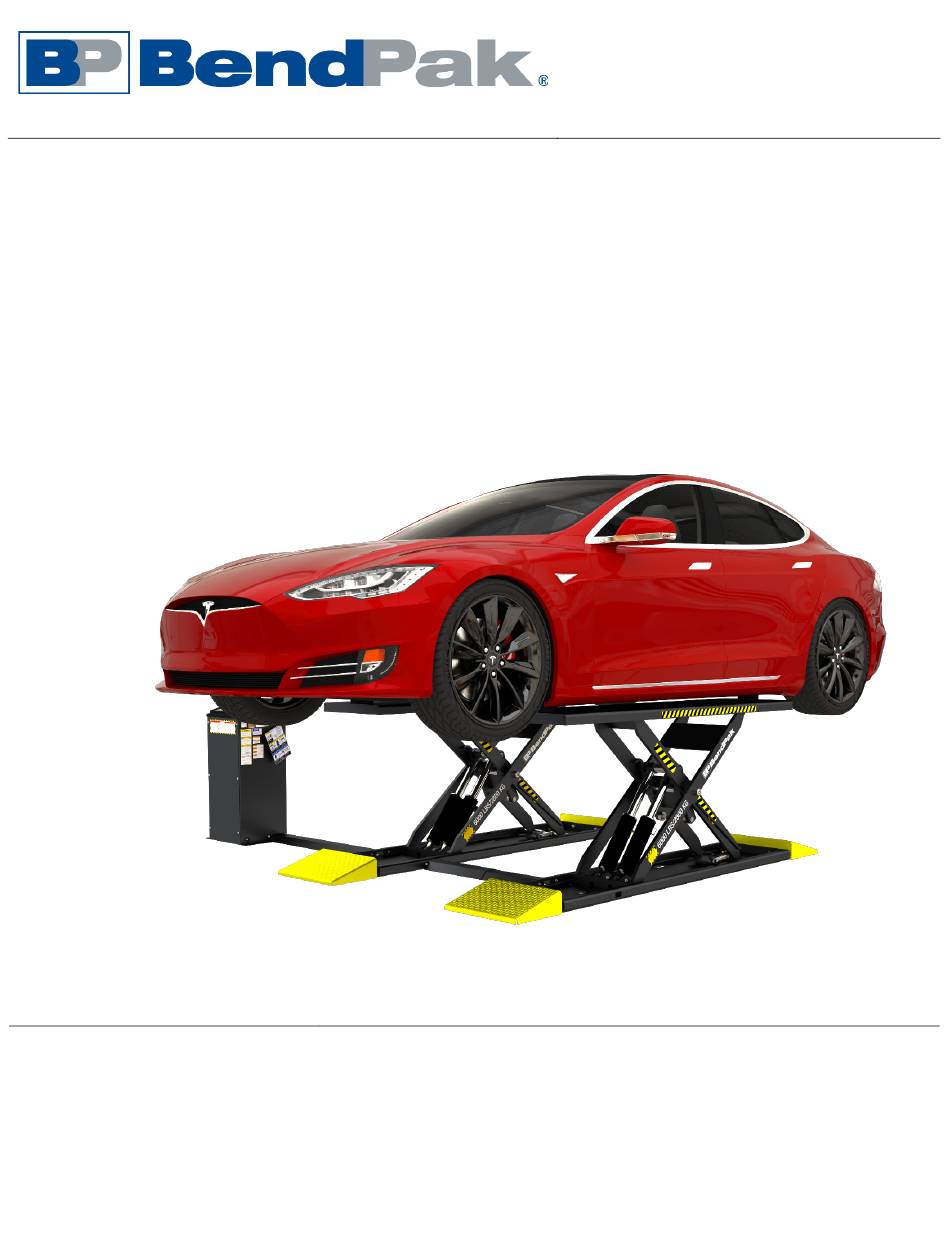

Model MDS-6EXT shown.

Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.

⚠

entire

before

contents of this manual

using this

Read the

product. Failure to follow the instructions and safety precautions in

DANGER

this manual can result in serious injury or death. Make sure all other

operators also read this manual. Keep the manual near the product

for future reference. By proceeding with setup and operation, you

agree that you fully understand the contents of this manual.

Table of Contents

Need help?

Do you have a question about the MDS-6EXT and is the answer not in the manual?

Questions and answers

Summary of Contents for BendPak MDS-6EXT

Page 1 Manual P/N 5900030 — Manual Revision B1 — August 2018 • MDS-6EXT • MDS-6EXTF • MDS-6LP • MDS-6LPF Models: Model MDS-6EXT shown. Designed and engineered by BendPak Inc. in Southern California, USA. Made in China. ⚠ entire before contents of this manual using this Read the product.
Page 2 Copyright. Copyright © 2018 by BendPak Inc. All rights reserved. You may make copies of this document if you agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain any rights to this content, and you will not use the copies for commercial purposes.
Page 3: Table Of Contents
Maintenance Log Introduction This manual describes the following mid-rise Scissor Lift models: • MDS-6EXT: Mid-Rise Scissor Lift with extended length Platforms that can raise up to 6,000 lbs (2,722 kg). ALI certified. • MDS-6EXT : The flush-mount version of the MDS-6EXT. ALI certified.
Page 4: Shipping Information
Make a visual inspection of the product before using it. Check for damage or missing parts. Do not use the product if you find any issues. Instead, take it out of service, then contact your dealer, email techsupport@bendpak.com, visit bendpak.com/support, or call (800) 253-2363. thorough •...
Page 5: Faq
Frequently Asked Questions Question: How much weight can MDS-6 Series Lifts raise? Answer: They can raise Vehicles up to 6,000 pounds (2,722 kg). Q: What is the difference between the MDS-6EXT and MDS-6LP Lifts? extended-length Platforms A: The MDS-6EXT has...
Page 6: Components
Flow Divider. Evenly splits the Hydraulic Fluid coming from the Power Unit so that the Platforms raise and lower together. • Ramps. Used to drive onto and off of the Platforms for the MDS-6EXT and MDS-6LP. Not included with the MDS-6EXTF or the MDS-6LPF. •...
Page 7: Specifications
Specifications MDS-6EXT and MDS-6EXTF The MDS-6EXT does not have Ramps or Covers. MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 8 Model MDS-6EXT MDS-6EXTF Type Surface Flush-Mount Lifting capacity 6,000 lbs. / 2,722 kg 6,000 lbs. / 2,722 kg A Lifting height (no blocks) 37" / 935 mm 32.25" / 819 mm Lifting height (med lift blocks) 37.5" / 955 mm 33"...
Page 9 MDS-6LP and MDS-6LPF The MDS-6LP does not have Ramps or Covers. MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 10 Model MDS-6LP MDS-6LPF Type Surface Flush-Mount Lifting capacity 6,000 lbs. / 2,722 kg 6,000 lbs. / 2,722 kg A Lifting height (no blocks) 43" / 1,093 mm 38.5" / 977 mm Lifting height (med lift blocks) 45.25" / 1,148 mm 40.5"...
Page 11: Installation Checklist
Installation Checklist Following are the steps needed to install the Lift. Perform them in the order shown. ☐ 1. Review the installation Safety Rules. ☐ 2. Plan for Electrical Work. ☐ 3. Make sure you have the necessary Tools. ☐ 4.
Page 12: Installation
Lift. If you are missing parts, visit bendpak.com/support or call (800) 253-2363, extension 191. Your Lift is supplied with installation instructions and concrete fasteners that meet the criteria set by the American National Standard “Automotive Lifts –...
Page 13 Tools You may need some or all of the following tools: • Rotary hammer drill or similar • 3/4", 3/8", 1 1/4” masonry bits • Hammer • Open-end wrench set: 1/2", 15/16" – 1 1/8" or adjustable wrench • Socket and ratchet set, 1 1/8" •...
Page 14 Clearance Around the Lift For safety purposes, a certain amount of clear space around the Lift is required MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 15 Prepare the Concrete Cutouts: Flush-Mount Models Only Important: BendPak strongly recommends working with a Concrete Specialist to plan and create the Concrete Cutouts for your Flush-Mount Lift. before It is important to understand the following creating the Concrete Cutouts for your Lift: •...
Page 16 If you create your Concrete Cutouts and then change your mind about the Distance Between or find out you made a mistake with one of the numbers, it is very difficult to fix. BendPak recommends double checking your plan several times before pouring your Concrete Cutouts.
Page 17 If you create your Concrete Cutouts and then change your mind about the Distance Between or find out you made a mistake with one of the numbers, it is very difficult to fix. BendPak recommends double checking your plan several times before pouring your Concrete Cutouts.
Page 18 Create a Floor Plan Make sure to plan out, in advance, where the Lift and Console are going to go: • Clearance. Make sure there is clearance on all sides and above. • Console. The Console must be near the Lift; it can be installed on either side. The Hydraulic Lines that come with the unit can support up to 40 inches between the Lift and the Console.
Page 19 Be sure to leave the Lift on a Safety Lock when you raise it. Hydraulic and Air Lines. Important: BendPak recommends using the Eyelet that comes with the Lift to raise the Platforms off the Bases. ⚠ at least three people...
Page 20 Anchor the Bases Each Base has holes for anchoring it to the Concrete. Before you anchor your Lift, make sure the two Platforms are correctly aligned. BendPak recommends double checking the work done when creating your Chalk Line Guides. ⚠...
Page 21 1. Make sure the Bases are where you want them. Once you anchor the Bases into place, it is difficult to change the location. Once the Anchor Bolts are torqued into position, they are not easily removed. BendPak strongly recommends making sure the Bases are in the correct location before anchoring the Bases into place.
Page 22 4. Make sure the Washer and Nut are in place, then insert the Anchor Bolt into the hole. The Expansion Sleeve of the Anchor Bolt may prevent the Anchor Bolt from passing through the hole in the Base; this is normal. Use a hammer or mallet to get the Expansion Sleeve through the Base and into the hole.
Page 23 There are four holes in the bottom of the Console, two on each side. You only need to Note: anchor two of the four holes. BendPak recommends installing them diagonally from each other; one in the front left, the other in the right rear, for example.
Page 24 Connect the Hydraulic Lines Hydraulic Lines provide hydraulic fluid to the Hydraulic Cylinders, which is used to raise and lower the Platforms. The Lift comes with seven Hydraulic Lines: • Four Short Hydraulic Lines (10 inches / 254 mm, two per Platform): go from the bottom of These lines, and the Tee Connector to which they the Hydraulic Cylinders to a Tee connector.
Page 25 The following diagram shows two Flow Dividers. Your Lift could come with either model. 4. Attach an Elbow Hydraulic Fitting to one of the two Hydraulic Power Out ports on the Power Unit. 5. Locate the Medium Hydraulic Line. 6. Connect one end of the Medium Hydraulic Line to the Elbow Hydraulic Fitting you just installed on the Power Unit and the other end to the input connector on the Flow Divider.
Page 26 Working with Compression Fittings and Tubing Your Lift comes with ¼ inch, black, polyethylene Tubing (also called Poly-Flo® Tubing) that is used with Compression Fittings to create the Air Lines. This Important: Compression Fittings are not the same as Hydraulic Fittings; they work differently. section covers Compression Fittings only The components involved with Compression Fittings include: •...
Page 27 Connect the Air Lines The MDS-6 Series Lifts use air pressure in two ways: • It helps lower the Platforms. The Air Line connects to the Air Lower connector at the top of the Hydraulic Cylinder. • It pushes the Lift off the Safety Locks so you can lower the Platforms. The Air Line also connects to the Air Cylinders.
Page 28 3. Locate the black plastic Tubing and the five Tee Fittings. 4. Cut the Tubing into appropriate lengths for your installation. before BendPak recommends planning out the path of the Air Line you start cutting the Tubing. 5. Connect the Tubing lengths and Tee Fittings to the Tubing Fittings on the Air Cylinders and Hydraulic Cylinders.
Page 29 Contact the Electrician As mentioned previously, there are certain installation tasks that require a certified Electrician. ⚠ must DANGER All wiring be performed by a licensed, certified Electrician. If someone who is not a certified Electrician attempts these tasks, they could be electrocuted, resulting in serious injury or death.
Page 30 Connect and Prepare the Power Unit The Power Unit comes assembled from the factory. You need to attach it to the back of the Console (described in Set Up and Anchor the Console) and then connect it properly, described in this section.
Page 31 To connect and prepare the Power Unit: 1. Remove the front cover of the Console if it is currently in place. 2. For the Raise and Lower buttons on the Console, the wiring comes from the factory connected to the appropriate button. Simply connect them appropriately to the Console. 3.
Page 32 High running amps that exceed the motor’s full load amps (FLA) rating may result in permanent damage to the motor. BendPak strongly recommends you exceed the rated duty cycle of the motor. Lubricate the Lift There are 10 lubrication points on the Lift: •...
Page 33 Add the Ramps The MDS-6EXT and MDS-6LP both come with four Ramps: two Drive-Up Ramps and two Drive-Off Ramps. The flush-mount versions do not come with Ramps. The two Drive-Up Ramps attach to the Rear of the Lift; the two Drive-Off Ramps attach to the Front of the Lift.
Page 34: Operation
Check the Lift. Check the Lift for any missing, heavily worn, or damaged parts. Do not operate the Lift if you find any issues; instead, take it out of service, then contact your dealer, email techsupport@bendpak.com, visit bendpak.com/support, or call (800) 253-2363, extension 196.
Page 35 The Console Operation of the Lift is controlled via the Console. The controls on the Console are: • Raise button. Raises the Platforms. • Lower button. Lowers the Platforms. • Air Assist button. Releases the Safety Locks so the Platforms can be lowered. If you do not press the Air Assist button when pressing the Lower button, the Lift will stop at the closest Safety Lock.
Page 36 7. Watch the Vehicle and the Lift as they rise. If the Lift becomes unstable or the Vehicle begins moving, release the Raise button immediately and carefully lower the Lift back down to the ground. 8. When the Platforms are slightly past the desired height, release the Raise button. The Lift stops rising.
Page 37: Maintenance
If the power is re-energized during maintenance, you or someone else could be electrocuted. BendPak strongly recommends using your Power Disconnect Switch during maintenance. To maintain your Lift: •...
Page 38: Wiring Diagram
Only leave the Lift fully lowered or engaged on Safety Locks. If you continue to have problems with your Lift, take the Lift out of service, then contact your dealer, visit bendpak.com/support, email techsupport@bendpak.com, or call (800) 253-2363, extension 196.
Page 39: Labels
Labels MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 40 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 41 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 42: Parts Diagrams
Parts Diagrams MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 43 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 44 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 45 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 46 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 47 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 48 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 49 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 50 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 51 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 52 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 53 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 54 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 55 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 56 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 57 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 58 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 59 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 60 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 61 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 62 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 63 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 64 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 65 MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
Page 66: Ali Store
Automotive Lift Institute (ALI) Store You probably checked the ALI’s Directory of Certified Lifts (www.autolift.org/ali-directory-of- certified-lifts/) before making your most recent Lift purchase, but did you know the ALI Store (www.autolift.org/ali-store/) offers a wide variety of professional, easy-to-use, and reasonably priced training and safety materials that will make your garage a safer place to work? The ALI Store is your trusted source for workplace safety! Visit today and get the training and materials you need to work safely:...
Page 67: Maintenance Log
Maintenance Log MDS-6 Series of Scissor Lifts P/N 5900030 — Rev. B1 — Sept. 2018...
