ROVE Stealth 4K User Manual

4k, 3840 x 2160p @30fps

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

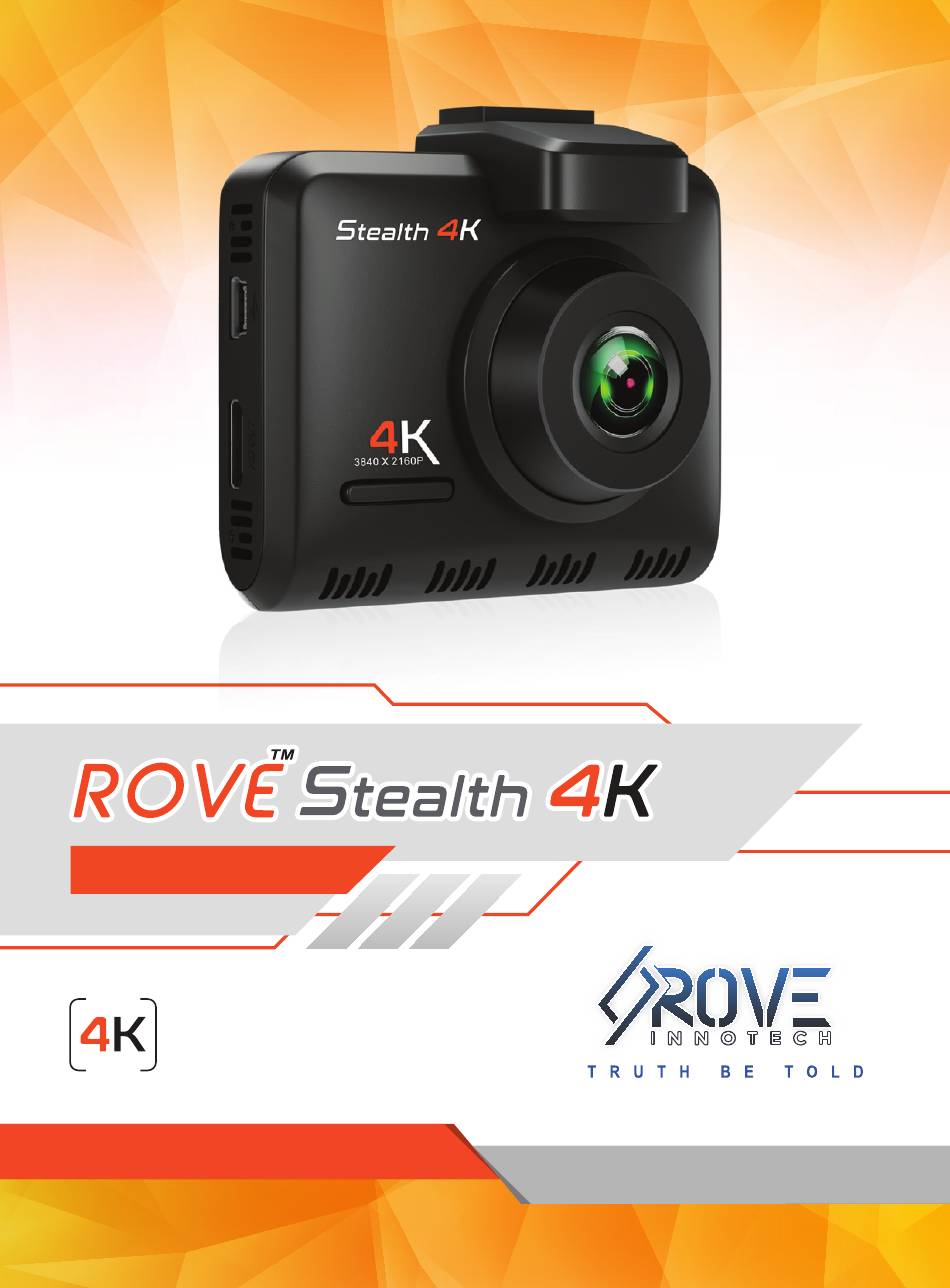

MODEL: Stealth 4K

3840 X 2160P @30FPS

U S E R M A N U A L

www.rovedashcam.com

Table of Contents

Need help?

Do you have a question about the Stealth 4K and is the answer not in the manual?

Questions and answers

Summary of Contents for ROVE Stealth 4K

Page 2: Customer Service
CUSTOMER SERVICE Response in just 6 hours help@rovedashcam.com For faster response text us 1 (401) 484-ROVE(7683) Hours: Mon - Fri 9am-5pm PST Scan the QR Code to Email US Scan the QR Code to Text US Just Scan the QR Code with your iPhone or Android’s...
Page 3: How To Videos
HOW TO VIDEOS Visit our website www.rovedashcam.com/pages/videos Understanding ROVE Stealth 4K Watch HOW-TO VIDEOS to learn & understand all the features so you can get the maximum benefit out of it.
Page 4 C O N T E N T G U I D E User Agreement+Precaution+User Warning Getting Started - Out Of The Box Instructions Technical Speciﬁcation Main Features Package Contents Product Diagram Understanding Keys & Functions Inserting / Removing A Micro+SD Card Formating Memory Card Installation Turning On/off your Camera...
Page 5: User Agreement
USER MANUAL USER AGREEMENT By purchasing ROVE Dash cam, it is assumed that by default you agree with precautions, user warnings and all the terms & conditions of warranty. If for any reason you do not agree with any of the terms mentioned in this manual, then you may return the product in its original packaging unused within its return window for a full refund.
Page 6 Do not place the camera loose on top of the dashboard or in-front of the air bags. Do not mount the camera where it can be a distraction if it became loose and fall off the windshield while driving. Do not expose this device to an excessive heat, dust or use any chemical substance or cleaning solvent to clean this device.
Page 7: Out Of The Box Instructions
USER MANUAL G e t t i n g S t a r t e d OUT OF THE BOX INSTRUCTIONS Make sure to always keep the camera plugged into the power, because camera’s internal battery is NOT meant to last more than 3-5 minutes depending on the video resolution you choose.
Page 8 ROVE Stealth 4K Car dash cam is programmed to turn ON and START RECORDING automatically when it receives the power, and STOPS RECORDING and turns OFF automati- cally within 4-5 seconds when the power is disconnected. (i.e. when you start /stop your car) Setting Date &...
Page 9: Technical Specification
USER MANUAL TECHNICAL SPECIFICATION SCREEN Screen size 2.35" Screen type Screen resolution 960 X 480P SENSOR Sensor name OmniVision OS08A10 Sensor native resolution 8MP PurCell CMOS LENS Lens type and layers 6G+1 IR Lens Lens Angle 150° A+ Wide Wide Angle Focal length f= 3.0mm (F/NO = 2.0) STORAGE...
Page 10 VIDEO Supported video resolution Single cam: 4K 3840*2160 P30, with frame rating 1080P P60, 1080P P30 Dual Cam: 4K + 1080P Video format Compression H.265/H.264 USB FUNCTIONS USB-Storage USB Charging TECHNICAL DETAILS Working Temperature -10°C (14°F) ~ +60°C (140°F) Weight 82.4g SIZE 73 X 62 X 15mm (Exclude Lens)
Page 11: Main Features
USER MANUAL MAIN FEATURES 4K 3840 x 2160P Resolution 512GB Max Support Micro-SD Class 10, U3 Rear Camera Full-HD 1080P (Optional) Digital Distortion Correction 20MP Photos WDR - (True Color Gamut) 150° A+ Wide Angle Lens Super Night Vision Built-In WiFi Built-In GPS Time-Lapse Video Seamless Loop Recording...
Page 12: Package Contents
PACKAGE CONTENTS ROVE Stealth 4K Dash Cam Windshield Suction Mount Car Wire Trim Tool 12FT Mini-USB Car Charging Cable 2.5FT Mini-USB Data Cable 5 x Cable Hiding Clips 3M Sticky Mount User Manual & Registration Card ROVE Dual USB Car Charger...
Page 13: Product Diagram
USER MANUAL PRODUCT DIAGRAM RESET 10 11 12 13 14 Memory Card Slot Display Down Power Button USB Port Menu/Mode Rear Cam Slot HD OUT Speaker Reset SOS / Wi-Fi Lens...
Page 14 Understanding Keys & Functions LONG PRESS = Press & Hold For 2-3 Seconds SHORT PRESS = Press Once FUNCTION INSTRUCTION Power ON: Short press to power ON. Power ON/OFF Power OFF: Long press to power OFF. Take Photo PHOTO: Short Press to take a PHOTO when in video mode.
Page 15: Inserting / Removing A Micro Sd Card
USER MANUAL INSERTING / REMOVING A MICRO SD CARD Must use only Brand Name, Class-10, U3 or higher speed Micro-SD Card. Max support 512GB. We Recommend SAMSUNG Class 10, U3 Speed Micro-SD Card. You can purchase it from Amazon here: https://www.amazon.com/dp/B07MKSGZM6/ TO INSTALL Make sure the camera is turned OFF First.
Page 16: Formatting Memory Card
FORMATTING MEMORY CARD Please press the (M) MENU button to enter the settings. Settings Video Settings Front Audio Settings Light Frequency 60Hz Then press the DOWN button to scroll down until you see Format Memory Card >> Then press the OK button to enter format submenu. >> then press DOWN button to highlight the CONFIRM >> Then press the OK button to confirm to format the memory card (The formatting process will be super quick. Now press the M button to exit the settings).
Page 17: Installation
Make sure to format the memory card before first time use. Installation Position: It is recommended to install ROVE Stealth 4K at the near of rear view mirror of driver opposite side. Clean any foreign matter and moisture from the place where the product will be installed.
Page 18 To Lock The Suction Mount: Press & hold it tight to remove any air between suction mount and the windshield. While pressing & holding towards the windshield, turn the LOCK- ING Knob towards CLOCK WISE to LOCK in place. Press the suction mount against windshield and while pressing, turn the LOCKING Knob towards LOCK position to lock the mount in place.
Page 19 USER MANUAL Adjust the lens angle of the camera. Loosen the screw to adjust the camera’s view angle Simply rotate the and then tighten to camera 360 lock that angle. record any direction you prefer. Start the engine and check if the product works properly. Caution: Make sure to remove the Plastic Lens Screen Protector before recording videos.
Page 20 Lighter Plug Wiring at a glance Charging Only use the supplied charger to power and charge the Rove Stealth 4K dash cam. You can use your iPhone or Android Phone’s USB Charger, and plug into your home’s 110V Wall outlet to power/charge the camera while in your home.
Page 21: Turning On/Off Your Camera
USER MANUAL TURNING ON/OFF YOUR CAMERA AUTO POWER ON/OFF Auto Power ON: ROVE Stealth 4K Dash Cam is designed to ON and start recording automatically when it receives power. i.e. when the car engine is started. Auto Power OFF: The camera is also pre-configured to turn itself OFF automatically within few seconds when the power gets disconnected, i.e.
Page 22: Understanding Status Icons
UNDERSTANDING STATUS ICONS Home Screen Microphone Indicator Wi-Fi Indicator Recording Indicator Battery Indicator Recording 00:00:10 Memory Card Indicator Video Resolution 3840x2160P30 GPS Signal Indicator Current Date Parking Mode Status Current Time Motion Detection Status Recording Status 2019/03/23 02:03:42 Loop Recording Timer (Resets every loop) Menu, SOS,...
Page 23: Led Status Light Indicator
USER MANUAL LED STATUS LIGHT INDICATOR General Understanding RED LIGHT Indicates Recording Status Blinking RED Recording Video Solid RED/NO RED NOT Recording Video GREEN LIGHT Indicates Internal Ba�ery Charging Status Solid GREEN Internal Ba�ery Charging NO GREEN Light Internal Ba�ery Fully Charged DIFFERENT SCENARIOS When Camera Is Plugged Into The POWER Solid RED + Solid GREEN...
Page 24: Battery Information
BATTERY INFORMATION This product contains Lithium-Ion inbuilt battery. With a full charge battery should last upto 2-5 minutes. Internal battery is NOT meant to last long time. The higher the video resolution you choose the more power it will consume, hence it will last short duration, and the lower video resolution you choose the less power it will consume, hence it will last longer.
Page 25 USER MANUAL and sun exposure inside the car can exceed specified range above depending upon your geographical and weather conditions. Do not expose this camera to extreme high heat, direct sunlight, cigerattes, cigars, candles or low temperatures or crush or break. Do not use in humid, wet and/or corrosive environment.
Page 26: Using Wi-Fi Feature
WiFi signal (instead of a Bluetooth) to pair your smartphone with ROVE Stealth-4K. What is the WiFi Range? The WiFi signal range is about 10FT when there are NO obstruc- tions in the middle.
Page 27 It is NOT a cloud or an IP camera and it is NOT meant to do that. You can get live video and footage on ROVE Stealth-4K’s APP as long as you stay within the 10FT range from the dash cam.
Page 28 Connecting WiFi For iPHONE From your Home screen, go to Settings > Wi-Fi Turn on Wi-Fi. Your device will automatically search for available Wi-Fi networks.
Page 29 USER MANUAL From the available networks list, choose the "ROVE Stealth 4K" WiFi Network When Prompted, Enter The 88889999 Default Password: (First time only - then it will save the password) Wait until the connection is complete. After you join the network,...
Page 30 (First Time Only - Then it will save the password” Wait until the connection is complete. Once connected to ROVE Stealth 4K WiFi, it will say “No Internet”. Which is fine. You just have to tap on the pop up notification that will show up in few seconds to select that you still want to stay connected even though there is NO Internet.
Page 31 Open the ROVE Stealth-4K APP & Select "Connect Dash Cam" The camera should now be paired automatically with ROVE Stealth-4K APP and you should see the LIVE Video Feed. Select Album, to access Choose this to switch live video view previously recorded videos between FRONT &...
Page 32 You can easily navigate yourself, view your record- ings, change settings etc. Choose to select any videos then take action to either DOWNLOAD or DELETE selected files. View Photos Taken Access Emergency Locked Videos Access Recorded Videos APP UPDATES COMING SOON. Please pardon us, we are working on improving our APP and language ASAP.
Page 33 USER MANUAL Video Being Downloaded to your phone directly. Note: Apple logo & App Store are trademarks of Apple Inc., Google logo and Google Play are trademarks of Google Inc.
Page 34 UNDERSTANDING PARKING MODE Parking mode works as follows. Let's say you went shopping and parked your car in the parking lot. Then someone hits your car while backing up their car, then the impact caused by hitting your car makes your camera vibrate, which then activates the built-in G-sensor and then parking mode, which then turns ON your camera automatically and starts recording for 1-min, then it locks and saves that video file so it does NOT get deleted by the loop...
Page 35: Understanding Motion Detection
USER MANUAL UNDERSTANDING MOTION DETECTION Motion detection feature is made for people who want to create surveillance around their car when the car is NOT driving, during the night or when they are not in their car so the camera can record every time if there is a motion in front of the camera.
Page 36 camera starts to move, which makes the light captured by the camera to change (hence, the camera notices that something in front of it is moving) which will trigger the camera to START recording automatically. Now, the camera will continue to record until there is NO more motion in front of the camera.
Page 37: Video Settings
Attention: To EXIT the Settings Menu, Press the M button to go back. VIDEO SETTINGS A. VIDEO RESOLUTION ROVE Stealth 4K dashcam offers multiple video resolutions. 3840x2160P is the 4K resolution. You can choose the video resolution you like. Higher resolu- tion videos will take more storage spaces as you know.
Page 38 10-Min 20-Min C. TIME LAPSE VIDEO ROVE Stealth 4k supported to captures videos with Time Lapse recording mode. It’s around one to four frames per second. Please make sure to turn OFF Time-Lapse Video option once you are done using it. Otherwise camera will only record time lapse video everytime.
Page 39 USER MANUAL D. VIDEO ENCODING You can choose the video encoding you like. H.265 is more advanced than H.264 in several ways. The main difference is that HEVC allows for further reduced file size. H.265 (DEFAULT) H.264 E. DISTORTION CORRECTION Because of the circular wide-angle lens of the dash cameras to capture the details on wide side, some distortion in the image is created.
Page 40: Audio Settings
NO stamps on the video what so ever. ON (Default) AUDIO SETTINGS A. AUDIO ROVE Stealth 4K has built in microphone to record audio with video. You can choose to record mute video by choosing OFF. ON (Default) B. SPEAKER VOLUME This feature allows you to adjust the volume of the built in speaker in the camera.
Page 41: Light Frequency
USER MANUAL C. KEY TONE This features allows you to turn the key tone/beep sound OFF/ON. ON (Default) D. BOOT-UP TONE This feature allows you to turn OFF the camera's booting up and turning off tone. ON (Default) LIGHT FREQUENCY Here you should choose the frequency accordingly to your power supply specification used in your country based on your geographical location.
Page 42: Usb Mode
LCD ON/OFF SETTING By turning ON this feature, the camera will automatically turn the display screen OFF. (Please NOTE that the camera will stay ON) OFF (Default) 1-Min 3-Min 5-Min USB MODE When you plug the camera with your 2.5FT short USB cable to your PC/MAC, this feature allows you to connect your camera as a flash drive (Select STORAGE).
Page 43: Parking Monitor
USER MANUAL retrieve your footage before using your camera again to prevent the loss of important Video file due to the loop cycle function, in case the force was minor which did NOT trigger G-Sensor to lock video file automatically. It is best practice and recommended for you to retrieve all necessary video footage after any event of accident before using your camera to prevent loss of vital video file.
Page 44: Motion Detection
MOTION DETECTION This setting can be used for various purposes such as remote video surveillance, during parking etc. When this feature is turned ON: The camera will record ONLY when there is motion detected in front of camera’s field of view by using it’s advanced motion detection algorithm.
Page 45: Date And Time
USER MANUAL DATE & TIME Time and date can be set manually. LANGUAGE This setting allows you to choose your desired language setting for camera. English (Default) Simplified Chinese French Traditional Chinese Spanish Russian Portuguese Japanese Deutsch Thai Italian Polish GPS INFORMATION This feature allow you to see your current geographical location in Latitude &...
Page 46: Format Memory Card
WiFi This feature will allow you to turn Wi-Fi ON. Default Password = 88889999 (See Page # 25 to 32) ON (Default) ABOUT MODEL VERSION : V1.06-10-2019 OPERATING SYSTEM : Linux Kernel-4.9.y WiFi Name : ROVE Stealth-4K Password : 88889999...
Page 47 USER MANUAL GPS player Software Installation (PC/MAC Only) (Only suitable for the units with GPS function) To download FREE Car DV Player, visit www.rovedashcam.com Why Car DV Player? What are the features? Check G-Sensor Data Play back your recorded videos To see the Exact GPS route with the video on google maps Check Driving Speed Check Driving Direction (i.e.
Page 48 Playback Your Recorded Videos There are 3 different way you can access your videos. A. Directly On The CAMERA Long Press M Button to Enter Playback Mode Playback Front EMR Record Use UP/DOWN Button to Front Record Select the appropriate Folder Rear EMR Record Select All Delete...
Page 49 USER MANUAL 00:02/00:11 Play / Pause Previous Next 2019_05_21_130347_00.MP4 Use UP/DOWN Button to Select the function first. Then Press OK Button to confirm the function. B. On PC/MAC Insert Micro-SD Card Into SD-Adaptor then insert the SD-adaptor into PC/MAC SD-adaptor slot. 512GB SD Card Micro-SD Card...
Page 50 Connect the camera to USB MODE PC/MAC via 2.5FT Charging - Operate Camera Normally USB Data Cable Connect as a Webcam PC/MAC Then go to settings > USB Mode > Storage Connect as a Flash Drive PC/MAC 2.5FT USB Data Cable (Included) Go to the SD-Card folder through browsing the file explorer from your PC/MAC.
Page 51 USER MANUAL Correct Video Player To Play 4K VIDEOS: We recommend VLC Media Player to play the 4K videos. You can download it FREE by visiting www.videolan.org Right Click on the video file > then select “OPEN WITH”> then select “VLC Media Player” to play the video.
Page 52 To View GPS Route & Other Data, Use our FREE Car DV Player. You can download it by visiting > http://www.rovedascam.com ATTENTION Do NOT Use Windows Media Player to ATTENTION STOP play the videos from your Stealth-4K. These are High-Bit Rate 4K videos, which requires specific codecs &...
Page 53: One-Year Limited Warranty
USER MANUAL ONE YEAR LIMITED WARRANTY We at ROVE InnoTech would like to provide One (1) full year of limited warranty for your product from the date of purchase to be free from defects in materials and craftsmanship. IMPORTANT: Please save your warranty/serial number card as an evidence.
Page 54 misuse detected by the Authorized service center personnel, the warranty will be void and service / repairs will be done on chargeable basis only and subject to availability of parts. The company’s obligation under this warranty shall be limited to repair or providing replacement of part(s) only. The maximum claim(s) if entertained by the company will be subject to the maximum retail price of the product purchased or the purchase price, whichever is lower and on production...
Page 55 ROVE InnoTech (here in after referred to as “the company”) guarantees to the purchaser that this product carries a warranty for the period mentioned above, commencing from...
Page 56 Damage is caused by using different power cord or chargers that are not supplied by us. In addition, ROVE reserves the right to refuse warranty against any product or services that are obtained and/or used in...
Page 57: Faq & Troubleshooting
USER MANUAL FAQ / TROUBLESHOOTING Resetting the device IF the camera become frozen or if no buttons responding, then press the RESET button with a paper clip once to restart the camera at any point. This will NOT reset any settings that you have previously selected.
Page 58 My oldest video ﬁles are missing Your ROVE Dash Cam has Loop Cycle Recording. When it is set to either 1, 3, 5 or 10 or 20-Minutes, it will delete oldest files and record newer files over and over when the memory card is full.
Page 59 Please feel free to contact our personalised support at help@rovedashcam.com Most e-mails are typically replied within 4-6 hours. However all quesitons are answered within 24 Hours. No Exceptions For faster response, we recommend that you please text us at 1-401-484-ROVE (7683). Please visit http://www.rovedascam.com...
Page 60 It is user's responsibility to comply with all local and state laws. ROVE Stealth 4K Dash Cam must be placed at proper location so it does not obstruct your view while driving. Do not use or manipulate any functions or any accesso- ries of ROVE Dash Cam while driving.
Page 61 This is the very first edition of user manual that we wrote for Stealth 4K and we have worked extremely hard to provide such content. At ROVE we are dedicated to continuously improving camera’s firmware and adding more features as they become available.
Page 62 NOTICE This product complies with the radio interface requirements of the European Community. This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate and recycling helps protect natural resources, human health and the environment.
Page 63 USER MANUAL A BIG THANK YOU !! •> Thank you for purchasing your new ROVE Stealth 4K Dash Cam. We hope you ﬁnd your new dash cam useful and fun to use. •> If you are having difﬁculties setting it up, please email us at help@rovedashcam.com.
Page 64 QUESTIONS CUSTOMER SERVICE: Response in just 6 hours For faster response text us help@rovedashcam.com 1 (401) 484-ROVE(7683) HOURS Mon - Fri 9am-5pm PST Scan the QR Code to CONTACT US Scan to Email US: Scan to Text US: help@rovedashcam.com 1-401-484-7683...
