QUAD
HD
1 70
0
1440P@60fps
VIEW ANGLE
TRUTH BE TOLD
USER MANUAL
Model: A12-60
LOOP CYCLE
SENSOR
RECORDING
www.rovedashcam.com
This user manual will give you
details on how to use, operate,
technical specifications and
precautions while in use. Before
use, please read this manual
thoroughly and fully understand.
Please keep this manual in a
safe place; it may take few times
to learn how to use ROVE
Dash-Cam and its functions.
Please do not hesitate to contact
us if you have any question?
Please visit
http:/ /www.rovedashcam.com
for phone support information.
We are happy to help !!
ADAS
LANE DEPARTURE
GPS
WARNING SYSTEM
FORWARD COLISION
PARKING MODE
GEO-TAGGING
WARNING SYSTEM
USER MANUAL
A12-A75
16GB
EMERGENCY
MICRO SD CARD
LOCK BUTTON
INCLUDED
Advertisement
Table of Contents
Related Manuals for ROVE A12-60
Summary of Contents for ROVE A12-60
- Page 1 Please keep this manual in a safe place; it may take few times to learn how to use ROVE Dash-Cam and its functions. Please do not hesitate to contact us if you have any question? Please visit http:/ /www.rovedashcam.com...
-
Page 3: Table Of Contents
USER MANUAL Table of Contents: INDEX PAGE # INTRODUCTION WARNINGS/PRECAUTIONS – SAFETY INFO. UNIT STRUCTURE APPERANCE & BUTTONS: BUTTONS AND INTERFACE INSTRUCTIONS 6 - 10 UNDERSTANDING STATUS ICONS 11 - 12 CHARGING & POWER ON/OFF INSTRUCTIONS CAMERA OPERATION 13 - 17 3 –... -
Page 4: Introduction

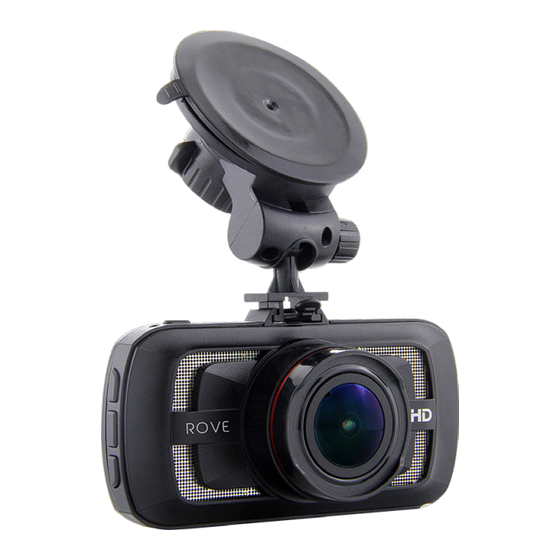

INTRODUCTION Thank you for purchasing ROVE™ A12-60 Quad HD 2560x1440P @ 60fps Digital Vehicle Dash Cam (Automobile Black Box). This product provides high quality image capture and irrefutable evidence for what goes on from the perspective of your dashboard. Rove Dash Cam is a very elegant, convenient and durable multi-vehicle driving recorder. -
Page 5: Warnings/Precautions - Safety Info
USER MANUAL Warnings/Precautions: IMPORTANT SAFETY INSTRUCTIONS WARNING: FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS COULD RESULT IN SERIOUS ACCIDENT, INJURY OR EVEN DEATH. Do not put the unit in a damp environment. This machine is not designed with waterproofing features. Please do not expose to water of any kind, including rain water. -
Page 6: Unit Structure Apperance & Buttons
Unit Structure Appearance & Buttons: 1) GPS Input 2) HDMI Output 3) Windshield Mount Latch 4) Mini USB Power Input/Data Output Slot 5) Power ON/OFF / PHOTO Button 6) MODE Button 7) MENU Button 8) Emergency Video Lock 9) 3.0” LCD 10) LED Status Light Indicator 11) Up Button / Mute On/OFF 12) Down Button / LCD ON/OFF... -
Page 7: Buttons And Interface Instructions
USER MANUAL Buttons and Interface Instructions GPS Input GPS Input: This is where you plug in your external GPS Geo-Tagging device. Mini HDMI Output Connect mini HDMI output to HDMI HD Television input to view HD Videos directly on your television. See Page 16 &... - Page 8 • P.S. (Please do NOT use “Windows Media Player” to play this high bit- rate videos. We recommend downloading free VLC Media Player to enjoy stream less high quality vides from your ROVE Dash Cam. Download Free VLC Media Player at http://www.videolan.org Power ON / OFF -Photo Button •...
- Page 9 USER MANUAL Mode Button Mode Button: ROVE A12-60 has three different modes: Video Mode, Photo Mode and Playback Mode. (See Page 18 for detailed explanation) Press Mode Button to switch through these 3 different modes. Stop when you are on the mode you want. An icon appears in the upper left corner of the screen for each mode.
- Page 10 Menu Button All three modes has their own menu settings. When you have selected the mode you want press MENU Button to enter/exit that particular Mode’s Settings. System Settings are common between all three modes. While under any Mode’s Settings Press MODE button to switch between the Mode Settings and System Settings.
- Page 11 USER MANUAL DOWN Button/LCD ON/OFF While in Menu Mode Settings or System Settings: Press to Scroll Down While in Video or Photo Mode: Press to Turn OFF/ON LCD. (Please Note that Camera Still Stays ON) While in Playback Mode & Video is being played: Press once to Fast Forward video to 2X, Press once again to FF to 4X.
-
Page 12: Understanding Status Icons
UNDERSTANDING STATUS ICONS: Video Mode Photo Mode... - Page 13 USER MANUAL Playbak Mode...
-
Page 14: Charging & Power On/Off Instructions
• If you are not satisfied with the default settings, you can customize your own through Mode and Menu. • The Rove A12-60 has 3 different modes. Video Mode, Photo Mode and Playback Mode. These modes has their own specific menus to help you configure your camera. - Page 15 ROVE Dash Cam will automatically save last video file and power off automatically within few seconds. • ROVE Dash-Cam is also pre-configured to auto turn off if it is in standby for a long time without any button pressed.
- Page 16 RECORDING A VIDEO: • When the camera is turned on manually and in standby, press OK button to Start/Stop video recording. • The camera is pre-configured to auto start recording when it receives power and also stop recording and turn off within few seconds once it loses power, i.e.
- Page 17 If you don’t have SD card reader or adapter you can also connect your ROVE Dash-Cam directly to your computer via provided mini-USB data cable while memory card is already inserted into the camera. When you connect ROVE A12-60 camera to PC a "USB Connection to PC Successful"is displayed on LCD.
- Page 18 GPS Geo-Tagging device connected. • To access your ROVE Dash-Cam videos on your computer double click on other drive “F”. This Folder should have two separate folders insude. (1) DCIM (Contains Unlocked Videos) (2) EVENT (Contains Locked Videos).
-
Page 19: Camera Modes
USER MANUAL 3 - CAMERA MODES: • ROVE Dash-Cam has three different Modes. (1) Video Mode, (2) Photo Mode, and (3) Playback Mode. • Press the MODE Button to switch between these three modes. An icon on top left LCD indicates the current mode you are in. - Page 20 • Press MENU Button to enter VIDEO settings. Press UP or DOWN buttons to scroll through various settings and then press OK button to select. • While in VIDEO Settings press MODE button to switch between “VIDEO Settings” and “SYSTEM Settings”. (SYSTEM Settings are common between all 3-modes, See Page 26.) (2) Photo Mode: While Under Photo Mode (Look Top Left of LCD to confirm Photo Mode...
- Page 21 USER MANUAL (3) Playback Mode: While Under PlayBack Mode: (Look Top Left of LCD to confirm Photo Mode) Playbak Mode • To Play Video: Select Desired Video file by using UP/DOWN Buttons > Press OK Button to Play that Video File. •...
-
Page 22: Camera Mode's Settings
PLAY VIDEOS ON TELEVISION: You can connect your ROVE™ A12-60 Dash Cam to your HD television directly by connecting with provided Mini-HDMI Cable from camera to HDTV Connection. 1. Make sure your camera and HDTV is turned OFF first. 2. Connect your Dash Cam with Mini-HDMI Cable to your HDTV’s HDMI connector. - Page 23 USER MANUAL A. 3-DIFFERENT MODES SETTINGS: 1. Video Mode Settings: Video RESOLUTIONS: You can choose the video resolution you like. Higher resolution videos will take more storage space. • 2560x1440(60fps-16:9) • 2560x1440(30fps-16:9) • 2560x1440(30fps-16:9) HDR • 2304x1296(30fps-16:9) • 1920x1080(60fps-16:9) • 1920x1080(30fps-16:9) •...
- Page 24 MOTION DETECT: • Motion detection is used to reduce the amount of storage space used. When there isn’t obvious motion detected the camera will switch standby. Once motion over the threshold value is detected the camera will start recording until there is no motion in front of camera. •...
- Page 25 “CARD FULL” and it will NOT allow you to record any further until you manually delete all video files. OPTIONS: 1-min, 3-min, 5-min, OFF MIC (In-Built Microphone): • Rove Dash-Cam has built in microphone. You can choose the microphone on/off as per your need. OPTIONS: Mic ON, Mic OFF ANTI-FLICKER: •...
- Page 26 3. Playback Mode Settings: • In this mode there are Two Main Folders for stored video files. (see two icons on top right corner) • Left icon is for LOCKED EVENT marked Video Files. Right icon is for NORMAL Videos & Photo Files. •...
-
Page 27: System Settings
USER MANUAL B. SYSTEM SETTINGS: System settings are common between all 3 modes. To enter system settings, press OK button to stop if video is being recorded. Then in any mode press MENU button, then press MODE button to switch between Mode Settings and System Settings. - Page 28 OPTIONS: Choose “√” or “X” (if choose “√”, It will require reboot of system) AUTO POWER OFF: • When ROVE Dash-Cam is not recording video and is in standby/idle, it will turn off camera automatically after desired setting time. OPTIONS: OFF, 1-min, 3-min, 5-min CARD VOLUME: •...
- Page 29 USER MANUAL ROVE™ A12-60 Product Specifications: Chipset / Sensor Ambarella A12-A75 / OV4689 - 4MP CMOS Indicator LED Light LED is Flashing RED when recording, Flashing Blue/Purple when recording and charging, Solid Blue when charging, Solid Red when standby. LCD Screen 3.0”...
-
Page 30: Led Status Indicator & Battery Info
Motion Detection Support Park Mode Support Year/Month/Day/ Support Hour/Minute MIC / Speaker Built-in Mic for Audio / Built-in speaker for video playback GPS GEO-Tagging Support, GEO Tagging Device Included ADAS Function LDWS, FCWS Mini USB Function 1: Storage 2: Charging Power Interface 5V 1.5A Battery... - Page 31 USER MANUAL Battery Information This Product contains Lithium-ion inbuilt battery. With a full charge battery should last upto 8 minutes. The purpose of in-built battery is to save the last video file safely without any data loss and turn off the camera when power gets disconnected e.g.
-
Page 32: Gps & Video Player Installation
GPS player software Installation and Use Instruction: • Before viewing your video with GPS trace, Please install Car DVD Player from your ROVE™ A12-60 Dash-Cam first. • GPS Car DVD Player software is already pre placed inside camera. To install the software first time on your computer, connect the camera to computer USB by provided mini-USB data cable. - Page 33 USER MANUAL FILE Click to open desired video file to be played. VIEW Configure: Language, Maps & Speed Units HELP About. Contains software version & copyright date. Driving Speed This is where your driving speed will be displayed. Date & Time Shows Date &...
- Page 34 Playback Time This is where your video play back time is shown. GPS Coordinates These are your coordinates longitude and latitude recorded by GPS Geo Tagging Device. Past Viewed Files These are you previously viewed files. Click on it to view them again. Map Location Maps showing vehicle’s driving route recorded by GPS Geo Tagging Device based on coordinates.
-
Page 35: Warranty, Safety & Legal
USER MANUAL One Year Limited Warranty: We at ROVE™ would like to provide One (1) full year of limited warranty for your product from the date of purchase to be free from defects in materials and craftsmanship. IMPORTANT: Please save your warranty/serial number card as an evidence. -
Page 36: Product Specifications
ROVE™ (hereinafter referred to as “the company”) guarantees to the purchaser that this product carries a warranty for the period mentioned... - Page 37 • Please check your local or state laws before using in car recording device. It is user’s responsibility to comply with all local and state laws. • Rove A12-60 Dash Cam must be placed at proper location so it does not obstruct your view while driving.
-
Page 38: Trouble Shooting
23 for more details. My oldest video files are missing. Your ROVE Dash Cam has split record mode. When it is set to either 1, 3 or 5-min, it will delete oldest files and record newer files over and over when the... - Page 39 USER MANUAL I am unable to access MENU Please make sure you stop recording video first by pressing OK button. Then Press MENU button to enter specific mode menus, then press mode button to switch to System settings. Camera Locks many videos automatically. Please make sure you increase your G-sensor setting.
-
Page 40: Contact Us
24 Hours. No Exceptions !! For customer service PHONE SUPPORT number please visit http://www.rovedashcam.com Package Contents: • ROVE™ Dash-Cam • 16GB Class 10 Micro SD Card • USB Car Charger + Long Car Charging Cable • Mini USB Data Cable •... - Page 41 USER MANUAL A BIG THANK YOU!! Thank you for purchasing your new ROVE™ A12-60 Dash Cam. We hope you find your new dash cam useful and fun to use. If you are having difficulties setting it up, please email us at help@ rovedashcam.com.
- Page 42 TRUTH BE TOLD www.rovedashcam.com help@rovedashcam.com Printed in China...
