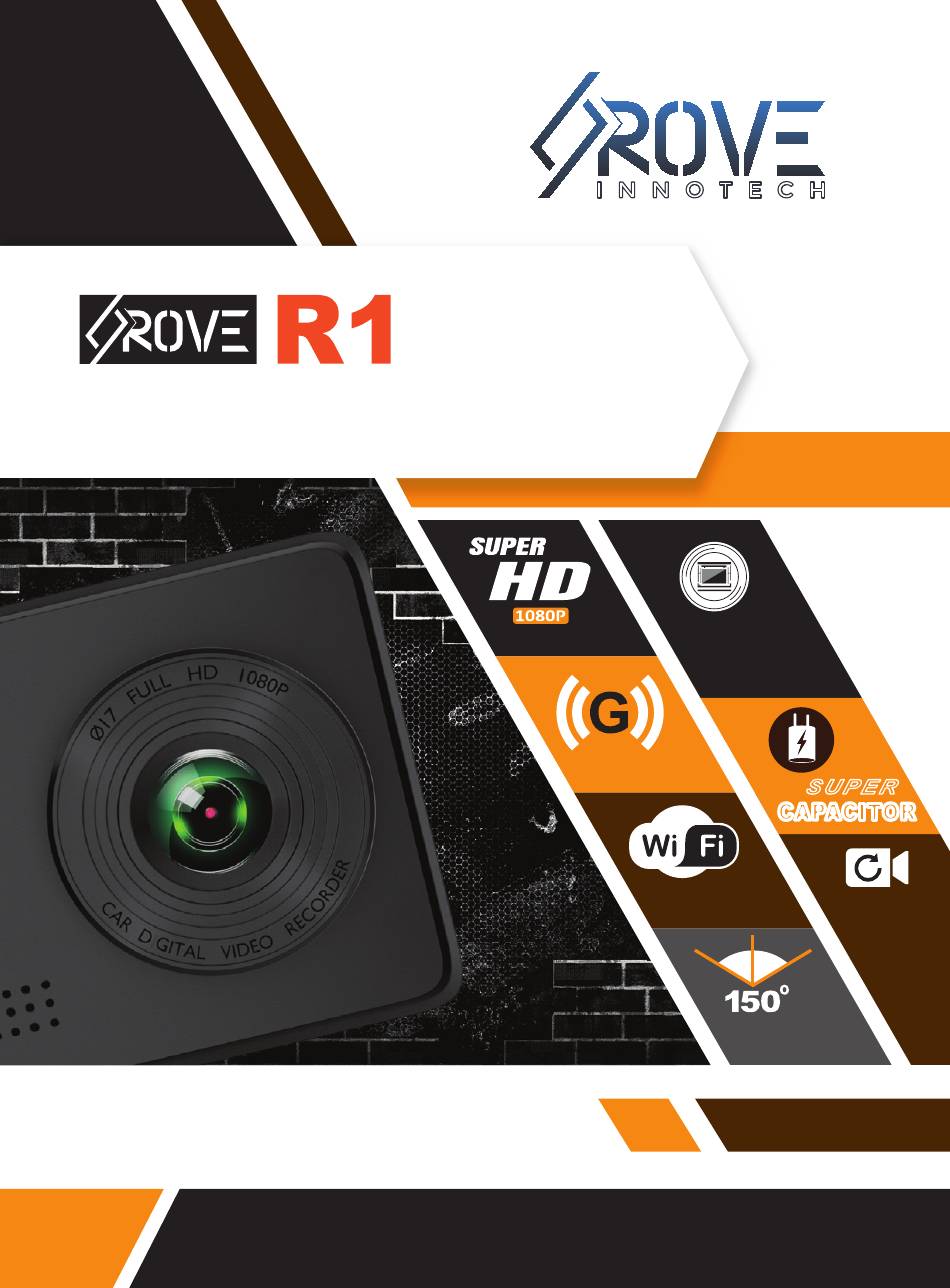

- Page 1 T R U T H T O L D SONY RESOLUTION IMX323 SENSOR G SENSOR S U P E R CAPACITOR CAPACITOR Wi-Fi LOOP APP SUPPORT RECORDING ULTRA WIDE VIEWING ANGLE U S E R M A N U A L www.rovedashcam.com Copyright (C) 2019, All rights reserved...
- Page 2 QUESTIONS CUSOTMER SERVICE: Response in just 6 hours For faster response text us help@rovedashcam.com 1 (401) 484-ROVE(7683) Scan the QR Code to Text US Text US: 1-401-484-7683 Scan the QR Code to Email US Email US: help@rovedashcam.com Simply Scan the QR Code with your...
-
Page 3: Table Of Contents
Installing Your Dashcam Using Wi-fi Feature Product Structure Status Icons: Understanding Status Understanding Buttons Understanding 3 – Camera Modes: Video Settings Photo Settings Playback Settings System Settings One Year Limited Warranty: Safety Legal Aspects Trouble Shooting Your Rove R1 Dash Cam... -
Page 4: Introduction
USER MANUAL INTRODUCTION Thank you for purchasing ROVE R1 Wi-Fi enabled Full HD Digital Vehicle Dash Cam (Automobile Black Box)... Besides seamless loop recording it provides high quality image capture & irrefutable evidence for what goes on from the perspective of your dashboard. -
Page 5: Important Safety Instructions
WARNINGS/PRECAUTIONS: Important Safety Instructions Failure to comply with safety warnings and regulations can result in serious injury or death. Please read and understand all instructions before using this product. If any damage is caused by failure to follow the instructions, the warranty will be voided. Do not put the unit in a damp environment. -
Page 6: Camera Specifications
USER MANUAL CAMERA SPECIFICATIONS Processor : NOVATEK NT96658 (Built-In 1GB DDR III) Sensor : Sony Sensor IMX323 (1/2.9 Exmor CMOS) Display : 2.45" IPS Screen Camera lens : 150° Wide-Angle Lens (Lens: 6G + 1 IR) Aperture : F2.0 G-Sensor : Triaxial Acceleration Sensor (DA380) Operating Voltage : DC 5V 1.5A... -
Page 7: Package Contents
PACKAGE CONTENTS Car Charger with Cable DashCAM Data Cable Windshield Suction Mount User Manual Registration Card... -
Page 8: Out Of The Box Instructions
(See Page 8) ROVE R1 dash cam is programmed to turn ON and START RECORDING automatically when it receives the power, and STOPS RECORDING automatically within 2-3 seconds when the power is disconnected. (i.e. -
Page 9: Inserting Memory Card
INSERTING MEMORY CARD Must use only Brand Name, Class-10, U3 or higher speed Micro-SD Card. Max support 128GB We Recommend SAMSUNG Class 10, U3 Speed Micro-SD Card. You can purchase it from Amazon here: http://a.co/2tXJzIL TO INSTALL: Insert the MicroSD card halfway in with the gold contacts facing the LCD side (back of the... -
Page 10: Installing Your Dashcam
USER MANUAL INSTALLING YOUR DASHCAM The camera comes with the default setting which allows you to start using your camera right out of the box without changing any settings. Make sure to Format the memory card before first time use. Then, Simply – Follow the Steps below: Align the Then Slide to... - Page 11 CAUTIONS Using incompatible cables or charger can cause serious health injury or damage your device. Be sure to only use ROVE approved car charger designed for your device specifically. Never install this product while driving. Make sure that the lens is within the wiping range of the windshield wiper to ensure a clear view even when it rains.
-
Page 12: Using Wi-Fi Feature
You should see the live video feed from the camera on the ROVE APP. Then keep exploring the APP from here on. NOTE: When wifi is ON, you can only operate the camera from the ROVE APP. If you want to operate from camera side, then turn OFF the WiFi first. - Page 13 There is one extra step you will have to take. Once you connect to ROVE R1 WiFi, it will say “No Internet”. Which is fine. You just have to tap on the pop up notification that will show up in few seconds to select that you still want to stay connected even though there is NO Internet.
-
Page 14: Product Structure
USER MANUAL PRODUCT STRUCTURE Serial Number Label Power Mount Assembly Holder Reset HDMI OUT Memory Card Slot AV-OUT Recording Status LED IPS Screen Menu Down Lens... - Page 15 HOME SCREEN Recording Status Indicator Loop Recording Timer Video Mode (blinking red dot) (Resets every loop) Total Trip Timer Loop Recording (Resets when camera/video restarts) 00:01:03 01:24:21 Motion Detection Video Resolution 1080FHD Exposure Value Microphone Indicator Current Video is 2018/12/02 13:22:06 Memory Card Indicator being Locked...
-
Page 16: Status Icons: Understanding Status
USER MANUAL STATUS ICONS: Understanding Status ICONS WHAT DOES IT MEAN? Video Mode Photo Mode Playback Mode Blinking Red Dot = Camera Is Recording Video Micro SD Card Installed NO Memory Card Installed or Bad Memory Card Current Loop Video Is Being Locked Loop Cycle Record Setting Motion Detection ON Motion Detection OFF... -
Page 17: Understanding Buttons
UNDERSTANDING BUTTONS Button Function Press Once - to confirm a selection Press Once - to Start/Stop Video recording in Video Mode. Press Once - to take a snapshot in Photo Mode. Long Press for 2-Seconds to turn WiFi ON/OFF Press Once - to Scroll UP while in Settings Menu Press Once - to Mute/Un-Mute Microphone while in Video Mode Long Press for 3-Seconds to Zoom In while in Video Mode. - Page 18 TURNING ON/OFF YOUR CAMERA AUTO POWER ON/OFF Auto Power ON: ROVE R1 Dash Cam is designed to turn ON and start recording autometically when it receives power. i.e. when the car engine is started. Auto Power OFF: The camera is also pre-configured to turn itself OFF automati- cally within few seconds when the power gets disconnected, i.e.
-
Page 19: Understanding 3 - Camera Modes
UNDERSTANDING 3 – CAMERA MODES: ROVE R1 has 3 different camera modes: PLAYBACK MODE VIDEO MODE PHOTO MODE The “MENU” button will act as two functions. MENU button & MODE button. MENU Button : Pressing Once (Short) will act as MENU button. - Page 20 USER MANUAL 00000 PHOTO MODE Photo mode lets you take a snapshot. While Under Photo Mode: • Press OK button to take a SNAPSHOT. • Press UP button to ZOOM IN. • Press DOWN button to ZOOM OUT. • Press Menu Button to enter Photo Settings. •...
-
Page 21: Video Settings
VIDEO SETTINGS To Enter Video Setting: •> Make sure you are under Video Mode •> Press "MENU" button ONCE to enter Video Settings •> Press "DOWN" button to access video settings. •> Now use "UP" or "DOWN" buttons to scroll through > then press "OK" button to enter particular setting >... - Page 22 USER MANUAL VIDEO SETTINGS G-Sensor Exposure Motion Detection Record Audio 4. G-Sensor Off / Low / Medium / High Default is ‘Medium’ G-Sensor is a 3-axis impact gravitational accelerometer which is designed to detect physical and gravitational forces on the camera. While Video is Being Recorded: In the event when G-Sensor is triggered due to physical or gravitational impact force on the camera, the current Loop cycle length of video file will be locked so it will NOT be deleted by Loop cycle function.
- Page 23 Then repeat the step #4 and step #5 as you want to utilize the motion detection. 7. Record audio ROVE R1 has built in microphone to record audio with video. You can choose to record mute video by choosing OFF. You can also press UP Button to mute/un-mute while video is being recorded.
-
Page 24: Photo Settings
USER MANUAL PHOTO SETTINGS To Enter Photo Setting: •> Press & Hold “MENU” button to enter Photo Mode. •> Press “MENU” button ONCE to enter Photo Settings. •> Press “DOWN” button to access photo settings. •> Now use "UP" or "DOWN" buttons to scroll through > then press "OK" button to enter particular setting >... - Page 25 4. Compression This feature allows the image stabilizer function to reduce blur of a captured image. • OFF • ON (Default) 5. Sharpness This feature allows you to choose the clarity of an image sharpness. • Strong • Normal (Default) •...
- Page 26 USER MANUAL 9. Exposure This feature allows you to adjust the brightness of a captured image. • 0.0 (Default) • 2,-1.7,-1.3, -1.0, -0.7, -0.3, 0.0, +0.3, +0.7,+1.0, +1.3,+1.7, +2 10. Anti-Shaking This feature enables the image stabilizer function to reduce blur of captured images •...
-
Page 27: Playback Settings
PLAYBACK SETTINGS To Enter Playback Setting: •> Press & Hold "MENU" button two times to enter Playback Mode. •> Press "MENU" button ONCE to enter Play Settings. •> Press "DOWN" button to access Play settings. •> Now use "UP" or "DOWN" buttons to scroll through > then press "OK" button to enter particular setting >... -
Page 28: System Settings
USER MANUAL SYSTEM SETTINGS To Enter Playback Setting: •> Press "MENU" button two times to enter System Settings. •> Press "DOWN" button to access System Settings. •> Now use "UP" or "DOWN" buttons to scroll through > then press "OK" button to enter particular setting >... - Page 29 SYSTEM SETTINGS Key Tone Language TV Mode Car Plate 5. Language This setting allows you to choose your desired language setting for camera • English (Default) • Simplified Chinese • French • Traditional Chinese • Spanish • Russian • Portuguese •...
- Page 30 When that happens, please replace your memory card. SYSTEM SETTINGS Default Setting Version 10. Default Setting Here you can restore all the settings to factory default settings. • Cancel • OK 10. Version ROVE-R1-01012019 (First Original Firmware)
-
Page 31: One Year Limited Warranty
ONE YEAR LIMITED WARRANTY: We at ROVE Innotech would like to provide One (1) full year of limited warranty for your product from the date of purchase to be free from defects in materials and craftsmanship. IMPORTANT: Please save your warranty/serial number card as an evidence. Proof of original purchase is required for any warranty service. - Page 32 ROVE Innotech (here in after referred to as “the company”) guarantees to the purchaser that this product carries a warranty for the period mentioned above,...
-
Page 33: Safety Legal Aspects
Please check your local or state laws before using in car recording device. > • It is user's responsibility to comply with all local and state laws. > ROVE R1 Dash Cam must be placed at proper location so it does not • obstruct your view whiie driving. > •... -
Page 34: Trouble Shooting Your Rove R1 Dash Cam
Please trust us. We have sold thousands of ROVE Dash Camera’s and they do NOT lag, we stand by our prduct and we do extensive testing. Some customers simply thinks the camera is bad or not stable, but that is NOT the case here. - Page 35 Your ROVE Dash Cam has Loop Cycle Recording. When it is set to either 1, 3, 5 or 10-mins, memory card is full. Please change your G-Sensor Setting to higher setting. This setting depends on type of car or truck you are driving and how much vibration your car/truck is creating based on suspensions and road condition.
- Page 36 This is the very first version of this user manual we wrote for ROVE R1 As we are dedicated in keep improving this model by firmware updates and more features adition. Therefore it is possible that some things are not included or not matching.
- Page 37 QUESTIONS CUSOTMER SERVICE: Response in just 6 hours For faster response text us help@rovedashcam.com 1 (401) 484-ROVE(7683) Scan the QR Code to CONTACT US Scan to Email US: Scan to Text US: help@rovedashcam.com 1-401-484-7683...
