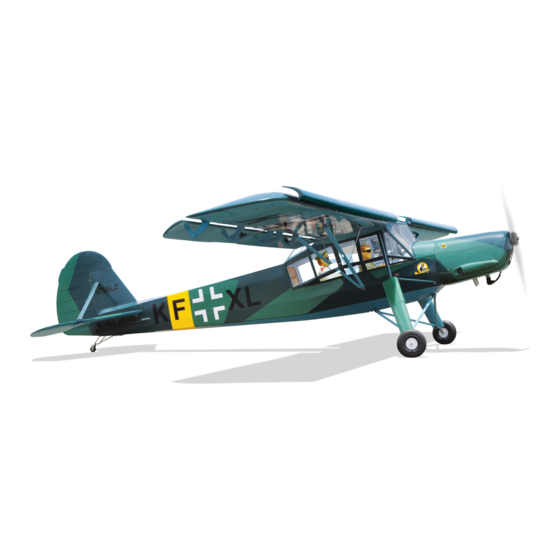

Black Horse Model FIESELER Fi156C STORCH Instruction Manual Book

Stainless steel oleo struts landing gear, all balsa - ply wood construction, covered in a heat-shrink film with printed

Hide thumbs Also See for FIESELER Fi156C STORCH:

Instruction manual (27 pages)

Instruction manual book (28 pages)

Instruction manual (25 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the FIESELER Fi156C STORCH and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Horse Model FIESELER Fi156C STORCH

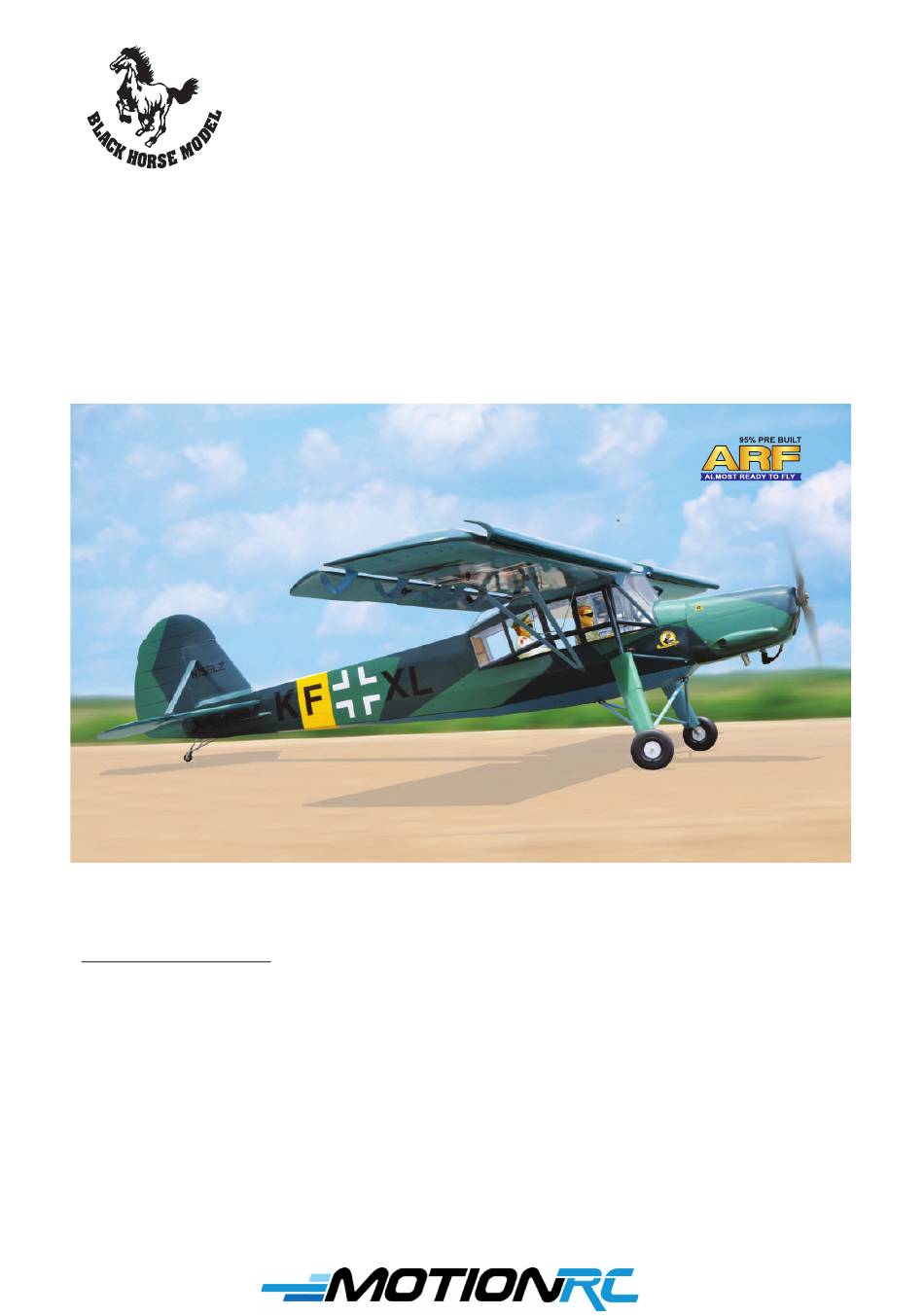

Page 1 Instruction Manual Book Item code: BH99. FIESELER Fi156C STORCH Gas and EP STAINLESS STEEL OLEO STRUTS LANDING GEAR. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION: - Wingspan: 2,850 mm (112,20 in).
Page 2: Table Of Contents
Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...
Page 3: Warranty
Please strictly follow the instruction manual to assemble work area thoroughly after working with berglass parts. and use this. In that Black Horse Model has no control over the nal SUGGESTION assembly or material used for nal assembly, Black Horse Model is not responsible for loss of use , or other incidental or consequential damages.
Page 4: Covering Tools
Instruction manual FIESELER Fi156C STORCH Item code: BH99 ADHESIVES AND REQUIRED TOOLS FLIGHT WARNINGS When ready to y, rst extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly tted to the fuselage.
Page 5 Instruction manual FIESELER Fi156C STORCH Item code: BH99 • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.)
Page 6: Parts Listing (Not Included)
Instruction manual FIESELER Fi156C STORCH Item code: BH99 PARTS LISTING (NOT INCLUDED) Motor: Admiral GP26 6330 ..1 pcs Engine: 35cc gas. Servos size: (39.9 x 20.1 x 38.1)mm. Torque servos: 4.8V(7.92kg/cm) - 6V(9.43kg/cm) ..8 pcs ESC: 120A ..1 pcs.
Page 7 Instruction manual FIESELER Fi156C STORCH Item code: BH99 : Fuselage. : Wing panel (2a, 2b). : Horizontal stabilizer. : Elevator. : Rudder : Aluminium wing dihedral brace(5a, 5b). : Cockpit fuselage (7a, 7b: Canopy, 7c: Top hatch fuselage, 7d, 7e: Pilot, 7f, 7g: pilot seat).
Page 8: Installing The Ailerons And Flaps Servos
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE AILERONS AND FLAPS SERVOS. Place the servo into the servo tray. Center the servo within the tray and drill 1.5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo.
Page 9 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Aileron Aileron servos. 2 mm approx.16mm 3mm Flat Washer Aileron Aileron 3mm Hex Nut 3x12mm Cap Screw Aileron Aileron 1.5mm Screw 96mm 2x10mm Tp Screw Aileron 1.5mm Cut off shaded portion Drill holes using the stated.
Page 10 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Flaps Flaps servos. 2 mm approx.16mm For Flap. For Flap. For Flap. 1.5 mm Screw 3mm Hex Nut For Flap. Flap 3x12mm Tp Screw 3mm Flat Washer 3x12mm Cap Screw 2x10mm Flap...
Page 11 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Bottom view 3x12mm Screw INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos.
Page 12 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Fuselage top side Rudder servo Throttle servo INSTALLING HORIZONTAL STABILIZER 1) Servo for H orizontal stabilizer Ball link Horn installed the same way as the aileron before (see page 6). 2.6 x 1150mm Push rod...
Page 13 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Bottom view 3x12mm Tp Screw Horn 3x12mm Cap Screw Bottom view Horn Top view...
Page 14: Installing The The Rudder
Instruction manual FIESELER Fi156C STORCH Item code: BH99 3x12mm 3mm Flat Washer Fuselage top side 3mm Hex Nut 3x12mm 3mm Flat Washer 3mm Hex Nut INSTALLING THE RUDDER 1105mm Push rod Ball link 3mm Hex Nut - - 1 67mm Pinned Hinge...
Page 15 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Top view 3x12mm Fuselage top side 3mm Flat Washer 3mm Hex Nut...
Page 16: Horizontal Stabilizer Struts
Instruction manual FIESELER Fi156C STORCH Item code: BH99 HORIZONTAL STABILIZER STRUTS 3x6mm Button Head Cap Screw - - - - 2 Aluminium Horizontal - - - 8 Stabilizer Strut Attachment - - - - 2 3x8mm Button Head Cap Screw...
Page 17: Installing The Tail Gear
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE TAIL GEAR 3x16mm Button head Cap Screw - - - - - - 2 3x15mm Tp Screw - - - - - - 2 3mm Spring Washer 3x16mm - - - - - - - 2...
Page 18: Installing The Engine
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE ENGINE 5mm Flat Washer 5mm Spring Washer 5x100mm Socket Head - - - - - - - - - 4 Cap Screw - - - - - - - 4...
Page 19: Installing The Stopper
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE STOPPER Cut off shaded portion carefully.
Page 20: Installing The Fuel Tank
Instruction manual FIESELER Fi156C STORCH Item code: BH99 5. When satisfied with the alignment of the stopper INSTALLING THE FUEL TANK assembly tighten the 3mm x 20mm machine screw until the rubber stopper expands and 1. Using a modeling knife, cut one length of silicon seals the tank opening.
Page 21: Installing The Throttle
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE THROTTLE 1) Install one adjustable metal connector through direction. When the throttle stick is moved forward the third hole out from the center of one servo arm, from idle to full throttle, the throttle barrel should enlarge the hole in the servo arm using a 2mm drill also open and close using this motion.
Page 22: Installing The Cowling
Instruction manual FIESELER Fi156C STORCH Item code: BH99 Fuselage top side Throttle servo INSTALLING THE COWLING 5) Using a 3mm drill bit, enlarge the fourholes in the 1) Remove the mufler and needle valve cowling. assembly from the engine. Slide the fiberglass cowl over the engine.
Page 23 Instruction manual FIESELER Fi156C STORCH Item code: BH99 3x12mm Tp Screw Fuselage top side 3x12mm TP Screw Fuselage bottom side Drill holes using the stated. Assemble left and right (in this case 2mm sides the same way...
Page 24: Installing The Main Gear
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE MAIN GEAR 115mm Wheels. 3x10mm Button Head Cap Screw - - - - - - 14 3x12mm Cap Screw - - - - 4 3x12mm Tp Screw - - - - 4...
Page 25 Instruction manual FIESELER Fi156C STORCH Item code: BH99 3mm Nylock Nut Assemble left and right sides the same way.
Page 26 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Screw 3x12mm Screw 3mm Spring Washer 3mm Flat washer Screw 3x4mm 3x4mm 3x10mm Button Cap Screw 5.2mm Colar 3mm Nylock Nut 3x10mm Screw Button Cap 3x10mm Screw Button Cap 3mm Nylock Nut...
Page 27: Installing The Receiver And Battery
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE SWITCH, RECEIVER AND BATTERY INSTALLING THE SWITCH 1) Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron 1) The switch should be mounted on the fuselage...
Page 28: Installing The Electric Motor (Ep Version)
Instruction manual FIESELER Fi156C STORCH Item code: BH99 Fuselage top side Switch Battery Zip tie Receiver INSTALLING THE ELECTRIC MOTOR (EP VERSION) 4x60mm Socket Head 10x40mm Plastic 4mm Spring Washer Cap Screw - - - - - 4 - - - - - 4...
Page 29: Installing Balsa Plywood Wing Struts
Instruction manual FIESELER Fi156C STORCH Item code: BH99 5 mm Spring Washer 12x70mm 5mm Washer 5x100mm 170mm INSTALLING BALSA PLYWOOD WING STRUTS 3x6mm Button Head Hair Pin 3x12mm Cap Screw Aluminium Fuselage Cap Screw - - - - - - - 2...
Page 30 Instruction manual FIESELER Fi156C STORCH Item code: BH99 3x6mm Button Head 2.5mm Cap Screw 3x6mm Button Head Cap Screw 2.5mm 2.5mm 3x6mm Button Head Cap Screw 2.5mm 3x6mm Button Head Cap Screw Drill holes using the stated. Apply epoxy glue.
Page 31 Instruction manual FIESELER Fi156C STORCH Item code: BH99 3x12mm Cap Screw 3mm Hex Nut 14mm 592mm 289mm 575mm Flap Aileron The number of times Assemble left and right the same way Assembly sides the same way. (in this case twice).
Page 32 Instruction manual FIESELER Fi156C STORCH Item code: BH99 3x12mm Tp Screw 3x12mm Cap scew 3mm Spring Washer Ball link 3x12mm Cap scew Bottom view Fuselage top side 3x12mm TP Screw The number of times the same way Assembly (in this case twice).
Page 33: Installing The Cockpit Fuselage
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING COCKPIT FUSELAGE 4x30mm Plastic Screw Position the canopy so the rear - - 2 frame on the canopy is aligned with the rear edge of the cockpit opening. Use canopy glue to secure the canopy to the canopy hatch.
Page 34 Instruction manual FIESELER Fi156C STORCH Item code: BH99 4x30mm Plastic Screw Canopy glue Canopy glue Apply epoxy glue.
Page 35: Installing The Wing To The Fuselage
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE WING TO THE FUSELAGE 19x887mm Aluminium tube. *** Test fit the aluminium tube into the fuselage. The brace - - - - 1 should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits properly.
Page 36 Instruction manual FIESELER Fi156C STORCH Item code: BH99 Attach the wings to the joiner tube and secure the wing panels to the fuselage. Main wing must be inserted and attached completely before fixing with screw. 4x15mm 4x15mm Cut off shaded portion carefully.
Page 37: Installing The Propeller
Instruction manual FIESELER Fi156C STORCH Item code: BH99 INSTALLING THE PROPELLER Assemble left and right Drill holes using the stated. Must be purchased sides the same way. (in this case 5mm separately!
Page 38: Balancing
Instruction manual FIESELER Fi156C STORCH Item code: BH99 BALANCING weight to the bottom side of the lighter wing half's wing tip. Follow this procedure until the wing stays level when you lift the airplane. It is critical that your airplane be balanced correctly.
Page 39: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos
Instruction manual FIESELER Fi156C STORCH Item code: BH99 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Engine...
Page 40: Main Gear Dimensional Detail
Instruction manual FIESELER Fi156C STORCH Item code: BH99 MAIN GEAR DIMENSIONAL DETAIL 115mm 41mm 730mm TAIL GEAR DIMENSIONAL DETAIL 130mm 24.5mm...
Page 41: Decoration
Instruction manual FIESELER Fi156C STORCH Item code: BH99 DECORATION Top view Bottom view < Side view > Left < Side view > Right...
Page 42 Instruction manual FIESELER Fi156C STORCH Item code: BH99...
Page 43: I/C Flying Warning
I/C FLYING WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
Page 44: I/C Flying Guide
I/C FLYING GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
