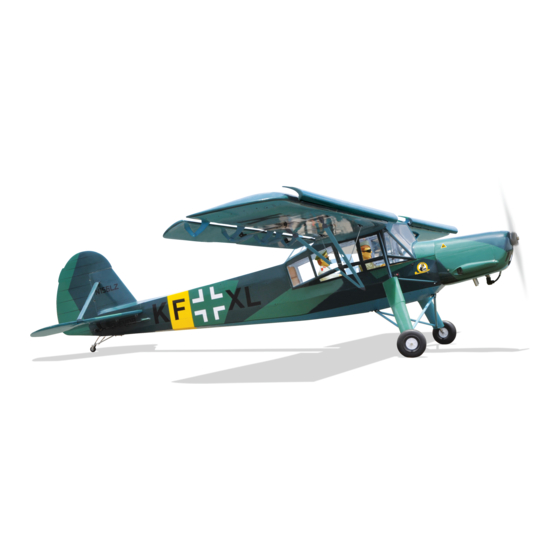

Black Horse Model FIESELER FI156C STORCH-EP Instruction Manual

Hide thumbs Also See for FIESELER FI156C STORCH-EP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Motor
     Battery
     Speed control : 60A
     Propeller : 12 x 6
Instruction Manual book
1,800 mm
:
1,210 mm
:
2.1kg
: 04 channels.
: 06 servos.
: KMS 2814/05
: 3 Cells-Li-Poly-11.1V 3.200mAh
ITEM CODE:BH 128
70.87 in.
47.64 in.
4.62 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIESELER FI156C STORCH-EP and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model FIESELER FI156C STORCH-EP

Summary of Contents for Black Horse Model FIESELER FI156C STORCH-EP

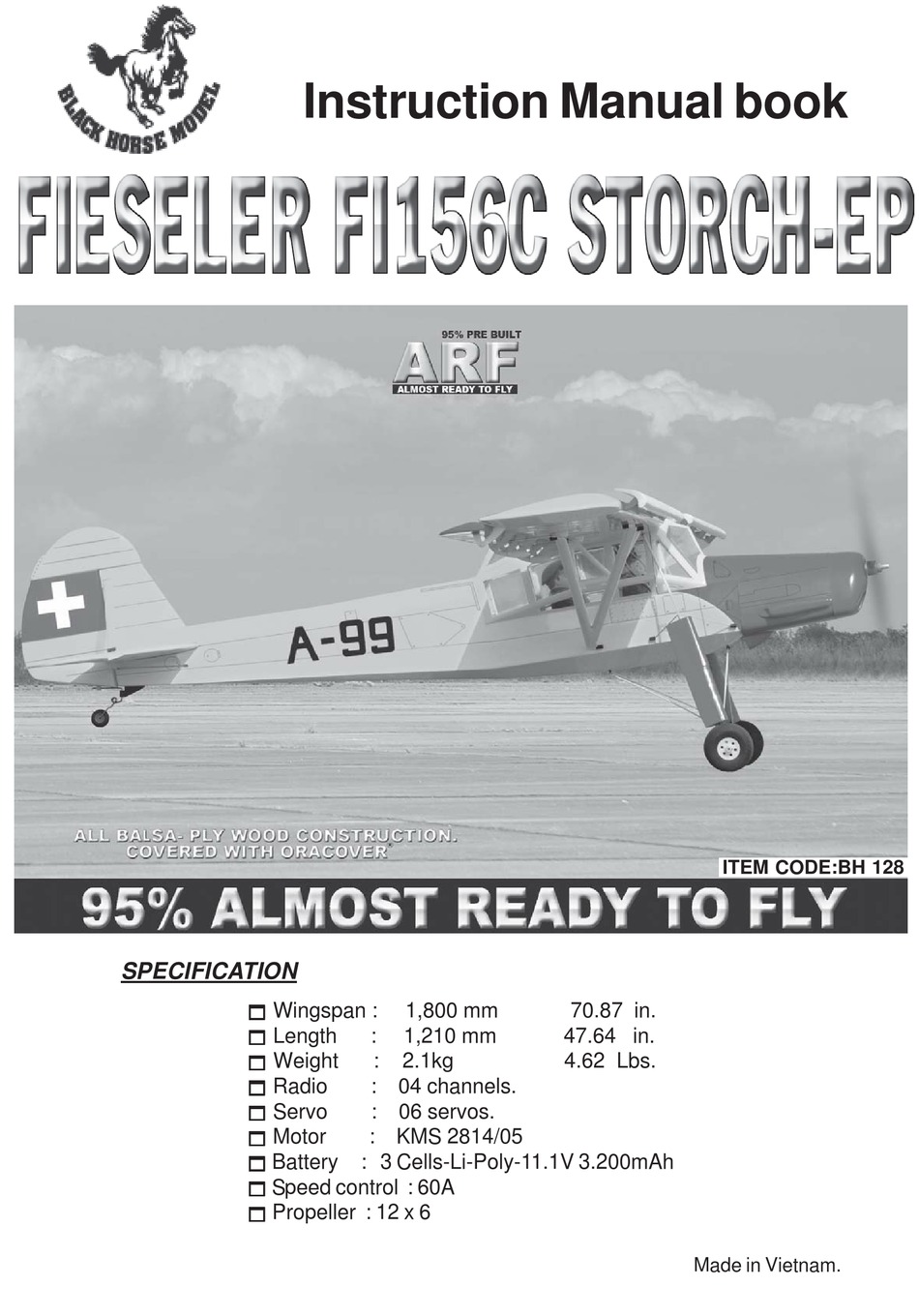

  • Page 1 Instruction Manual book ITEM CODE:BH 128 SPECIFICATION      Wingspan : 1,800 mm 70.87 in.      Length 1,210 mm 47.64 in.      Weight 2.1kg 4.62 Lbs.      Radio : 04 channels.
  • Page 2 FUSELAGE ASSEMBLY aligned properly before gluing! This will assure  (1) Fuselage. proper assembly. FIESELER FI156C STORCH-EP is hand made from natural materials, every plane is unique and minor adjustments may WING ASSEMBLY have to be made. However, you should find the fit superior and assembly simple.

  • Page 3: Safety Precaution

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 REPLACEMENT LARGE PARTS D. Rudder. A. Fuselage. E. Aluminium wing dihedral brace. B. Wing panel(Right & Left). F. Decal sheet. C. Horizontal stabilizer(Right & Left) REPLACEMENT SMALL PARTS 3x10mm. 1. Landing gear struts. 2.

  • Page 5: Installing The Aileron Servos

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 I. AILERON. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. Top side Bottom side Secure. Flap. Aileron.  2) Using a modeling knife, remove the cov- ering at possition show below.
  • Page 6 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 A+B Epoxy PLUS glue 2x10mm. Secure. Aileron Repeat the procedure for the other wing control horn. half. INSTALLING THE AILERON CONTROL HORN. Aileron control horn Ruler Top side. A+B Epoxy PLUS glue...

  • Page 7: Installing The Aileron Linkages

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Bottom side. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures 2x10mm. below. M2 M2 lock nut 75 mm. Secure. 2.INSTALLING THE FLAP CONTROL HORN. Control horn of Flap. Repeat the procedure for the other wing half.
  • Page 8 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Control horn of Flap. Bottom side. Ruler Aileron. Top side. Repeat the procedure for the other wing half. INSTALLING ELECTRIC MOTOR. See pictures below: Front view. Bottom side. 3.INSTALLING THE FLAP LINKAGES .

  • Page 9: Installing The Battery

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Front view. Secure INSTALLING THE BATTERY. Secure. Tie wrap. INSTALLING LANDING GEAR. PARTS REQUIRED Battery.
  • Page 10 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Bend. A+B Epoxy Plus glue. A+B Epoxy Plus glue. Bottom side.
  • Page 11 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Left side. Bend. Right side. Bend.
  • Page 12 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Secure. EPOXY PLUS glue. Repeat the procedure for the right side landing gear Bottom side. SERVO ELEVATOR AND RUDDER Secure.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.

  • Page 13: Horizontal Stabilizer Installation

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilize installation .  See picture below. aluminium tube 143mm Epoxy glue. 75mm...
  • Page 14 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 C/A glue. Epoxy glue. C/A glue. A+B Epoxy PLUS glue. Top side. C/A glue. C/A glue.

  • Page 15: Elevator Pushrod Installation

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 C/A glue. Top side. Control horn of Elevator. Bottom side. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. M2 lock nut. ELEVATOR CONTROL HORN INSTALLA- TION.
  • Page 16 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Elevator pushrod M2 lock nut. Push. C/A glue. RUDDER THE INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Top side. C/A glue.

  • Page 17: Rudder Control Horn Installa- Tion

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 RUDDER CONTROL HORN INSTALLA- RUDDER PUSHROD INSTALLATION. TION.  Rudder pushrod install as same as the way of aileron pushrod. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 18: Mounting The Tail Wheel Bracket

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 MOUNTING THE TAIL WHEEL Plastic parts of pushrod. BRACKET.      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.
  • Page 19 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128      3. Secure the tail wheel bracket in place using three 3mm x 12mm wood screws. Be careful not to overtighten the screws. 3x 12mm 3x 10mm Secure.

  • Page 20: Wing Attachment

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .

  • Page 21: Wing Struts Installation

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 3x 10 mm Secure. 3 x 15 mm WING STRUTS INSTALLATION See picture below. Secure. 3 x 15 mm Secure. Bottom side.
  • Page 22 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Secure. 3 x 15 mm Secure. Secure.
  • Page 23 FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Insert and Bottom side. secure. Top side. Plastic parts for bottom fuselage. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 24: Pre-Flight Check

    FIESELER FI156C STORCH - EP Instruction Manual Item code: BH128 Accurately mark the balance point on the top Ailerons : 15 mm up 15 mm down of the wing on both sides of the fuselage. The balance point is located 68mm back from the Flap : 25mm down leading edge.
