Summary of Contents for TechBook in.touch 2

  • Page 1 TechBook in.touch 2 ultimate Wi-Fi remote control for your spa Simplest of setups Strong and long range communication signal State-of-the-art apps with push notifications...
  • Page 2: Table Of Contents

    Table of contents Warning ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Overview - in�touch 2 overview ��������������������������������������������������������������������������������������������������������������������������������������������� 4 - in�touch 2 dimensions ���������������������������������������������������������������������������������������������������������������������������������������� 4 Installation and connections - in�touch 2-CO (spa) installation �������������������������������������������������������������������������������������������������������������������������� 5 - Connection of the in�touch 2-CO (spa) ��������������������������������������������������������������������������������������������������������������� 6 - in�touch 2-EN (home) installation �����������������������������������������������������������������������������������������������������������������������...
  • Page 3: Warning

    THE APPLIANCE (OR THE PRODUCT) MUST BE DISPOSED OF SEPARATELY IN ACCORDANCE WITH THE LOCAL WASTE DISPOSAL LEGISLATION IN FORCE� COMPATIBILITY REQUIREMENTS in.touch 2 modules for FCC (North America) models (915 MHz): Home and spa transmitter kit: 0608-521020, 0608-521023 in.touch 2 modules for ETSI (Europe) models (868 MHz):...
  • Page 4: Introduction

    Introduction in�touch 2 Easily integrate your spa to the Internet of Things! Simplest of setups in�touch 2 eliminates all the complexities of connecting your spa to the Internet and transforms your smartphone or tablet into your ultimate Wi-Fi spa remote control� in�touch 2 comes with a state-of-the-art app and 2 pre- paired radio frequency transmitters, one being part of your spa system and the second one being connected...
  • Page 5: Overview

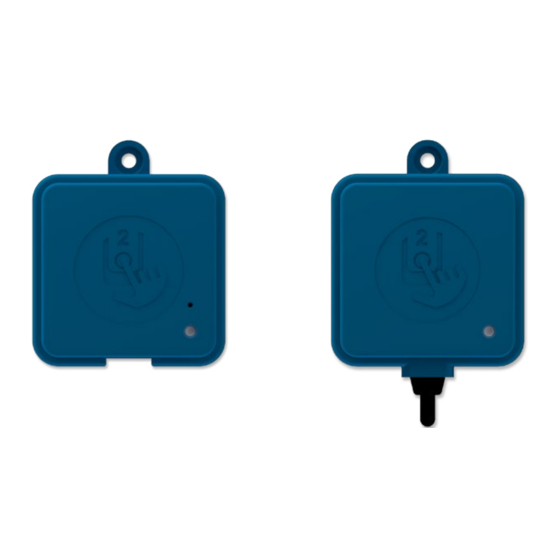

    Overview in.touch 2 overview EN Module (home) CO Module (spa) Fastening bracket Pairing activation Status LED Status LED Micro USB power RJ45 Ethernet connection CO pack connection in.touch 2 dimensions EN Module (home) CO Module (spa) 3.24 in. 3.39 in.
  • Page 6: Installation And Connections

    Installation and connections in.touch 2-CO (spa) installation Before proceeding with any installation, be sure to turn spa power off� The in�touch 2-CO unit must be installed under the spa skirt, at least 12” (30 cm) away from any metal component or structure�...
  • Page 7: Connection Of The In.touch 2-Co (Spa)

    Installation and connections Connection of the in.touch 2-CO (spa) Simply connect the in�touch 2-CO module into an available CO port of the spa pack (or any other accessory with a free CO port, such as the in�stream 2 audio amplifier, or the in�clear spa sanitizing system)�...
  • Page 8: In.touch 2-En (Home) Installation

    • Try to install as far as possible from materials that may interfer with signal (ie� metal structures, thick cement walls)� Connection of the in.touch 2-EN (home) Simply connect Ethernet cable into the RJ45 port of the in�touch 2-EN module and in one of the available LAN ports on the router�...
  • Page 9: Start Up

    Start up Pairing in.touch 2-CO (spa) and in.touch 2-EN (home) The pairing process is used when you need to replace one module of the in�touch 2 kit� Otherwise, the in�touch 2 arrives pre-paired from the factory� 1� Power up the in�touch 2-EN module...
  • Page 10: Led Status

    LED Status Each in�touch 2 module has a status LED that can be used for troubleshooting purposes� The LED is located on the top of both enclosures� status LED status LED EN Module (home) CO Module (spa) Pairing mode Yellow (Blinking) Pairing mode Yellow (Blinking) Router not detected...
  • Page 11: Application

    Application Download application The in�touch app allows you to control your spa using your home network or an Internet connection anywhere in the world� The in�touch 2 app is waiting for you in the App Store for iOS devices— search for «...
  • Page 12: Setup Your Wi-Fi On Your Ios Device

    Application Setup your Wi-Fi on your iOS device Before using your application, go to the Wi-Fi section of your device’s settings� Make sure you are connected to your home network� This needs to be the same Wi-Fi provided by the router to which you connected your in�touch 2-EN module�...
  • Page 13: Start The In.touch 2 Application

    Application Start the in.touch 2 application Find the icon for the in�touch 2 application, then tap on it to open it� The first time you use the application a message will ask you: “in�touch 2” Would like to send you notifications� If you choose Allow, the application will send you notifications about the status of your spa�...
  • Page 14: Select A Spa

    This page displays all the spas detected by your application. To detect your spa, you need to connect your mobile device to the same network to which you connected your in.touch 2-EN module. Once you have done a connection with the spa its name will be saved on this page to allow you to connect to this spa from anywhere�...
  • Page 15: Spa State

    Application Spa state This page displays all the active states of your spa. Below is a quick description of each state you may encounter on your spa. Each state is associated to a priority and color that determines the color of the widget on the home page.
  • Page 16: Water Care

    Application Water Care The Water Care page will help you set up your ideal filtration and heating settings� Choose between Away from Home, Beginner, Energy Savings, Super Energy and Weekender, depending on your need� Touch the Water Care name you would like to activate, a green checkmark will appear on the icon, indicating you have selected it�...
  • Page 17: Modifying Schedules

    Application Modifying schedules In this menu it is possible to add, remove or edit schedules of economy or filtration� Touch the Economy tab to modify the economy schedules and Filter cycle tab for the filtration schedules� You can add economy or filtration schedules by touching the « + » symbol� To delete a schedule, touch the garbage can icon at the right end of the desired line�...
  • Page 18: Settings

    Application Settings In the Settings page you can access the following: • Wi-Fi • in�touch network • Tips • Temperature units • About To select an item, tap on the arrow next to it� It will open the selected menu� Wi-Fi In the settings menu the Wi-Fi line indicates to which network your mobile device is actually connected�...
  • Page 19: In.touch Network

    Application in.touch network The in�touch network menu allows you to have acces to information concerning the RF connection parameters between the in�touch 2- EN and in�touch 2-CO modules� This menu gives you acces to: • Channel • Signal strength • Reset channel (resets channel to ��� default) To change channels, press on the Channel line�...
  • Page 20: Tips

    Application Tips This section gives you a quick overview of your in�touch 2 application's functions� Temperature units This menu lets you change the units used to display temperature�...
  • Page 21: About

    Application About This section shows information about the in�touch 2 software number and the revision numbers of the different components of your system� To modify your spa's name, you may press on the Name menu� Name This section allows you to edit the name of the spa�...
  • Page 22: Troubleshooting

    They communicate together via an RF link� The in�touch 2-EN is responsible for the Ethernet communications and the in�touch 2-CO is responsible for the spa communications� in.touch 2-EN (home) status LED This module’s LED can show various status conditions, as indicated below�...
  • Page 23: In.touch 2-Co (Spa) Status Led

    Troubleshooting in.touch 2-CO (spa) status LED This module’s LED can show various status conditions, as shown below� Rapidly flashing YELLOW color : Blinking LED : The in�touch 2-CO is in pairing mode when this color is On both modules, if the LED is blinking about once per shown�...
  • Page 24: Specifications

    Specifications Environmental Humidity: Up to 85% non condensing Operating temperature: -4°F (-20°C) to 140°F (60°C) Storage temperature: -22°F (-30°C) to 185°F (85°C) Water ingress protection: IPX5 for CO module Compatibility in�yt, in�ye, in�yj, in�xe, or in�xm2 spa systems manufactured in or after 2012� Regulatory Compliance Information for internal transceiver module United States Contains FCC ID: OA3MRF89XAM9A...
  • Page 25 Specifications North American compliance UL 1563 Sixth Ed� UL file: E182156 CAN/CSA C22�2 No� 218�1-13 (2013) FCC part 15 (2015) subpart B ICES-003 (2016) European and international compliance IEC 60335-1, A2 : 2008 IEC 60335-2-60, A1 : 2013 EN 55014-1 : 2006, A1 : 2009, A2 : 2011 EN 55014-2 : 2015 EN 61000-3-2 : 2014 EN 61000-3-3 : 2013...
  • Page 26 9919-101517-B Rev. 02-2017 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance inc., 2017 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
