VALVCON
V-Series
STANDARD ELECTRIC ACTUATORS
115 VAC AND 230 VAC
With Iso/Readback Board Installed (Option "U")
Installation, Maintenance and
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VALVCON V-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metso VALVCON V-Series

Summary of Contents for Metso VALVCON V-Series

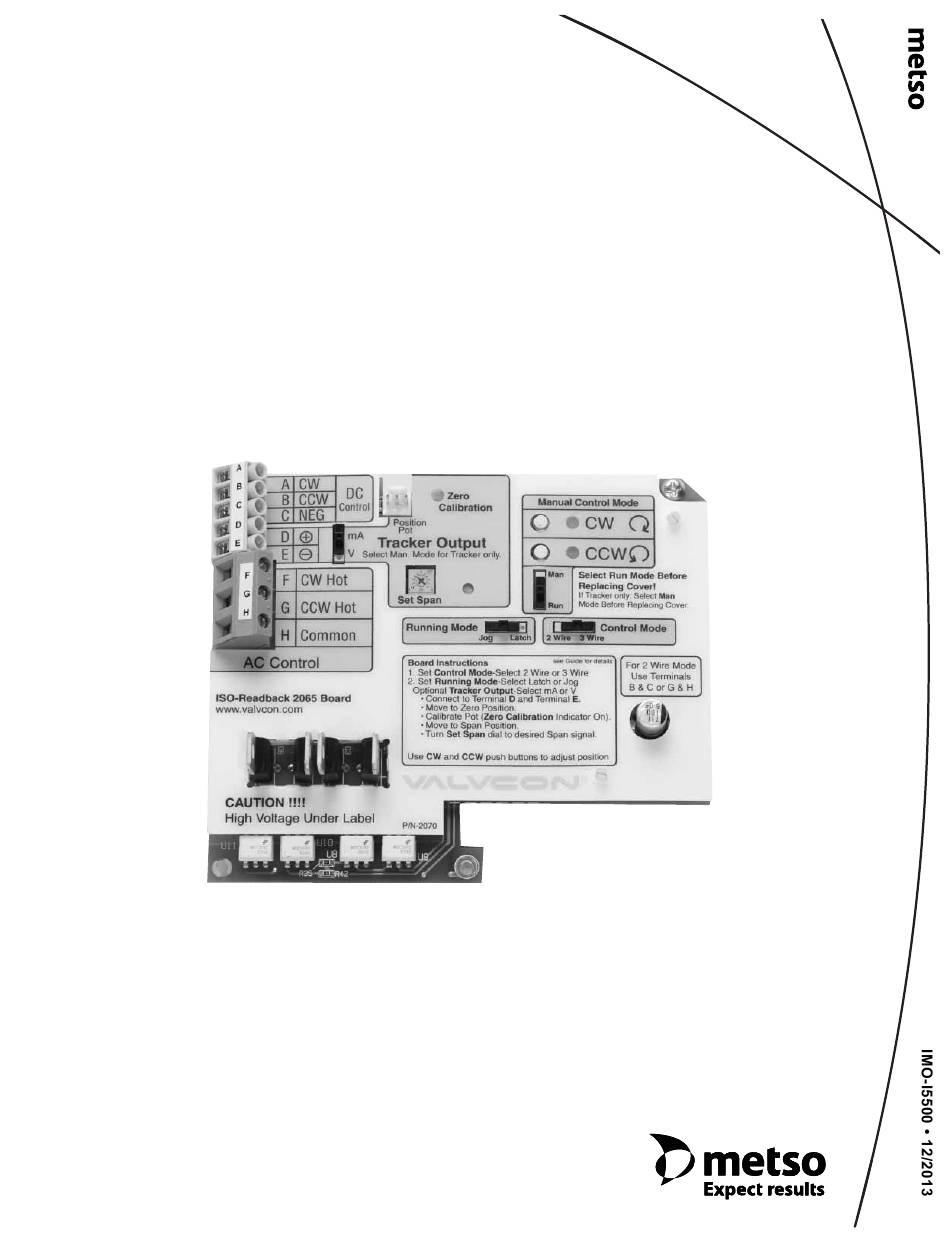

  • Page 1 VALVCON V-Series STANDARD ELECTRIC ACTUATORS 115 VAC AND 230 VAC With Iso/Readback Board Installed (Option “U”) Installation, Maintenance and Operating Instructions...

  • Page 2: Table Of Contents

    These instructions provide information about safe handling and operation of the actuator. If you require additional assistance, please contact the manufacturer or manufacturer's representative. Addresses and phone numbers are printed on the back cover. See also www.metso.com/valvcon for the latest documentation. SAVE THESE INSTRUCTIONS! Subject to change without notice.

  • Page 3: General

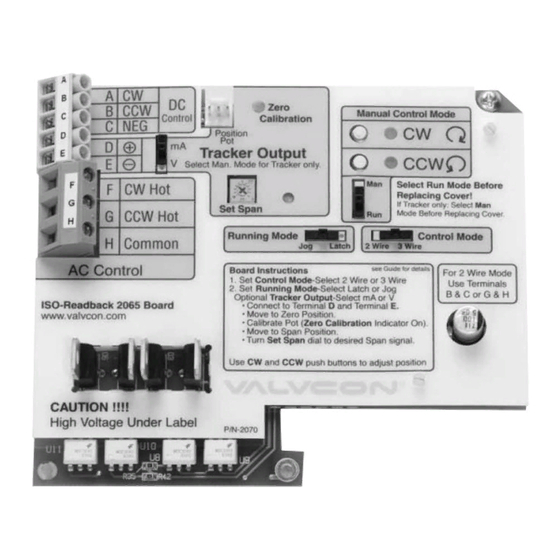

    IMO-I5500 GENERAL 1.1 Description The V-Series Iso/Readback Board is a 115/230 VAC option that provides jogging or latching control from a low voltage (12 VDC or 24 VDC) or high voltage (115 VAC or 230 VAC) control signal. It also provides: •...
  • Page 4 IMO-I5500 MOTOR Wiring Diagram – Three Wire Mode CAPACITOR Motor Board CCW RED RET BLACK MOTOR CONNECTOR CW WHITE Motor HEATER HEATER OPTION AC POWER Board CONNECTOR BRAKE SOLENOID AC COMMON BRAKE MUST CONNECT AC HOT OPTION CONNECTOR BROWN CLOCKWISE (BOTTOM) ORANGE LIMIT SWITCH TO OPTION BOARD...

  • Page 5: Installation

    IMO-I5500 Wiring Diagram – Retransmit Only MOTOR CAPACITOR Motor Board CCW RED MOTOR RET BLACK CONNECTOR CW WHITE Motor Terminal 4 CW Hot (Must Connect) HEATER CW HOT HEATER OPTION Terminal 3 CCW Hot CCW HOT (Must Connect) Board CONNECTOR BRAKE SOLENOID AC COMMON Terminal 2 AC Common...

  • Page 6: Series Standard Options

    IMO-I5500 Exploded View Optional Locking Brake Assembly Motor Board Optional Retransmit Terminals 1 & 2 Terminals - Connect D&E 1 (AC Hot), 2 (Neutral) DC Control Signal Terminals - A, B & C Pot Connector AC Control Signal Terminals - F, G & H P/N VC002065 To install P/N VC002065 Board...

  • Page 7: Option "K" - Mechanical Brake

    IMO-I5500 Option “S2” – Two Auxiliary Limit Switches 3.3 Option “K” – Mechanical Brake P/N VC099715 The highly efficient hardened steel spur gear system requires that the brake option be installed on all butterfly valve and damper applications. It is also recommended on PVC ball valves and resilient seated valves.

  • Page 8: Voltage

    4.1 NEMA Ratings and CSA Certification 80˚F, actuators should be shielded from direct sunlight. In Metso manufactures two styles of V-Series actuator enclo- applications with high media temperatures, insulating sures: the "W" enclosure is weathertight and designed to blankets, heat shields and/or extended mounting shafts NEMA 4/4X standards the "WX"...

  • Page 9: Lubrication

    V-Series actuators are available through • Coupling, Alignment, and Mounting Do not add a network of qualified Metso Stocking Representatives. For extra torque! Make certain that the mounting further technical information or to locate the Metso arrangement is sturdy, centered, properly aligned, and...

  • Page 10: Dimensions

    IMO-I5500 5.1 DIMENSIONS LV-SERIES LV-SERIES ENCLOSURES Mounting Flange, ISO 5211 F07/F10 4 X M8-1.25 0.75" MIN. 4 X M10-1.5 0.75" MIN. 2.756" B. C. 4.016" B.C. 20 mm 10.8 SEE TABLE 22.4 mm 4.8 mm Female Square Drive Female Keyed Drive Actuator Size Drive Option Drive Type...

  • Page 11: Exploded View And Parts List

    IMO-I5500 V-SERIES SPARE PARTS LIST 5.2 EXPLODED VIEW Item No. Part No. Description Cover with Position Indicator VC009302 Small enclosure (150 – 600 in•lb) VC009301 Large enclosure (1000 – 3000 in•lb) Cover screw VC091340 Small NEMA 4/4X enclosure (150 – 600 in•lb) VC091336 Small NEMA 4/4X/7&9 enclosure (150 –...

  • Page 12: Series Actuators By Part Numbers

    IMO-I5500 6 V-SERIES ACTUATORS BY PART NUMBERS Table 4 Standard V/LV-Series Actuators (with “N” in model number before the voltage code) Series Enclosure Type Torque Board Options Other Options Operating Voltage Code Description Code Description Code Description Code Description Code Description Weathertight 150 in•lb...

  • Page 13: Additional Actuator Products

    IMO-I5500 7 ADDITIONAL ACTUATOR PRODUCTS AND ACCESSORIES FROM METSO ADC-Series LC Series • Up to 3000 inch pounds for On/Off or Modulating • Up to 600 inch pounds applications • Economical actuators for Reversing or Unidirectional • Optional Internal Battery Back-Up applications •...
  • Page 14 IMO-I5500...
  • Page 15 IMO-I5500...
  • Page 16 IMO-I5500 Subject to change without prior notice. Metso Automation Inc. Europe, Vanha Porvoontie 229, P.O. Box 304, FI-01301 Vantaa, Finland, Tel. +358 20 483 150, fax +358 20 483 151 North America, 44 Bowditch Drive, P.O.Box 8044, Shrewsbury, Massachusetts, 01545-8044 USA. Tel. int. +1 508 595 5083. Fax int. +1 508 595 5183...
