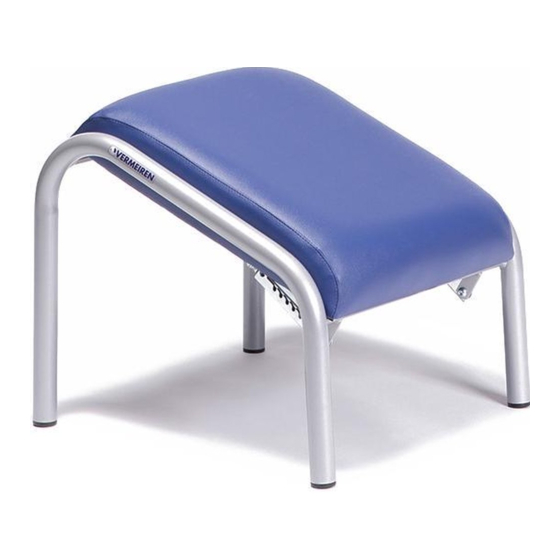

Vermeiren Languedoc Instruction Manual

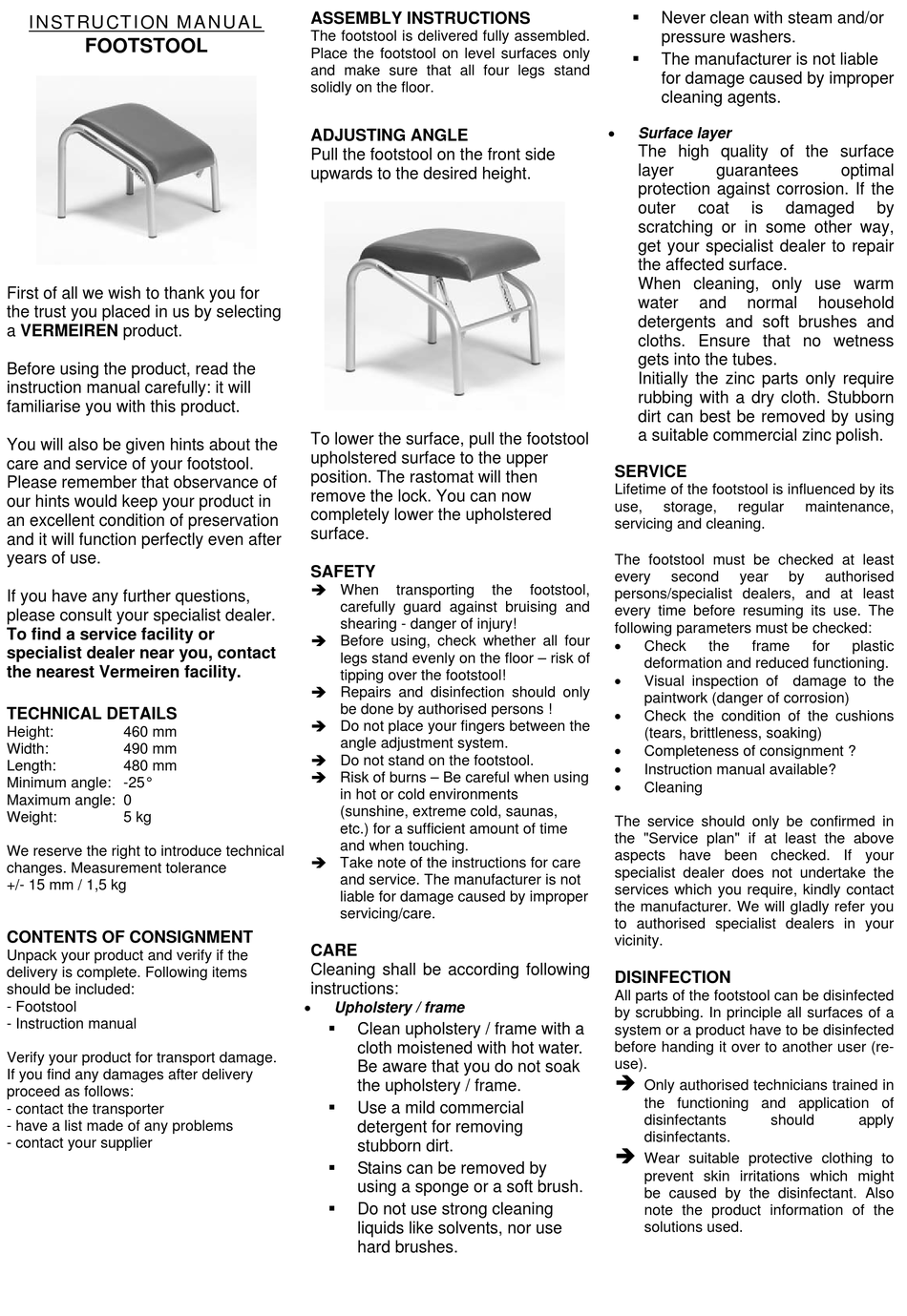

INSTRUCTION MANUAL
FOOTSTOOL
First of all we wish to thank you for
the trust you placed in us by selecting
a VERMEIREN product.
Before using the product, read the
instruction manual carefully: it will
familiarise you with this product.
You will also be given hints about the
care and service of your footstool.
Please remember that observance of
our hints would keep your product in
an excellent condition of preservation
and it will function perfectly even after
years of use.
If you have any further questions,
please consult your specialist dealer.
To find a service facility or
specialist dealer near you, contact
the nearest Vermeiren facility.

TECHNICAL DETAILS

Height: 460 mm
Width: 490 mm
Length: 480 mm
Minimum angle: -25°
Maximum angle: 0
Weight: 5 kg
We reserve the right to introduce technical
changes. Measurement tolerance
+/- 15 mm / 1,5 kg

CONTENTS OF CONSIGNMENT

Unpack your product and verify if the
delivery is complete. Following items
should be included:
- Footstool
- Instruction manual
Verify your product for transport damage.
If you find any damages after delivery
proceed as follows:
- contact the transporter
- have a list made of any problems
- contact your supplier

ASSEMBLY INSTRUCTIONS

The footstool is delivered fully assembled.
Place the footstool on level surfaces only
and make sure that all four legs stand
solidly on the floor.

ADJUSTING ANGLE

Pull the footstool on the front side
upwards to the desired height.
To lower the surface, pull the footstool
upholstered surface to the upper
position. The rastomat will then
remove the lock. You can now
completely lower the upholstered
surface.

SAFETY

 When
transporting
carefully guard against bruising and
shearing - danger of injury!
 Before using, check whether all four
legs stand evenly on the floor – risk of
tipping over the footstool!
 Repairs and disinfection should only
be done by authorised persons !
 Do not place your fingers between the
angle adjustment system.
 Do not stand on the footstool.
 Risk of burns – Be careful when using
in hot or cold environments
(sunshine, extreme cold, saunas,
etc.) for a sufficient amount of time
and when touching.
 Take note of the instructions for care
and service. The manufacturer is not
liable for damage caused by improper
servicing/care.

CARE

Cleaning shall be according following
instructions:

Upholstery / frame

Clean upholstery / frame with a
cloth moistened with hot water.
Be aware that you do not soak
the upholstery / frame.

Use a mild commercial
detergent for removing
stubborn dirt.

Stains can be removed by
using a sponge or a soft brush.

Do not use strong cleaning
liquids like solvents, nor use
hard brushes.

Never clean with steam and/or
pressure washers.

The manufacturer is not liable
for damage caused by improper
cleaning agents.

Surface layer
The high quality of the surface
layer
protection against corrosion. If the
outer
scratching or in some other way,
get your specialist dealer to repair
the affected surface.
When cleaning, only use warm
water
detergents and soft brushes and
cloths. Ensure that no wetness
gets into the tubes.
Initially the zinc parts only require
rubbing with a dry cloth. Stubborn
dirt can best be removed by using
a suitable commercial zinc polish.

SERVICE

Lifetime of the footstool is influenced by its
use,
servicing and cleaning.
The footstool must be checked at least
every
the footstool,
persons/specialist dealers, and at least
every time before resuming its use. The
following parameters must be checked:

Check
deformation and reduced functioning.

Visual inspection of damage to the
paintwork (danger of corrosion)

Check the condition of the cushions
(tears, brittleness, soaking)

Completeness of consignment ?

Instruction manual available?

Cleaning
The service should only be confirmed in
the "Service plan" if at least the above
aspects have been checked. If your
specialist dealer does not undertake the
services which you require, kindly contact
the manufacturer. We will gladly refer you
to authorised specialist dealers in your
vicinity.

DISINFECTION

All parts of the footstool can be disinfected
by scrubbing. In principle all surfaces of a
system or a product have to be disinfected
before handing it over to another user (re-
use).

Only authorised technicians trained in
the functioning and application of
disinfectants
disinfectants.

Wear suitable protective clothing to
prevent skin irritations which might
be caused by the disinfectant. Also
note the product information of the
solutions used.
