1

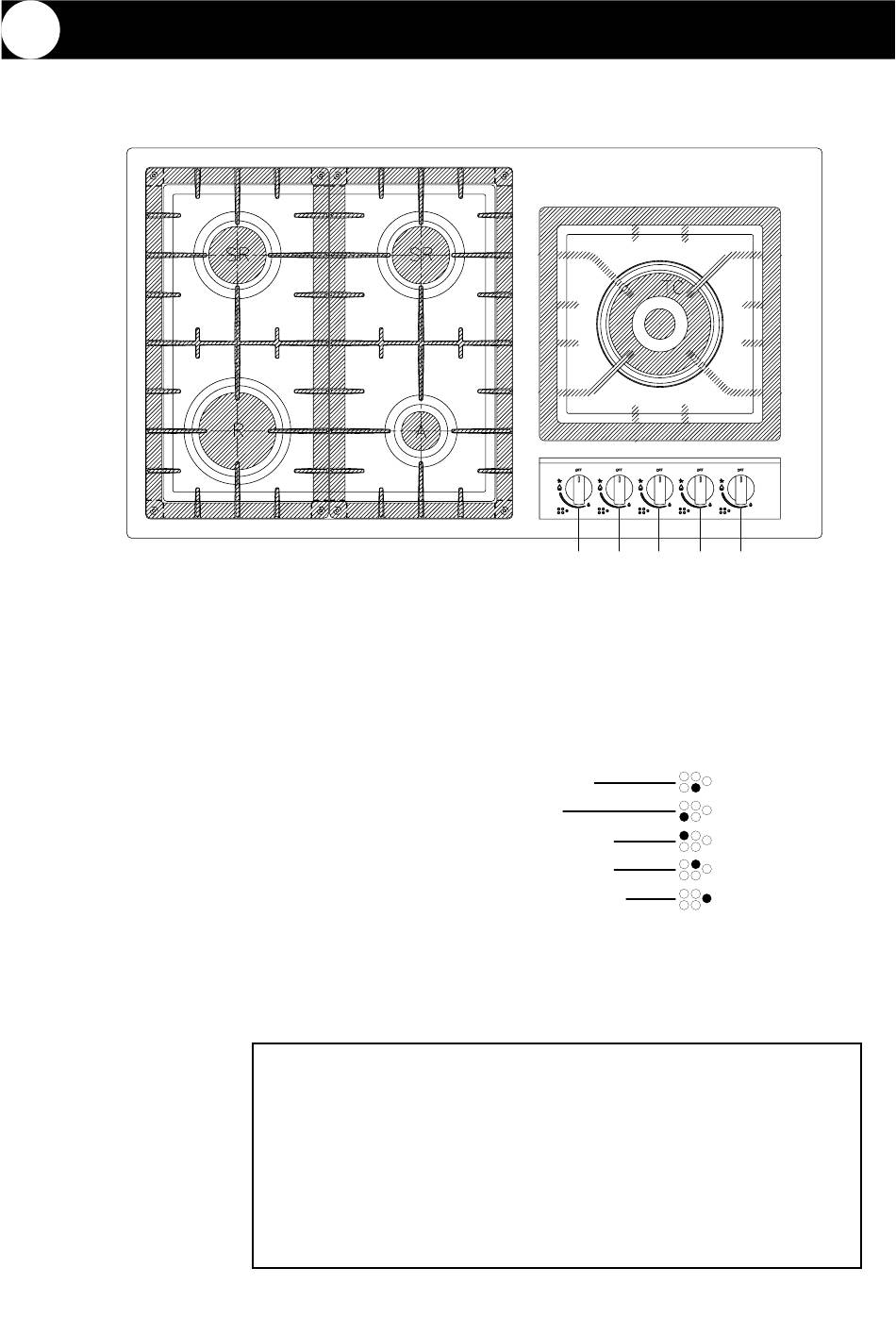

Fig. 1.1
4
FEATURES
3
3
2
COOKING POINTS
1. Auxiliary burner (A) - 3500 BTU/hr
2. Rapid burner (R) - 10500 BTU/hr
3.Semi rapid burner (SR) - 6000 BTU/hr
4.Triple flame burner (TC) - 15000 BTU/hr

CONTROL PANEL DESCRIPTION

5.Auxiliary burner (A) control knob (1)
6.Rapid burner (R) control knob (2)
7.Semi rapid burner (SR) control knob (3)
8.Semi rapid burner (SR) control knob (3)
9.Triple flame burner (TC) control knob (4)
Note:
-The electric gas-Iighting device is incorporated into the knobs.
CAUTION:
If the burner is accidentally extinguished. turn the gas off at the control
knob and wait at least 1 minute before attempting to relight.
CAUTION:
Gas cooktops produce heat and humidity in the environment in which
they are installed. Ensure that the cookinq area Is well ventiIated fol-
lowing national local codes.
1
5
4
6 7 8 9
