Extended and Advanced Cascade Controller
Option
2.1.4 Extended Cascade Control MCO 101
The MCO 101 option includes three change-over contacts and can be inserted into option slot B.
Electrical Data:
Max terminal load (AC)
Max terminal load (DC)
Min terminal load (DC)
Max switching rate at rated load/min load

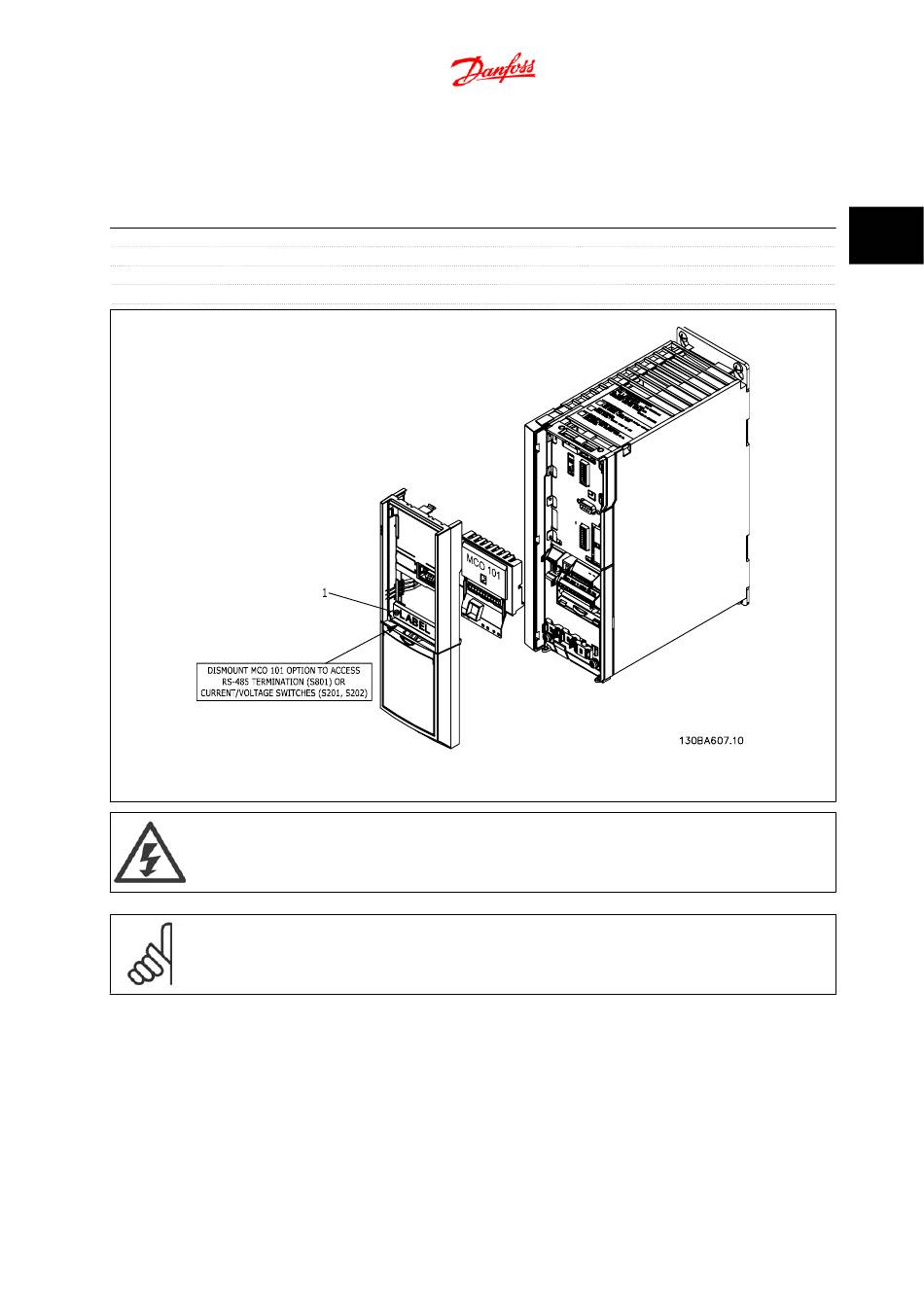

Figure 2.2: Mounting B-options
Warning Dual supply
NOTE!
The label MUST be placed on the LCP frame as shown (UL-approved).
How to add the MCO 101 option:
• The power to the adjustable frequency drive must be disconnected.
• The power to the live part connections on relay terminals must be disconnected.
• Remove the LCP, the terminal cover and the cradle from the FC 202.
• Fit the MCO 101 option in slot B.
®
MI.38.C2.22 - VLT is a registered Danfoss trademark
2 Introduction
2
240 V AC 2A
24 V DC 1 A
5 V 10 mA
-1 -1
6 min /20 sec
