Danfoss MCO 101 Manual page 46

8 Annex A - Master/Follower Application Note
Electrical wiring

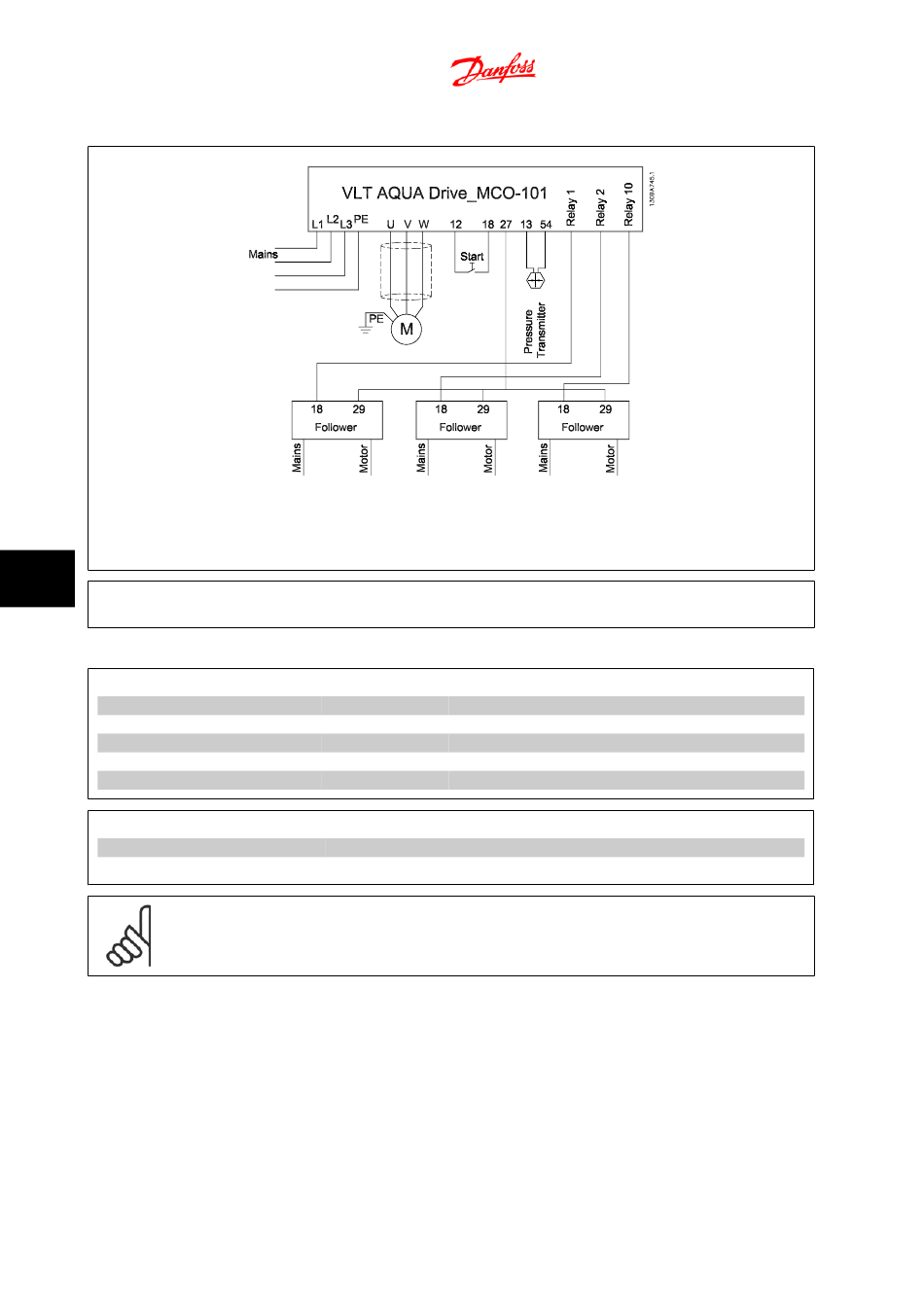

Figure 8.2: Electrical wiring. Terminal 27 on the master drive is used as pulse output reference. Terminal 29 on the follower drives is used
as pulse input reference. All follower drives are connected to line power and the motor in the same way as the master drive symbolized with
Line power
the text:
8
NOTE!
In the example, it is assumed that the pressure transmitter used as a feedback sensor has a range from 0–10 bar.
Parameter settings:
Display settings - Master drive:
Display Line 1.1 Small
Display Line 1.2 Small
Display Line 1.3 Small
Display Line 2 Large
Display Line 3 Large
Display settings - Follower drives:
Display Line 1.1 Small
Display Line 3 Large
NOTE!
Please note: the format of the analog input is set using switch S201 below the LCP.
8-2
Motor
and .
0-20
0-21
0-22
0-23
0-24
0-20
0-24
MI.38.C2.22 - VLT
Extended and Advanced Cascade Controller
Reference [1601]
Feedback [1652]
Motor current [1614]
Frequency [1613]
Cascade reference [2791]
External Reference [1650]
Frequency [1613]
®
is a registered Danfoss trademark
Option
