2 Introduction
• Connect the control cables and fasten the cables by the enclosed cable strips.
• Different systems must not be mixed.
• Fit the extended cradle and terminal cover.
• Replace the LCP.
2
• Connect power to the adjustable frequency drive.

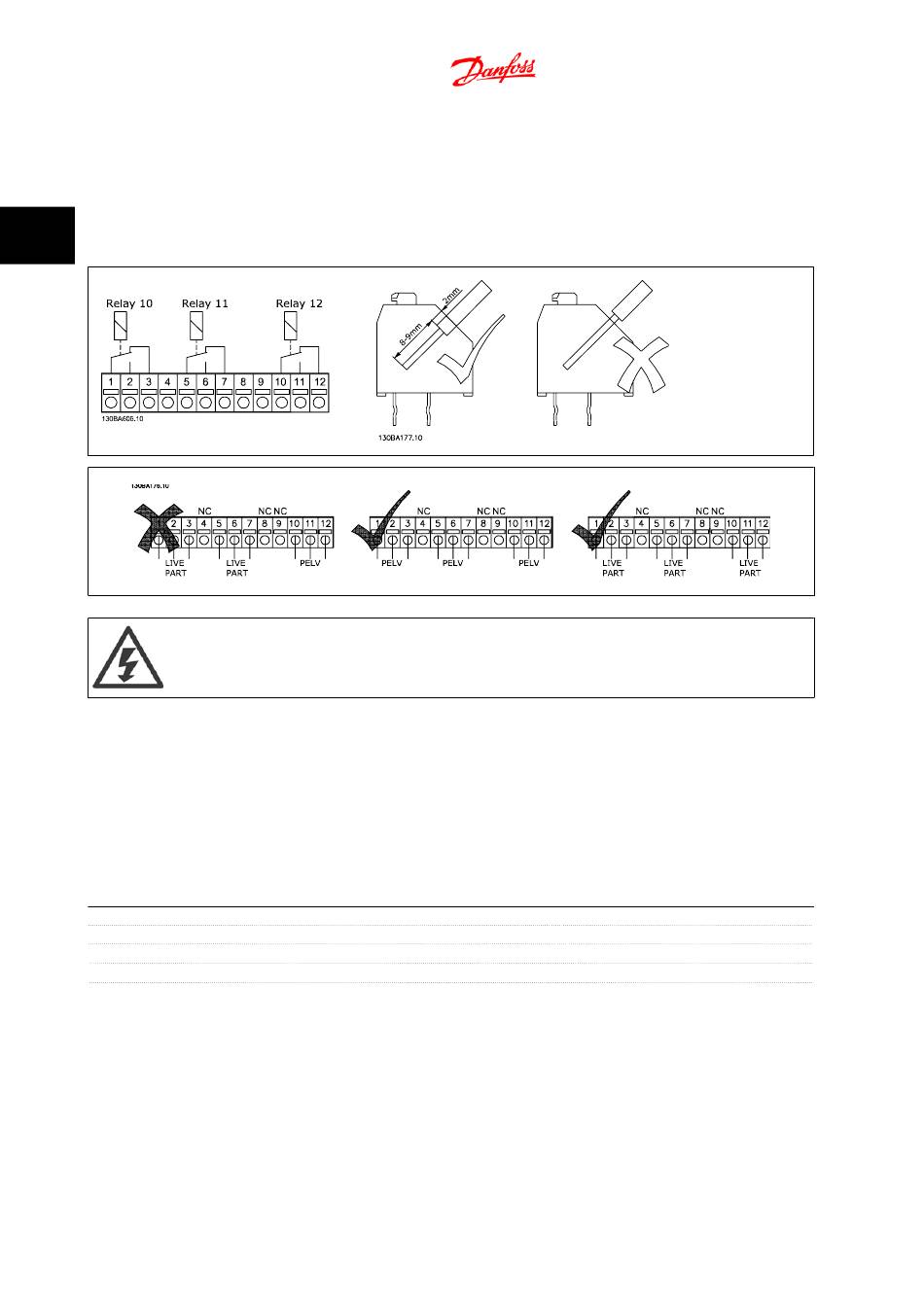

Wiring the Terminals
Do not combine low voltage parts and PELV systems.
2.1.5 Advanced Cascade Control MCO 102
The MCO 102 option supports a maximum of eight pumps and is able to alternate the lead pump with two adjustable frequency drive relays per pump.
This reduces the need for external auxiliary switches as well as the cost of installation.
When the MCO 102 (C-option) is used, the number of relays can be increased to a total of 13 by adding the MCB 105 (B option).
Electrical Data:
Max terminal load (AC)
Max terminal load (DC)
Min terminal load (DC)
Max switching rate at rated load/min load
2-4
®
MI.38.C2.22 - VLT is a registered Danfoss trademark
Extended and Advanced Cascade Controller
Option
240 V AC 2A
24 V DC 1 A
5 V 10 mA
6 min -1 /20 sec -1
