Attaching Implements

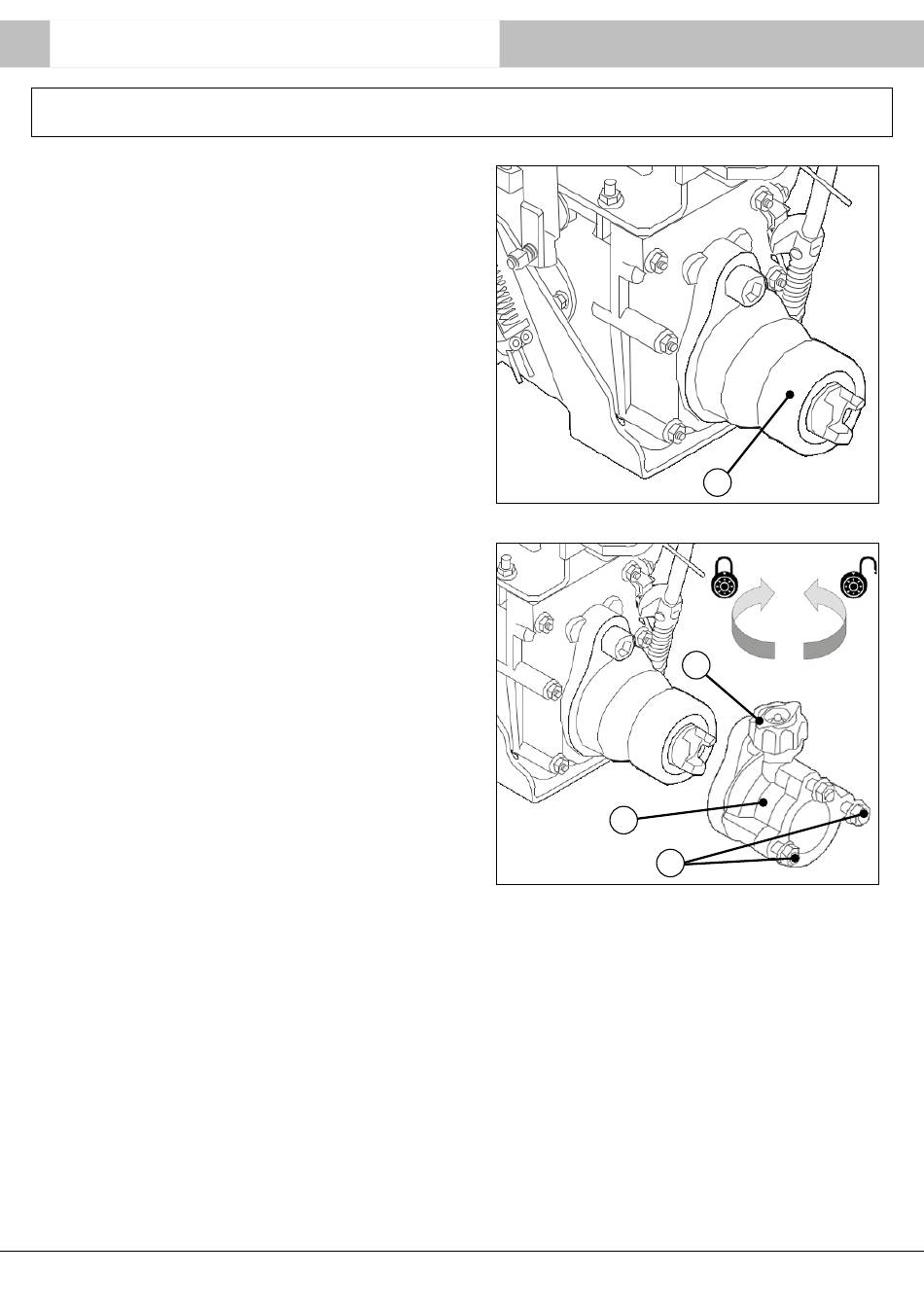

Implements are mounted directly to the machine
coupler (fig. 5a, 1) by attaching the coupler (fig.
5b, 3) that is fixed to the implement.
The fitting and removal of attachments is
achieved by rotating the knob (fig. 5b, 2) .
The the device is locked by turning the knob
(fig. 5b, 3) clockwise and unlocked by the knob
anti-clockwise.
It is important that nuts (fig. 5b, 4) which
fasten the implement and the bushing are well
1
Figure 5a
tightened.
2
3
4
Figure 5b
