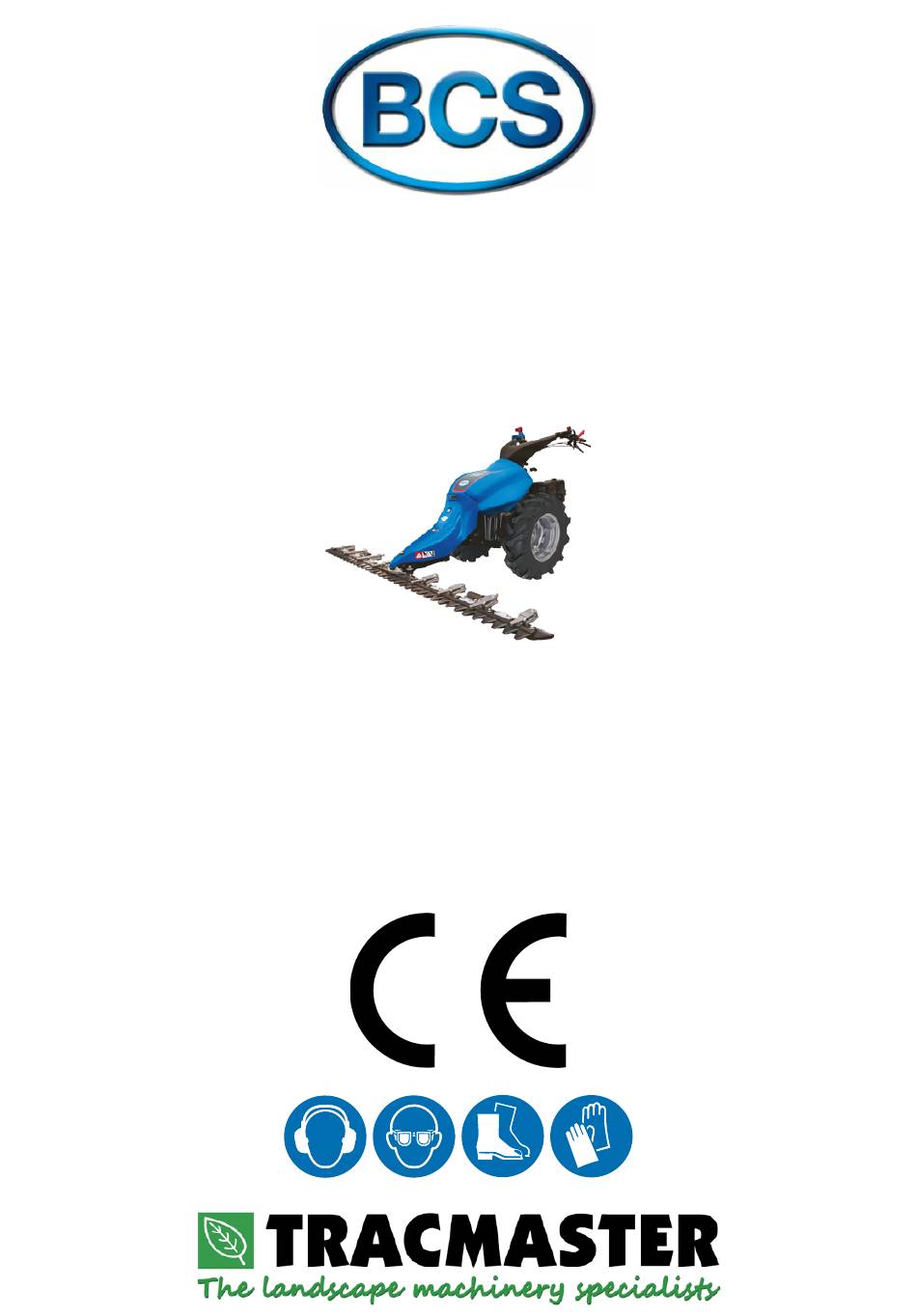

BCS 660HY Hydrostatic Commander
Manufactured by BCS S.p.A.
Model 660HY WS
Operating Instructions
Before commissioning the machine, read operating instructions
and observe warning and safety instructions.
PLEASE ALSO READ ORIGINAL
BCS INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 660HY WS Hydrostatic Commander and is the answer not in the manual?

Questions and answers

Related Manuals for BCS 660HY WS Hydrostatic Commander

Summary of Contents for BCS 660HY WS Hydrostatic Commander

  • Page 1 BCS 660HY Hydrostatic Commander Manufactured by BCS S.p.A. Model 660HY WS Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions. PLEASE ALSO READ ORIGINAL BCS INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    BCS 660HY Hydrostatic Commander Contents Page 3 Safety Symbols and Warnings Page 5 Safety Page 8 Identification and Stickers/Labels Page 9 Stickers/Labels Page 11 Controls Description Page 13 Pre-Operation Checks Page 14 Attaching Implements Page 15 Making Adjustments Page 16...

  • Page 3: Safety Symbols And Warnings

    BCS 660HY Hydrostatic Commander Safety Symbols and Warnings SAFETY ALERT SYMBOL Engine exhaust fumes can cause This indicates important safety sickness or death. If it is necessary messages. When to run an engine in an enclosed area, this symbol, be aware of the...
  • Page 4 BCS 660HY Hydrostatic Commander Safety Symbols and Warnings Before using the machine it is mandatory to put on the correct personal protective equipment (PPE): body protection, protection gloves, security shoes, and ear protection. DANGER! Machine rollover: don’t use this machine on slopes greater than 30°...

  • Page 5: Safety

    BCS 660HY Hydrostatic Commander Safety Read the user manual carefully Danger! The fuel is highly flammable. before starting up the engine. Do not refuel when the engine is on. following warnings Turn off the engine. Let the muffler cool important for the safety of the down.
  • Page 6 BCS 660HY Hydrostatic Commander Safety Danger! Do not use the machine To avoid the danger of toxic exhausts, when tired. Do not drink alcohol. do not use the engine indoors when turned on. Check the ground before to cut. Fill the fuel tank before starting up the Check for stones, sticks or foreign engine.
  • Page 7 BCS 660HY Hydrostatic Commander Safety The user is always responsible Pay particular attention to persons and for damage caused to third occasional passers-by when working parties. near roads. All improper use will cause Danger! Never work with persons the warranty to expire and the around the machine.

  • Page 8: Identification And Stickers/Labels

    BCS 660HY Hydrostatic Commander Identification and Stickers/Labels An identification label is applied to every machine in accordance with the EC Machinery Directive (figs. 2a & 2c) and is located as per fig. 2b. Brand Manufacturer Model Engine Engine power (kW)

  • Page 9: Stickers/Labels

    BCS 660HY Hydrostatic Commander Stickers/Labels The stickers/labels located on the machine are as follows: Page 9 BCS660HY/0819...
  • Page 10 BCS 660HY Hydrostatic Commander Stickers/Labels 1. CE identification 2. Steering controls 3. Read the user manual 4. Engine on/off 5. Slow/fast speed 6. PTO engagement 7. Throttle control 8. PowerSafe operation ® 9. Raise/lower handlebar 10. Foward/reverse indicator 11. Unlock the parking brake 12.

  • Page 11: Controls Description

    BCS 660HY Hydrostatic Commander Controls Description Figure 1a Wheel speed lever 10. Left steering lever 11. Right steering lever PTO engagement lever Handlebar height adjustment lever 12. Handlebar lateral adjusting lever Parking brake lock lever 13. Hydrostatic transmission control lever Throttle lever 14.
  • Page 12 BCS 660HY Hydrostatic Commander Controls Description Figure 1b 19. Support control rod 28. Quick coupling PTO knob 29. Plug (petrol) 20. Recoil start device 21. Balancing plates 30. Carburetor and drain screw (petrol) 22. Dipstick engine oil level and filling 31.

  • Page 13: Pre-Operation Checks

    BCS 660HY Hydrostatic Commander Pre-Operation Checks Refer to Figures 1a and 1b on pages 11-12 Before switching on the engine: Check if the air intake grills for cooling the engine are clean. Check the engine oil level (fig. 1a, 22) .

  • Page 14: Attaching Implements

    BCS 660HY Hydrostatic Commander Attaching Implements Implements are mounted directly to the machine coupler (fig. 5a, 1) by attaching the coupler (fig. 5b, 3) that is fixed to the implement. The fitting and removal of attachments is achieved by rotating the knob (fig. 5b, 2) .

  • Page 15: Making Adjustments

    BCS 660HY Hydrostatic Commander Making Adjustments The machine is delivered with the correct adjustments, however, if it is necessary to make adjustments, then this should be done via the adjusting screws below or on the handlebar: PowerSafe clutch cable adjustment (fig. 6a, 1).

  • Page 16: Starting The Machine - Petrol Engine

    BCS 660HY Hydrostatic Commander Starting the Machine - Petrol Engine IMPORTANT! Before start-up read the Pre-Operation Figure 7a Checks and the Safety information. Petrol engines 1. Check that the stop lever (fig. 7a, 1) is at the green ON [I] position.

  • Page 17: Starting The Machine - Diesel Engine

    BCS 660HY Hydrostatic Commander Starting the Machine - Diesel Engine IMPORTANT! Before start-up read the Pre-Operation Figure 7f Checks and the Safety information. Diesel engines 1. Check that the stop lever (fig.7f, 7) is at the green ON [I] position.

  • Page 18: Operating Test

    BCS 660HY Hydrostatic Commander Operating Test After starting the engine, check that the levers and controls are all functioning correctly. If you have fitted an implement to the power unit, then read the relavent user manual. For information on how to connect an implement to the power unit see page 14.

  • Page 19: Operation

    BCS 660HY Hydrostatic Commander Operation IMPORTANT! Inspect the area before work to ensure that there are no stones, sticks, pipes for irrigation or foreign objects. When working adjust the speed accordingly based on the work being undertaken. Engage the PTO few feet before entering the work area.
  • Page 20 BCS 660HY Hydrostatic Commander Operation Caution! Do not unlock the automatic brake (figs. 1a & 1b, 4) whilst on the slope. To change the speed from 1st to 2nd and vice-versa, hold the hydro-control lever (fig. 1a, 13) at the minimum speed, never put into neutral.

  • Page 21: After Work

    BCS 660HY Hydrostatic Commander After Work After work, move the clutch lever 8 (fig.9/1a) and disengage the PTO using the lever 2 (fig.9/1a); To stop, move the lever 13 (fig.9/1a) to neutral; Move the throttle lever 5 (fig.9/1a) to the minimum;...

  • Page 22: Maintenance

    BCS 660HY Hydrostatic Commander Maintenance Caution! Do not repair or lubricate when the parts are in movement. Remove the key and disconnect the battery cables prior to commencing any cleaning, maintenance or repair operations. Remove the spark plug cap. Wear suitable clothing and work gloves.

  • Page 23: Service Information

    BCS 660HY Hydrostatic Commander Service Information Changing filter and gearbox oil Discharge the oil from the gearbox via the 3 discharging oil caps (fig. 11, B) . Every Week • With the machine on a level surface, check the gearbox oil level, top up as necessary using the correct oil as listed on the following page.
  • Page 24 BCS 660 = approx 6.5 litres Gearbox Oil, PowerSafe Clutch, and Steering Clutches ® Use multigrade oil such as BCS Power Lube H3 SAE 15W-40 (ACEA A3-08/B3-08, API SL/CF, API EC I, VW 500/505.00). Figure 10 Figure 11 Page 24...

  • Page 25: Service Record

    BCS 660HY Hydrostatic Commander Service Record To ensure your machine is kept in peak condition, we recommend that you have it serviced regularly by one of Tracmaster’s Authorised Agents. To find out who your local Authorised Agent is, contact Tracmaster on 01444 247689.

  • Page 26: Troubleshooting

    BCS 660HY Hydrostatic Commander Troubleshooting PROBLEM POSSIBLE CAUSE REMEDY No fuel flow Check fuel level and if necessary top up. Engine switch is in OFF [0] position Move switch to ON [I] position. Petrol - Apply choke and/or change the Engine will not start spark plug.

  • Page 27: Manufacturer Information

    Tracmaster Ltd is the UK distributor for this model, the BCS 660HY WS. BCS S.p.A. has been at the forefront of developing cutting edge agricultural machinery since its formation in 1943, when their founder developed a self-propelled motor mower. Tracmaster Ltd has been the UK distributor for BCS pedestrian equipment since 1984.
  • Page 28 © Tracmaster Ltd 2019. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
