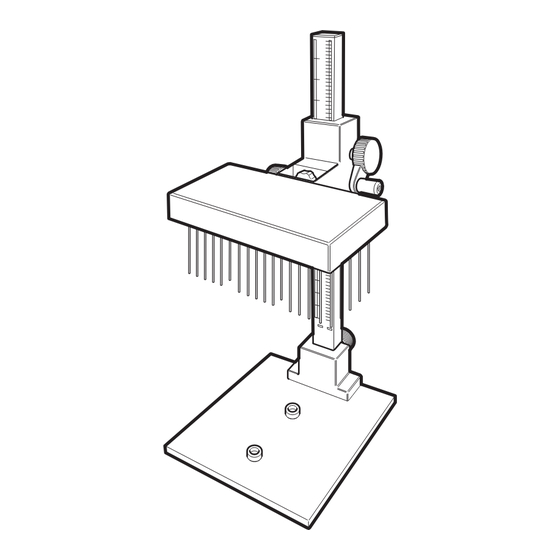

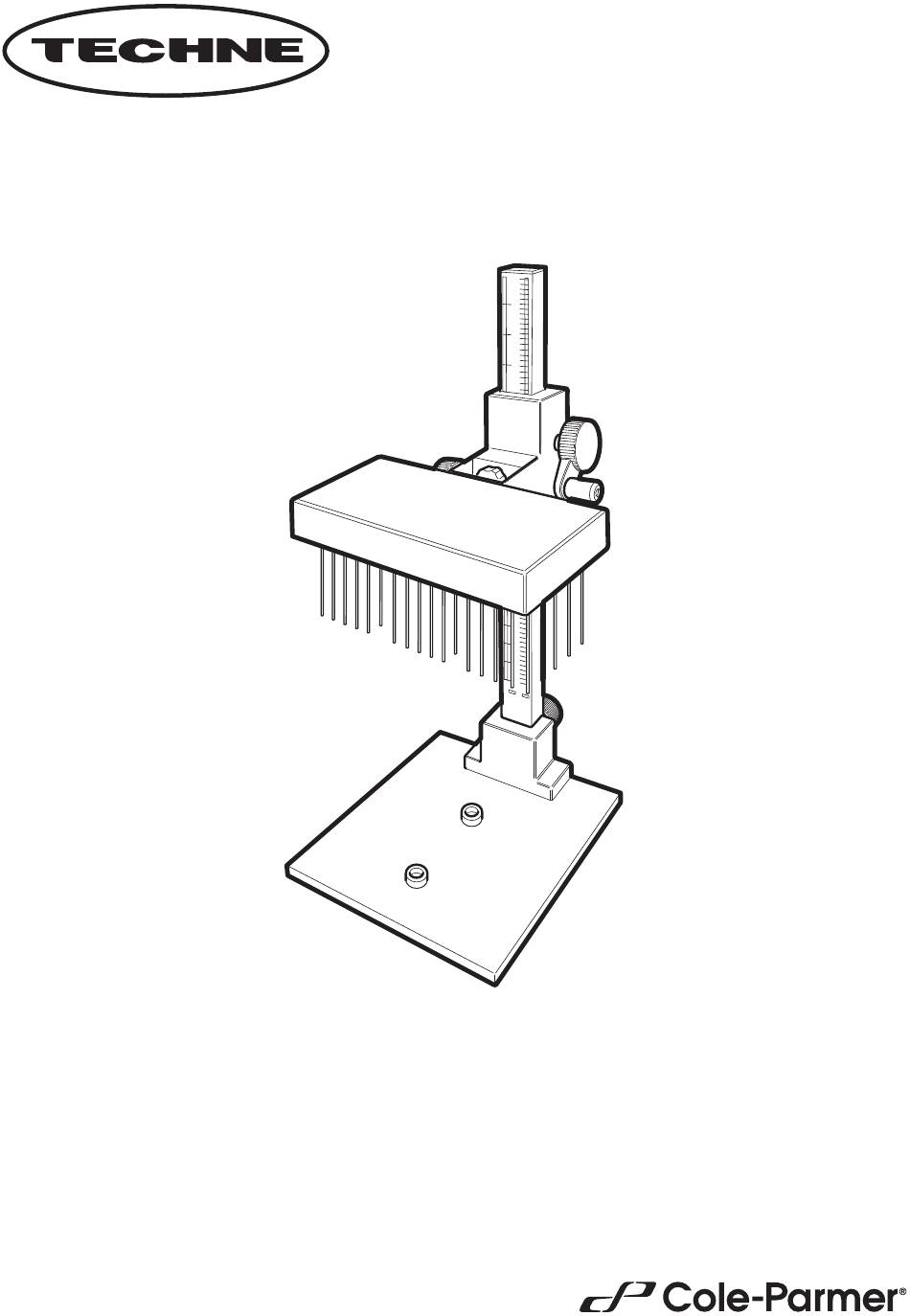

- Page 1 Sample Concentrator FSC400D & FSC496D Instruction Manual TECH0002 / Version 1.0...
-
Page 2: Table Of Contents
Contents Introduction General Description Important Safety Advice Installation Operation Preparation Processing of Samples Maintenance Cleaning and Care Carriage Friction Replacing Sealing Pad In Case of Contamination Service and Repair Warranty Replacement Parts and Accessories Diagram of Gas Chamber Technical Specification Customer and Technical Support Solvent Evaporation Temperatures... -
Page 3: Introduction
Introduction Thank you for purchasing this Techne product. To get the best performance from the equipment, and for your own safety, please read these instructions carefully before use. Before discarding the packaging check that all parts are present and correct. When unpacking the unit, check that the following have been removed from the packing: v Base board v Column and carriage... -
Page 4: Installation
Installation For packing purposes the Sample Concentrator is supplied unassembled in three parts; the base board, the column and carriage, and the gas chamber. The unit is re-assembled as follows: 1. Unscrew the column fastening knob from the column support bracket already fixed to the base board. Locate the column on the two pins in the support bracket. -
Page 5: Operation
Operation Preparation ® 1. Place the aluminium insert blocks to be used into the Dri-Block unit. The blocks should touch each other and be positioned centrally. 2. Loosen the locking knob on the carriage. Remove the gas chamber, disconnecting the gas pipe if necessary, and lay the chamber upside down on a suitable work surface. - Page 6 FSC400D matrix plate FSC496D matrix plate Inserting the Needles...
-
Page 7: Processing Of Samples
Processing of Samples Warning - remember high temperatures are dangerous. The heater, insert blocks, sample vessels, needles and samples may be very hot. Always take the precautions listed earlier in this manual. 1. By turning the carriage handle, on the right hand side, counter clockwise raise the gas chamber to take the needles well away from the heater. -
Page 8: In Case Of Contamination
In Case of Contamination WARNING: THE FOLLOWING PROCEDURE IS INTENDED AS A GUIDE. SHOULD SPILLAGE OF A TOXIC OR HAZARDOUS FLUID OCCUR, THEN ADDITIONAL SPECIAL PRECAUTIONS MAY BE NECESSARY. If the equipment has been exposed to contamination, the Responsible Body is responsible for carrying out appropriate decontamination. -
Page 9: Replacement Parts And Accessories
Replacement Parts and Accessories The following replacement parts and accessories may be obtained from your supplier or from Techne. Part Number Description F7209 Pack of 100 x 76mm long needles F7210 Pack of 100 x 127mm long needles FSC4NCS Pack of PTFE coated needles, 100 x 76mm long FSC4NCL Pack of PTFE coated needles, 100 x 127mm long 6101608... -
Page 10: Technical Specification
Technical Specification Maximum vertical travel 320 mm Maximum gas pressure 2 psi Maximum gas usage 15 litres/min Any inert gas (often nitrogen) ® Needle positions Variable to suit Techne Dri-Blocks Gas intake nozzle diameter 6.35 mm (¼") Height 530 mm Width 240 mm Depth... -
Page 11: Solvent Evaporation Temperatures
Solvent Evaporation Temperatures Boiling point (°C) at Pressure (mbar) at IUPAC Name Common Name 1013 mbar pressure which b.p is 40 °C 2-Propanone Acetone 1-Pentanol Pentyl alcohol Benzene Benzene 1-Butanol Butyl alcohol 2-Methyl-2-propanol Tert-butyl alcohol Chlorobenzene Chlorobenzene Chloroform Trichloromethane Cyclohexane Cyclohexane Ethoxyethane Diethyl ether... - Page 12 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
