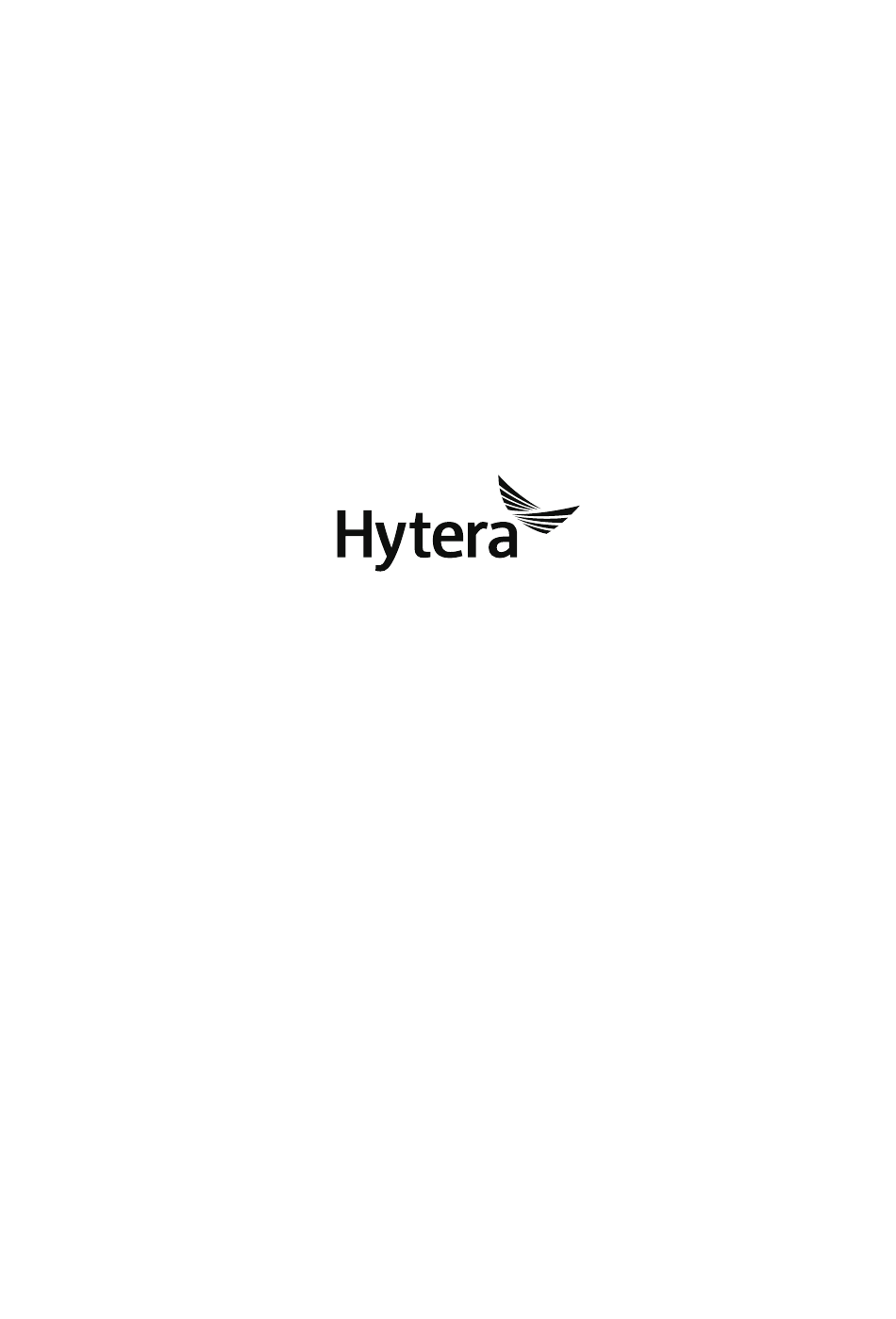

- Page 1 PNC370 PoC Terminal USERMANUAL...
- Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss Safety Information Booklet caused by incorrect operation, please carefully read the before use.
- Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
- Page 4 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: Table Of Contents
Contents Documentation Information ......................1 1. Packing List ..........................3 2. Product Overview ........................4 2.1 Product Layout .................................. 4 2.2 Key Functions ..................................4 3. Installation and Operation ......................5 3.1 Attaching the Battery ............................... 5 3.2 Installing the SIM Card ..............................5 3.3 Charging the Battery ................................ -
Page 6: Documentation Information
Documentation Information Icon Conventions Icon Description Indicates references that can further describe the related topics. Note Indicates situations that could cause data loss or equipment damage. Caution Notation Conventions Item Description Example To save the configuration, click Apply. Denotes menus, tabs, parameter names, Boldface window names, dialogue names, and The Log Level Settings dialogue appears. - Page 7 Key Operations Operation Description Short press Press and release quickly. Long press Press and hold for the preset duration. Press and hold Keep the key pressed.
-
Page 8: Packing List
1. Packing List Please unpack carefully and check that you have received the following items. If any item is missing or damaged, please contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Terminal Data Cable Battery Battery Cover Power Adapter Strap Belt Clip Documentation Kit... -
Page 9: Product Overview

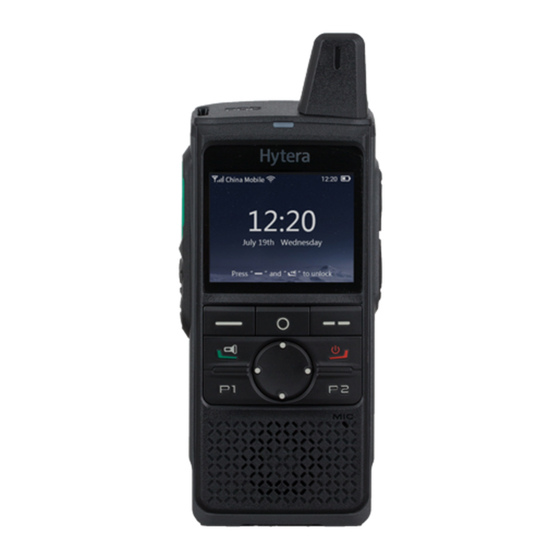

2. Product Overview 2.1 Product Layout 2.2 Key Functions Description OK/Menu key: Press to access a menu. Home key: Press to return to the home menu. Cancel/Back key: Press to return to the upper-level menu. Flashlight key: Press and hold to turn the flashlight on or off. On-Off key When the terminal is off, press and hold to turn it on. -
Page 10: Installation And Operation
3. Installation and Operation 3.1 Attaching the Battery Caution Use the approved battery by the Company to avoid the risk of explosion. Safety Dispose of the used battery in accordance with "Precautions for Disposal" in the Information Booklet Slide the battery latch to the unlock position and remove the battery cover. -
Page 11: Charging The Battery
3.3 Charging the Battery Caution Safety Information Booklet Read the before charging. Use the approved charger to charge the battery. Use the approved external power supply (Ten Pao Industrial Co., Ltd., model: S010WU0500200, Input: 100-240 Va.c., 50/60 Hz, 0,4 A, Output: 5,0 Vd.c., 2000 mA). ... -
Page 12: Attaching The Audio Accessory
choose one of the listed networks. If a password is required, connect the terminal to the PC, and then install the PNC370 WLAN Hotspot Editing Tools and the ADB drive to configure the WLAN network. Contact your dealer to obtain the installation package of the PNC370 WLAN Hotspot Editing... -
Page 13: Status Indication
4. Status Indication 4.1 Checking LCD Indications Icon Terminal Status The battery is fully charged. The battery is nearly dead. The number of bars indicates the signal strength of the cellular network. The number of bars indicates the signal strength of the WLAN network. No SIM-card is detected. -
Page 14: Settings And Functions
5. Settings and Functions 5.1 Basic Settings You can access the setting interface by tapping to perform the following operations: If you want to... Then... Set the language Select Language, and then select the language. Adjust the brightness Go to Display > Brightness level, and then select the brightness level. of the backlight Set the backlight Go to Display >... -
Page 15: System Upgrade
5.2 System Upgrade Before upgrading, ensure the battery power is more than 30%. Power outage during upgrade may cause upgrade failure. Insufficient storage may cause upgrade failure. When a new version becomes available, a red dot appears in the upper right of the System Upgrade icon . -
Page 16: Application Management
5.3 Application Management To install an application locally, transfer the APK file to the terminal using the computer, and then access File Manager to select the file to install. To uninstall an application, go to Setting > Apps > Download, select the required application, and ... -
Page 17: Poc Service
5.4 PoC Service Push-to-talk over Cellular (PoC) provides direct one-to-one and one-to-many voice communication services over the cellular network. This service is available only when you have installed the PoC application on the terminal. You can access the PoC menu to initiate a call. 1. -
Page 18: Troubleshooting
6. Troubleshooting Phenomena Analysis Solution The battery may be installed Remove and reattach the battery. improperly. The terminal The battery power may run out. Recharge or replace the battery. cannot be turned The battery may suffer from poor Clean the battery contacts or replace the contact caused by dirty or damaged battery. - Page 19 Phenomena Analysis Solution The communication signal strength Make sure the terminal is within the may be weak. network coverage. Both the cellular network and WLAN are turned on, but the WLAN Turn the WLAN off. connection is unstable. The communication signal strength Make sure the terminal is within the During receiving, may be weak.
-
Page 20: Care And Cleaning
7. Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow these tips. 7.1 Product Care Do not pierce or scrape the product. Keep the product far away from substances that can corrode the circuitry. ... -
Page 21: Optional Accessories
8. Optional Accessories Contact your local dealer for the optional accessories used with the product. Caution Use the approved accessories only; otherwise, we will not be liable for any loss or damage arising out of the use of any unauthorized accessories. - Page 22 201 yteraCommunicationsCorporationLimited.AllRightsReserved. Address:HyteraTower,Hi-TechIndustrialParkNorth,9108#BeihuanRoad,NanshanDistrict, Shenzhen,People'sRepublicofChina Postcode:518057 http://www.hytera.com...
