  • Page 1 Instruction Manual HI2209 • HI22091 Bench pH Meters www.hannainst.com...
  • Page 2 Dear Customer, Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before using these instruments. This manual will provide you with the necessary information for the correct use of these instruments, as well as a precise idea of their versatility.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRELIMINARY EXAMINATION ............4 GENERAL DESCRIPTION ..............4 FUNCTIONAL DESCRIPTION ............5 SPECIFICATIONS ................6 OPERATIONAL GUIDE ..............6 pH CALIBRATION ................. 8 pH BUFFER TEMPERATURE DEPENDENCE ........1 1 ELECTRODE CONDITIONING AND MAINTENANCE ......1 2 TEMPERATURE CORRELATION FOR pH SENSITIVE GLASS ....

  • Page 4: Preliminary Examination

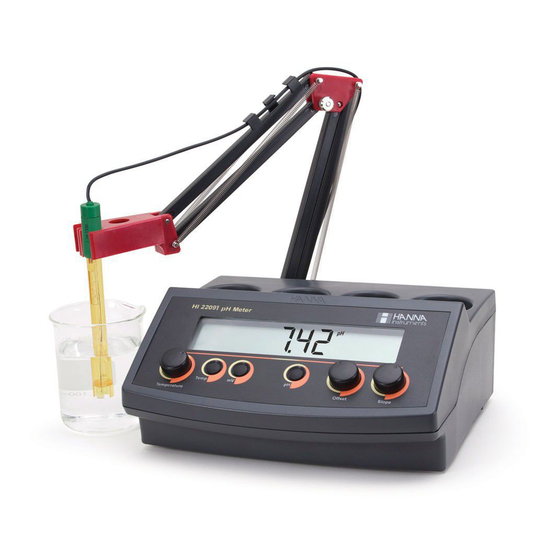

    All defective items must be returned in the original packing with the supplied accessories. GENERAL DESCRIPTION HI2209 bench pH meter is designed for simplicity of use. It features a large easy-to-read liquid crystal display (LCD) and user friendly keyboard.

  • Page 5: Functional Description

    FUNCTIONAL DESCRIPTION Front Panel Rear Panel 1) Liquid Crystal Display (LCD) 2) Temperature setting knob 3) °C range selection key 4) mV range selection key 5) pH range selection key 6) pH offset adjustment knob 7) pH slope adjustment knob 8) Sample holders 9) Analog output connectors (HI22091 only) 10) BNC electrode connector...

  • Page 6: Specifications

    SPECIFICATIONS 0.00 to 14.00 pH RANGE ±1999 mV 0.01 pH RESOLUTION 1 mV ±0.01 pH ACCURACY @ 25 °C ±1 mV pH Calibration Manual, 2 point, through knobs Temperature Manual from 0 to 100 °C Compensation (32 to 212 °F) HI1332B plastic body, double junction, pH Electrode refillable, with BNC and...
  • Page 7 Note: To prevent damage to the electrode, remove the pH elec- trode from the solution before turning the meter off. If the meter is OFF, detach the electrode from the meter before immersing the electrode in the storage solution. TAKING pH MEASUREMENTS Make sure that the instrument has been calibrated for pH before taking pH measurements.

  • Page 8: Ph Calibration

    TAKING ORP MEASUREMENTS HI2209 and HI22091 have the capability to take ORP measurements, using an ORP electrode. Hanna Instruments offers a variety of ORP electrodes for this purpose (see accessories). Contact your local Hanna Instruments Office for more information. • Connect the ORP electrode to the meter and submerge the tip (4 cm / 1½") into the sample...
  • Page 9 If you are measuring in the acid range, use pH4.01 as second buffer; if you are measuring in the alkaline range, use pH10.01 as second buffer. For accurate calibration, use two beakers for each buffer solution; the first for rinsing the electrode, the second for calibration. In this way, contamination of the buffer is minimized.
  • Page 10 • Wait a couple of minutes and adjust the Offset knob until display shows the pH value at the noted temperature (see the pH versus temperature chart). • Rinse and immerse the pH electrode in pH4.01 / pH10.01 buffer and shake briefly. •...

  • Page 11: Ph Buffer Temperature Dependence

    pH BUFFER TEMPERATURE DEPENDENCE Temperature has an effect on pH. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions. For manual temperature calibration please refer to the following chart. TEMP pH BUFFERS °C °F 4.01 6.86...

  • Page 12: Electrode Conditioning And Maintenance

    ELECTRODE CONDITIONING AND MAINTENANCE Note: To prevent damage to the electrode, remove the pH elec- trode from the solution before turning the meter off. If the meter is OFF, detach the electrode from the meter before immersing the electrode in the storage solution. PREPARATION PROCEDURE Remove the protective cap.
  • Page 13 For refillable electrodes: If the fill solution (electrolyte) is more than 2½ cm (1") below the fill hole, add HI7082 3.5M KCl electrolyte solution for double junction or HI7071 3.5M KCl+AgCl electrolyte solution for single junction electrodes. For a faster response, unscrew the fill hole screw during measurements.
  • Page 14 1 hour. • Drifting: soak the electrode tip in warm (approx. 50-60 °C) Hanna Instruments HI7082 solution for one hour and rinse the tip with distilled water. Refill with fresh HI7071 for single junction electrodes and HI7082 for double junction electrodes (refillable electrodes only).
  • Page 15 TEMPERATURE CORRELATION FOR pH SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance. It takes longer time for the reading to stabilize if the resistance is higher. In addition, the response time will suffer to a greater degree at temperatures below 10 °C.

  • Page 16: Accessories

    ACCESSORIES pH CALIBRATION SOLUTIONS HI70004P pH4.01 buffer solution, 20 mL sachet, 25 pcs. HI70007P pH7.01 buffer solution, 20 mL sachet, 25 pcs. HI70010P pH10.01 buffer solution, 20 mL sachet, 25 pcs. HI7004L pH4.01 buffer solution, 500 mL HI7006L pH6.86 buffer solution, 500 mL HI7007L pH7.01 buffer solution, 500 mL HI7009L...
  • Page 17 pH ELECTRODES All electrodes part numbers ending in B are supplied with a BNC connector and 1 m (3.3') cable. HI1043B Glass-body, double junction, refillable, combination pH electrode. Use: strong acid/alkali. HI1053B Glass-body, triple ceramic, conic shape, refillable, combination pH electrode.
  • Page 18 HI1331B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: flasks. HI1230B Plastic-body (Ultem ), double junction, gel-filled, combination pH ® electrode. Use: general, field. HI2031B Glass-body, semimicro, conic, refillable, combination pH electrode. Use: semisolid products. HI1332B Plastic-body (Ultem ), double junction, refillable, combination pH ®...
  • Page 19 FC210B Glass-body, double junction, conic, Viscolene, non-refillable, combina- tion pH electrode. Use: milk, yogurt. FC220B Glass-body, triple-ceramic, single junction, refillable, combination pH electrode. Use: food processing. FC911B Plastic-body (PVDF), double junction, refillable with built-in amplifier, combination pH electrode. Use: very high humidity. HI1413B Glass-body, single junction, flat tip, Viscolene, non-refillable, combi- nation pH electrode.
  • Page 20 HI4430B Plastic-body (PES), gel-filled, combination gold ORP electrode. Use: general purpose. EXTENSION CABLES FOR SCREW-TYPE ELECTRODES (SCREW TO BNC ADAPTER) HI7855/1 Extension cable 1m (3.3') long HI7855/3 Extension cable 3m (9.9') long HI7855/5 Extension cable 5m (16.5') long HI7855/10 Extension cable 10m (33') long HI7855/15 Extension cable 15m (49.5') long OTHER ACCESSORIES...

  • Page 21: Electrode Application Reference Guide

    ELECTRODE APPLICATION REFERENCE GUIDE Application Electrodes 1. Aquarium HI1332B, HI1911B 2. Bath-water HI1910B, HI1130B 3. Beer HI1131B 4. Bread HI2031B, FC200B 5. Cheese FC200B 6. Dairy products FC911B, FC100B 7. Dirty water HI1910B, HI1912B 8. Emulsions HI1053B 9. Environment HI1230B 10.
  • Page 22 Application Electrodes 29. Sausages FC200B, HI2031B 30. Semisolid products HI2031B 31. Skin HI1413B 32. Soil samples HI1230B 33. Solvents HI1043B 34. Strong acid HI1043B 35. Submersion application HI1130B 36. Surface measurements HI1413B HI1130B, HI2114B, 37. Swimming pool HI2910B 38. Titrations with constant HI1131B temperature range 39.
  • Page 23 For yours and the meter's safety do not use or store the meter in hazardous environments. WARRANTY HI2209 and HI22091 are guaranteed for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months.
  • Page 24 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Phone: 800.426.6287 Fax: 401.765.7575 e-mail: tech@hannainst.com MAN2209 09/18...
