  • Page 1 Instruction Manual HI 2212 HI 2213 pH/mV/°C Bench Meters with Custom Buffers w w w. h a n n a i n s t . c o m sale@ponpe.com www.ponpe.com...

  • Page 2: Table Of Contents

    W A R R A N T Y W A R R A N T Y HI 2212, HI 2213 are guaranteed for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months.

  • Page 3: Preliminary Examination

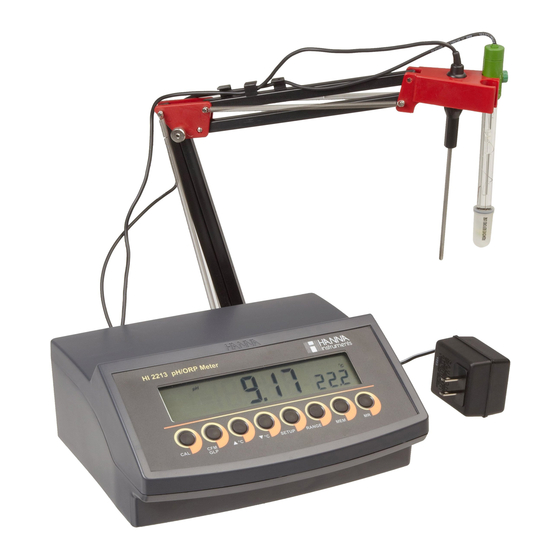

    GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION The HANNA HI 2212 and HI 2213 are microprocessor based pH and temperature bench meters. HI 2213 can also measure Oxidation Reduction Potential (ORP) in mV range. Relative mV feature is also provided.

  • Page 4: Functional Description Hi 2212 And Hi 2213

    (HI 2213 only). key, to toggle between the buffer value and temperature during calibration or to change the focused data in setup (HI 2212 only). 8) MEM key, to store a value into memory. 9) MR key, memory recall.

  • Page 5: Hi 2212 And Hi 2213 Specifications

    HI 2212 AND HI 2213 HI 2212 AND HI 2213 HI 2212 AND HI 2213 HI 2212 AND HI 2213 HI 2212 AND HI 2213 SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS – y l n ± ± – C º 4 - ( ) F °...

  • Page 6: Operational Guide

    OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE POWER CONNECTION Plug the 12 VDC adapter into the power supply socket. Notes: • These instruments use non volatile memory to retain the pH, mV, temperature calibrations and all other settings, even when unplugged.
  • Page 7 If measurements are taken successively in different samples, it is recommended to rinse the electrode thoroughly with deionized water or tap water and then with some of the next sample to prevent cross-contamination. The pH reading is affected by temperature. In order to measure the pH accurately, the temperature effect must be compensated for.
  • Page 8 RELATIVE mV MEASUREMENTS (HI 2213) • Press RANGE until “rEL” message will be displayed on the secondary LCD line for one second and “mV” tag will blink. After one second the temperature will be displayed on the secondary LCD. The reading displayed by the instrument is equal to the difference between the current mV input value and relative mV offset established in the relative mV calibration.

  • Page 9: Ph Calibration

    p p p p p H CALIBRATION H CALIBRATION H CALIBRATION H CALIBRATION H CALIBRATION Calibrate the instrument frequently, especially if high accuracy is required. The instrument should be recalibrated: • Whenever the pH electrode is replaced. • At least once a week. •...
  • Page 10 THREE-POINT CALIBRATION • Submerse the pH electrode and the temperature probe approximately 3 cm (1¼”) into a buffer solution and stir gently. The temperature probe 3 cm should be close to the pH electrode. (1¼") • Press CAL. The “CAL” and “ ”...
  • Page 11 • The “ ” tag will blink on the LCD until the reading is stable. • When the reading is stable and close to the selected buffer, the “READY” tag will be displayed and the “CFM” tag will blink. • Press CFM to confirm calibration. •...
  • Page 12 “CLr ALL” message is displayed for a few seconds then the instrument returns to measurement. • Press RANGE ( for HI 2212) to toggle between pH buffer and temperature reading. • Each time a buffer is confirmed, the new calibration data replaces the old calibration data of the corresponding buffer.

  • Page 13: Ph Buffer Temperature Dependence

    p p p p p H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E...

  • Page 14: Good Laboratory Practice (Glp)

    GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows storage and retrieval of data regarding the maintenance and status of the electrode. All data regarding the last calibration (one, two, or three point) is stored for the user to review when necessary.
  • Page 15 • The pH calibration buffers in calibrating order. The first pH calibration buffer: The second pH calibration buffer: The third pH calibration buffer: Notes:• The “OLd” message displayed beside the pH value means that this buffer was not used during last calibration. Press and hold down SETUP if you want to see calibration date (or time, if old calibration was performed on the same day as the current calibration).
  • Page 16 - or the number of days until the calibration alarm will be displayed - or if expired (7 days ago) Notes: • Press GLP to return to measurement mode. • If calibration has not been performed, the instrument displays “no CAL”. sale@ponpe.com www.ponpe.com...

  • Page 17: Setup

    Press CAL if you want to change a parameter value. The selected parameter will start blinking. Press RANGE ( for HI 2212) to toggle between displayed parameters. Press the ARROW keys to increase or decrease the displayed value. Press CFM to save the modified value or CAL to escape.
  • Page 18 Press CAL when the current time is displayed. The hour and “CFM” will start blinking. Press the ARROW keys to change the hour. Press RANGE (HI 2213) or (HI 2212). The minutes and “CFM” will start blinking. Press the ARROW keys to change the minutes. Press CFM to save the modified value.
  • Page 19 (HI 2212). The month and “CFM” will start blinking. Press the ARROW keys to change the month. Press RANGE (HI 2213) or (HI 2212). The day and “CFM” will start blinking. Press the ARROW keys to change the day. Press CFM to save the modified value.

  • Page 20: Temperature Calibration (For Technical Personnel Only)

    TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION ( ( ( ( ( f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y...
  • Page 21 • Use the ARROW keys to set the reading on the secondary LCD to that of the hot water. • When the reading is stable and close to the selected calibration point, “READY” tag will appear and “CFM” tag will blink. •...

  • Page 22: Mv Calibration (For Technical Personnel Only)

    m m m m m V CALIBRATION V CALIBRATION V CALIBRATION V CALIBRATION V CALIBRATION ( ( ( ( ( f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y f o r t e c h n i c a l p e r s o n n e l o n l y...

  • Page 23: Relative Mv Calibration (Hi 2213)

    RELATIVE RELATIVE RELATIVE RELATIVE RELATIVE m m m m m V CALIBRATION (HI 2213) V CALIBRATION (HI 2213) V CALIBRATION (HI 2213) V CALIBRATION (HI 2213) V CALIBRATION (HI 2213) • Press CAL when the instrument is in RELATIVE mV measurement mode.

  • Page 24: Electrode Conditioning & Maintenance

    E L E C T R O D E C O N D I T I O N I N G E L E C T R O D E C O N D I T I O N I N G E L E C T R O D E C O N D I T I O N I N G E L E C T R O D E C O N D I T I O N I N G E L E C T R O D E C O N D I T I O N I N G...
  • Page 25 For refillable electrodes: If the filling solution (electrolyte) is more than 2½ cm (1”) below the fill hole, add HI 7082 or HI 8082 3.5M KCl Electrolyte Solution for double junction or HI 7071 or HI 8071 3.5M KCl+AgCl Electrolyte Solution for single junction electrodes.
  • Page 26 CLEANING PROCEDURE • General Soak in Hanna HI 7061 or HI 8061 General Cleaning Solution for approximately ½ hour. • Protein Soak in Hanna HI 7073 or HI 8073 Protein Cleaning Solution for 15 minutes. • Inorganic Soak in Hanna HI 7074 Inorganic Cleaning Solution for 15 minutes.

  • Page 27: Troubleshooting Guide

    T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E...

  • Page 28: Temperature Correlation For Ph Sensitive Glass

    TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION FOR p p p p p H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance.

  • Page 29: Accessories

    A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S pH BUFFER SOLUTIONS HI 70004P pH 4.01 Buffer Sachets, 20 mL, 25 pcs...
  • Page 30 ORP PRETREATMENT SOLUTIONS HI 7091L Reducing Pretreatment Solution, 500 mL HI 7092L Oxidizing Pretreatment Solution, 500 mL pH ELECTRODES All electrodes part numbers ending in B are supplied with a BNC connector and 1 m (3.3') cable, as shown below : HI 1043B Glass-body, double junction, refillable, combination pH electrode.
  • Page 31 HI 1330B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: laboratory, vials. HI 1331B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: flasks. HI 1230B Plastic-body (PES), double junction, gel-filled, combination pH electrode. Use: general, field. HI 2031B Glass-body, semimicro, conic, refillable, combination pH electrode.
  • Page 32 FC 100B Plastic-body (PVDF), double junction, refillable, combination pH electrode. Use: general purpose for food industry. FC 200B Plastic-body (PVDF), open junction, conic, Viscolene, non-refillable, combination pH electrode. Use: meat & cheese. FC 210B Glass-body, double junction, conic, Viscolene, non-refillable, combination pH electrode.
  • Page 33 HI 1413B Glass-body, single junction, flat tip, Viscolene, non-refillable, combination pH electrode. Use: surface measurement. ORP ELECTRODES HI 3131B Glass-body, refillable, combination platinum ORP electrode. Use: titration. HI 3230B Plastic-body (PES), gel-filled, combination platinum ORP electrode. Use: general purpose. HI 4430B Plastic-body (PES), gel-filled, combination gold ORP electrode.
  • Page 34 EXTENSION CABLE FOR SCREW-TYPE ELECTRODES (SCREW TO BNC ADAPTER) HI 7855/1 Extension cable 1 m (3.3') long HI 7855/3 Extension cable 3 m (9.9') long OTHER ACCESSORIES HI 710005 Voltage adapter from 115 VAC to 12 VDC (USA plug) HI 710006 Voltage adapter from 230 VAC to 12 VDC (European plug) HI 710012...
  • Page 35 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in microwave ovens. Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice. sale@ponpe.com...
  • Page 36 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE (ROMANIA) MAN2213 09/10 sale@ponpe.com...
