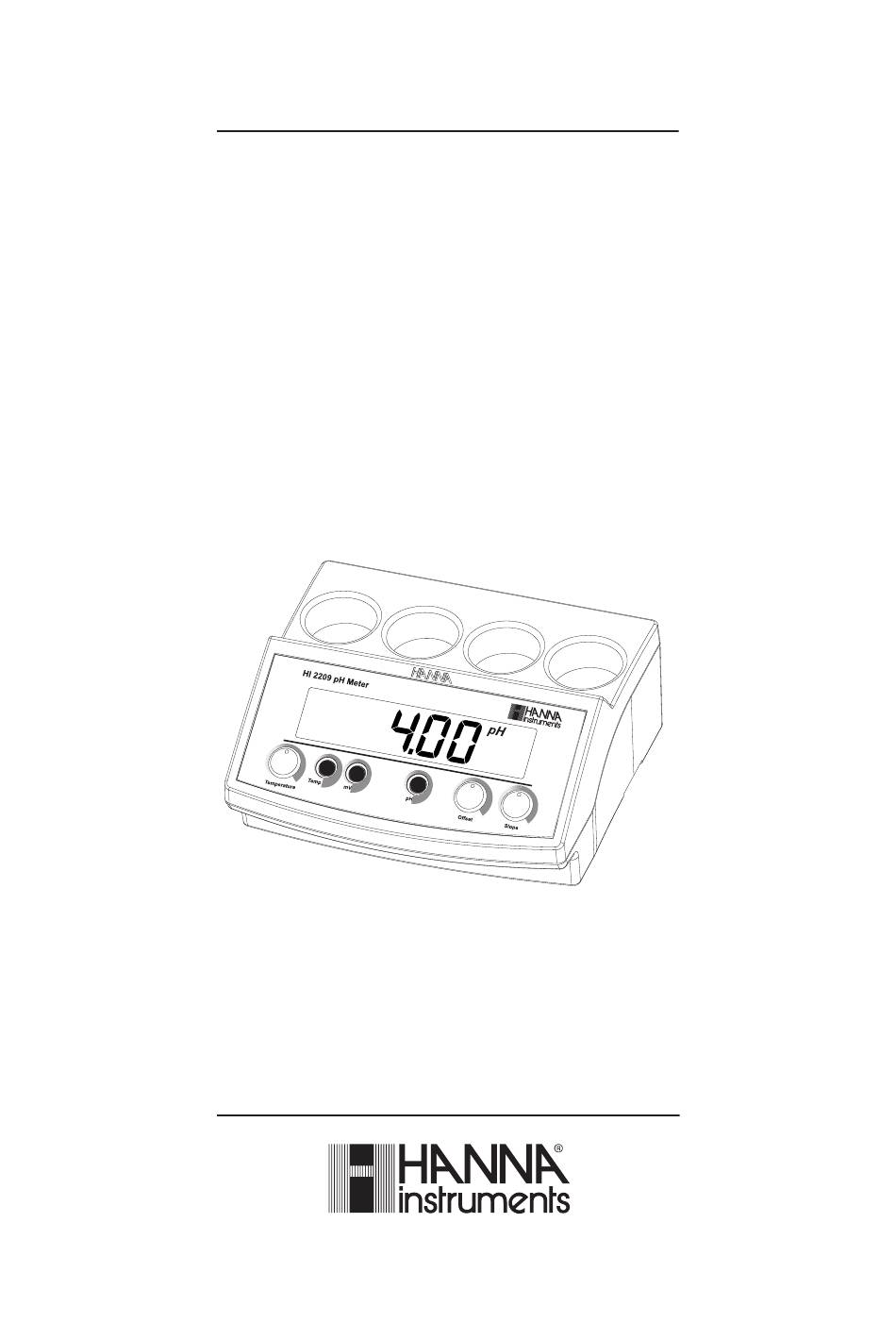

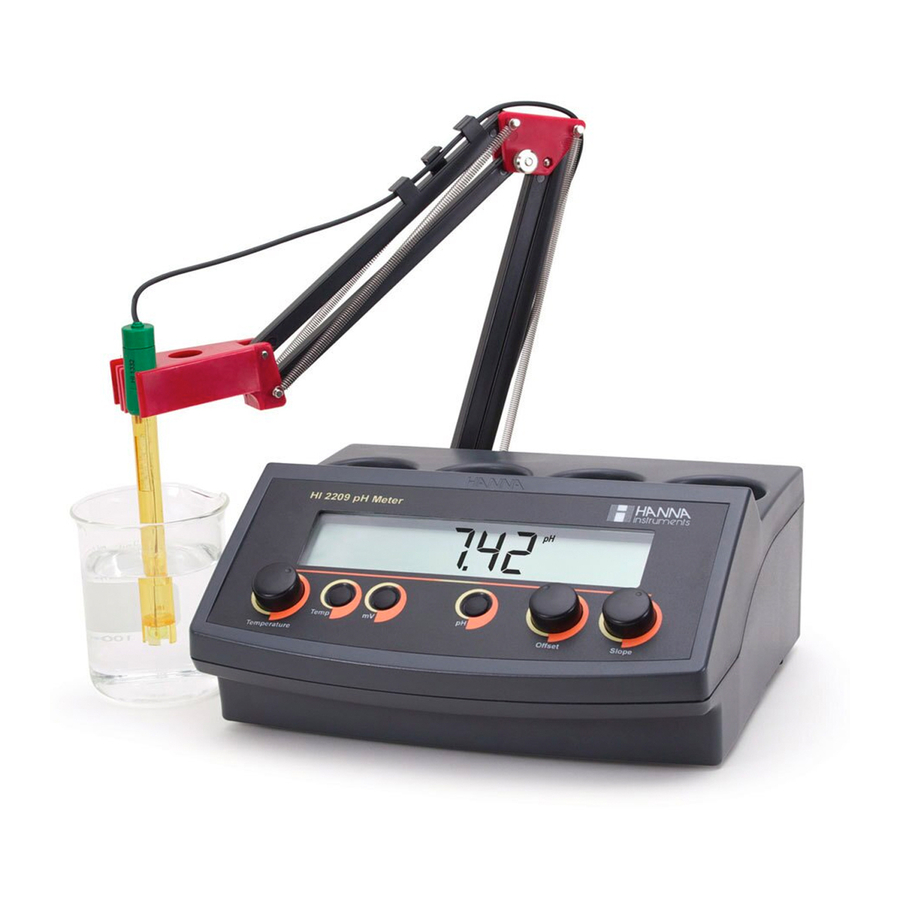

Instruction Manual
HI 2209 • HI 22091
Bench pH Meters
w w w. h a n n a i n s t . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 2209 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments HI 2209

Summary of Contents for Hanna Instruments HI 2209

  • Page 1 Instruction Manual HI 2209 • HI 22091 Bench pH Meters w w w. h a n n a i n s t . c o m...

  • Page 2: Table Of Contents

    WARRANTY HI 2209 and HI 22091 are guaranteed for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months.

  • Page 3: Preliminary Examination

    GENERAL DESCRIPTION HI 2209 bench pH meter is designed for simplicity of use. It features a large easy-to-read liquid crystal display (LCD) and user friendly keyboard. The pH calibration is made simple through the easy-to-operate front panel knobs for offset and slope adjustment.

  • Page 4: Functional Description

    FUNCTIONAL DESCRIPTION Front Panel Rear Panel 1) Liquid Crystal Display (LCD) 2) Temperature setting knob 3) °C range selection key 4) mV range selection key 5) pH range selection key 6) pH offset adjustment knob 7) pH slope adjustment knob 8) Sample holders 9) Analog output connectors (HI 22091 only) 10) BNC electrode connector...

  • Page 5: Specifications

    SPECIFICATIONS 0 0 . 0 0 . ± 1 0 . T U L N O I ± 1 0 . C C A Y C A C ° 5 ± l a C a r b i n o i t a u n 2 , l , t n i...

  • Page 6: Operational Guide

    OPERATIONAL GUIDE POWER CONNECTION Plug the supplied 12 Vdc adapter into the power supply socket (#12 on page 4). Note: Make sure the mains line is protected by a fuse. ELECTRODE CONNECTION For combination pH or ORP electrodes (with internal reference) connect the electrode's BNC to the socket provided (#10 on page 4).
  • Page 7 For the rinsing process, it is recommended to use a liberal amount of the next solution to be measured. TAKING ORP MEASUREMENTS HI 2209 and HI 22091 have the capability to take ORP measurements, using an ORP electrode. Hanna Instruments offers a variety of ORP electrodes for this purpose (see accessories).

  • Page 8: Ph Calibration

    pH CALIBRATION IMPORTANT The instrument's pH range should be re-calibrated: • When the meter is new. • Whenever the pH electrode is replaced. • At least once a month. • After use in aggressive chemicals. • After cleaning procedure and changing the reference electrolyte. •...
  • Page 9 • Rinse and immerse the pH electrode into pH 7.01 buffer and shake briefly. Wait for the reading to stabilize. • Note the temperature of the buffer solution using a ChecktempC or a glass thermometer (e.g. 20°C). • Press and hold the Temp key to select temperature setting.

  • Page 10: Ph Buffer Temperature Dependence

    pH BUFFER TEMPERATURE DEPENDENCE Temperature has an effect on pH. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions. For manual temperature calibration please refer to the following chart. º F º For instance, if the buffer temperature is 25°C, the display should show pH 4.01, 7.01 or 10.01 at pH 4, 7 or 10 buffers, respectively.

  • Page 11: Electrode Conditioning And Maintenance

    ELECTRODE CONDITIONING AND MAINTENANCE Note: To prevent damage to the electrode, remove the pH electrode from the solution before turning the meter off. If the meter is OFF, detach the electrode from the meter before immersing the electrode in the storage solution. Reference Filling Hole Reference...
  • Page 12 For refillable electrodes: If the fill solution (electrolyte) is more than 2½ cm (1") below the fill hole, add HI 7082 3.5M KCl electrolyte solution for double junction or HI 7071 3.5M KCl+AgCl electrolyte solution for single junction electrodes. For a faster response, unscrew the fill hole screw during measurements. For AmpHel ®...
  • Page 13 CLEANING PROCEDURE General Soak in HI 7061 general cleaning solution for approximately 30 minutes. Removal of films, dirt or deposits on the membrane/junction: - Protein Soak in HI 7073 protein cleaning solution for 15 min. - Inorganic Soak in HI 7074 inorganic cleaning solution for 15 minutes.

  • Page 14: Temperature Correlation For Ph Sensitive Glass

    TEMPERATURE CORRELATION FOR pH SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance. It takes longer time for the reading to stabilize if the resistance is higher. In addition, the response time will suffer to a greater degree at temperatures below 10°C.

  • Page 15: Accessories

    ACCESSORIES pH CALIBRATION SOLUTIONS HI 70004P pH 4.01 buffer solution, 20 mL sachet, 25 pcs HI 70007P pH 7.01 buffer solution, 20 mL sachet, 25 pcs HI 70010P pH 10.01 buffer solution, 20 mL sachet, 25 pcs HI 7004L pH 4.01 buffer solution, 500 mL HI 7006L pH 6.86 buffer solution, 500 mL HI 7007L pH 7.01 buffer solution, 500 mL HI 7009L pH 9.18 buffer solution, 500 mL...
  • Page 16 ORP PRETREATMENT SOLUTIONS HI 7091L Reducing pretreatment solution, 500 mL HI 7092L Oxidizing pretreatment solution, 500 mL pH ELECTRODES All electrodes part numbers ending in B are supplied with a BNC connector and 1 m (3.3') cable. HI 1043B Glass-body, double junction, refillable, combination pH electrode. Use: strong acid/alkali.
  • Page 17 HI 1330B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: laboratory, vials. 5mm DIA 0.2" 0.2" HI 1330 120 mm 4.7" "S" VERSION HI 1331B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: flasks. 8 mm 7.5mm DIA 0.3"...
  • Page 18 FC 100B Plastic-body (PVDF), double junction, refillable, combination pH electrode. Use: general purpose for food industry. 12 mm 0.5" FC 100 120 mm 4.7" FC 200B Plastic-body (PVDF), open junction, conic, Viscolene, non-refillable, combination pH electrode. Use: meat & cheese. 6 mm 0.25"...
  • Page 19 HI 1413B Glass-body, single junction, flat tip, Viscolene, non-refillable, combination pH electrode. Use: surface measurement. 12 mm 0.5" HI 1413 110 mm 4.3" ORP ELECTRODES HI 3131B Glass-body, refillable, combination platinum ORP electrode. Use: titration. 12 mm 0.5" HI 3131 150 mm 5.9"...
  • Page 20 EXTENSION CABLES FOR SCREW-TYPE ELECTRODES (SCREW TO BNC ADAPTER) HI 7855/1 Extension cable 1m (3.3') long HI 7855/3 Extension cable 3m (9.9') long HI 7855/5 Extension cable 5m (16.5') long HI 7855/10 Extension cable 10m (33') long HI 7855 SERIES CABLE CONNECTORS CONNECTOR AND 3.0 mm (0.12") CABLE WITH BNC CONNECT TO THE CONNECT TO...

  • Page 21: Electrode Application Reference Guide

    ELECTRODE APPLICATION REFERENCE GUIDE i l p t a c n o i e l E r t c i r a - h t r e t , B 1 e s e y r i s t c , B 1 y t r r e t...
  • Page 22 c i l i t a r t c e c i o r c i l p k l i t r u s l a y t i l o r o s i d i l s t c l i o s e l o r t...
  • Page 23 To avoid damage or burns, do not perform any measurement in microwave ovens. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
  • Page 24 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office MAN2209 07/14 Printed in ROMANIA...
